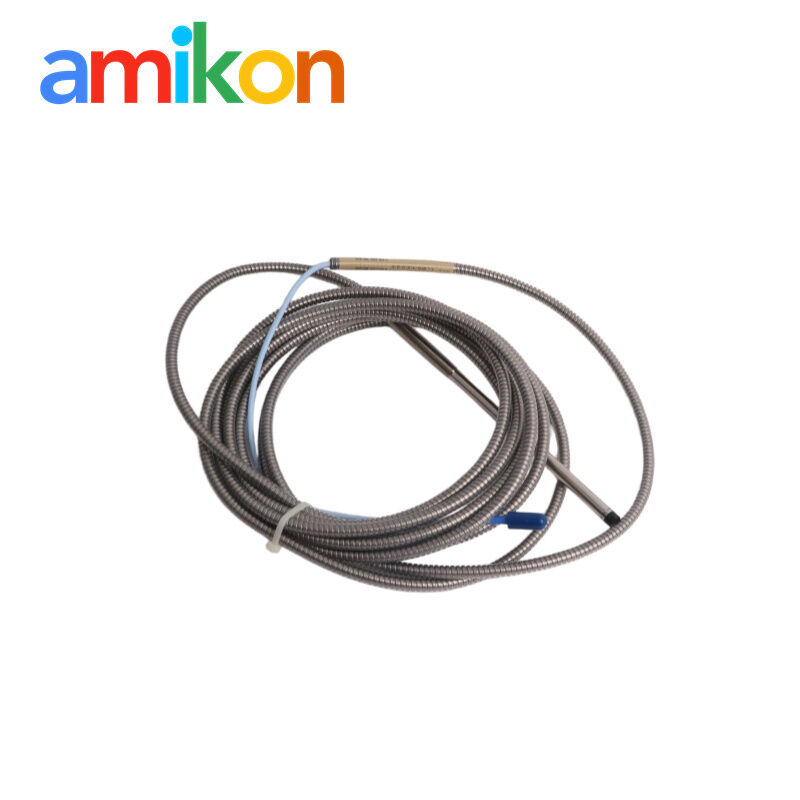

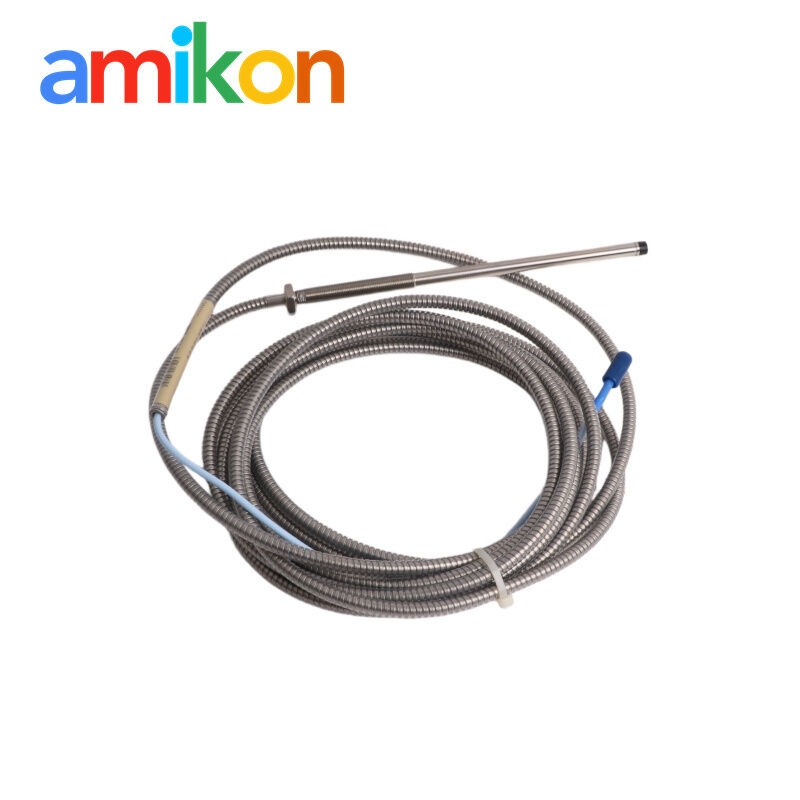

Bently Nevada 330104-13-20-50-02-00 Armored 3300 XL 8 mm Metric Proximity Probe
A long-case M10 × 1 configuration for continuous non-contact vibration and position measurement on critical rotating machinery.
How 330104-13-20-50-02-00 is built
330104 — 3300 XL 8 mm metric probe, M10 × 1 thread, with armor
13 / 20 — 130 mm unthreaded length / 200 mm overall case length
50 — 5.0 m (16.4 ft) total probe cable length
02 / 00 — standard ClickLoc cable without protector / no agency approval option
Extended reach, protected lead
The 200 mm threaded case and 130 mm unthreaded section help position the 8 mm sensing tip through deeper brackets or bearing-housing geometry. Stainless-steel armor adds mechanical protection along the integral 5 m lead.
Ordering code interpreted from official Datasheet 141194 Rev. AM.
Official-reference performance data
| Probe tip | 8.0 mm (0.31 in) |
| Thread / engagement | M10 × 1 / maximum 15 mm engagement |
| Cable construction | 75 Ω standard cable; FEP-jacketed stainless-steel armor |
| Armor / ferrule diameter | 7.67 mm OD / 9.5 mm maximum armor ferrule |
| System linear range | 2 mm (80 mils), approximately 0.25–2.3 mm from target |
| Scale factor | 7.87 V/mm (200 mV/mil) ±5% for standard 5 m systems |
| Suggested radial gap | About 1.27 mm (50 mils), approximately −9 Vdc |
| Standard probe temperature | −52°C to +177°C |
Radial system geometry
SENSING TIP
Places the sensing tip through deeper bracket geometry.
M10 × 1 threaded body; maximum engagement is 15 mm.
Integral armored lead for a matching 5 m 3300 XL system.
Standard cable and miniature coaxial connector without protector.
Original radial interpretation of the option dimensions and standard-mount geometry in official Datasheet 141194 Rev. AM.
What the probe does
The probe is the sensing end of a 3300 XL 8 mm eddy-current proximity system. It detects changes in distance to a conductive shaft without touching it, supporting continuous machinery protection and condition monitoring.
Where it earns its place
Radial shaft vibration, axial position, Keyphasor phase reference and speed-related measurements on turbines, compressors, pumps, motors, generators and gearboxes.
Configuration & Programming — what actually needs setting
Confirm M10 × 1 mounting, 5 m system length, target material and option 02 environmental protection.
Mount without exceeding 15 mm thread engagement; route the armor with a safe bend radius.
Set the initial probe gap to the required bias voltage, commonly around −9 Vdc for radial vibration.
The probe itself is not software-programmed. Configure measurement type, units, alarms and voting in the connected monitor channel.
Lifecycle notes and credible alternatives
The 3300 XL 8 mm platform is a mature installed-base system with current technical documentation. Confirm exact production status, available batch and lead time when requesting a quote.
- 330104-13-20-50-02-05: same dimensional configuration with CSA, ATEX and IECEx approval option; verify site requirements.
- 330104-13-20-50-01-00: same length configuration with connector protector.
- 330103 configured equivalent: M10 × 1 version without armor where external mechanical protection is unnecessary.
- 330194 configured equivalent: extended-temperature metric probe with armor; engineering verification is required.
- 330102 configured equivalent: armored 3/8-24 UNF version; not a mechanical drop-in for an M10 mounting hole.
IDENTIFICATION

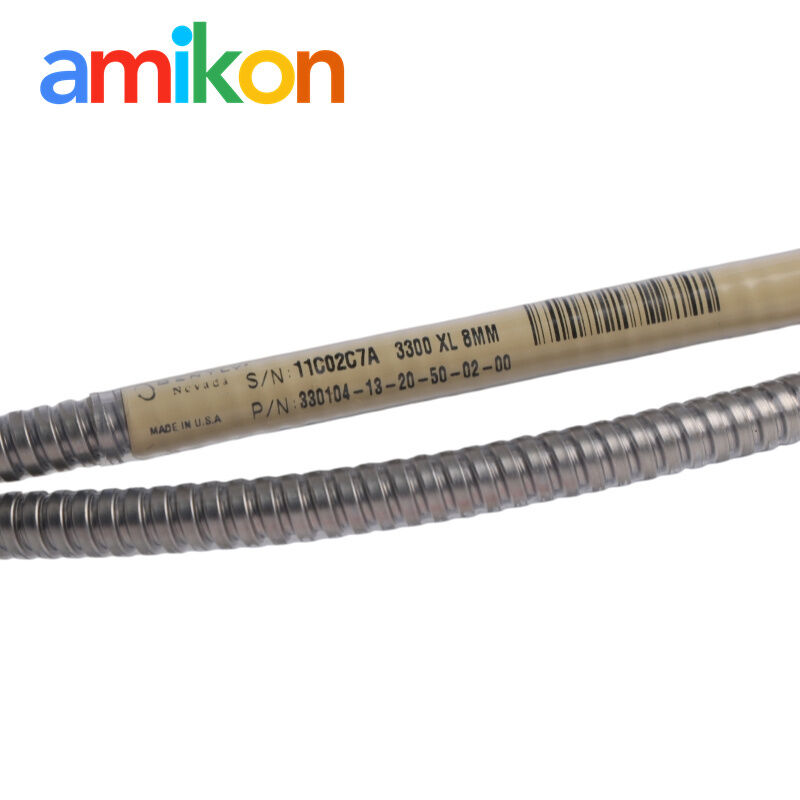

A: Prefix 330104, 130 mm unthreaded length, 200 mm case, 5 m lead, option 02 connector and approval code 00.
A: No. The 5 m probe is intended for a matching 5 m 3300 XL 8 mm system. Do not alter electrical length with an unnecessary extension cable.
A: The long case and 130 mm unthreaded reach suit deeper brackets or bearing-housing geometry while retaining an armored lead.
A: M10 × 1 thread, maximum 15 mm engagement, working gap, cable bend radius and protection of the option 02 connector joint.
A: Listed as in stock. Ask Miya to confirm quantity, batch label and actual-item photos before payment.
A: AMIKON commonly offers 6–12 months depending on the item and quotation; written sales terms control final coverage.
A: The 200 mm case, armor and connector are immobilized in reinforced original packaging; in-stock dispatch is normally 2–3 working days.
A clear vertical order workflow
Share the complete part number, quantity, destination and any nameplate photos.
We check configuration, compatibility, stock, condition and supporting photos.
We respond with price, warranty and freight. Typical offer review turnaround is within 48 hours.
Once the offer is accepted, we create the sales order and issue the invoice.
T/T payment is matched to the invoice and the item is allocated to your order.
Identity and condition are verified; multiple items can be consolidated to reduce freight.
The shipment leaves in 2–3 working days when in stock; tracking is sent for follow-up.
