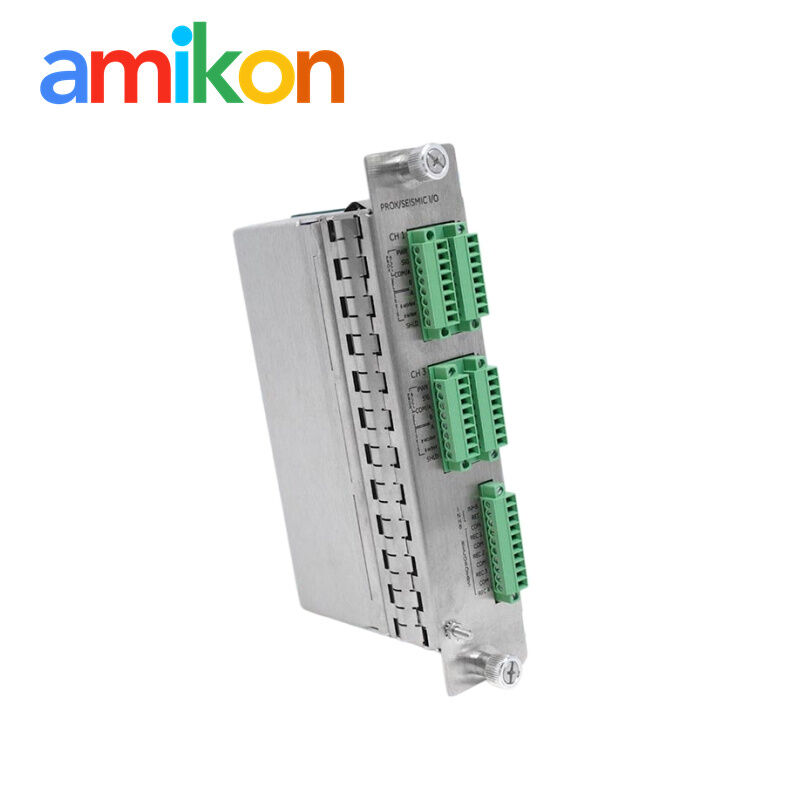

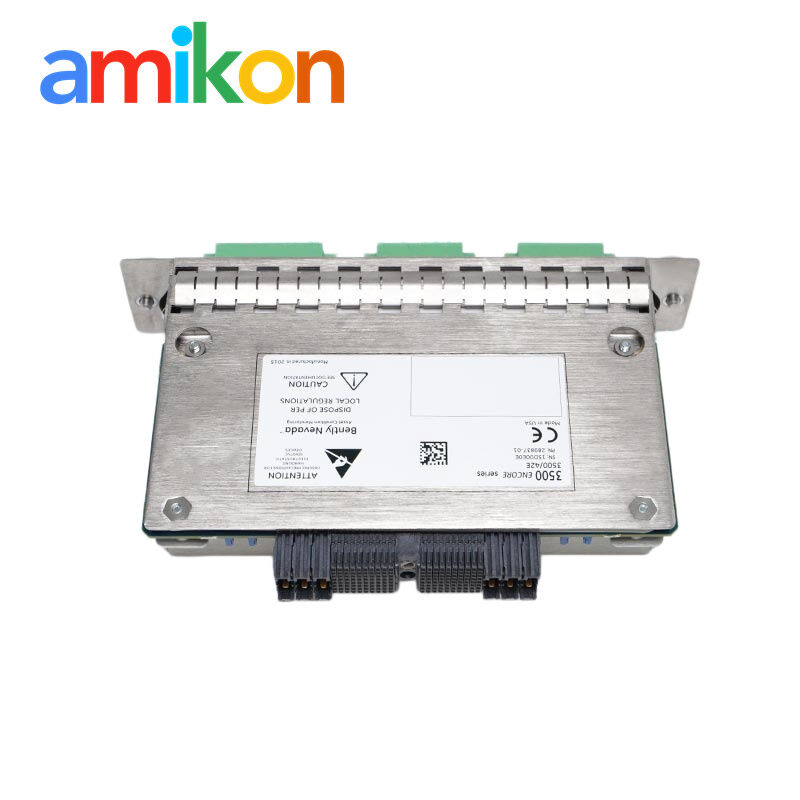

3500/42E 289837-01 Vibration Monitor Module
A practical spare for continuous machinery protection and legacy 3300 system upgrade projects.
① Product overview
The Bently Nevada 3500/42E 289837-01 is a vibration-monitoring module for the 3500 ENCORE platform. The ENCORE architecture was developed as a cost-effective upgrade route for installed 3300 monitoring systems, retaining the familiar panel footprint while moving the protection system to the 3500 family. In service, the module receives configured vibration-related field signals, conditions measurements, supports alarm processing and contributes continuous online machinery protection.
Where it is used: turbine, compressor, pump, motor, fan and gearbox protection projects, particularly when modernizing an established 3300 installation.
② Official-reference specifications
| Reference item | Detail |
|---|---|
| Manufacturer / family | Bently Nevada 3500 ENCORE Series |
| Module designation | 3500/42E Vibration Monitor Module with I/O |
| Part number | 289837-01 |
| System purpose | Continuous online machinery monitoring and protection |
| Upgrade role | 3500 ENCORE provides a direct drop-in path for legacy 3300 panel cutouts |
| Referenced ENCORE components | 3500/07E chassis, 3500/10E power supply, 3500/23E TDI and rack configuration software |
| Software ecosystem | System 1 device-import support identifies secure devices including /42E |
| Configuration control | Verify channel type, I/O, firmware and rack configuration for the installed system |
Reference basis: Bently Nevada 3500 ENCORE overview and current System 1 documentation. The 3500/42E is an ENCORE product; do not assume direct interchangeability with a 3500/42M.
③ Identification and compatibility
3500/42E identifies the ENCORE vibration-monitor family.
289837-01 must match the label, hardware revision and I/O requirements.
Before replacement, compare the rack type, slot assignment, I/O module, firmware, channel configuration, transducer type, alarm setpoints and relay logic. A 3500/42M may offer related monitoring functions, but it is not a drop-in substitute for a /42E unless an authorized migration plan confirms the full system change.
④ Installation workflow
- Back up the rack configuration and record the existing module and I/O labels.
- Apply the plant lockout and machinery-protection bypass procedure; use ESD-safe handling.
- Confirm that 289837-01 is approved for the target ENCORE chassis and I/O wiring.
- Insert and secure the module without forcing connectors, then restore wiring and shielding exactly as documented.
- Load or verify the configuration, check channel OK status and complete alarm, relay and trip proof tests.
⑤ Lifecycle and replacement planning
3500 ENCORE remains valuable where the installed 3300 panel footprint and field wiring must be retained. For the lowest-risk spare, use the exact 3500/42E 289837-01 revision approved by the site. Long-term options include maintaining tested /42E spares, engineering an ENCORE rack refresh, or planning a full migration to a current 3500 system using a 3500/42M or another application-specific monitor. Any substitute must be treated as an engineered project, not a card-only swap.
⑥ Field FAQ

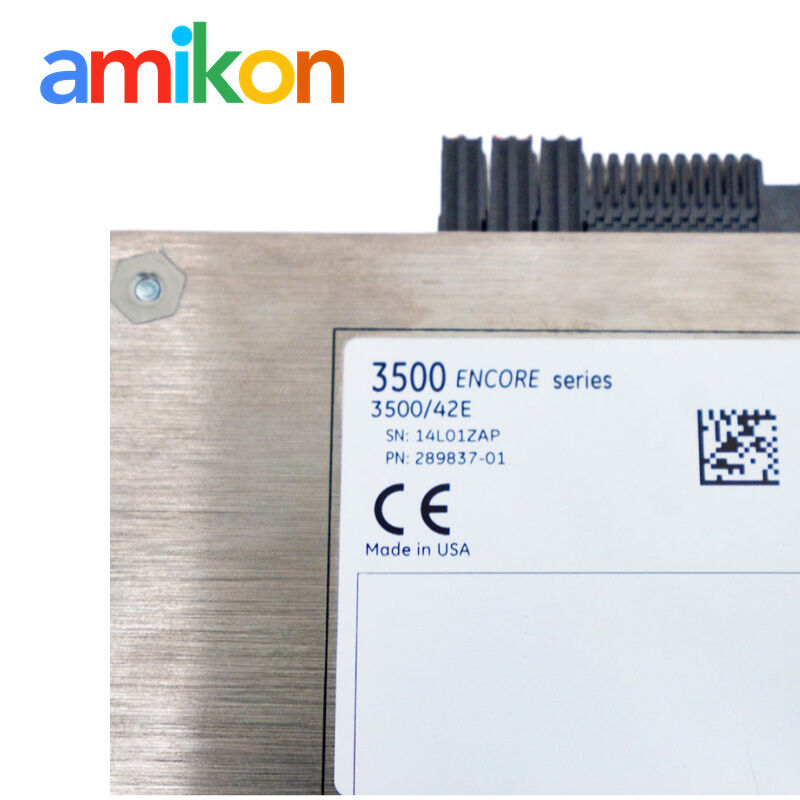

| How do I identify it? | Answer: Match both 3500/42E and 289837-01 on the module label, then verify revision and I/O details. |
| Is it compatible with /42M? | Answer: Not as a simple drop-in. /42E belongs to the ENCORE upgrade architecture; rack, I/O and configuration must be engineered. |
| Typical applications? | Answer: Continuous vibration protection on turbines, compressors, pumps, motors and other critical rotating machines. |
| Installation priority? | Answer: Preserve the configuration, follow bypass/lockout rules, verify I/O and complete trip testing. |
| Is it in stock? | Answer: The current offer is In Stock. Ask Miya to confirm quantity, condition and label photos. |
| Warranty? | Answer: Written warranty terms are confirmed with the quotation, normally 6–12 months depending on condition. |
| Shipping time? | Answer: Standard dispatch is 2–3 working days after payment and order verification, with worldwide courier service. |
