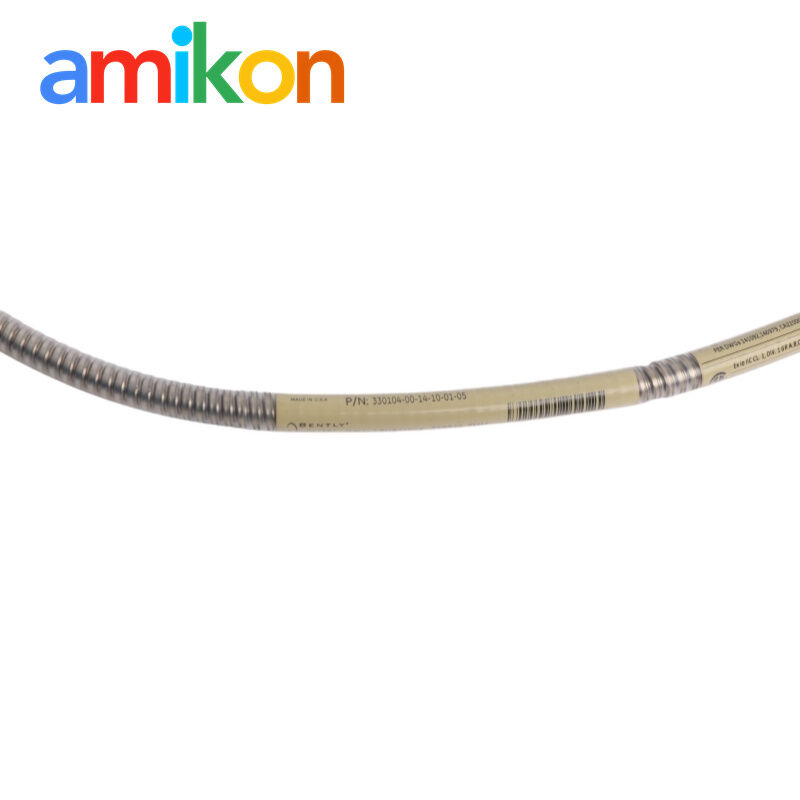

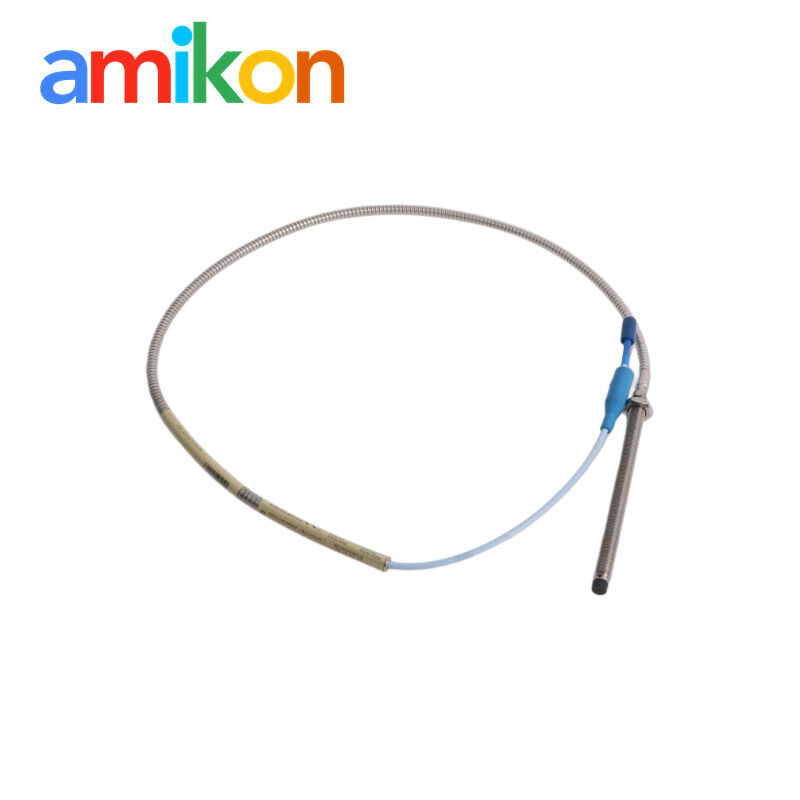

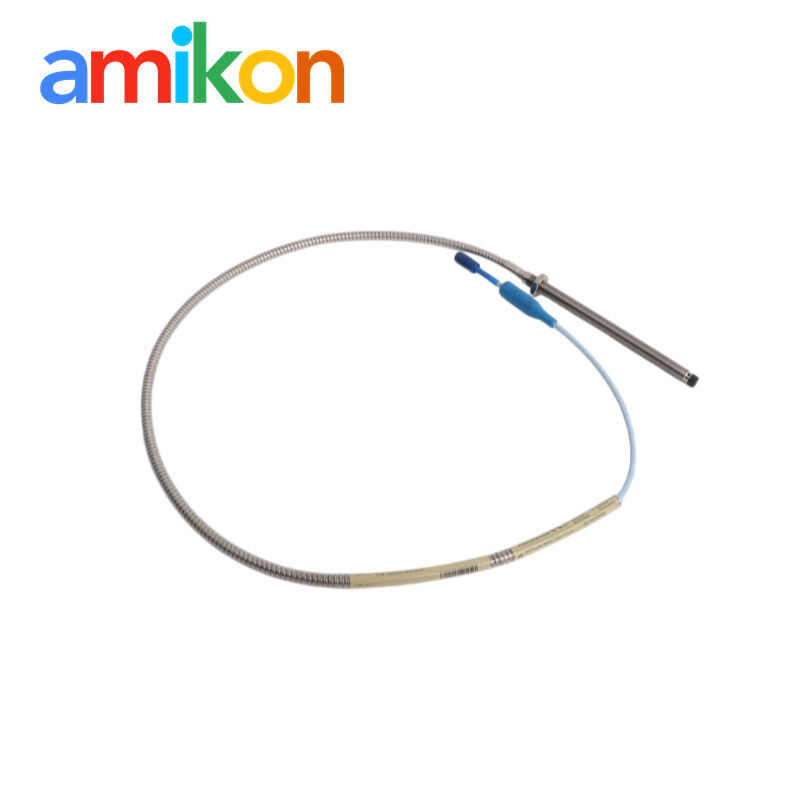

Bently Nevada 330104-00-14-10-01-05 Armored 3300 XL 8 mm M10 Proximity Probe
Bently Nevada 3300 XL proximity probe
8mm M10 armored proximity sensor
Bently Nevada 330104-00 probe with warranty
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330104-00-14-10-01-05
Bently Nevada 3300 XL proximity probe
,8mm M10 armored proximity sensor
,Bently Nevada 330104-00 probe with warranty
ORIGINAL INDUSTRIAL AUTOMATION SPARE
Bently Nevada 330104-00-14-10-01-05
Armored 3300 XL 8 mm M10 × 1 Proximity Probe
01 · Product at a glance
This probe is the sensing element of a Bently Nevada 3300 XL 8 mm proximity transducer system. It measures shaft vibration and axial position without contacting the rotating surface. The armored construction helps protect the cable in demanding machinery areas, while the M10 × 1 body suits metric mounting hardware.
Typical locations: turbines, compressors, pumps, motors, gearboxes and other rotating equipment where reliable shaft-relative measurements are required.
02 · Official datasheet parameters
| Parameter | Value |
|---|---|
| Product family | 3300 XL 8 mm Proximity Transducer System |
| Probe configuration | 330104 metric M10 × 1 probe with armor |
| Unthreaded length | 0 mm (code 00) |
| Overall case length | 140 mm (code 14) |
| Total cable length | 1.0 m (code 10) |
| Connector / cable option | Miniature coaxial ClickLoc connector with protector; standard cable (code 01) |
| Agency approvals | CSA, ATEX and IECEx (code 05) |
| Linear range | 2.0 mm (80 mil), approximately 0.25–2.3 mm |
| Scale factor | 7.87 V/mm (200 mV/mil) |
| Probe temperature range | −52 °C to +177 °C |
| Maximum thread engagement | 15 mm for M10 probe |
Values are based on the manufacturer’s 3300 XL 8 mm Proximity Transducer System datasheet. Verify the complete loop configuration before installation.
03 · Exact model identification
Armored metric M10 probe
0 mm unthreaded / 140 mm case
1 m cable / ClickLoc / approvals
04 · Installation notes
- Confirm the full part number, target material and compatible extension cable/Proximitor sensor before fitting.
- Mount through the M10 × 1 thread without exceeding the stated thread engagement; avoid twisting or sharply bending the armored cable.
- Set the electrical gap using the monitor or voltage reading, secure the locknut, then verify polarity, routing and machinery clearance.
- Commission according to the machine protection system manual and site safety procedure.
05 · Lifecycle and replacement planning
The 3300 XL 8 mm platform is widely used in installed rotating-machinery protection systems. Lifecycle decisions should be based on the complete transducer chain rather than the probe alone. For a direct spare, keep the same thread, case length, cable length, connector and approval suffix. If mechanical dimensions differ, nearby 330101/330102/330103/330104/330105 variants may be considered only after an engineering compatibility check. For a system-level modernization, consult the OEM or qualified engineer about a matched 3300 XL probe, extension cable and Proximitor sensor set; do not mix unverified loop components.
06 · Model-specific FAQ
