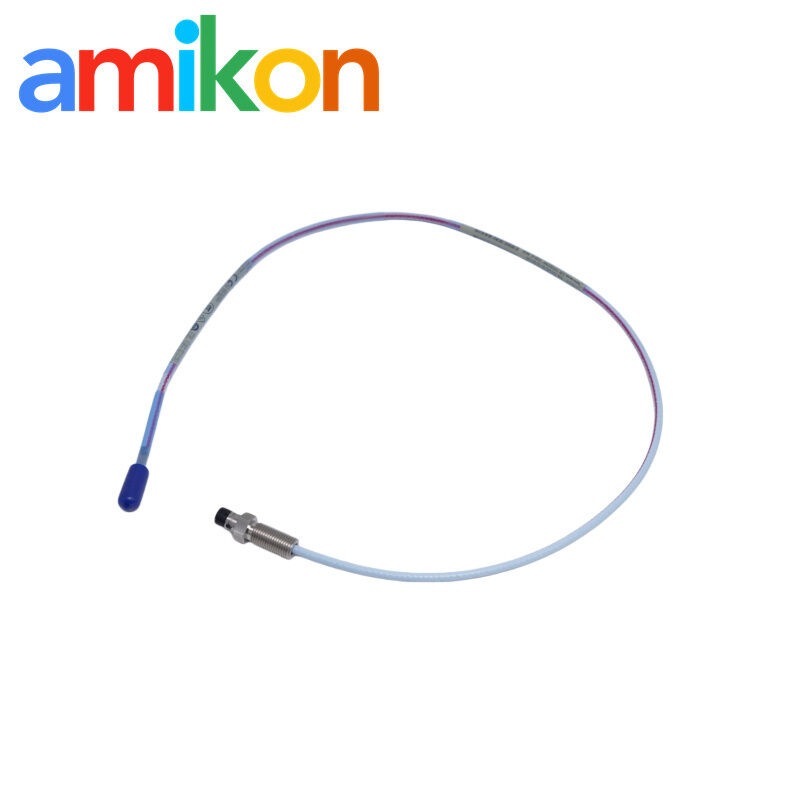

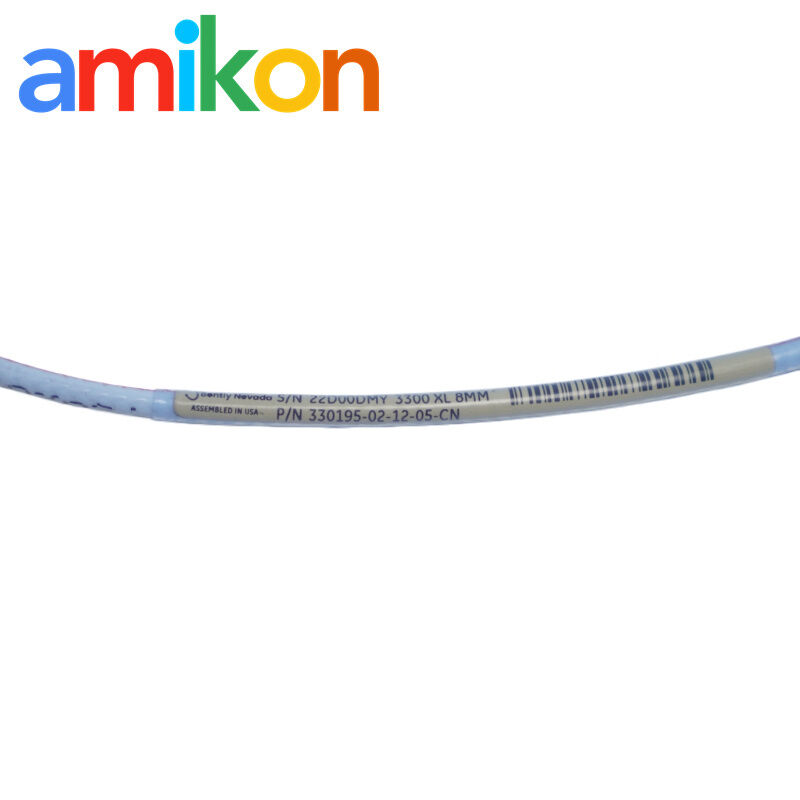

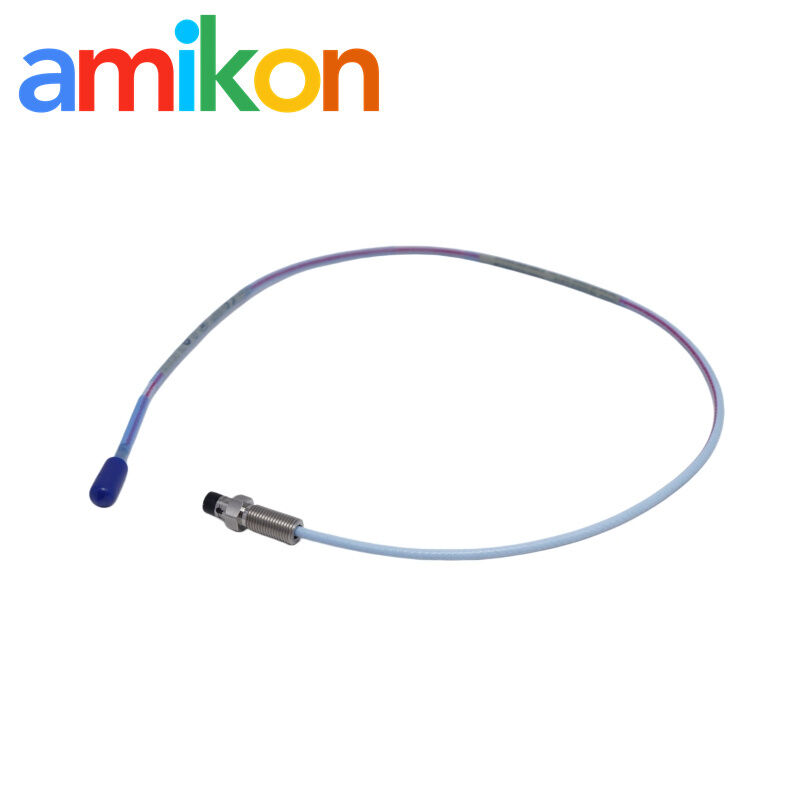

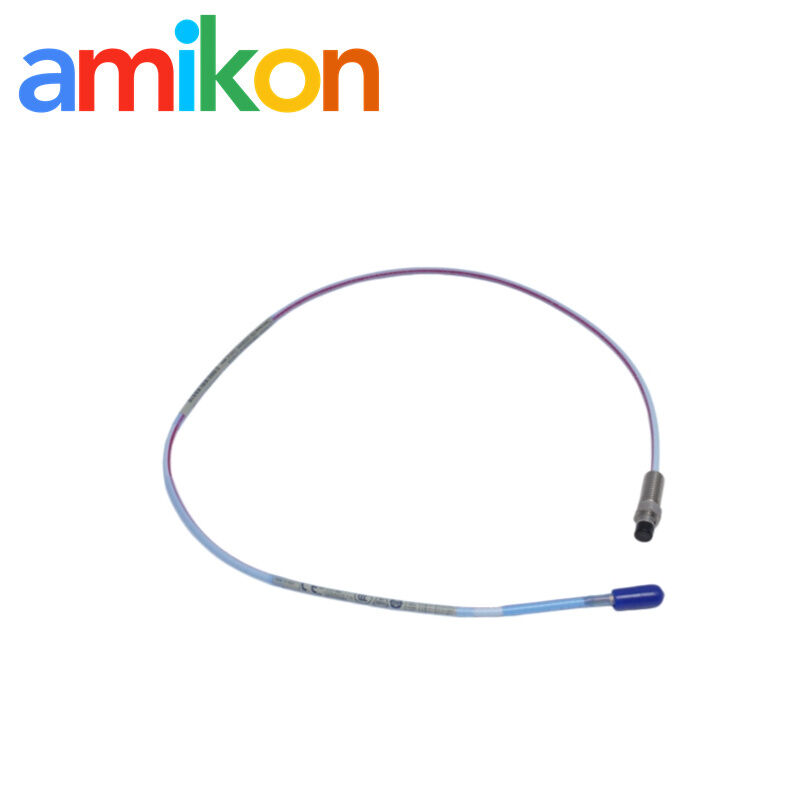

330195-02-12-05-CN Bently Nevada 3300 XL 8 mm Extended Temperature Range (ETR) Reverse Mount Probe
Product Overview
The Bently Nevada 330195-02-12-05-CN is an 8mm Reverse Mount Proximity Probe with Extended Temperature Range (ETR) capability, designed for high-precision shaft vibration and displacement monitoring in turbines and compressors.
Technical Specifications
- 330195: 8mm Reverse Mount design with Viton® pressure seal
- 02: 3/8-24 UNF thread configuration
- 12: Extended Temperature Range (ETR) for extreme high/low environments
- 05: 0.5-metre total cable length
- CN: Region-specific hazardous area/explosion-proof approvals for China
Global Distribution Network
Amikon supplies industrial automation spare parts, including PLC, DCS, and TSI systems, to over 160 countries worldwide.
- North America: Steady demand from US and Canada, primarily serving oil & gas plants and automotive production sites
- Europe: Strong presence in Germany and UK, supporting chemical plants and heavy equipment lines
- Middle East and Africa: Focus on refinery projects and mining sites in UAE, Saudi Arabia, and South Africa
- Asia-Pacific: Broad coverage across China, Singapore, Australia, and India for semiconductor fabs, power stations, and metallurgy plants
- South America: Stable operations in Brazil, Chile, and Argentina for mining, copper operations, and hydropower projects
Request a Quote
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
Quality Assurance
100% Original Parts - Vetted industrial automation & DCS/PLC spares
Massive Inventory - 30,000+ items ready for immediate shipment
12-Month Warranty - Fully covered by 1-year quality guarantee
Fast Global Shipping - Secure express delivery to 160+ countries
24/7 Rapid Response - Dedicated 1-on-1 customer service
Frequently Asked Questions
What does the part number 330195-02-12-05-CN mean?
The Bently Nevada 330195-02-12-05-CN is part of the Bently Nevada 3300 XL 8mm series and uses a 3300 XL Reverse Mount Probe design. This version combines a 3/8-24 UNF Thread Sensor, an Extended Temperature Range (ETR) Probe, a 0.5 m integrated cable and a Viton O-ring Pressure Seal Probe. The -CN option refers to the China-certified hazardous-area version.
Where is the 330195-02-12-05-CN normally used?
You'll usually find the 330195 Proximity Probe in rotating machinery condition monitoring systems across power plants, oil & gas facilities and petrochemical sites. Steam turbines, compressors and other machines with fluid film bearings are typical applications, especially where turbine shaft vibration monitoring, compressor axial displacement or shaft position measurement is required.
Why choose the ETR version of the 330195-02-12-05-CN?
The Extended Temperature Range option is mainly intended for hotter operating environments. Around turbine casings or similar equipment, it helps the probe maintain stable eddy current performance and reliable measurement even when temperatures change significantly.
What should be checked before installation of the 330195-02-12-05-CN?
The built-in cable is 0.5 m, so the probe needs to be matched with the correct Bently Nevada Extension Cable and 3300 XL Proximitor Sensor. Depending on the application, the complete Bently Nevada 5m Transducer System or Bently Nevada 9m Transducer System should be assembled. Mixing different system lengths usually leads to calibration issues.
Why use a reverse mount 330195-02-12-05-CN probe?
A Reverse Mount Proximity Probe is installed from the inside of the machine rather than from the outside. The integrated Viton O-ring helps seal the mounting point, reducing the possibility of lubricant or process gas leakage during continuous high-speed operation.
