330232-05-05-12-05 Bently Nevada 90° Button-Style Proximity Probe
Bently Nevada 330232 Fluid-film bearing vibration measurement
330232-05-05-12-05 90-degree proximity probe
Bently Nevada 3300 XL 8mm system 3300 XL Proximitor Sensor
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330232-05-05-12-05
Contact Us
Request A Quote
Product Details
Expected Shipping Dimensions:
1.6x1.6x76cm
Packaging:
Original New Packaging
Country Of Origin:
USA
Weight:
0.04kg
Shipping:
TNT, DHL, FedEx, EMS, UPS
Model:
330232-05-05-12-05
Place Of Shipment:
Xiamen,China
Highlight:
Bently Nevada 330232 Fluid-film bearing vibration measurement
,330232-05-05-12-05 90-degree proximity probe
,Bently Nevada 3300 XL 8mm system 3300 XL Proximitor Sensor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

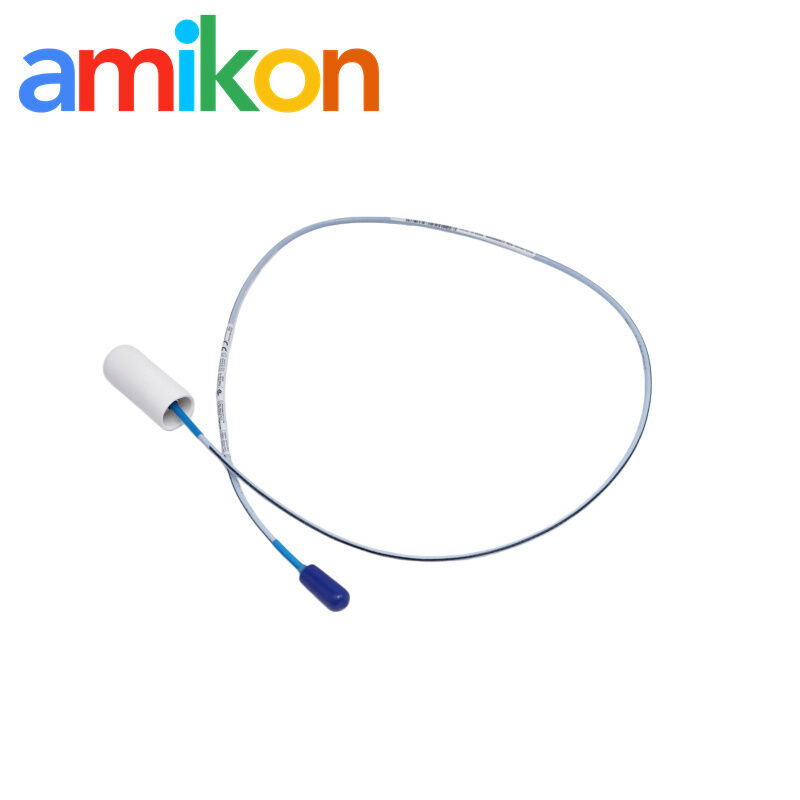

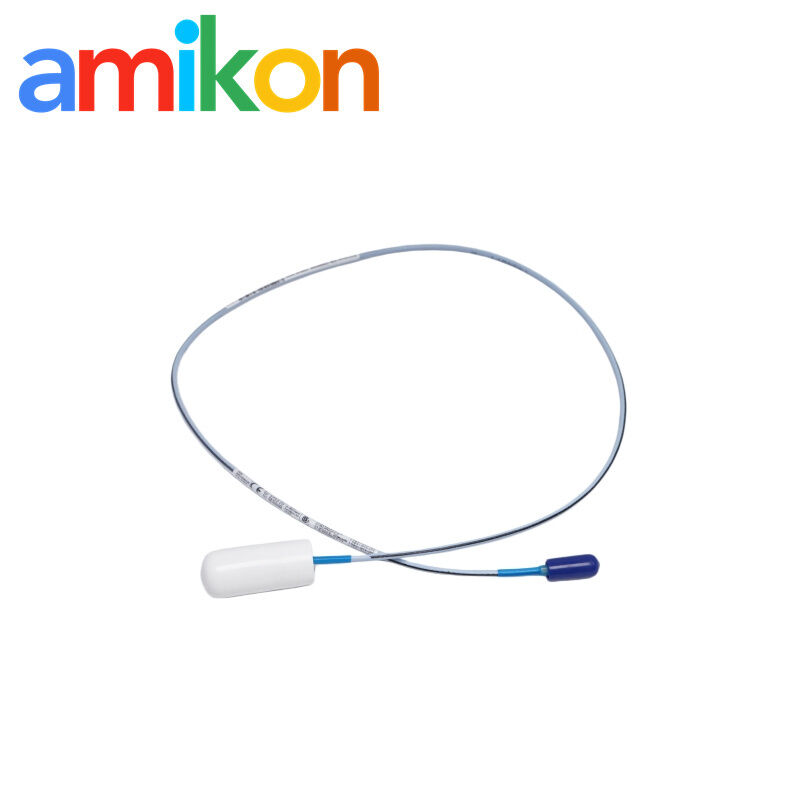

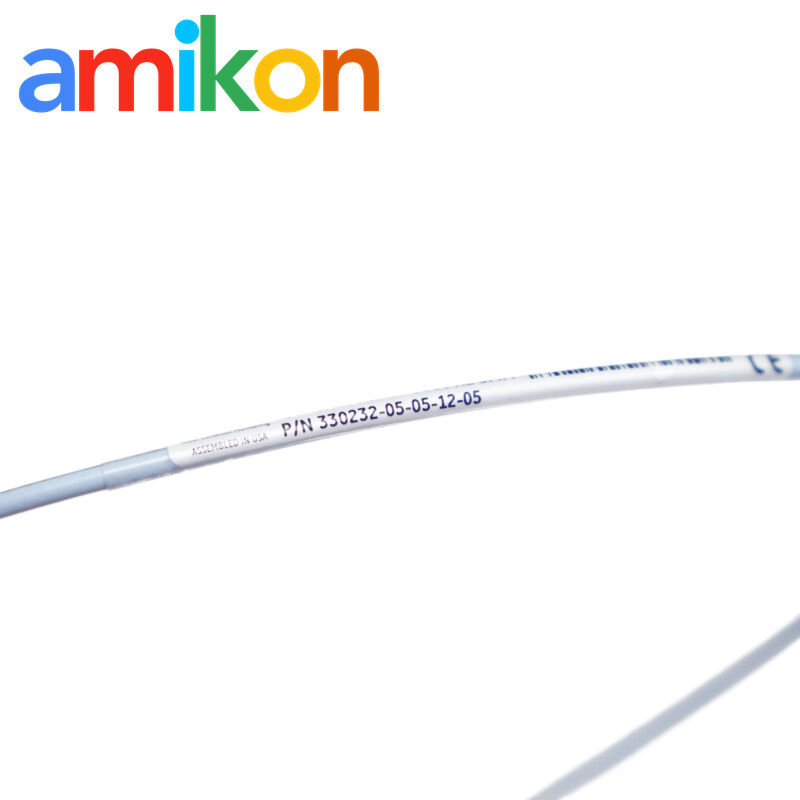

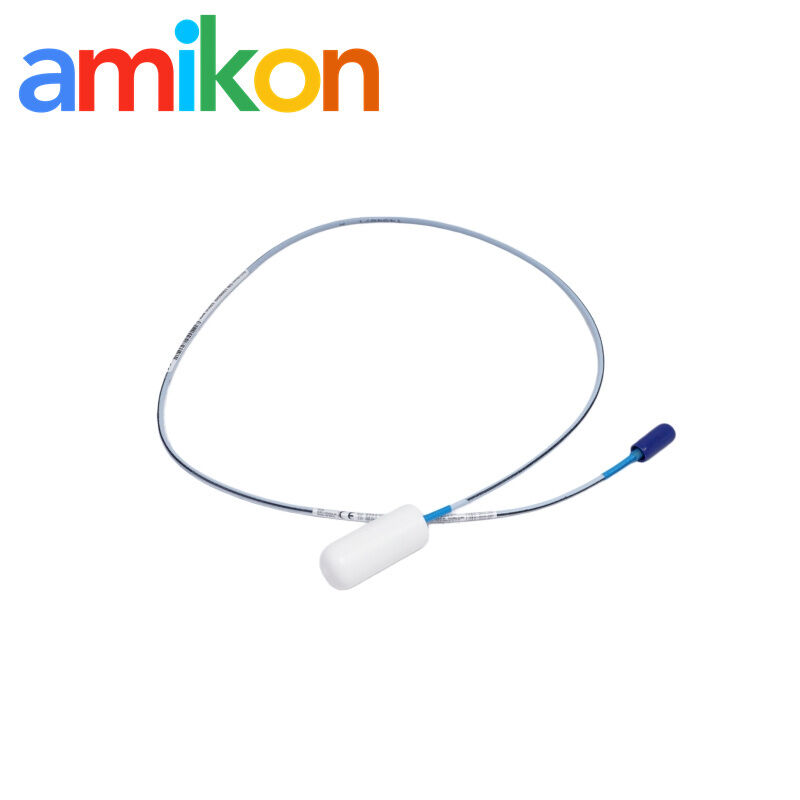

330232-05-05-12-05 Bently Nevada 90° Button-Style Proximity Probe
Product Overview
- Product: 3300 XL 8mm 90° Button-Style Proximity Probe
- Application: Non-contact shaft vibration/displacement measurement in tight spaces
- Tip Height: 8.4 mm (low-profile design)
- Unthreaded Length [-05]: 0.5 inches
- Overall Case Length [-05]: 0.5 inches
- Total Cable Length [-12]: 0.5 meters (1.6 feet)
- Approval Option [-05]: MULTI (Global hazardous area certifications like ATEX/IECEx)
- Linear Range: 2.03 mm (80 mils)
Global Supply Network
Amikon supplies industrial automation spare parts, mainly PLC, DCS, and TSI systems, to more than 160 countries.
- North America: shows steady demand, especially US and Canada. A lot of work comes from oil & gas plants and also automotive-related production sites.
- Europe: is similar in scale, Germany and UK stand out. You still see chemical plants and heavy equipment lines placing regular orders.
- Middle East and Africa: usually relate to refinery projects and mining sites. UAE, Saudi Arabia, South Africa come up often in shipments, sometimes also remote field installations.
- Asia-Pacific: is quite broad. China, Singapore, Australia, India … demand is mixed, from semiconductor fabs to power stations and metallurgy plants.
- South America: is smaller in volume but stable. Brazil, Chile, Argentina mostly connected with mining, copper operations, and hydropower projects.
Request a Quote
Quality Assurance
- 100% Original Parts - Vetted industrial automation & DCS/PLC spares
- Massive Inventory - 30,000+ items ready for immediate shipment
- 12-Month Warranty - Fully covered by a 1-year quality guarantee
- Fast Global Shipping - Secure express delivery to 160+ countries
- 24/7 Rapid Response - Dedicated 1-on-1 customer service
Technical Q&A
Q1: Why would someone choose the Bently Nevada 330232-05-05-12-05 instead of a regular probe?
A: On quite a few machines, the problem isn't performance—it's space. A standard threaded probe may not even fit once the bearing housing is assembled. That's where the Bently Nevada 330232-05-05-12-05 comes in. Its button-style body and 90-degree cable outlet make installation much easier when room is tight.
Q2: Do I have to match the extension cable with the Bently Nevada 330232-05-05-12-05?
A: Yes. People sometimes overlook this during replacement. The 330232-05-05-12-05 Proximity Probe already includes a short cable, so the remaining extension cable has to match the overall 3300 XL 8mm system length. If the lengths don't add up correctly, the vibration reading can shift from its original calibration.
Q3: Can the Bently Nevada 330232-05-05-12-05 be installed in hazardous areas?
A: Yes, it can. In practice, though, the probe is only one part of the whole protection system. The Bently Nevada 330232-05-05-12-05 is available with ATEX and IECEx approvals, but the installation also needs the matching 3300 XL Proximitor Sensor and an approved safety barrier. That's how the complete system meets the required standards.
Q4: Does the 330232-05-05-12-05 only work with 4140 steel?
A: No. The standard calibration is intended for 4140 steel because that's the most common application. If your shaft is made from another material, the probe can still be used. You may simply need to adjust the calibration or scale factor so the readings remain accurate when used with a Bently Nevada 3500 rack system.
Q5: How do users normally know the 330232-05-05-12-05 has failed?
A: There isn't just one symptom. Sometimes the monitor shows a continuous Not OK status, while in other cases the gap voltage or vibration signal simply disappears. After the cable and wiring have been checked, replacing the Bently Nevada 330232-05-05-12-05 is often the practical solution.
