330104-10-20-05-02-00 Bently Nevada 3300 XL 8 mm Proximity Probe
330104-10-20-05-02-00 Bently Nevada 3300 XL Proximitor Sensor
Bently Nevada 330104 Steam turbine vibration monitoring probe
Proximity Probe M10 x 1 threaded proximity probe
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330104-10-20-05-02-00
Contact Us
Request A Quote
Product Details
Model:
330104-10-20-05-02-00
Place Of Shipment:
Xiamen,China
Shipping:
TNT, DHL, FedEx, EMS, UPS
Country Of Origin:
USA
Weight:
0.12kg
Packaging:
Original New Packaging
Expected Shipping Dimensions:
1.8x1.5x58cm
Highlight:
330104-10-20-05-02-00 Bently Nevada 3300 XL Proximitor Sensor
,Bently Nevada 330104 Steam turbine vibration monitoring probe
,Proximity Probe M10 x 1 threaded proximity probe
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

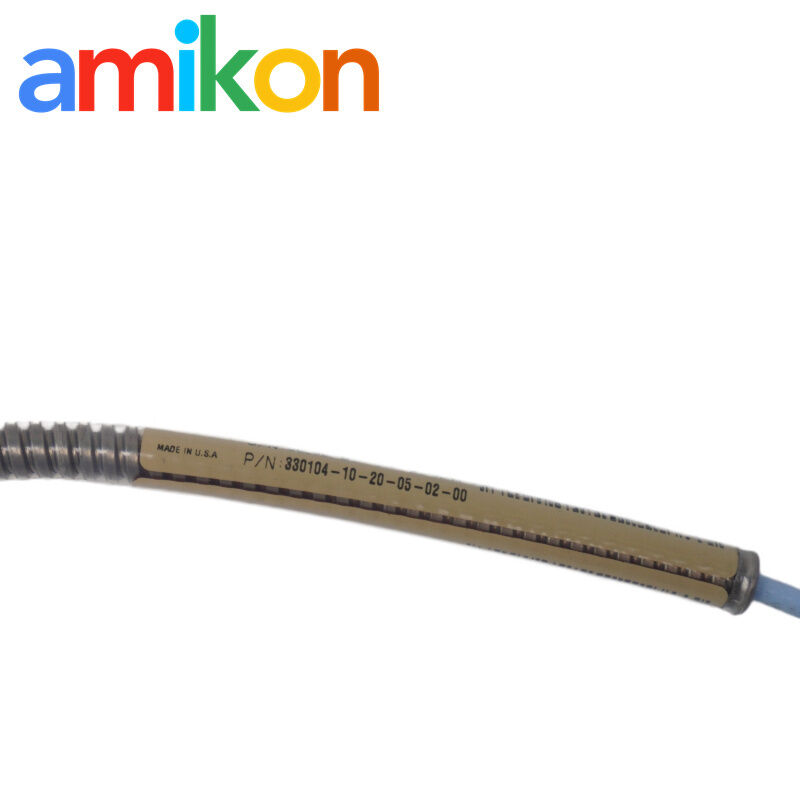

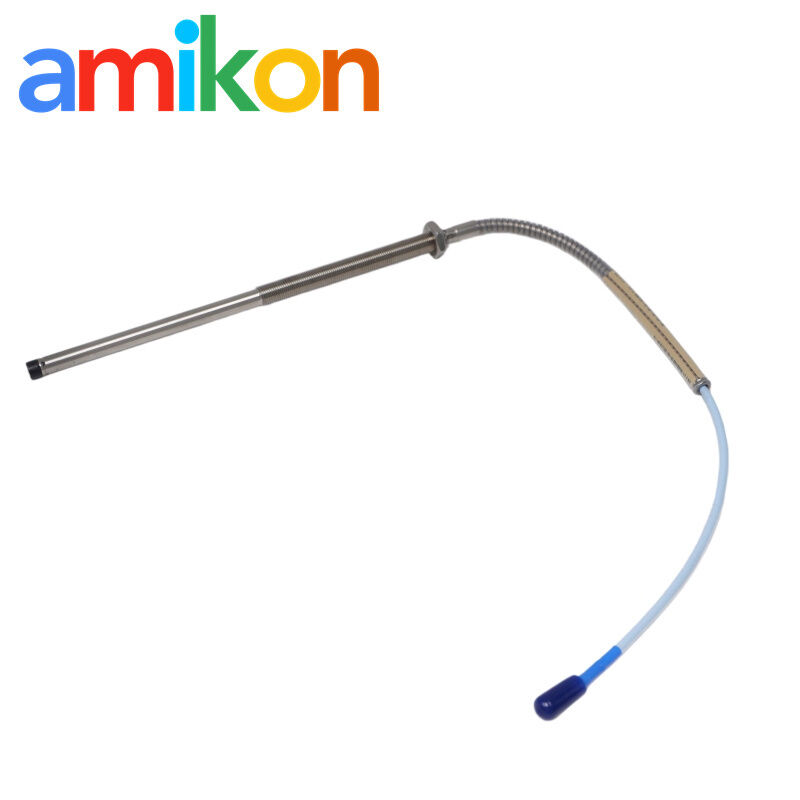

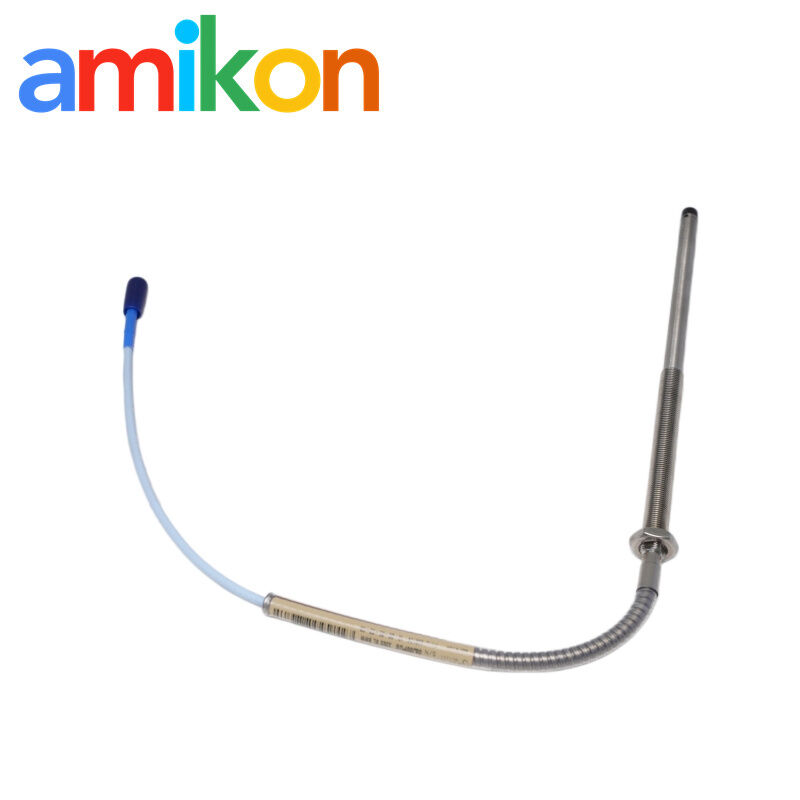

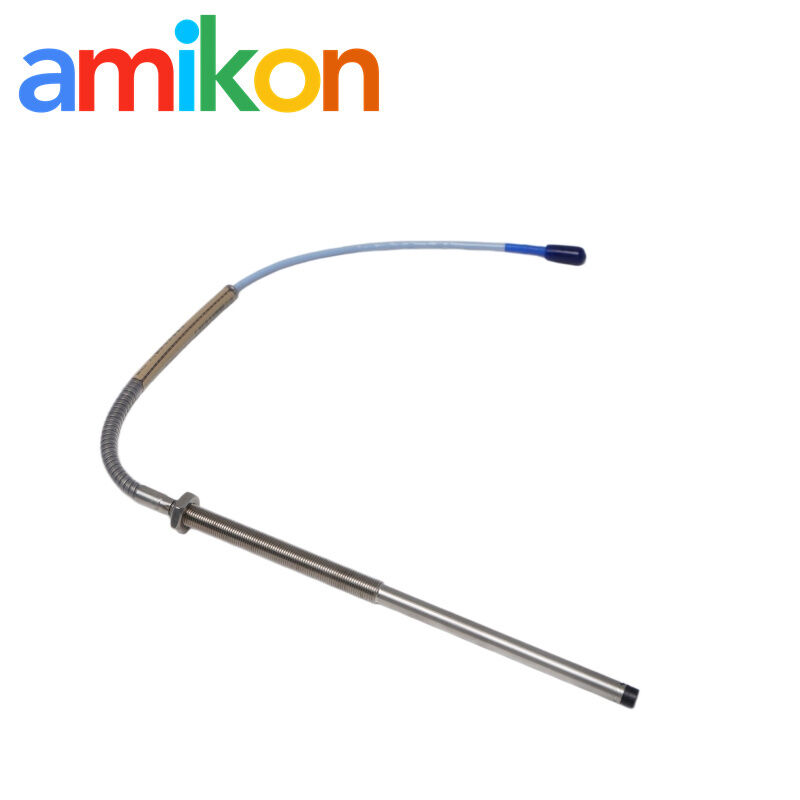

330104-10-20-05-02-00 Bently Nevada 3300 XL 8 mm Proximity Probe
Product Overview
- Product Type: 3300 XL 8 mm Proximity Probe, Metric M10 x 1, with armor
- Application: Non-contact, gap-to-voltage measurement for vibration, position, and speed
Technical Specifications
- Unthreaded Length: 100 mm
- Overall Case Length: 200 mm
- Total Length: 0.5 meter
- Connector/Cable: Miniature coaxial ClickLoc, standard cable
- Approval: Not required
- Operating Range: 2 mm (80 mils)
- Scale Factor: 7.87 V/mm (200 mV/mil)
- Temperature Range: -52°C to +177°C
Global Supply Network
Amikon supplies industrial automation spare parts, including PLC, DCS, and TSI systems, to more than 160 countries worldwide.
- North America: Steady demand from US and Canada, primarily serving oil & gas plants and automotive production sites
- Europe: Strong presence in Germany and UK, supporting chemical plants and heavy equipment lines
- Middle East and Africa: Focus on refinery projects and mining sites in UAE, Saudi Arabia, and South Africa
- Asia-Pacific: Broad coverage including China, Singapore, Australia, and India for semiconductor fabs, power stations, and metallurgy plants
- South America: Stable operations in Brazil, Chile, and Argentina for mining, copper operations, and hydropower projects
Request a Quote
Quality Assurance
100% Original Parts
Vetted industrial automation & DCS/PLC spares
Massive Inventory
30,000+ items ready for immediate shipment
12-Month Warranty
Fully covered by a 1-year quality guarantee
Fast Global Shipping
Secure express delivery to 160+ countries
24/7 Rapid Response
Dedicated 1-on-1 customer service
Frequently Asked Questions
Q1: What are the specific thread and mechanical installation restrictions for a Bently Nevada 330104-10-20-05-02-00 probe?
A1: With the Bently Nevada 330104-10-20-05-02-00, the M10 × 1 thread is usually only taken in about 15 mm. That’s basically to avoid the probe biting too deep and getting stuck. The M17 lock nut doesn’t need much—around 7.5 N·m (66 in·lbf) is what most field installs end up using.
Q2: How should field wiring be configured from the 330104-10-20-05-02-00 probe setup to a remote monitor?
A2: It starts with the short 0.5 m armored lead from the probe. That goes into a 3300 XL Extension Cable, then into a 3300 XL Proximitor Sensor. From there it’s just standard shielded wiring back to the panel, and in most plants the run stays within 305 m (1,000 ft).
Q3: What physical clearance is needed to prevent cross-talk and calibration errors with the 330104-10-20-05-02-00 probe?
A3: Shaft size matters first—50.8 mm (2 in.) is the lower limit, but bigger like 76.2 mm works better in practice. If two probes sit close, you don’t want them tight together. Around 38 mm radial and 40 mm axial spacing is usually enough to keep interference down.
Q4: How does the standard FEP cable of the 330104-10-20-05-02-00 handle machinery fluids and internal pressure sealing?
A4: The cable is a 75-ohm FEP triaxial type with stainless armor, so normal oil and plant conditions aren’t a problem. But there’s no internal block inside the standard version, so fluids can still travel through the cable path. Sealing depends on a Viton O-ring, nothing more complicated than that.
Q5: What electrical resistance value confirms a healthy loop check on the 330104-10-20-05-02-00 probe?
A5: A quick check across the ClickLoc connector is enough. A normal reading sits around 7.45 Ω ± 0.50 Ω at room temperature. If it drifts far from that, usually it’s either a broken lead or damage inside the probe.
