330194-17-25-15-00 Bently Nevada 3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probe
330194-17-25-15-00 Bently Nevada 3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probe
Bently Nevada 330194 3300 XL Proximitor Sensor
330194-17-25-15-00 Probe steam turbine vibration monitoring
3300 XL 8mm ETR Probe high temperature shaft vibration
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330194-17-25-15-00
Contact Us
Request A Quote
Product Details
Place Of Shipment:
Xiamen,China
Model:
330194-17-25-15-00
Country Of Origin:
USA
Expected Shipping Dimensions:
35x24x2cm
Packaging:
Original New Packaging
Weight:
0.24kg
Shipping:
TNT, DHL, FedEx, EMS, UPS
Highlight:
Bently Nevada 330194 3300 XL Proximitor Sensor
,330194-17-25-15-00 Probe steam turbine vibration monitoring
,3300 XL 8mm ETR Probe high temperature shaft vibration
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

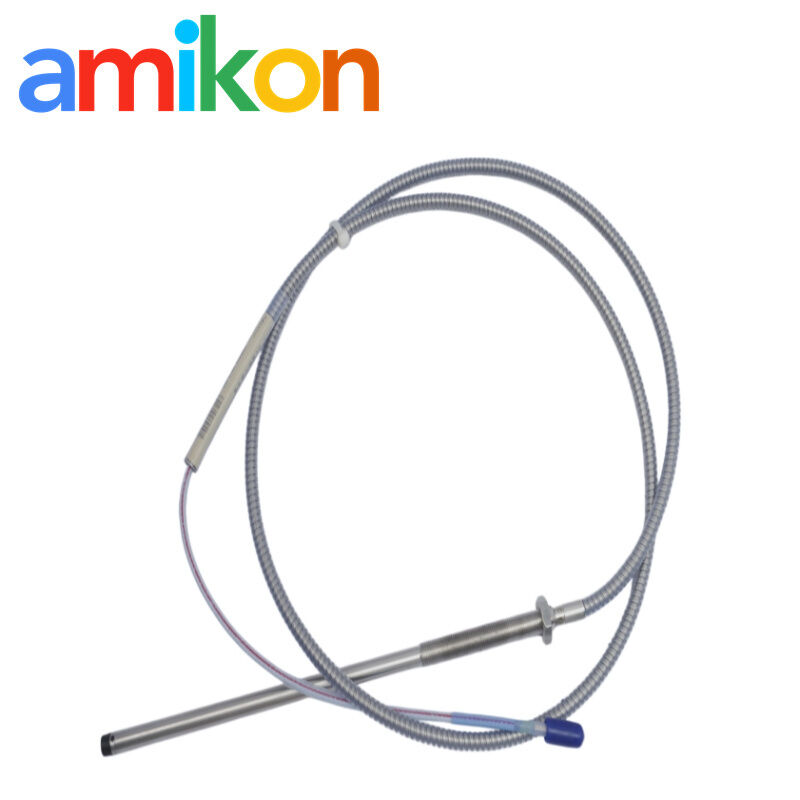

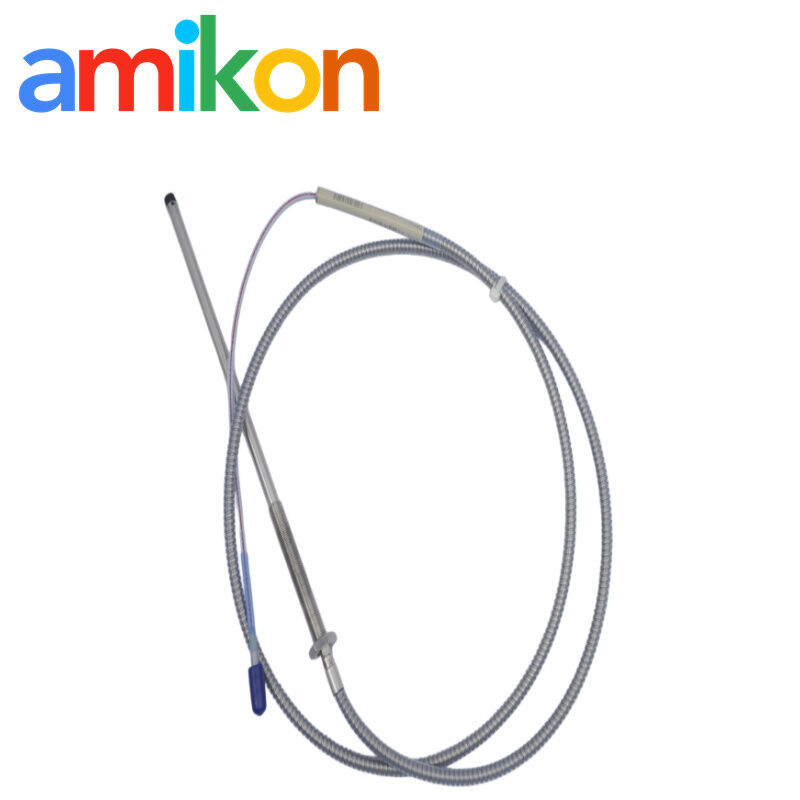

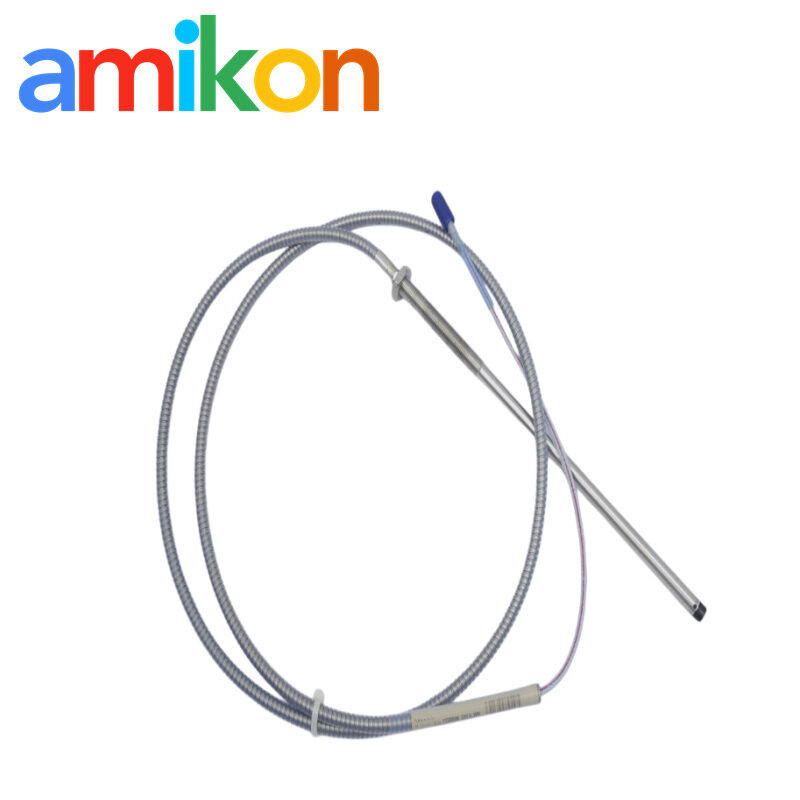

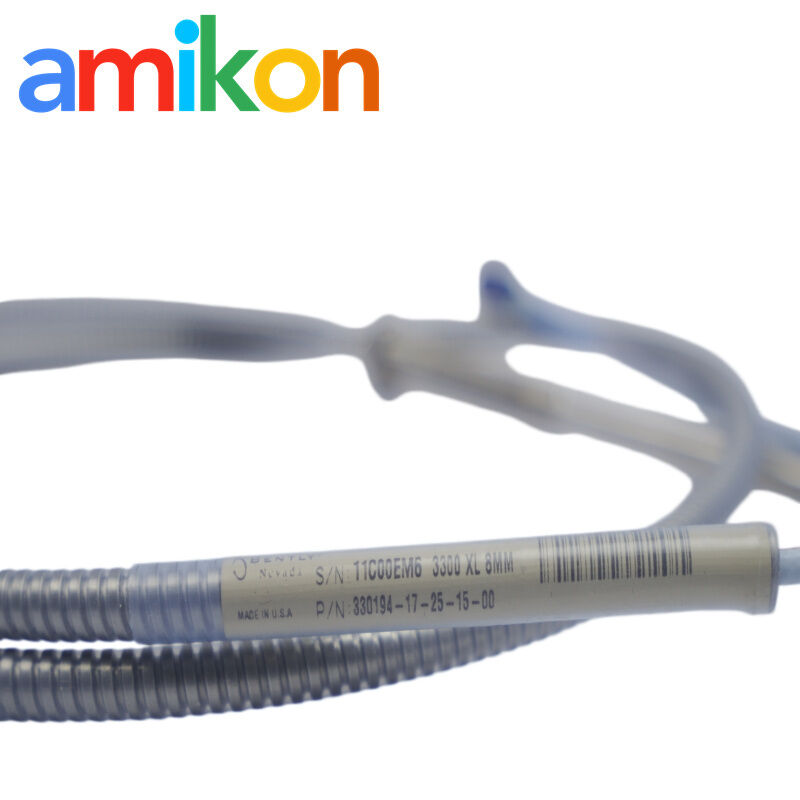

330194-17-25-15-00 Bently Nevada 3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probe
Measurement Performance
- Probe Diameter: 8 mm
- Linear Range: 2.0 mm (80 mils)
- Scale Factor: 7.87 V/mm (200 mV/mil)
- Measurement Type: Non-contact eddy current (measures shaft vibration and position)
Mechanical Specifications & Dimensions
- Thread Type: M10 x 1 metric thread
- Unthreaded Length (-17): 170 mm
- Overall Case Length (-25): 250 mm
- Total Cable Length (-15): 1.5 meters
- Cable Protection: Flexible stainless steel armor with yellow FEP jacket
Environmental & Material Specifications
- Temperature Type: ETR (Extended Temperature Range)
- Operating Temperature: -55°C to +232°C (-67°F to +450°F)
- Probe Tip Material: Polyphenylene sulfide (PPS) (high-temperature plastic)
- Probe Body Material: AISI 303 stainless steel
Approval & System Compatibility
- Agency Approval (-00): No Approvals (for safe, non-hazardous areas only)
- System Match: Must be used with a 3300 XL 8mm ETR Proximitor Sensor and Extension Cable (5-meter or 9-meter system total)
Global Supply & Service
Amikon supplies industrial automation spare parts, including PLC, DCS, and TSI systems, to more than 160 countries worldwide.
- North America: Steady demand from the US and Canada, primarily serving oil & gas plants and automotive production sites
- Europe: Strong presence in Germany and UK, serving chemical plants and heavy equipment manufacturing facilities
- Middle East and Africa: Supporting refinery projects and mining sites in UAE, Saudi Arabia, South Africa, and remote field installations
- Asia-Pacific: Broad coverage in China, Singapore, Australia, India for semiconductor fabs, power stations, and metallurgy plants
- South America: Stable operations in Brazil, Chile, Argentina for mining, copper operations, and hydropower projects
Request a Quote Now
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
Service Benefits
100% Original Parts
Vetted industrial automation & DCS/PLC spares
Massive Inventory
30,000+ items ready for immediate shipment
12-Month Warranty
Fully covered by a 1-year quality guarantee
Fast Global Shipping
Secure express delivery to 160+ countries
24/7 Rapid Response
Dedicated 1-on-1 customer service
Frequently Asked Questions
Q1: What are the main industry applications for the Bently Nevada 330194-17-25-15-00 proximity probe?
A: The Bently Nevada 330194-17-25-15-00 is usually picked for high-temperature rotating equipment protection, especially where normal probes start to struggle. You’ll see it quite often in steam turbine vibration monitoring, heavy-duty gas turbine protection, and centrifugal compressor displacement measurement. In power plants and petrochemical setups, it fits into API 670 compliant instrumentation for fluid-film bearing zones, basically those hot, oil-heavy areas where reliability matters more than anything else.
Q2: How do the mechanical dimensions of the 330194-17-25-15-00 affect installation?
A: This one is not a short-body probe. With an M10x1 threaded housing, about 170 mm unthreaded length and 250 mm overall case length, the 330194-17-25-15-00 is made for deeper reach installations. In real field jobs, that helps it pass through thicker housings to get closer to the shaft surface. The 1.5 m integrated stainless steel armored cable also makes routing easier, especially around hot oil lines or tight mechanical spaces where cable protection is important.
Q3: What makes the 330194-17-25-15-00 suitable for high-temperature environments?
A: This is where the 3300 XL 8mm ETR Probe system matters. The 330194-17-25-15-00 is built for extended temperature operation, roughly from -55°C to +232°C (-67°F to +450°F). That’s why it’s used around turbine casings and high-heat bearing housings. In practice, it keeps tracking shaft dynamic displacement and axial position even when thermal expansion is constantly changing the mechanical gap.
Q4: What system is the 330194-17-25-15-00 compatible with?
A: It doesn’t really run alone. The probe needs a matching 3300 XL ETR Proximitor Sensor and an ETR extension cable to complete the loop. In typical setups, the signal goes into a Bently Nevada 3500/40M monitor card for machinery protection and sometimes ESD system integration. Depending on system length (5 m or 9 m configurations), the cable pairing is adjusted to keep the 7.87 V/mm (200 mV/mil) scale factor stable across the chain.
Q5: Does 330194-17-25-15-00 have hazardous area approvals?
A: The “-00” suffix basically means no hazardous area certifications. So no ATEX or IECEx on this version. It’s generally used in safe-area installations, or otherwise inside protected enclosures where explosive gas exposure is controlled or not present.
