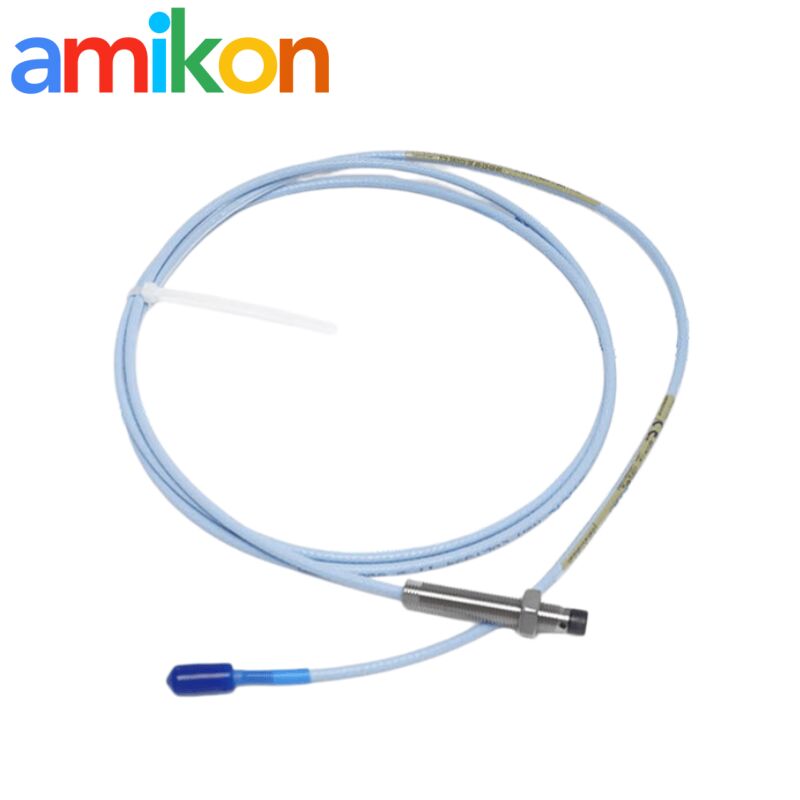

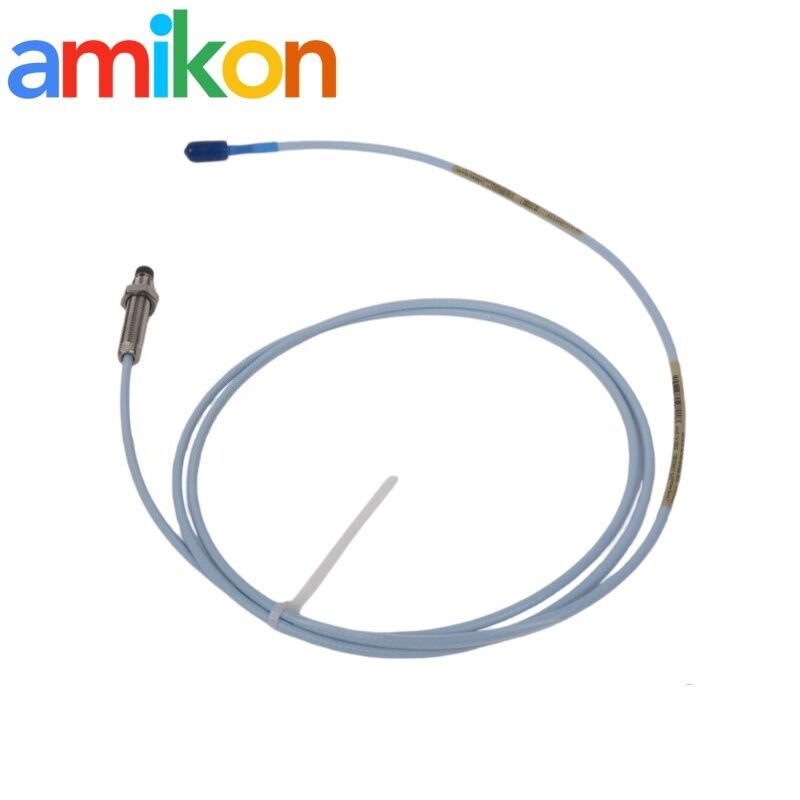

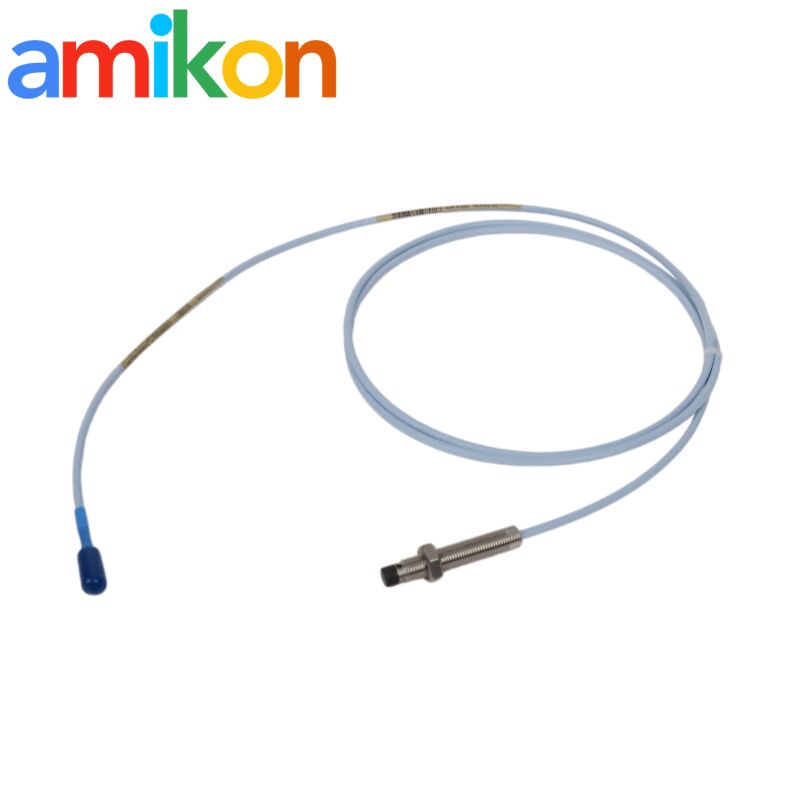

Bently Nevada 330101-00-20-15-02-05 8 mm Proximity Probe and CSA / ATEX / IECEx Certification
Bently Nevada 330101-00-20-15-02-05 8 mm Proximity Probe and CSA / ATEX / IECEx Certification
8 mm Proximity Probe
3/8-24 UNF thread Displacement Sensor
CSA / ATEX / IECEx certified Vibration Sensor
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330101-00-20-15-02-05
Contact Us
Request A Quote
Product Details
Warranty:
365 Days
Product Model:
330101-00-20-15-02-05
MOQ:
1 Piece
Estimated Shipping Size:
112x1.2x1.5cm
Shipping:
TNT, DHL, FedEx, EMS, UPS
Brand:
Bently Nevada
Condition:
100% Original
Country Of Origin:
USA
Highlight:
8 mm Proximity Probe
,3/8-24 UNF thread Displacement Sensor
,CSA / ATEX / IECEx certified Vibration Sensor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Triconex 3008N Main Processor Module with TMR Redundancy for SIS and Emergency Shutdown Systems
Get Best Price
video
Bently Nevada 330101-00-20-15-02-05 8 mm Proximity Probe and CSA / ATEX / IECEx Certification
Get Best Price
Contact Us
Contact Now
Product Description
The Bently Nevada 330101-00-20-15-02-05 is a high-performance, non-contacting displacement sensor designed for critical rotating machinery. As part of the gold-standard 3300 XL series, this 8mm probe delivers precision vibration and position data in environments where accuracy isn't optional—it's a safety requirement.
Ordering Information Breakdown
Engineers and procurement teams often look for specific ordering information strings. Here is the configuration breakdown for this exact part number:
- Model No: 330101 (3/8-24 UNF thread, no armor)
- Unthreaded Length (-00): 0.0 inches - Perfect for flush-mount or thin-bracket installations
- Case Length (-20): 2.0 inches (50.8 mm) - Standard depth for most bearing housings
- Total System Length (-15): 1.5 Meters (approximately 4.9 feet)
- Connector Type (-02): Miniature coaxial ClickLoc™ connector - Gold-plated for zero-signal loss
- Approval Option (-05): Multi-certified for hazardous areas (CSA, ATEX, IECEx)
| Item | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Thread | 3/8-24 UNF |
| Case Length | 2.0 in (minimum) |
| Unthreaded Length | 0.0 in |
| Cable Length | 1.5 m (4.9 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Certifications | CSA / ATEX / IECEx |
| Net Weight | 0.06 kg |
| Probe Case Thread | 3/8-24 0.563 in |
Core Technical Capabilities
- API 670 Compliant: Designed for seamless integration with 3300 XL Proximitor® Sensors, ensuring total interchangeability without recalibrating individual components
- PPS Probe Tip: The tip is molded from high-temperature Polyphenylene Sulfide (PPS), resisting oil, water, and caustic chemical penetration
- ClickLoc™ Connectivity: Features the patented locking mechanism that prevents accidental disconnects caused by machine vibration
- Linear Range: Provides a standard 80 mil (2.0 mm) linear range, ideal for radial vibration, axial thrust, and Keyphasor applications
Application Benefits
The 330101-00-20-15-02-05 is frequently sourced for gas and steam turbine retrofits where the 3/8-24 thread is the standard mounting interface. The "05" approval code makes it a universal spare for global fleets, meeting both North American (CSA) and European (ATEX) safety standards in one part number.
Installation Guidelines
- Gap Setting: Aim for the center of the linear range (typically -10 Vdc) using a digital voltmeter during installation to ensure maximum dynamic range
- Cable Routing: Since this is the "without armor" version, ensure cable runs are protected by conduit or internal housing to prevent mechanical shearing
- Interchangeability: This 1.5m probe is designed to work with a 3300 XL Proximitor sensor specifically tuned for a 5-meter or 9-meter system. Check your total system length before commissioning
Value Proposition
Process Optimization: By providing cost-effective drives, controllers, and system components, we help optimize control processes and improve energy efficiency.
Maximized ROI: Smart ordering cycles ensure clients get the highest return on their asset investments and strengthen their business competitiveness.
About Amikon Automation
With deep experience in spare parts supply chains, Amikon Automation ensures that industrial automation components are never hard to source—helping reduce redundancy and simplify procurement across the industry.
