Triconex 9668-110 Termination Board with 16 Independent Relay Outputs Non-Commoned Design
Triconex 9668-110 Termination Board with 16 Independent Relay Outputs Non-Commoned Design
16 Independent Relay Outputs Termination Board
Non-Commoned Design Terminal Board
Built-in Fuse per Channel Relay Output Board
Place of Origin:
USA
Brand Name:
Triconex
Model Number:
9668-110
Contact Us
Request A Quote
Product Details
Spare Model:
9668-110 3000590-110 , 7400172-110
Packaging:
Original New Packaging
Product Model:
9668-110
Product Parameters:
Termination Board
Shipping:
TNT, DHL, FedEx, EMS, UPS
Weight:
0.5 Kg
Estimated Shipping Size:
20.3 Cm X 12.7 Cm X 5.1 Cm
Place Of Shipment:
Xiamen, China
Highlight:
16 Independent Relay Outputs Termination Board
,Non-Commoned Design Terminal Board
,Built-in Fuse per Channel Relay Output Board
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Triconex 9668-110 Termination Board with 16 Independent Relay Outputs Non-Commoned Design
Get Best Price
video
Triconex T3411F Digital Input Module with Triple Modular Redundant Safety Monitor
Get Best Price
Contact Us
Contact Now
Product Description

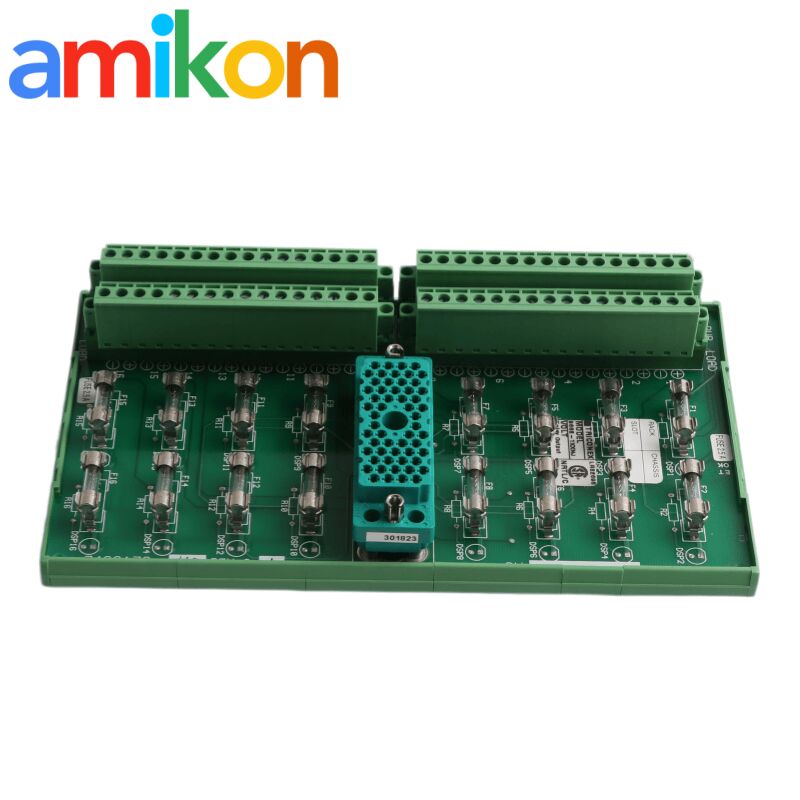

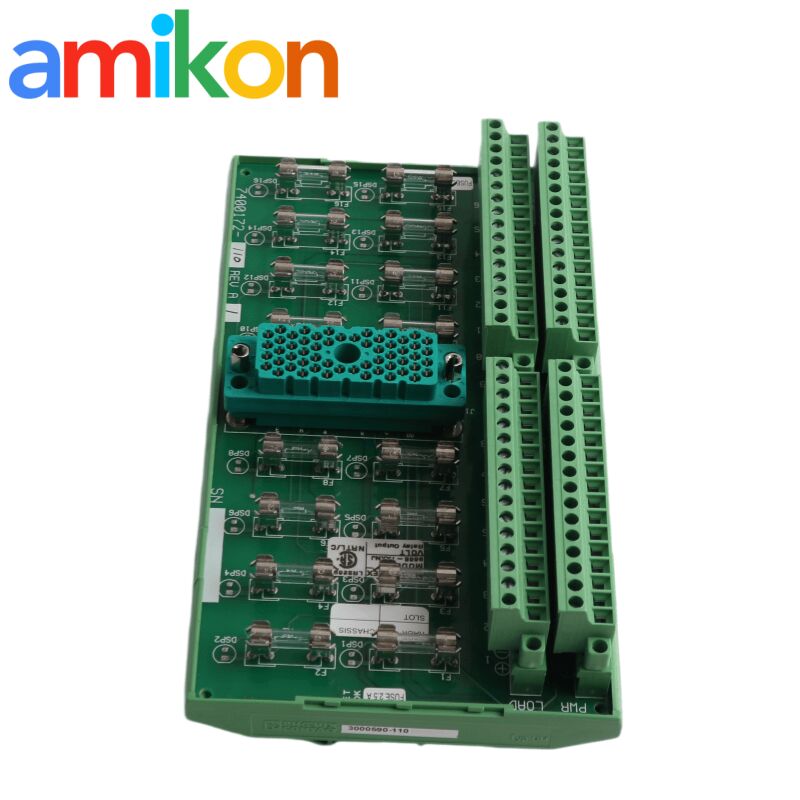

Triconex 9668-110 Termination Board
Basic Profile
16 independent relay output points with non-commoned design (no shared return). Features separate terminals for LOAD and FIELD POWER with built-in fuse protection per channel (16 total). Specifically designed for relay-type output circuits.
Channel Layout
- Every output point follows the same structure
- LOAD + / - connects to field device
- PWR + / - for incoming supply
- Dedicated fuse protection per loop
- Completely independent design with no shared components
Key Features
- Fuses per channel: Individual protection ensures one tripped point doesn't affect the entire section
- Clear terminal separation: Power and load are split to reduce wiring mistakes during installation
- Straightforward maintenance: Issues can be traced directly at terminal level without complex diagnostics
- Panel scalability: Two boards per module design prevents wiring density issues
Typical Applications
ESD systems, fire & gas panels, turbine trip systems, and legacy Tricon racks still in operation. Particularly common in plants where system consistency and long-term reliability are prioritized over redesign.
Operational Benefits
This hardware maintains system integrity by keeping outputs separate, protected, and easily traceable. Without it, outputs become messy, faults spread faster, and troubleshooting becomes more complex.
Why Non-Commoned Design Matters
While shared common designs might save wiring, they introduce significant risk. The 9668-110's isolated channel design provides critical benefits:
- One short circuit won't affect other channels
- Troubleshooting remains local, not system-wide
- Signal paths maintain complete independence
- Meets safety system separation requirements
Triconex System Advantages
True Fault Tolerance (Not Just Redundancy)
Triple Modular Redundancy (TMR) with three independent processing paths and real-time voting mechanism ensures continuous operation during single faults - critical for shutdown logic and safety loops.
Long-Term Stability
10-20+ year operational lifecycle with minimal performance drift and consistent behavior under varying load conditions. Stability often matters more than frequent upgrades in industrial applications.
Certified Safety Compliance
Widely accepted in environments governed by IEC 61508 and IEC 61511 standards. SIL-certified platform meets rigorous safety requirements beyond basic compliance checkboxes.
Hardware-Level Reliability
Consistent design philosophy extends throughout the system: non-commoned I/O structures reduce shared-fault risks, relay outputs provide predictable behavior, and termination boards maintain wiring isolation and traceability.
