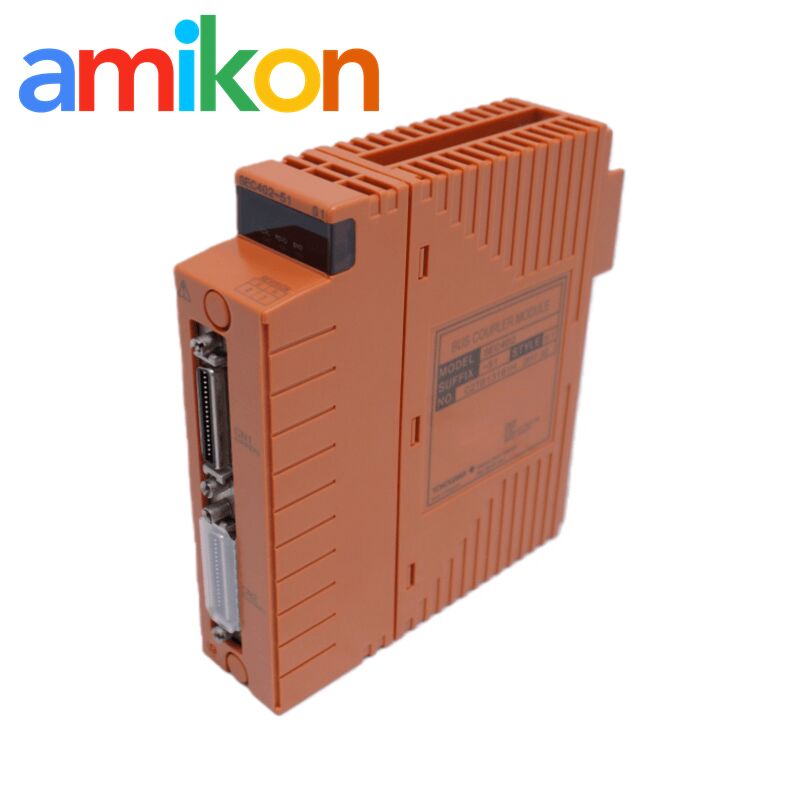

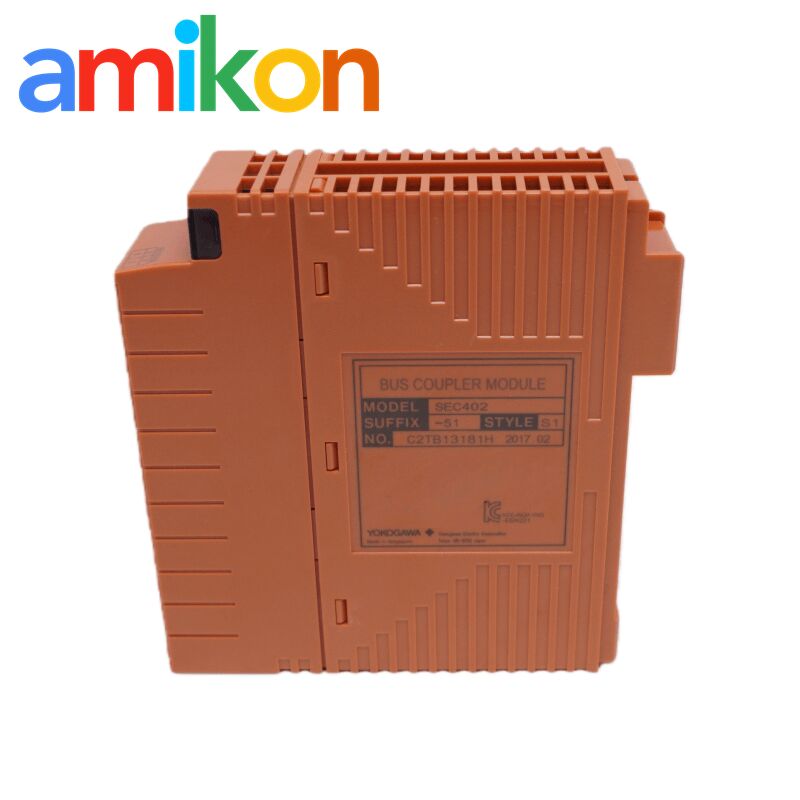

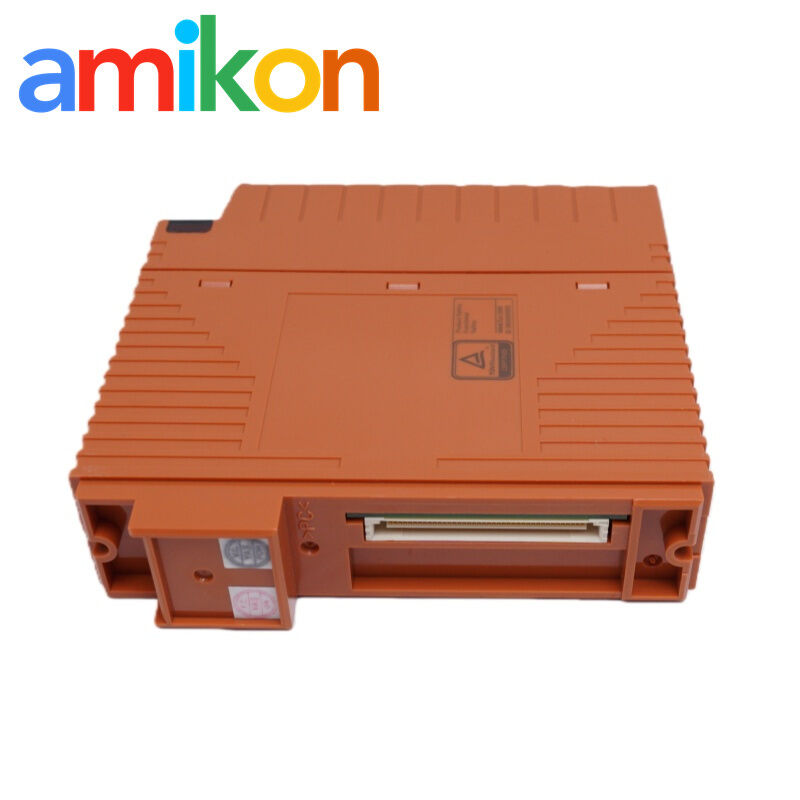

Yokogawa SEC402-51 S1 ESB Bus Coupler Module with 128 Mbps Transmission Speed
Yokogawa SEC402-51 S1 ESB Bus Coupler Module with 128 Mbps Transmission Speed
128 Mbps ESB Bus Coupler Module
9 Units Maximum Connectivity Yokogawa SEC402-51 S1
Compact Installation-Efficient Design Safety Instrumented System Module
Place of Origin:
JAPAN
Brand Name:
Yokogawa
Model Number:
SEC402-51 S1
Contact Us
Request A Quote
Product Details
Number Of Connectable Units:
9 Units Maximum
Transmission Speed:
128 Mbps
Transmission Distance:
10 M Maximum
Current Consumption:
0.5 A
Estimated Shipping Size:
3.2x12.8x13cm
Weight:
0.22 Kg
Place Of Shipment:
Xiamen, China
Country Of Origin:
JAPAN
Highlight:
128 Mbps ESB Bus Coupler Module
,9 Units Maximum Connectivity Yokogawa SEC402-51 S1
,Compact Installation-Efficient Design Safety Instrumented System Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
The ESB Bus Coupler Module provides a reliable connection between safety control units and safety node units through an ESB bus cable, enabling high-speed data exchange within safety instrumented systems.
Core Function
Function: ESB bus master interface function
System Connectivity
- Number of connectable units: Maximum 9 units on upper side, Maximum 9 units on lower side
Communication Performance
- Transmission speed: 128 Mbps (I/O module data transmission)
- Transmission distance: 10 m maximum for upper ESB bus cable, 10 m maximum for lower ESB bus cable
Connection Notes & Expansion Conditions
Note:
① The total number of SNB10D and SNT4££ (££ = 01, 11, 21) units connectable to either the upper or lower port is up to 9 units.
② Extended connection configuration available only when: S2SC70S or S2SC70D is used as the safety control unit, and a star connection is configured using SNT4££ (££ = 01, 11, 21). (Supported by R4.04 or later)
③ Extended capacity: Maximum 12 units on upper side, Maximum 12 units on lower side
① The total number of SNB10D and SNT4££ (££ = 01, 11, 21) units connectable to either the upper or lower port is up to 9 units.
② Extended connection configuration available only when: S2SC70S or S2SC70D is used as the safety control unit, and a star connection is configured using SNT4££ (££ = 01, 11, 21). (Supported by R4.04 or later)
③ Extended capacity: Maximum 12 units on upper side, Maximum 12 units on lower side
The SEC402 ESB Bus Coupler Module is designed with a compact and installation-efficient form factor to support flexible system layout within safety instrumented systems. Its external dimensions are optimized for panel mounting, ensuring compatibility with standard control cabinets while maintaining sufficient clearance for ESB bus cable routing and module replacement.
The mechanical design allows the module to be installed in close proximity to adjacent safety modules without compromising accessibility. Connector positions on both the upper and lower sides are arranged to support orderly ESB bus cable connections, reducing mechanical stress on cables and improving overall wiring reliability.
