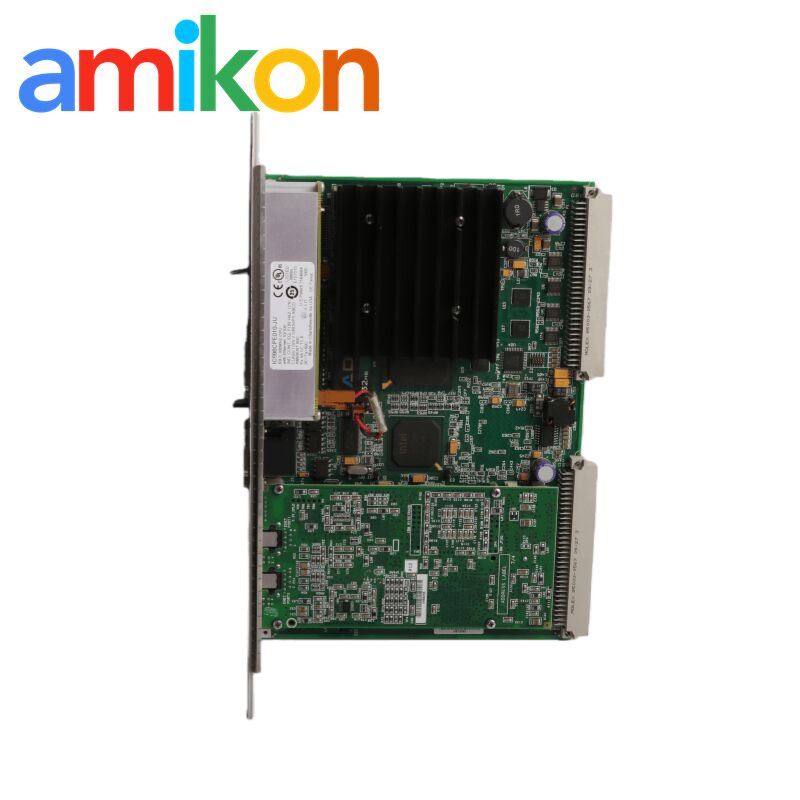

GE IC698CPE010 RX7i CPU with 10MB User Logic RAM, Dual Ethernet Interfaces
GE IC698CPE010 RX7i CPU with 10MB User Logic RAM, Dual Ethernet Interfaces
10 Megabytes User Logic RAM RX7i CPU
Dual Ethernet Communication Interfaces GE IC698CPE010
300 MHz Intel Celeron Microprocessor PACSystem RX7i Controller
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC698CPE010
Contact Us
Request A Quote
Product Details
IO Memory:
32 Kbits Discrete I/O; 32 KWords Analog I/O
CPU Memory:
10 Megabytes Of User Logic RAM
Ethernet Data Rate:
10Mb/sec And 100Mb/sec
Station Manager Port:
One (1) RS232 Station Manager Port
FTP / Webserver:
Supported; Up To 16 Connections
Media Redundancy:
Supported Via LAN 2
Weight:
0.6 Kg
Estimated Shipping Size:
4.4x29.2x19.1cm
Highlight:
10 Megabytes User Logic RAM RX7i CPU
,Dual Ethernet Communication Interfaces GE IC698CPE010
,300 MHz Intel Celeron Microprocessor PACSystem RX7i Controller
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
This controller series is engineered for large-scale and complex industrial applications. As a rack mount module, it occupies the designated CPU slot within the baseplate. The IC698CPE010 features a 300 MHz Intel Celeron microprocessor, delivering Boolean execution speeds of 0.33 ms per 1000 Boolean contacts/coils. It includes built-in 10 MB battery-backed user memory and 10 MB non-volatile flash memory. This module supports downloading up to 512 Program Blocks, with each block accommodating a maximum size of 128 KB.
Ethernet Communication Features
The IC698CPE010 incorporates dual embedded Ethernet communication interfaces that function as an embedded switch, requiring only a single IP address for operation. These interfaces support linear and Media Redundancy Protocol (MRP) configurations. The Ethernet ports enable data exchange at transmission rates of 10/100 Mbps with auto-negotiation capability, supporting both half and full-duplex modes. Protocol support includes Ethernet Global Data (EGD), SRTP, MODBUS TCP Server and Client protocols, along with access to File Transfer Protocol (FTP) and Web server capabilities.
Technical Specifications
| Specification | Details |
|---|---|
| Series | PACSystem RX7i |
| Manufacturer | GE Fanuc |
| Part Number | IC698CPE010 |
| Description | RX7i Central Processing Unit (CPU) |
| Location | RX7i Rack |
| Random Access Memory (RAM) | 10 MB |
| Operating Voltage | 5 to 12 Volts DC |
| Current Rating | 3.4 Amps |
| Discrete I/O Memory | 32 K |
| User Memory | 10 Megabyte |
| Compatible Memory Storage | SRAM, Flash |
| Maximum Program Block Size | 128 KB |
| Maximum Program Blocks | 512 Program Blocks |
| Processor Speed | 300 MHz |
Programming & Communication Capabilities
- RX7i CPUs are programmed and configured using specialized programming software for real-time control of machines, processes, and material handling systems
- The CPU communicates with I/O and smart option modules over a rack-mounted backplane using VME64 Standard format
- Communication with programmer and HMI devices occurs via embedded Ethernet ports or serial port using SNP Slave protocol
