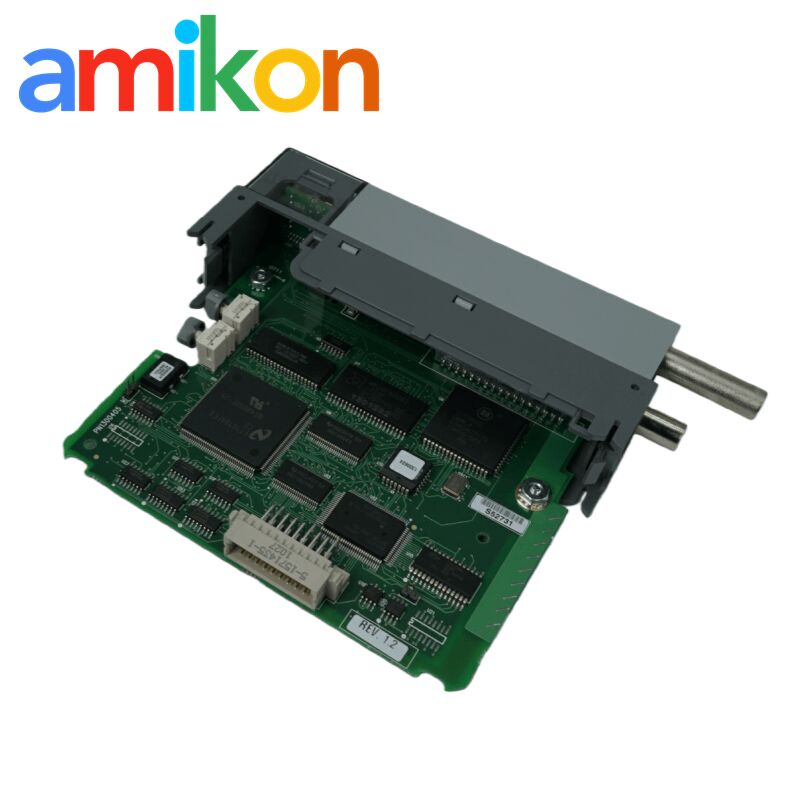

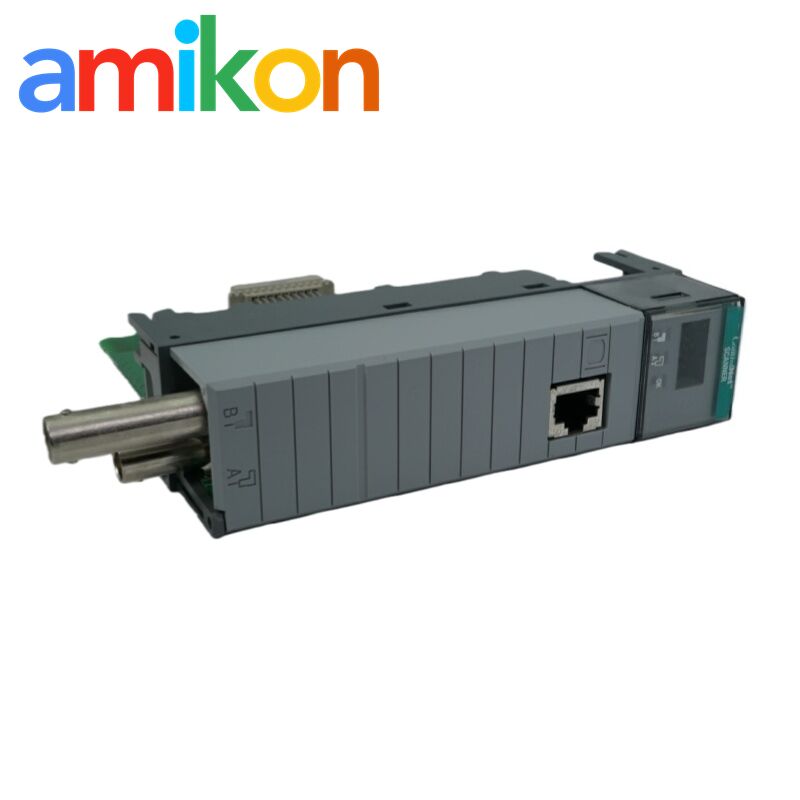

Allen Bradley 1747-SCNR SLC ControlNet Scanner Module with 2 ControlNet Ports
Allen Bradley 1747-SCNR SLC ControlNet Scanner Module with 2 ControlNet Ports
2 ControlNet Ports Scanner Module
850mA Backplane Current ControlNet Module
Optical Isolation SLC Scanner Module
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1747-SCNR
Contact Us
Request A Quote
Product Details
Country Of Origin:
USA
Place Of Shipment:
Xiamen,China
Estimated Shipping Size:
23.3x18.3x5.3cm
Backplane Current:
850mA @ 5V DC
ControlNet Ports:
2 (BNC Connectors)
Network Power:
24V DC (external)
Operating Temp:
0°C To 60°C
Relative Humidity:
5-95% Non-condensing
Highlight:
2 ControlNet Ports Scanner Module
,850mA Backplane Current ControlNet Module
,Optical Isolation SLC Scanner Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 1784-KTX ISA Communication Module for Data Highway Networks with Remote I/O Scanning
Get Best Price
Video
Allen Bradley 1772-LN2 CPU Module with 24V DC Input 16 DC Inputs and 1500V AC Isolation
Get Best Price
CONTACT US
Contact Now
Product Description
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Location | Slot 1 or above |
| Module Defaults | Node Address -00 |
| Maximum Backplane Current | 900 mA @ 5V dc |
| Isolation Voltage | Optical Isolation between backplane and ControlNet channel; 1 Megohm resistor from ControlNet channel to chassis |
| Environmental Conditions |
|
Module Status Indicators & Display Sequences
POST
The 1747-SCNR runs its Power-On Self Test (POST).
The 1747-SCNR runs its Power-On Self Test (POST).
Startup Execution
The display cycles through 1111, 2222, etc., indicating that the 1747-SCNR is executing its startup sequence.
The display cycles through 1111, 2222, etc., indicating that the 1747-SCNR is executing its startup sequence.
Firmware Identification
The 1747-SCNR firmware version is displayed temporarily after startup.
The 1747-SCNR firmware version is displayed temporarily after startup.
Operational Status Display
The display shows the following information in sequence:
The display shows the following information in sequence:
- A#nn (where nn = ControlNet node address)
- I/O or I/OX (based on the number of connections configured and established)
- IDLE or RUN (based on the current scanner mode)
CAUTION: Power Down Required
Do not insert or remove the 1747-SCNR module while the chassis is powered. "Hot swapping" will cause permanent hardware damage to the module and backplane connectors.
Do not insert or remove the 1747-SCNR module while the chassis is powered. "Hot swapping" will cause permanent hardware damage to the module and backplane connectors.
Installation Procedure
- Isolate Power
Switch off the SLC chassis power supply. Confirm all LEDs on the power supply unit are dark before proceeding. - Slot Identification
Select an available I/O slot.
Restriction: Do not use Slot 0 (the leftmost slot in the first chassis); this is reserved for the SLC 500 CPU.
Placement Tip: For best performance, seat the scanner in the slot closest to the power supply. - Module Insertion
Slide the 1747-SCNR into the chassis guide rails. Ensure the module is aligned with the backplane connectors. - Mechanical Seating
Press firmly on the module faceplate until it is fully seated. Verify that the top and bottom retaining tabs have locked into place. - System Power-Up
Restore power to the chassis. The module will initiate its internal self-test; monitor the status indicators for proper initialization.
