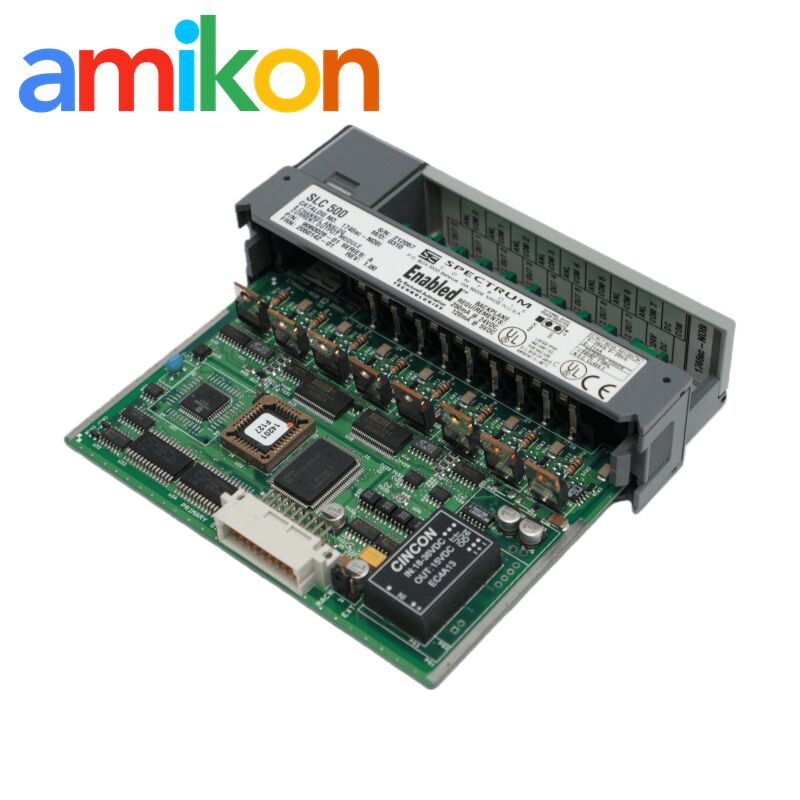

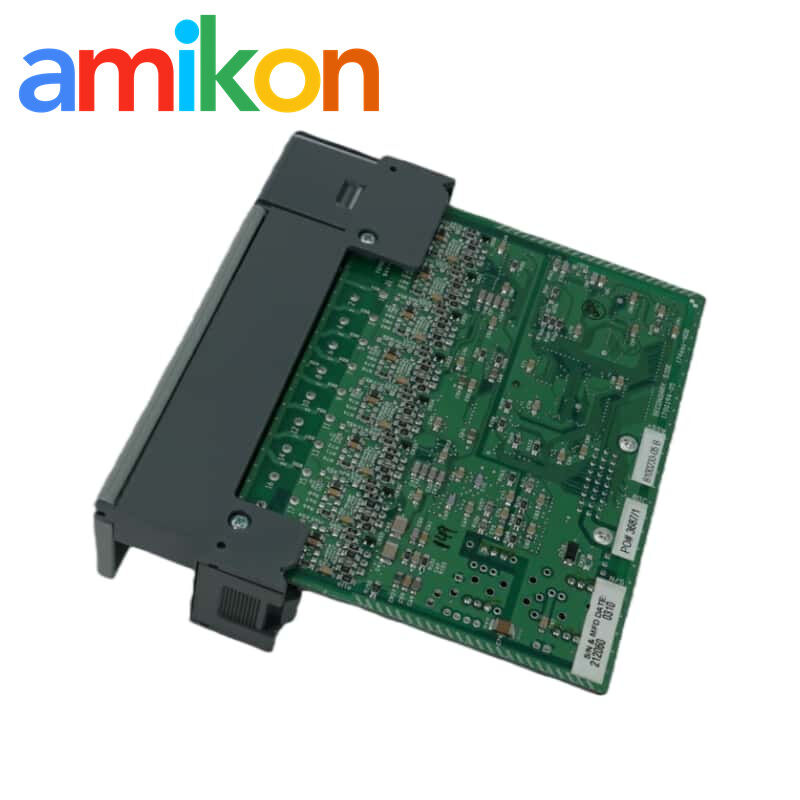

Allen Bradley 1746SC-NO8I Analog Output Module with 8 Current Output Channels 16-bit Resolution
Allen Bradley 1746SC-NO8I Analog Output Module with 8 Current Output Channels 16-bit Resolution
8 Current Output Channels Analog Output Module
16-bit Resolution SLC 500 Module
Removable Terminal Block 1746SC-NO8I
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1746SC-NO8I
Contact Us
Request A Quote
Product Details
Country Of Origin:
USA
Place Of Shipment:
Xiamen, China
Estimated Shipping Size:
3.6x13x14.5cm
Weight:
0.26 Kg
Output Signals:
0-20 MA; 4-20 MA
Terminal Screw Torque:
7 Lb-in To 9 Lb-in
Module Resolution:
16-bit
Wire Size:
Maximum 14 AWG
Highlight:
8 Current Output Channels Analog Output Module
,16-bit Resolution SLC 500 Module
,Removable Terminal Block 1746SC-NO8I
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 1747-L20C Processor Unit with 1K Instructions 8 AC/DC Relay Outputs
Get Best Price
Video
Allen Bradley 1747-AICR Isolated Link Coupler with 24VDC External Power 470mA Backplane Current
Get Best Price
CONTACT US
Contact Now
Product Description
This fully compatible Allen-Bradley SLC 500 series module features eight (8) current output channels capable of generating 0-20 mA and 4-20 mA signals with 16-bit ADC resolution. Designed for industrial automation applications, this module drives modulating devices including control valves, variable frequency drives (VFDs), positioners, and similar equipment.
The module also supports signal retransmission to panel meters, data loggers, recorders, or as input to other PLC-based and single-loop controllers. The 1746SC-NO8I consumes 120 mA at 5 VDC and 240 mA at 24 VDC from the backplane and occupies a single chassis slot.
Installation & Compatibility
Can be installed in any available slot except slot 0 (reserved for CPU), and may be installed in local or remote I/O racks as part of distributed I/O systems. Features a removable terminal block (RTB) mounted on the front panel for simplified troubleshooting and maintenance without disturbing existing wiring. Note: Does not support removable insertion under power (RIUP).
Wiring Specifications
Requires a small Phillips screwdriver and Belden 8761 cable. The 18-position terminal block doesn't need removal for normal operation. For maintenance removal, verify proper grounding and power shutdown. Field wiring should be routed away from other wiring, motors, transformers, and AC devices, crossing power or AC cables at right angles. Each terminal supports maximum two wires up to 14 AWG with recommended terminal screw torque of 7 to 9 lb-in.
Application Functions
This module serves as the command interface between PLC logic and physical process actuators:
- Actuator Drive: Direct modulation of control valves, Variable Frequency Drives (VFDs), and electro-pneumatic positioners
- Signal Mirroring: Retransmission of process variables to secondary hardware including:
- Local panel meters and digital displays
- SCADA-linked data loggers and circular chart recorders
- Cascaded inputs for secondary single-loop or PID controllers
