GE IC697ALG230 Analog Input Module with Eight Differential Inputs 16-bit Resolution
GE IC697ALG230 Analog Input Module with Eight Differential Inputs 16-bit Resolution
Eight Differential Inputs Analog Input Module
16-bit Resolution GE IC697ALG230
Fast Update Rate 2.4-2.8 ms Series 90-70 PLC Module
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC697ALG230
Contact Us
Request A Quote
Product Details
No Of Channels:
Eight (8) Analog Input
Update Rate:
2.4 Ms To 2.8 Ms
Current Input Range:
4 To 20 Milliamps
Calibration:
Factory Set At 10 Volts +/- 2 MV
No. Of Terminals:
40 Pins
Maximum No. Of Inputs:
120
Analog Output Resolution:
16 Bits
Voltage Input Range:
-10 To +10 Volts
Highlight:
Eight Differential Inputs Analog Input Module
,16-bit Resolution GE IC697ALG230
,Fast Update Rate 2.4-2.8 ms Series 90-70 PLC Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

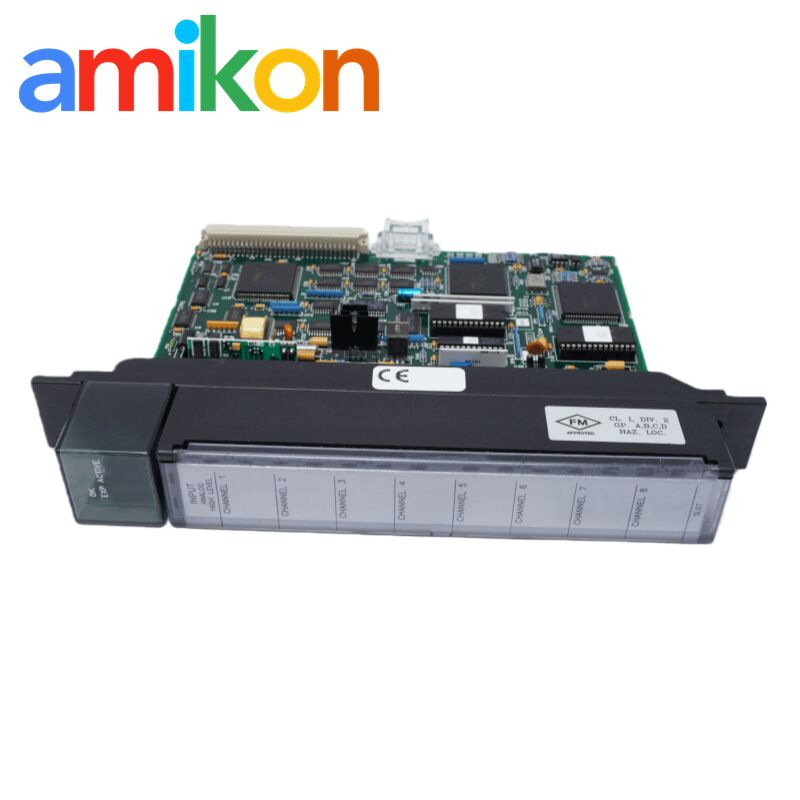

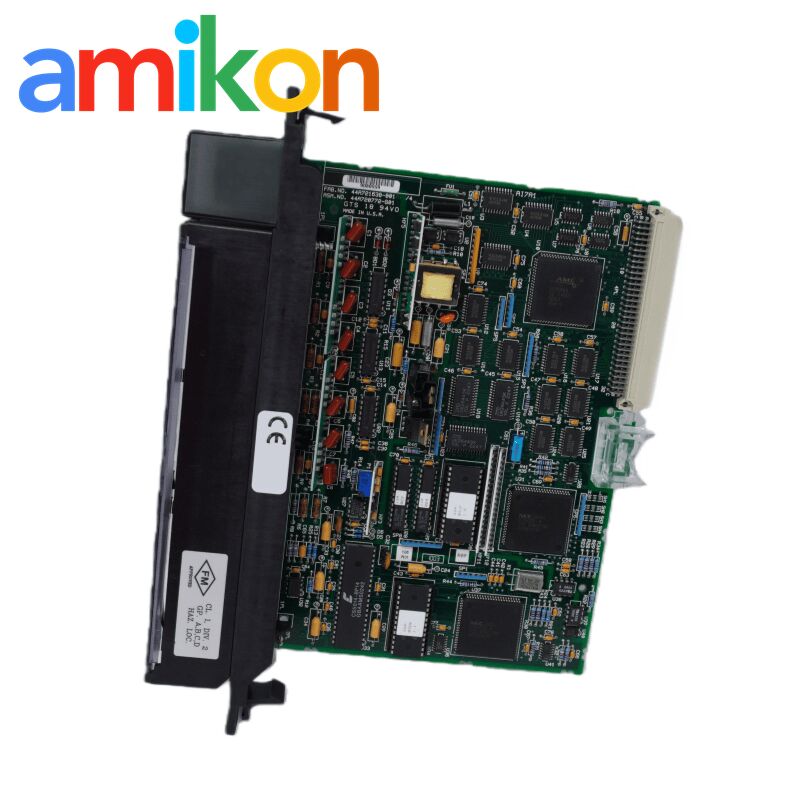

The IC697ALG230 is a base converter module from the Series 90-70 PLC platform. It provides eight differential inputs, each configurable for voltage or current signals, including 4-20 mA current outputs and -10 VDC / +10 VDC voltage outputs with 16-bit resolution. The module includes low-pass filters on each channel and opto-isolation to protect the PLC backplane. It supports differential wiring, which measures signals between two reference wires for better resistance to EMI, making it ideal for applications requiring precise measurements. A removable 40-terminal block and a door insert allow easy connection and labeling of inputs.
The module works seamlessly with Series 90-70 expander modules—IC697ALG440 (Voltage) and IC697ALG441 (Current)—allowing up to seven expanders to be connected for a total of 120 input channels. Each input can be individually scaled, and the module features a fast update rate of 2.4-2.8 milliseconds. It has a serial communication port for controlling expanders via the CPU and a switching circuit that links the base and expander modules to the analog-to-digital converter. CPU alarms and per-channel fault reporting provide additional monitoring and reliability.
Configuration is done through MS-DOS or Windows software, enabling users to set up each input to match the application needs. The software also allows modification of configuration parameters directly through PLC ladder logic. With its combination of precise inputs, flexible expansion, fast update times, and built-in diagnostics, the IC697ALG230 offers a reliable solution for high-level analog input systems in industrial automation.
Key Features & Specifications
Complete Subsystem
Includes Base Converter and Expander Modules for a flexible and scalable analog input system.
Base Converter Module
Eight differential inputs, individually configurable for voltage or current. Accepts unipolar or bipolar analog inputs up to ±10 volts full scale. Supports 4-20 mA current loop signals. Provides individual user scaling on each input channel.
Expander Modules
Available in voltage or current versions, each with 16 inputs. Enables additional inputs at a lower cost per point. Scaling applied per module.
Performance & Configuration
Fast update rate for the Base Converter module. Complete subsystem can support up to 120 inputs. No jumpers or DIP switches required for setup. Easy configuration using MS-DOS or Windows programming software.
Technical Operation Details
|
Signal Input
Accepts analog signals up to ±10 V full scale or 4-20 mA current loop signals. Inputs are delivered from field devices to the module via the removable terminal board.
|
Data Conversion
Inputs are converted to digital form for use by the CPU or other controllers via the VME backplane. Conversion format: 2's complement (sign + 15 bits). Base converter resolution: 14-bit, enhanced using oversampling and averaging techniques for higher accuracy.
|
|
Input Protection
Each channel is protected against transient and steady-state overvoltage conditions, ensuring reliable operation in harsh environments.
|
Memory Mapping
Uses %AI references in the PLC. Maximum of 8K words of %AI memory available. Each input channel uses one 16-bit word.
|
|
Field Wiring & Replacement
Module is mechanically keyed for safe and correct replacement. I/O references are fully user-configurable without jumpers or DIP switches.
|
Configuration & Setup
Configurable via MS-DOS or Windows programming software (Windows 95/NT). Communication over Ethernet TCP/IP or SNP port. Compatible programming devices include IBM XT, AT, PS/2, or similar PCs.
|
