GE IC670PBI001 Profibus Bus Interface Unit with 24 V DC Power Supports 8 I/O Modules
GE IC670PBI001 Profibus Bus Interface Unit with 24 V DC Power Supports 8 I/O Modules
24 V DC Power Profibus Bus Interface Unit
Supports 8 I/O Modules GE IC670PBI001
Shielded Twisted Pair Cable Field Control Interface
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC670PBI001
Contact Us
Request A Quote
Product Details
Network Medium:
Shielded Twisted Pair Cable
Ambient Operating Temperature:
0-55 Degrees Celsius
No. Of Supported I/O Modules:
Up To Eight (8) Modules
No. Of Stations Per Profibus Segment:
32
Programming:
Via Hand-Held Programmer
Product Model:
IC670PBI001
Product Parameters:
Profibus Bus Interface Unit
Country Of Origin:
USA
Highlight:
24 V DC Power Profibus Bus Interface Unit
,Supports 8 I/O Modules GE IC670PBI001
,Shielded Twisted Pair Cable Field Control Interface
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

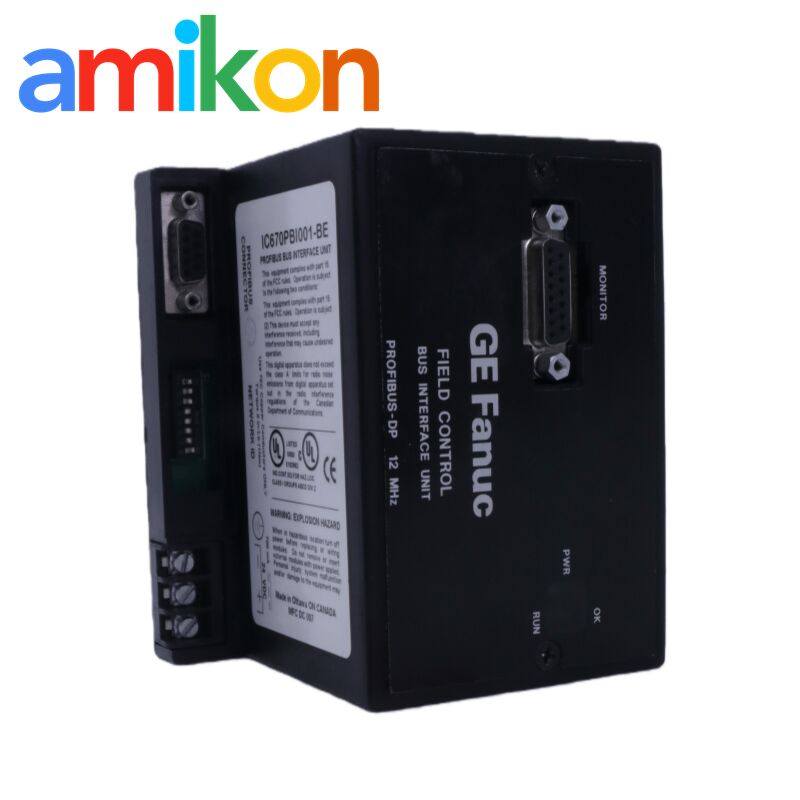

The IC670PBI001 is a Profibus interface unit from the GE Fanuc Field Control series. This module mounts on a Bus Interface Unit (BIU) terminal block and operates with an external 24 V DC power supply. It enables Field Control I/O modules to communicate with GE CPUs over a Profibus network, supporting high-speed distributed I/O architecture.
The unit features two 9-pin D-shell connectors: one serves as a Hand-Held Programmer (HHP) port for downloading and monitoring, while the other functions as the Profibus network interface. The network port supports standard Profibus data rates ranging from 9.6 Kbits to 12 Mbits and requires shielded twisted-pair cabling such as Belden #9463, compatible with linear or daisy-chain Profibus topologies with proper termination.
A single IC670PBI001 unit can support up to eight Field Control I/O modules. The unit operates when mounted on the BIU terminal block, which supports DIN-rail mounting and panel mounting via integrated tabs. Profibus node addressing is configured using an 8-position DIP switch array, allowing address settings from 00 to 32. The terminal block design enables module removal or replacement without disturbing wiring or requiring control station reconfiguration.
| Category | Specification |
|---|---|
| Product Family | Field Control |
| Part Number | IC670PBI001 |
| Product Type | Profibus Bus Interface |
| Product Description | Profibus Bus Interface Unit |
| Supported Protocol | Profibus |
| Profibus Topology | Linear bus topology |
| Rated Input Voltage | 24 V DC |
| Input Voltage Range | 18-30 V DC |
| Input Power | 7.7 W |
| Power Dissipation | 4.45 W |
| Addressing Method | Embedded DIP switches |
| Holdup Time | Max. 10 ms |
| Status Indicators | PWR, RUN, OK LEDs |
| Reliability | 180,000 hours MTBF |
Core Function
- Serves as the central Profibus interface within GE Fanuc Field Control PLC systems
- Provides I/O scanning and intelligent processing at the station level
- Supports group configuration for up to 8 Field Control I/O modules
- Enables efficient distributed I/O architecture over Profibus
System Characteristics
- Open architecture for flexible integration with Profibus-based control systems
- Simplified wiring design, reducing installation complexity
- Minimal spare-part requirements, supporting easier maintenance
- Integrated diagnostics covering the interface unit, connected I/O modules, and relays
Functional Capabilities
- Selectable I/O default states
- Analog range selection and analog scaling
- Fault reporting for improved system transparency
Mechanical & Power Design
- Compact aluminum enclosure with rugged industrial construction
- Suitable for installation in control panels, junction boxes, and NEMA-rated enclosures
- Powered by an external 24 V DC supply
- Equipped with a replaceable slow-blow fuse, serviceable without disturbing wiring
