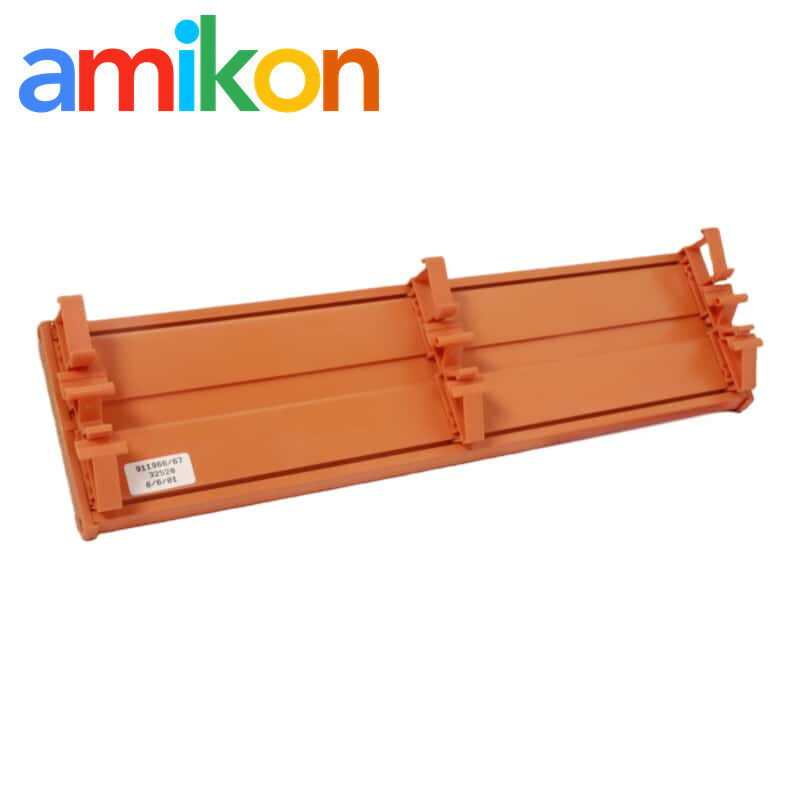

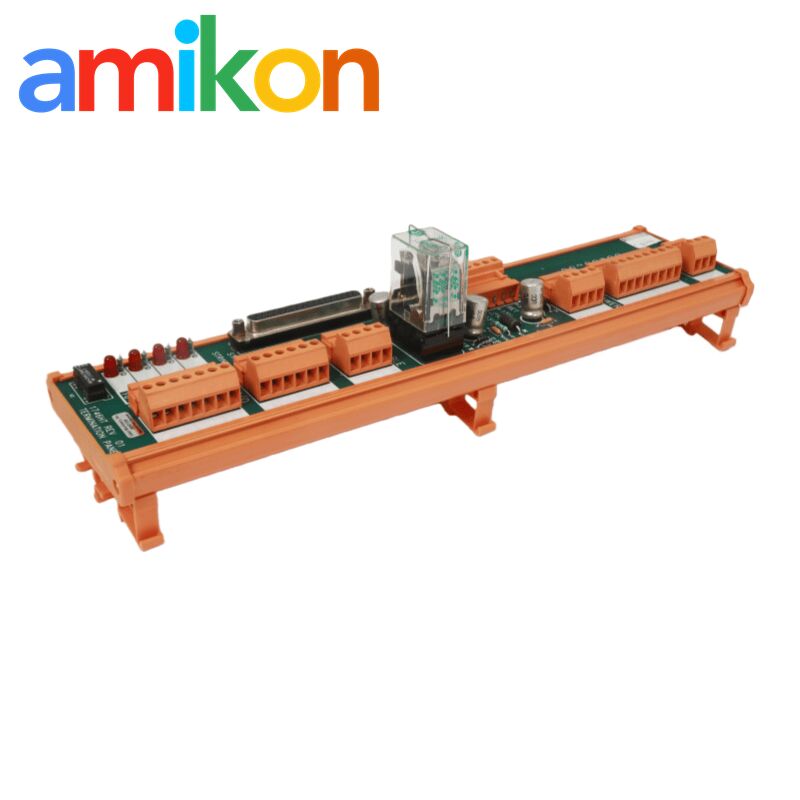

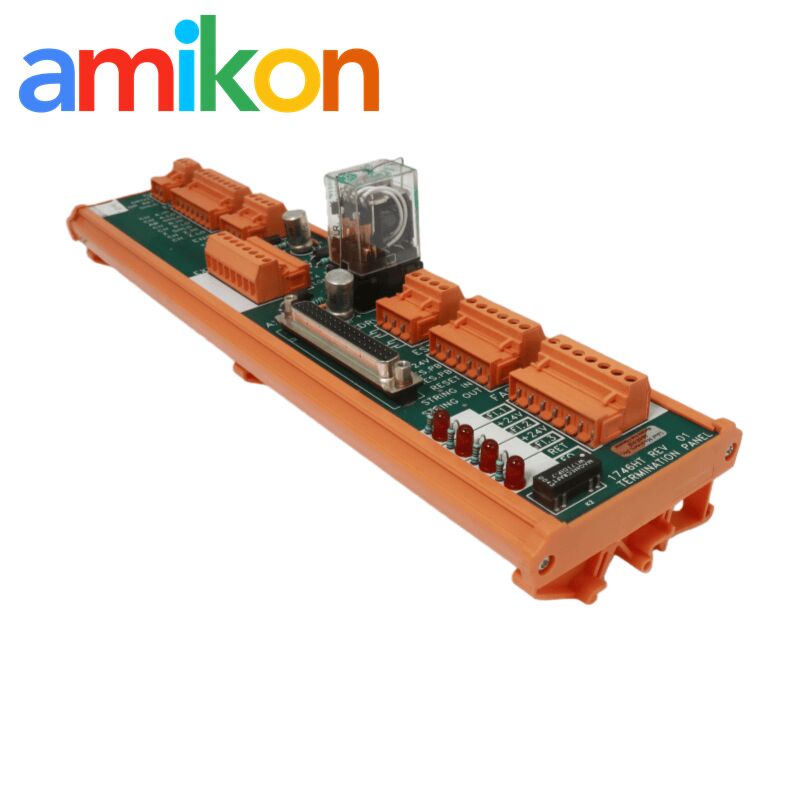

Allen Bradley 1746-HT Termination Panel with 250 kilohertz Input Frequency DIN Rail Mounting
Allen Bradley 1746-HT Termination Panel with 250 kilohertz Input Frequency DIN Rail Mounting
250 kilohertz Input Frequency Termination Panel
DIN Rail Mounting 1746-HT
Fast I/O Connection Allen Bradley Panel
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1746-HT
Contact Us
Request A Quote
Product Details
Product Model:
1746-HT
Product Parameters:
Termination Panel
Place Of Shipment:
Xiamen, China
Mounting:
Rack
Outputs:
Digital
Input Frequency:
250 Kilohertz
Backplane Current (5 Volts):
200 Milliamps
Backplane Current (24 Volts):
90 Milliamps
Highlight:
250 kilohertz Input Frequency Termination Panel
,DIN Rail Mounting 1746-HT
,Fast I/O Connection Allen Bradley Panel
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 1746-OBP16 16 Channel 24 VDC Output Module with Integrated Fuse Protection
Get Best Price
Video
Allen Bradley 1746-OB32 32 Point 24V DC Sourcing Configuration Digital Output Module
Get Best Price
Video
Allen Bradley 1756-DMD30 Drive Module and Fiber Optic Interface in Single-Slot Design
Get Best Price
Video
Allen Bradley 1747-ACN15 ControlNet I/O Adapter Module with High-Speed Data Transfer
Get Best Price
CONTACT US
Contact Now
Product Description
The Allen-Bradley 1746-HT termination panel provides essential connectivity and flexibility for SLC servo control systems. With compact dimensions of 292 mm (11.25 in.) height and 70 mm (2.75 in.) width, this panel offers comprehensive termination capabilities.
Key Features
- Emergency stop connection for E-stop ring integration
- Fast I/O connection supporting three inputs and one output
- LED status indicators for each I/O point
- Encoder feedback capability for single-axis applications
- Direct analog drive connections
- External power connections for +5V, +15V, and +24V power supplies
- DIN rail mounting with installation up to 2.1 m (7 ft) from motion control module
- Tool-free installation requiring only screwdriver and wire stripper
Connection Specifications
Drive Connections: Drive, Drive Return, Shield
Encoder Connections: Channel A Hi/Low, AB Shield, Channel B Hi/Low, Z Shield, Channel Z Hi/Low
Encoder Power: +5V, Return, +15V, Shield
External Power: +5V, Return, +15V, -/+ Return, -15V, +24V, +24V Return, EGND
Drive Enable & E-Stop: +24V, 2 RES. PB, RESET, STRING IN/OUT
Fast I/O: FAST IN. 1, +24V, FAST IN. 2, +24V, FAST IN. 3, Return, FAST Output. 1
Encoder Connections: Channel A Hi/Low, AB Shield, Channel B Hi/Low, Z Shield, Channel Z Hi/Low
Encoder Power: +5V, Return, +15V, Shield
External Power: +5V, Return, +15V, -/+ Return, -15V, +24V, +24V Return, EGND
Drive Enable & E-Stop: +24V, 2 RES. PB, RESET, STRING IN/OUT
Fast I/O: FAST IN. 1, +24V, FAST IN. 2, +24V, FAST IN. 3, Return, FAST Output. 1
Axis Compatibility
Supports both linear and rotary axis configurations for versatile motion control applications.
Environmental Specifications
| Description | Specification |
|---|---|
| Temperature | Operating: 0 to 60 °C (32 to 140 °F) Storage: -40 to 85 °C (-40 to 185 °F) |
| Humidity | 5 to 95% non-condensing |
| Vibration | Operating: 1.0 g at 5 to 2000 Hz Non-operating: 2.5 g at 5 to 2000 Hz |
| Shock | Operating: 30 g (3 pulses, 11 ms) -- all modules except relay contact Operating: 10 g (3 pulses, 11 ms) -- relay contact modules 1746-OWx and 1746-IOx combo Non-operating: 50 g, 3 pulses, 11 ms |
| Free fall (drop test) | • Portable, 2.268 kg (5 lb) or less at 0.762 m (30 in.), six drops • Portable, 2.268 kg (5 lb) or less at 0.1016 m (4 in.), three flat drops |
