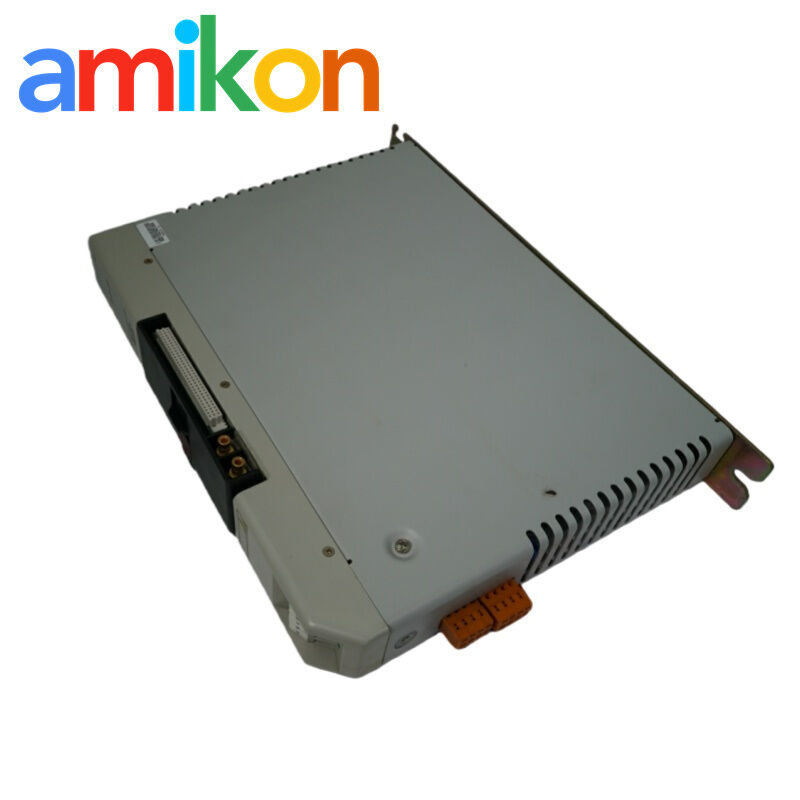

Allen Bradley 1394C-AM04 AC Servo Controller Axis Module with 3 Kilowatt Output
Allen Bradley 1394C-AM04 AC Servo Controller Axis Module with 3 Kilowatt Output
3 Kilowatt Output AC Servo Controller
530-680V DC Input Axis Module
Slide-and-Lock Feature 1394C-AM04
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1394C-AM04
Contact Us
Request A Quote
Product Details
Product Parameters:
AC Servo Controller Axis Module
Estimated Shipping Size:
7.6x40.6x27.9cm
Weight:
4.5 Kg
Output Rating:
3 Kilowatt
DC Input Voltage:
530-680
Amperage:
4.5-9 A
AC Input Voltage:
360-480
Efficiency:
98%
Highlight:
3 Kilowatt Output AC Servo Controller
,530-680V DC Input Axis Module
,Slide-and-Lock Feature 1394C-AM04
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 1746-OBP16 16 Channel 24 VDC Output Module with Integrated Fuse Protection
Get Best Price
Video
Allen Bradley 1746-OB32 32 Point 24V DC Sourcing Configuration Digital Output Module
Get Best Price
Video
Allen Bradley 1756-DMD30 Drive Module and Fiber Optic Interface in Single-Slot Design
Get Best Price
Video
Allen Bradley 1747-ACN15 ControlNet I/O Adapter Module with High-Speed Data Transfer
Get Best Price
CONTACT US
Contact Now
Product Description
The Allen-Bradley 1394C-AM04 is a multi-axis module from Series C in the 1394 family. With specifications similar to other multi-axis modules, it delivers 3 kW peak power. This module provides 4.5 Amps continuous output current (RMS), with peak current reaching 9 Amps within one second.
The 1394C-AM04 operates with a nominal input voltage range of 530 to 680 Volts DC and features 110 microFarad capacitance, matching the 1394C-AM03 model. Weighing 5 kilograms, the module includes an integrated heatsink within its cabinet.
Featuring a convenient slide-and-lock mechanism, the 1394C-AM04 simplifies wiring modifications. Exercise caution when connecting and routing power or signal wiring, as radiated noise from nearby electronic drives can interfere with feedback, communications, and other sensitive low-voltage signals.
To ensure optimal operation, implement cable shielding to minimize radiated noise and connect all shields to a single ground point. Insulate open-ended shields (resolver feedback cable at the resolver and velocity command cable at the servo drive) to prevent ground loops. Consult the manual for detailed installation guidance.
1394 System Family Overview
- System Family: The 1394 is a modular, multi-axis motion control and drive system family designed for advanced industrial motion applications.
- Control and Drive Integration: Unique design enables use as an integrated motion controller and drive system (GMC) with Turbo or standard IMC™ S Class Compact functionality, plus integrated 9/440 CNC and 9/Series CNC digital interface drive systems.
- Servo System Compatibility: Supports SERCOS servo drive systems and analog servo drive systems, providing flexibility across multiple motion control platforms.
- Power and Configuration: All 1394 systems offer transformerless direct line connection for 360V and 480V three-phase input power, efficient IGBT power conversion, and slide-and-lock module-to-module connections. Each module supports up to four axis modules, resulting in significant panel space and interconnect savings.
Series C Enhanced Features
Series C system modules (catalog numbers 1394C-SJTxx-x) and axis modules (catalog numbers 1394C-AMxx and -AMxx-IH) include advanced features not available on Series A and B modules (catalog numbers 1394-SJTxx-x and 1394-AMxx).
Series C system modules are fully interchangeable with Series A and B modules. Similarly, Series A, B, and C axis modules maintain complete interoperability.
Feature Availability Comparison
| Module Type | Feature | Series C | Series A and B |
|---|---|---|---|
| System Module | Connector (plug-in) input power termination | Yes | No |
| System Module | Cable Clamp (strain relief, shield bond) | Yes | No |
| System Module | EMI filter (24V input power, registration) | Yes | No |
| System Module | Smart Power (Soft Start, power monitor) | Yes | 22 kW systems only |
| Axis Module | Cable Clamp (strain relief, shield bond) | Yes | No |
| Axis Module | EMI filter (motor brake and thermal circuit) | Yes | No |
