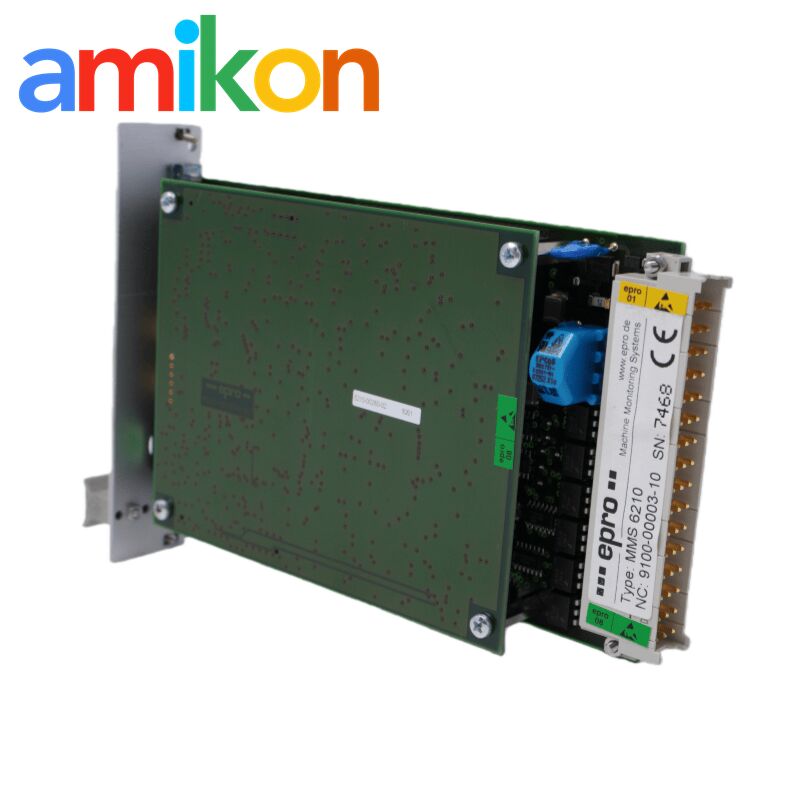

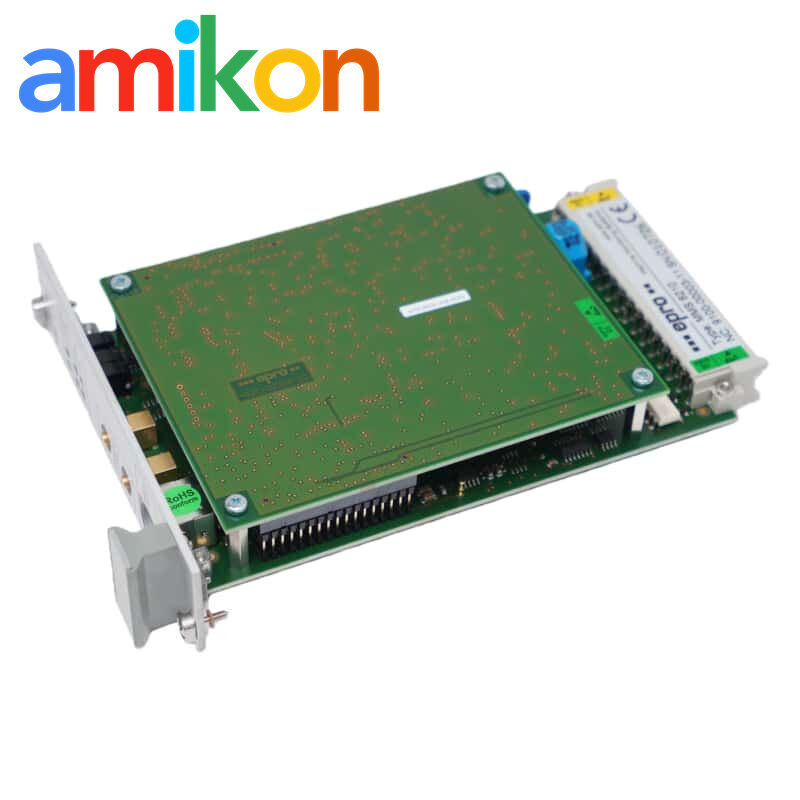

Emerson MMS6210 Dual Channel Shaft Displacement Monitor with 0 to 15 kHz Frequency Response
Emerson MMS6210 Dual Channel Shaft Displacement Monitor with 0 to 15 kHz Frequency Response
Dual Channel Shaft Displacement Monitor
0 to 15 kHz Frequency Response Monitor
Modbus RTU Protocol MMS 6210 Module
Place of Origin:
USA
Brand Name:
Emerson
Model Number:
MMS6210
Contact Us
Request A Quote
Product Details
Input Resistance:
> 100 KOhm
Input Voltage Range:
0... -22 V Dc
Input Frequency Range:
0..8Hz(10Hz/ 3 DB)
Power Consumption（max）:
6W(max.250mAat24V)
Temperature Range For Storage And Transport:
-30....+85°C
Permissible Relative Humidity:
5....95%, Non Condensing
Vibration Amplitude:
0.15 Mm In Range 10...55 Hz
Vibration Acceleration:
16.6 M/s2 In Range 55...150Hz
Highlight:
Dual Channel Shaft Displacement Monitor
,0 to 15 kHz Frequency Response Monitor
,Modbus RTU Protocol MMS 6210 Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
The MMS 6210 dual-channel shaft displacement module measures a comprehensive range of shaft movements critical for industrial machinery monitoring and protection.
Key Measurement Capabilities
- Axial shaft positions at shaft ends
- Movements of rectangular or conical discs, including tandem configurations
- Differential and thermal expansions
- Radial shaft positions and shaft bending
- Utilizes eddy-current displacement transducers for precise measurements
Turbomachinery Protection Applications
These measurements are essential for building comprehensive Turbomachine Protection Systems and provide critical inputs for:
- Analysis & Diagnostic Systems
- Field Bus Systems
- Distributed Control Systems (DCS)
- Plant/Host Computers and Networks (WAN/LAN, Ethernet)
Performance and Safety Benefits
Systems incorporating the MMS 6210 help to:
- Improve machine performance and efficiency
- Increase operational safety
- Extend the lifetime of critical machinery including:
- Steam, gas, and hydro turbines
- Compressors, fans, centrifuges
- Various other turbomachinery
Technical Specifications
| Product Model | MMS6210 |
| Product Parameters | Dual Channel Shaft Displacement Monitor |
| Place of Shipment | Xiamen, China |
| Estimated Shipping Size | 3.1×19.1×12.8cm |
| Weight | 0.3 kg |
| Power Consumption | ≤15W |
| Operating Temperature | -20°C to +70°C |
| Humidity | ≤95% RH (non-condensing) |
| Input Voltage | -24V DC |
| Frequency Response | 0 to 15 kHz |
| Analog Outputs | 2 × 4-20mA |
| Accuracy | ±1% FS |
| Protocol | Modbus RTU (RS-485) |
| Power Supply | 90-260V AC/DC, 50/60Hz |
Flexible Configuration Options
Each channel of the module can be individually configured to suit specific measurement requirements. Configuration is performed via:
- Externally connected laptop using RS-232 connector on front panel
- Communication bus interface
Measuring modes can be changed at any time during operation. Note: module function is briefly interrupted for approximately 15 seconds during mode switching.
Individual Channel Measurement Modes
- Axial shaft movements
- Axial shaft positions
- Movements against rectangular or conical discs
- Differential and thermal expansions
- Radial shaft positions and shaft bending
Combined Channel Measurement Modes
When both channels are utilized together, the module supports:
- Tandem configuration measurements
- Minimum/maximum comparison between two channels
- Conical disc measurements with compensation (temperature or radial shaft displacement)
- Measurements on double conical shaft parts
- Double-channel measurements compliant with API 670 standards
