GE IC698ETM001 Ethernet Interface Module with 200 MHz Speed and RJ45 Connector for PACSystem RX7i
GE IC698ETM001 Ethernet Interface Module with 200 MHz Speed and RJ45 Connector for PACSystem RX7i
200 MHz Ethernet Interface Module
10/100 Mbps PACSystem RX7i Module
RJ45 Connector GE Mark VIe Controller Module
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC698ETM001
Contact Us
Request A Quote
Product Details
Compatible:
System RX7i System
Part Number:
IC698ETM001
Speed:
200 MHz
Voltage:
5 Volts DC
Current:
1.2 Amperes
Connector:
10 Base T/100 Base Tx, RJ 45
Maximum Number Of IP Addresses:
One
Brand:
General Electric
Highlight:
200 MHz Ethernet Interface Module
,10/100 Mbps PACSystem RX7i Module
,RJ45 Connector GE Mark VIe Controller Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

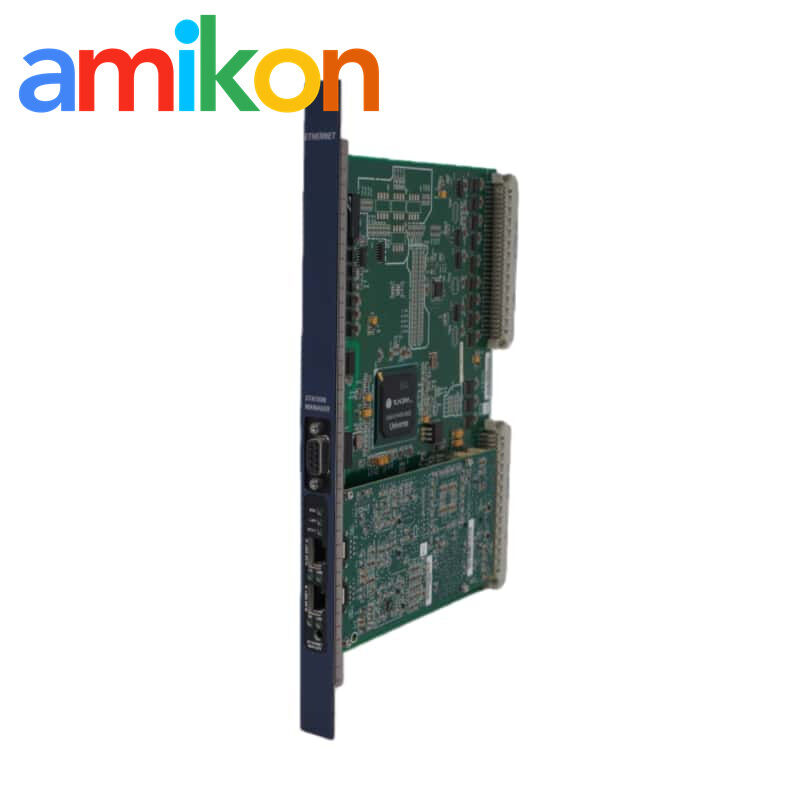

GE IC698ETM001 Ethernet Interface Module
The IC698ETM001 module is part of the PACSystem RX7i Programmable Automation Controller (PAC) platform, enabling any rack with this module to connect to an existing Ethernet network. It allows data exchange with other controllers, remote I/O implementation, and communication with visualization systems as well as 3rd party software and tools such as databases and enterprise applications. This makes it a versatile solution for integrating PAC racks into broader automation and IT systems.
The module features two Ethernet ports, both capable of 10/100 Mbps communication with auto-sensing capability, and designed for physical connection using RJ45 connectors and CAT5 cable. These ports support daisy chaining, allowing linear, star, and ring topologies, and also support unique or redundant IP addressing. In addition, it has one 9-pin serial communication port, primarily used as a Station Manager port for configuration, supporting transmission speeds from 1200 to 115200 bps. The IC698ETM001 supports various communication protocols, including TCP/IP services with SRTP, SRTP client, MODBUS TCP Server, and MODBUS TCP Client, as well as time synchronization to an SNTP server over the Ethernet network.
The IC698ETM001 is equipped with a range of LED indicators including MODULE OK, LAN ONLINE, STATUS, 100 LINK P1, and 100 LINK P2 to provide an overview of the module's status. It has a dedicated 200 MHz microprocessor, enabling high-speed processing and station management. The module supports redundant IP addressing, direct connection to network hubs without external transceivers, flash memory storage, and easy upgrades via the CPU serial port. Designed to meet global electrical and environmental standards, the IC698ETM001 also includes diagnostic tools to assist operators in monitoring and maintaining system performance.
| Product Model | IC698ETM001 |
| Product Parameters | Ethernet interface module |
| Country of Origin | USA |
| Place of Shipment | Xiamen, China |
| Estimated Shipping Size | 2x17.5x29.1cm |
| Manufacturer | General Electric |
| Weight | 0.32 kg |
| LAN | IEEE 802.2 Logical Link Control Class I IEEE 802.3 CSMA/CD Medium Access Control 10/100 Mbps |
| LED Indicators | MODULE OK, LAN ONLINE, STATUS, 100 LINK P1, 100 LINK P2 |
| Module Operating Temperature | 0°C to +60°C |
| Serial Port (Station Mgr Port) | RS-232 DCE, 1200 - 115200 bps. D-connector, 9-pin female |
Key Features & Benefits
Connect & Exchange - Link your PACSystem RX7i racks to an Ethernet network. Share data between controllers seamlessly. Ideal for remote I/O setups—expand your system without messy extra wiring.
Monitor & Integrate - Works with visualization systems and 3rd-party software (databases, enterprise apps). Makes process monitoring, logging, and control easy. Lets operators access info anytime, anywhere on the network.
Flexible Network Setup - Supports daisy-chained Ethernet nodes with linear, star, or ring layouts. Handles redundant IP addressing for reliability. Multiple communication protocols make it ready for complex networks.
Easy Management - LED indicators show module and network status at a glance. Built-in diagnostic tools simplify troubleshooting and station management. Perfect for keeping your automation system running smoothly.
