9563-810 Triconex Digital Input Termination Panel with 16 Input Points
16 Input Points Termination Panel
24V DC Output Termination Panel
1500VAC Isolation Triconex Panel
Place of Origin:
USA
Brand Name:
Triconex
Model Number:
9563-810
16 Input Points Termination Panel
,24V DC Output Termination Panel
,1500VAC Isolation Triconex Panel
Video
Triconex 3601E TMR DO Module with 16 Non-Commoned Outputs, Quadruplicated Voter Circuitry
Video
Triconex 3703E Isolated Analog Input Module with 16 Differential Input Points 12-bit Resolution
Video
Triconex 8310 Power Supply with 120 VAC/VDC Nominal Voltage for Industrial Safety Systems
Video
Triconex CM3201 Communication Module with 24 V DC Input, RS-232/RS-485 Serial Ports

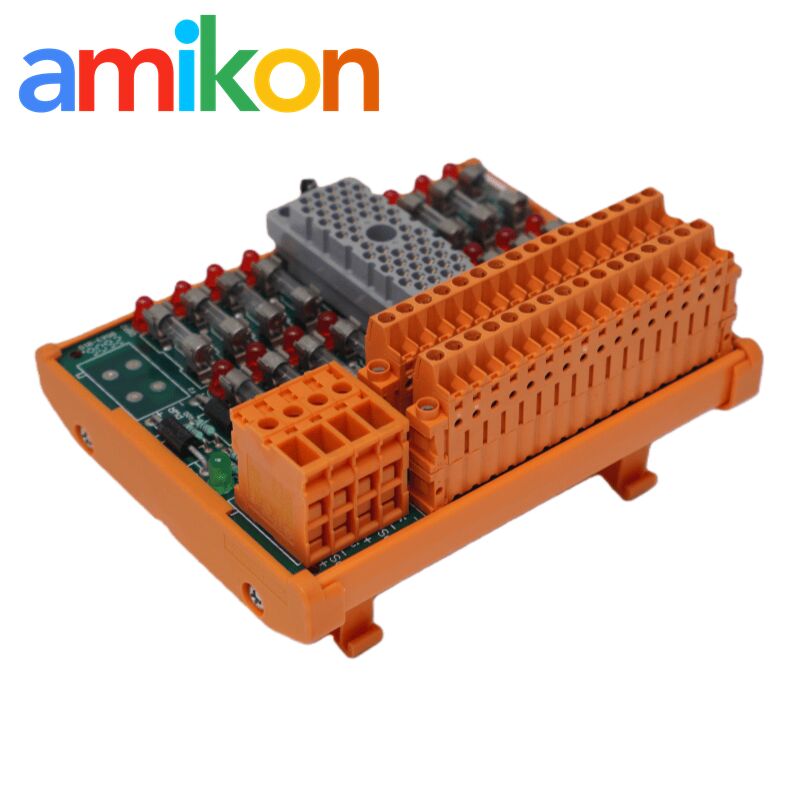

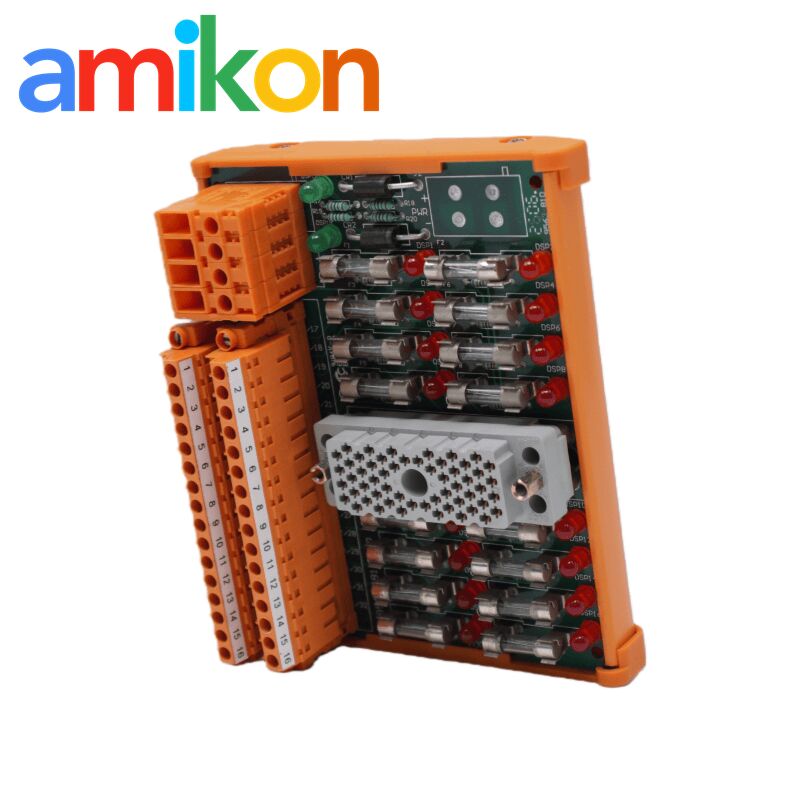

Termination panel 9563-810 is compatible with 24 volt digital input modules and features 16 input points with commoned power terminals (PWR+ and PWR-). Each input point includes fuse protection with a blown-fuse indicator for enhanced safety and maintenance.
This termination panel is designed to work with 32-point digital input modules, requiring two term panels per module for complete functionality. Each panel includes two sets of labels (1-16 and 17-32) for easy identification and installation.
| Output Voltage | 24V DC |
| Output Channels | Typically 8 digital output channels |
| Nominal Voltage | 24V DC ± 20% |
| Power Consumption | Typically 2W |
| Channel-to-Channel Isolation | ≥250VAC |
| Field-to-System Isolation | ≥1500VAC |
- System Protection: With ≥1500VAC isolation, it prevents field surges from reaching the backplane and damaging main processors
- Simplified Power Distribution: Commons the 24VDC power (PWR+/PWR-) for efficient distribution to field switches and sensors
- TMR Compatibility: Designed for Triple Modular Redundant input modules, ensuring signal reliability even if one path fails
- Emergency Shutdown (ESD) systems for monitoring E-Stop buttons and critical limit switches
- Valve position feedback to confirm open/closed status of critical valves
- Turbine control systems for reading pressure switches and temperature trips where signal accuracy is critical
