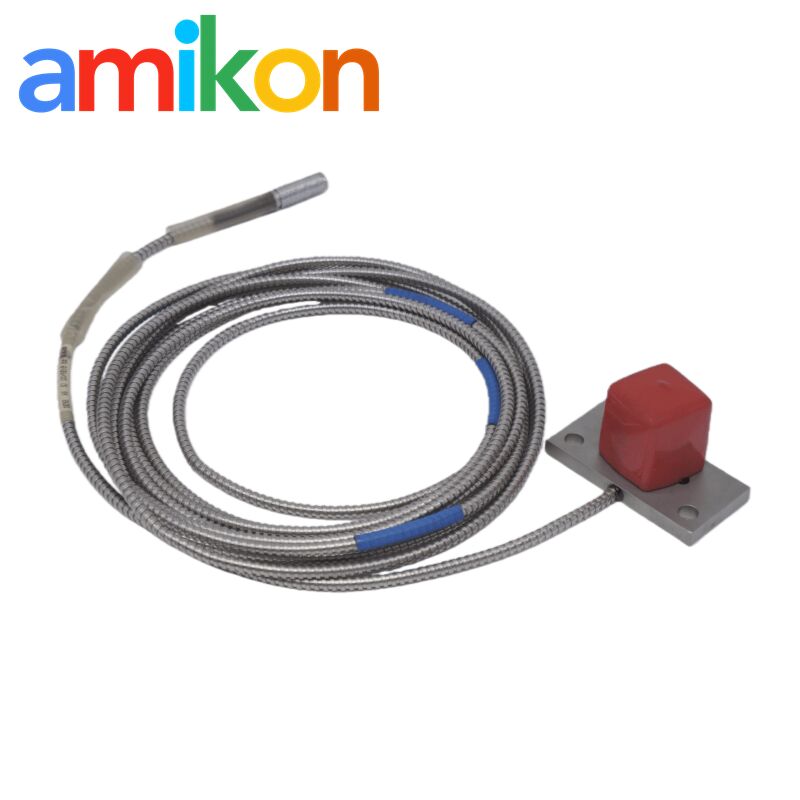

Emerson PR9376/010-011 Non-contact Hall Effect Speed Sensor with Square Wave Output
Emerson PR9376/010-011 Non-contact Hall Effect Speed Sensor with Square Wave Output
Non-contact Speed Sensor
Square Wave Output Proximity Sensor
IP67 Sealing Hall Effect Sensor
Place of Origin:
USA
Brand Name:
Emerson
Model Number:
PR9376/010-011
Contact Us
Request A Quote
Product Details
Estimated Shipping Size:
20x20x5cm
Weight:
0.58 Kg
Brand:
Emerson
Part Number:
PR9376/010-011
Description:
Speed/Proximity Sensor
Country Of Origin:
USA
MOQ:
1 Piece
Shipping:
TNT, DHL, FedEx, EMS, UPS
Highlight:
Non-contact Speed Sensor
,Square Wave Output Proximity Sensor
,IP67 Sealing Hall Effect Sensor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
The Emerson PR9376/010-011 is a non-contact Hall effect sensor specifically engineered for demanding industrial applications including steam, gas, and hydro turbines, as well as large-scale compressors and fans. Unlike conventional magnetic pickups, this advanced Hall effect design delivers a clean, stable square wave output that remains reliable even at near-zero speeds. Its operation is independent of shaft velocity, making it the ideal solution for precise speed monitoring and phase reference (Keyphasor) applications.
Technical Specifications
| Item | Specification |
|---|---|
| Output | 1 AC cycle per revolution/gear tooth |
| Rise/Fall Time | 1 µs |
| Output Voltage (12 VDC at 100 kΩ load) | High >10 V / Low <1 V |
| Air Gap | 1 mm (Module 1) / 1.5 mm (Module ≥2) |
| Maximum Operating Frequency | 12 kHz (720,000 cpm) |
| Trigger Mark Limited to | Spur Wheel, Involute Gearing Module 1 Material ST37 |
| Target/Surface Material | Magnetic soft iron or steel (non-stainless steel) |
| Reference Temperature | 25°C (77°F) |
| Operating Temperature Range | -25 to 100°C (-13 to 212°F) |
| Storage Temperature | -40 to 100°C (-40 to 212°F) |
| Sealing Rating | IP67 |
| Power Supply | 10 to 30 VDC @ max. 25 mA |
| Resistance | Max. 400 Ohms |
| Material | Sensor - Stainless steel; Cable - PTFE |
| Weight (Sensor only) | 210 grams (7.4 oz) |
Shown here are the complete dimension diagrams for the PR9376/000-0x1 and PR9376/010-0x1 models. These detailed drawings provide comprehensive specifications for sensor body dimensions, thread details, cable routing configurations, and interface requirements essential for accurate mechanical design and comprehensive system planning.
