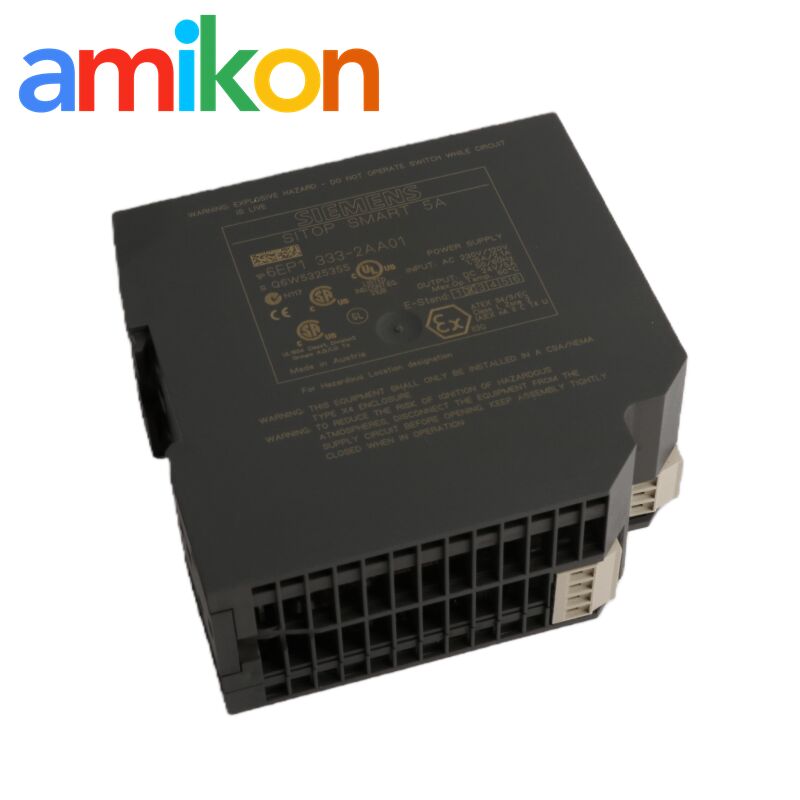

Siemens 6EP1333-2AA01 Sitop Smart 5A 24V DC Adjustable Output Voltage Power Supply
Siemens 6EP1333-2AA01 Sitop Smart 5A 24V DC Adjustable Output Voltage Power Supply
5A Power Supply
24V DC Power Supply
Adjustable Output Voltage Sitop Smart
Place of Origin:
Germany
Brand Name:
Siemens
Model Number:
6EP1333-2AA01
Contact Us
Request A Quote
Product Details
Product Model:
6EP1333-2AA01
Product Parameters:
Sitop Smart 5A Power Supply
Estimated Shipping Size:
12.7 Cm X 5.1 Cm X 12.7 Cm
Manufacturer:
Siemens
Weight:
0.5 Kg
Packaging:
Original New Packaging
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Highlight:
5A Power Supply
,24V DC Power Supply
,Adjustable Output Voltage Sitop Smart
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Siemens 6ES7522-1BH00-0AB0 Digital Output Module with 16 Outputs 24V DC and 0.5A per Channel
Get Best Price
Video
Siemens 6ES7151-1AA03-0AB0 IM 151-1 Standard Interface Module with RS 485 Interface 20ms Holdup Time
Get Best Price
CONTACT US
Contact Now
Product Description
Technical Specifications
| Parameter | Specification | Value |
|---|---|---|
| Input | Input type | 1-phase AC |
| Supply voltage | 1 at AC Rated value: 120 V 2 at AC Rated value: 230 V Set by means of selector switch on the device |
|
| Input voltage | 1 at AC: 85 ... 132 V 2 at AC: 170 ... 264 V |
|
| Wide-range input | No | |
| Overvoltage resistance | 2.3 × Vin rated, 1.3 ms | |
| Mains buffering | 20 ms; at Vin = 93/187 V | |
| Frequency | Rated line frequency 1: 50 Hz Rated line frequency 2: 60 Hz Rated line range: 47 ... 63 Hz |
|
| Input current at rated input voltage 120 V | 2.1 A | |
| Input current at rated input voltage 230 V | 1.15 A | |
| Switch-on current limiting (+25 °C), max. | 32 A | |
| Output | Output type | Controlled, isolated DC voltage |
| Rated voltage Vout DC | 24 V | |
| Total tolerance, static ± | 3 % | |
| Static mains compensation, approx. | 0.1 % | |
| Static load balancing, approx. | 0.5 % | |
| Residual ripple peak-peak, max. | 150 mV | |
| Residual ripple peak-peak, typ. | 50 mV | |
| Spikes peak-peak, max. (bandwidth: 20 MHz) | 240 mV | |
| Spikes peak-peak, typ. (bandwidth: 20 MHz) | 150 mV | |
| Adjustment range | 22.8 ... 28 V | |
| Output voltage adjustable | Yes (via potentiometer) | |
| Status display | Green LED for 24 V OK | |
| On/off behavior | Overshoot of Vout approx. 4 % | |
| Rated current value Iout rated | 5 A | |
| Current range | 0 ... 6 A 6 A up to +45 °C |
|
| Supplied active power typical | 144 W | |
| Overload Current on short-circuiting during the start-up typical | 17 A | |
| Overload Capability on short-circuiting during the start-up | 100 ms | |
| Parallel switching for enhanced performance | Yes (up to 2 units) | |
Industrial Applications
- Metallurgy & Steel
Scope: Blast Furnace | Sintering | Rolling
Core Tech: Large Drives | PCS 7 | Energy Management
Key Attribute: Maximum availability under extreme stress - Raw Materials (Coal / Cement)
Scope: Extraction | Crushing | Transport | Kiln
Core Tech: Smart Motor Control | Weighing Tech | SIPART
Key Attribute: Dust-proof, ruggedized, high-torque handling - Chemical Industry
Scope: Batch Processing | Petrochemicals | Pharma
Core Tech: Process Instrumentation | Functional Safety (SIL) | DCS
Key Attribute: Explosion-protected, redundant, traceable - Printing & Converting
Scope: Rotogravure | Flexography | Offset
Core Tech: SIMOTION | SINAMICS | Drive-based Safety
Key Attribute: High-dynamic response | <1 μs jitter | Precision register
| Wide range of parts | Customer Focus | Rare Spare Parts | Global Network |
|---|---|---|---|
| For DCS, PLC, HMI, and drives | Delivering quality products and services to meet customer needs | Over 30,000 items in stock for industrial automation shutdowns, with delivery in 1-3 working days | Partners on six continents ensure scarce parts are matched and delivered regardless of location or rarity |
