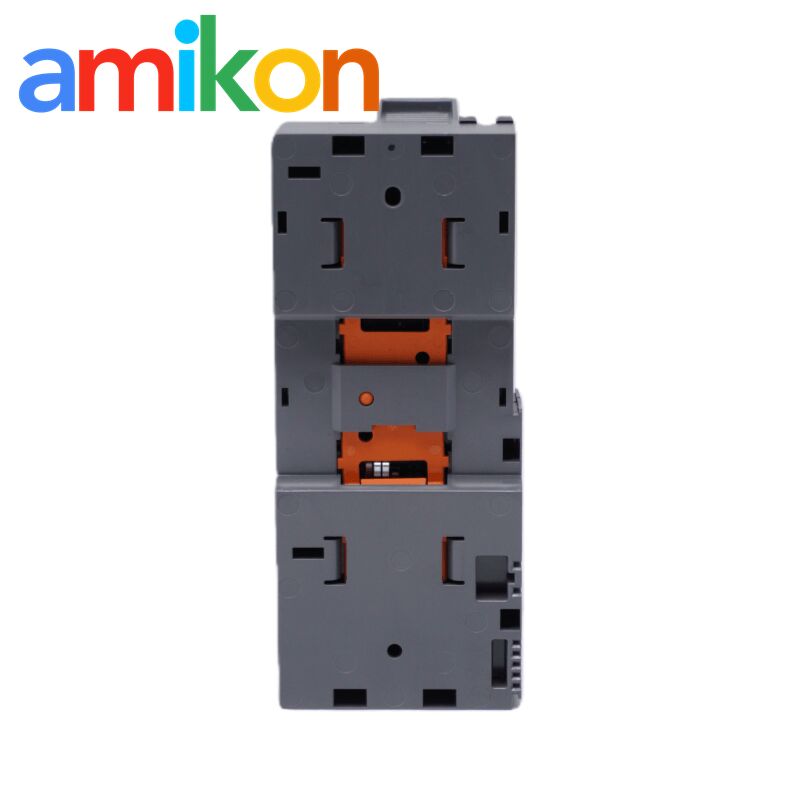

Allen Bradley 1734-ACNR Point I/O ControlNet Adapter with 24V DC Input
24V DC ControlNet Adapter
10.2 W Maximum Power Point I/O Adapter
1 A Backplane Current 1734-ACNR
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1734-ACNR
24V DC ControlNet Adapter
,10.2 W Maximum Power Point I/O Adapter
,1 A Backplane Current 1734-ACNR
Video
Allen Bradley 1746-OBP16 16 Channel 24 VDC Output Module with Integrated Fuse Protection
Video
Allen Bradley 1746-OB32 32 Point 24V DC Sourcing Configuration Digital Output Module
Video
Allen Bradley 1756-DMD30 Drive Module and Fiber Optic Interface in Single-Slot Design
Video
Allen Bradley 1747-ACN15 ControlNet I/O Adapter Module with High-Speed Data Transfer
| Input Voltage | 24 V DC |
| Inrush Current | 6 A (10 ms) |
| Power Requirements | 425 mA |
| Power Consumption | 8 W |
| POINTBus Current | 1000 mA |
| Weight | 0.3 kg |
| Estimated Shipping Size | 5.1 * 7.6 * 12.7 cm |
| Country of Origin | USA |
| Place of Shipment | Xiamen, China |
- Supports redundant media and local communication via the network access port
- Allows multiple I/O connections: up to 5 rack-optimized digital modules or up to 25 specialty/analog modules per adapter
- Expandable to 63 I/O modules using multiple 1734-EP24DC power supplies
- Compatible with Series C and later I/O modules
- Operates on standard 24 V DC with a maximum power of 10.2 W and backplane current up to 1 A at 5 V DC
Verify the available 24 V DC power supply meets the adapter's specifications: 425 mA nominal current, 8 W maximum power, and POINTBus current of 1000 mA. Confirm total I/O module load to avoid exceeding the adapter's and backplane's current limits.
Configure the ControlNet node address using the rotary switches on the adapter to match your network topology. Ensure unique addressing to prevent network conflicts.
Mount the 1734-ACNR into the designated rack slot in compliance with Allen-Bradley installation guidelines. Ensure secure physical connection to the backplane for proper communication and power distribution.
Connect ControlNet cables to the adapter ports following the recommended cabling and termination practices. Confirm network redundancy if using a dual-media configuration.
Use the NAP for local programming, monitoring, or diagnostic tasks. Ensure proper grounding and shielding to maintain network integrity.
Attach compatible Series C or later Point I/O modules to the adapter according to system requirements. Verify connections and module orientation to avoid communication errors.
When installing a replacement 1734-ACNR in an existing system, power down the rack before removal. Reinstall the new adapter in the same slot, ensuring continuity of network and I/O connections. Perform verification tests to confirm proper communication and module functionality.
