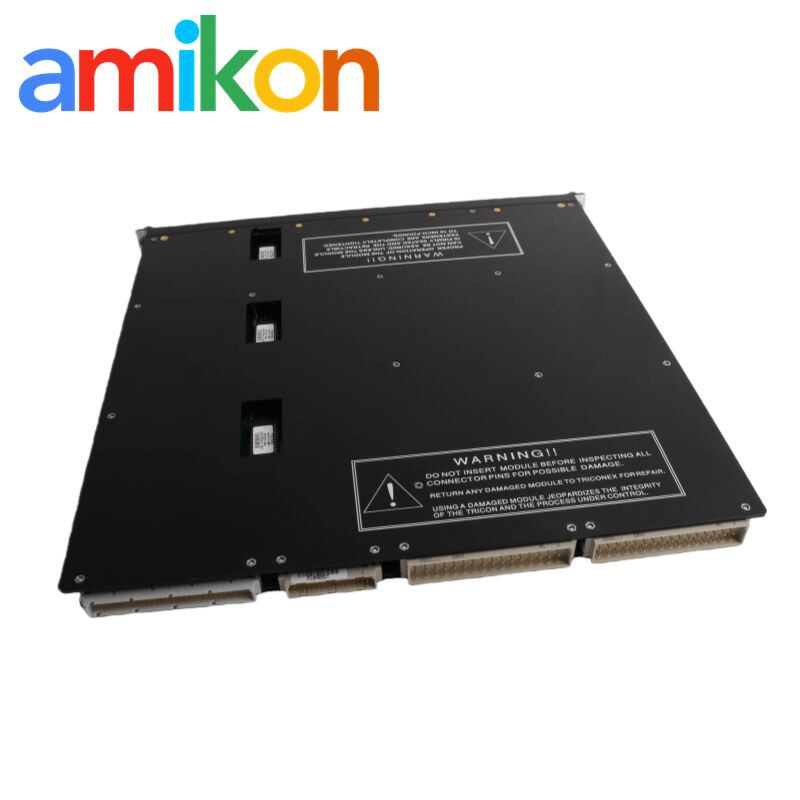

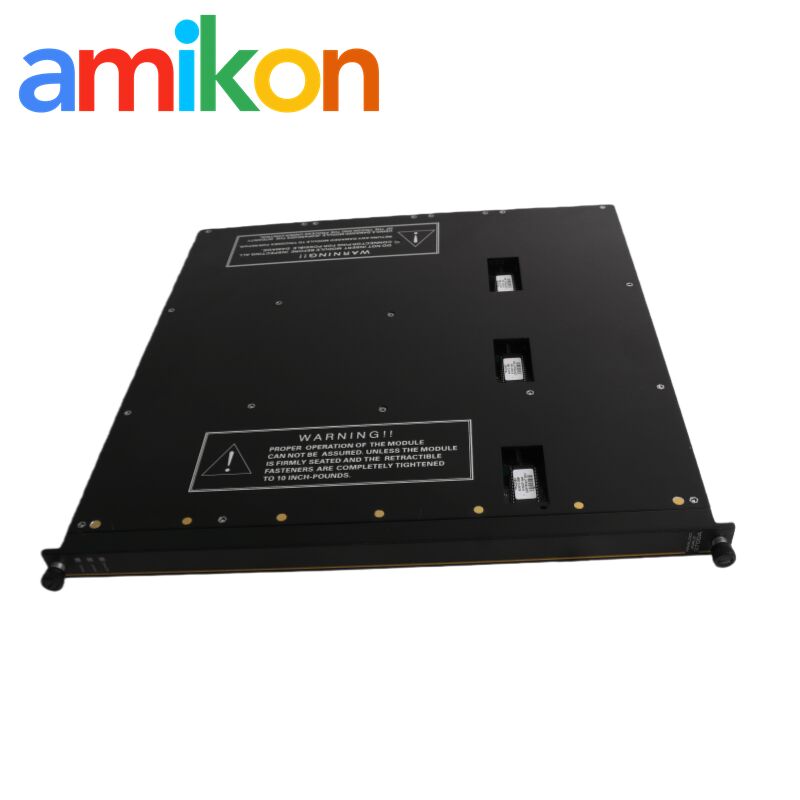

3700A Triconex Analog Input Module with 32 Differential Channels 12 Bits Resolution
3700A Triconex Analog Input Module with 32 Differential Channels 12 Bits Resolution
32 differential channels Analog Input Module
12 bits resolution Triconex AI Module
0 – 5 V DC ranges 3700A Module
Place of Origin:
USA
Brand Name:
Triconex
Model Number:
3700A
Contact Us
Request A Quote
Product Details
Channels:
32 Differential
Ranges:
0 – 5 V DC
Resolution:
12 Bits
Accuracy:
≤ ±0.15 % Of Full Scale
Input Impedance:
> 30 MΩ
Surge Protection:
150 V DC / 115 V AC
Operating Temp:
–40 … +70 °C (rack Air)
Storage:
–55 … +85 °C
Highlight:
32 differential channels Analog Input Module
,12 bits resolution Triconex AI Module
,0 – 5 V DC ranges 3700A Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Triconex 3601E TMR DO Module with 16 Non-Commoned Outputs, Quadruplicated Voter Circuitry
Get Best Price
Video
Triconex 3703E Isolated Analog Input Module with 16 Differential Input Points 12-bit Resolution
Get Best Price
Video
Triconex 8310 Power Supply with 120 VAC/VDC Nominal Voltage for Industrial Safety Systems
Get Best Price
Video
Triconex CM3201 Communication Module with 24 V DC Input, RS-232/RS-485 Serial Ports
Get Best Price
CONTACT US
Contact Now
Product Description
| Tricon System – Component Overview |
- Chassis: Structural backbone for all modules. Provides backplane connectivity and power distribution.
- Power Supply Modules: Redundant, stable power delivery. Supports uninterrupted system operation.
- Main Processors: Executes real-time control and logic. Fault-tolerant processing for critical operations.
- Communication Modules: High-speed, deterministic internal and external communication. Multi-protocol support for system integration.
- Fiber-Optic Remote Extender Modules (RXM): Extends system reach to remote locations. Secure, long-distance data transmission.
- Interface Modules: Connects Tricon to field devices. Signal conversion and integration with plant equipment.
- I/O Modules: Handles analog and digital inputs/outputs. Ensures precise monitoring and control of process variables.
| Analog Input (AI) Modules |
Analog Input (AI) Modules consist of three independent input channels, each receiving variable voltage signals from field points. These signals are converted to digital values and transmitted to the three Main Processor modules on demand. In TMR mode, a mid value selection algorithm is used to choose one value, ensuring correct data for every scan. Sensing of each input point is designed to prevent a single channel failure from affecting the others.
Each Analog Input Module performs continuous diagnostics on all channels. Any diagnostic failure on a channel activates the module's Fault indicator, which in turn triggers the chassis alarm signal. The Fault indicator reports only a channel fault rather than a module failure, allowing the module to continue operating with up to two faulty channels.
Analog Input Modules support hot-spare capability, enabling online replacement of a faulty module without system interruption. They require a separate external termination panel (ETP) with a cable interface to the Tricon backplane. Each module is mechanically keyed to ensure proper installation in a Tricon chassis.
| Product technical data |
| Model Number | 3700 / 3700A |
|---|---|
| Voltage | 0-5V, +6% (only 3700A) |
| Type | TMR, AI |
| No. of Input Points | 32, diff, DC coupled |
| Isolated Points | No |
| Input Update Rate | 55 ms |
| Resolution | 12 bits |
| Accuracy | < 0.15% of FSR, from 0° to 60°C |
| Input Resistance (load) | 30 MΩ (DC), min. |
| Power-Off Resistance | 30 kΩ (DC), typical |
| Common Mode Rejection | -80 dB (DC-100Hz), typical |
| Common Mode Range | -12V to +12V peak |
| Leg-to-Leg Isolation | 200 kΩ, typical |
| Normal Mode Rejection | @ 8Hz: -3 dB @ 60Hz: -17 dB @ 120Hz: -23 dB |
| Input Overrange Protection | 150 VDC / 115 VAC continuous |
| Current Range | 0-20 mA, 250 Ω shunt |
| Diagnostic Indicators | Module Status: Pass, Fault, Active |
| Color Code | Yellow |
