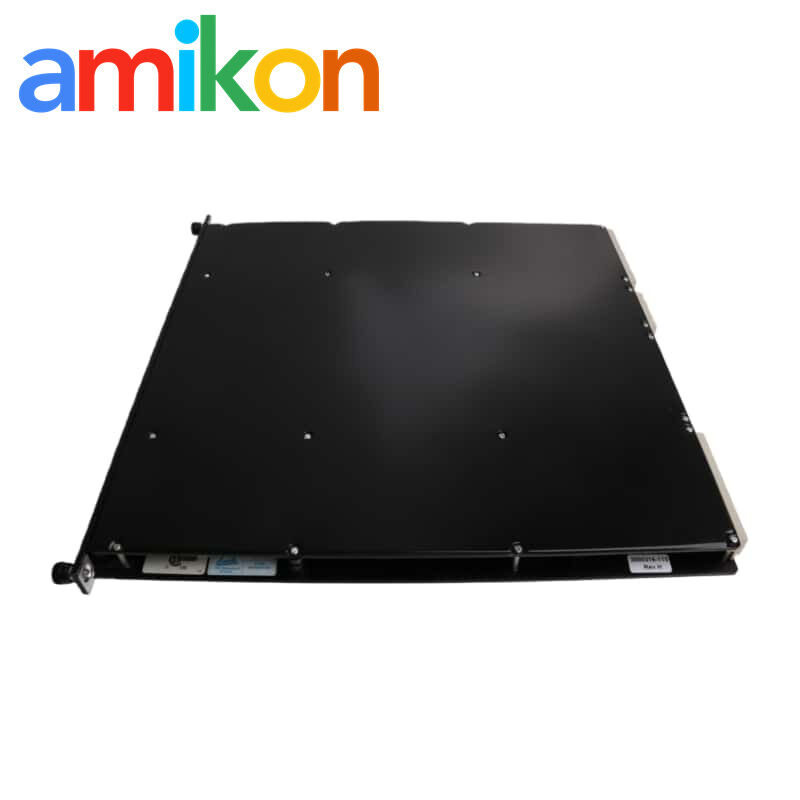

3805E Triconex Analog Output Module with 8PT TMR 4-20mA Output and 12-bit Resolution
3805E Triconex Analog Output Module with 8PT TMR 4-20mA Output and 12-bit Resolution
8PT TMR Analog Output Module
4-20mA Output AO Module
12-bit Resolution 3805E Module
Place of Origin:
USA
Brand Name:
Triconex
Model Number:
3805E
Contact Us
Request A Quote
Product Details
Product Parameters:
OUPUT MODULE ANALOG 8PT TMR 4-20MA DC CPLED
Country Of Origin:
USA
Place Of Shipment:
Xiamen, China
Weight:
2.75 Kg
Type:
TMR
Output Current Range:
4-20 MA Output
Over-range Protection:
+42.5 VDC, Continuous
Switch Time On Leg Failure:
< 10 Ms, Typical
Highlight:
8PT TMR Analog Output Module
,4-20mA Output AO Module
,12-bit Resolution 3805E Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Triconex 3601E TMR DO Module with 16 Non-Commoned Outputs, Quadruplicated Voter Circuitry
Get Best Price
Video
Triconex 3703E Isolated Analog Input Module with 16 Differential Input Points 12-bit Resolution
Get Best Price
Video
Triconex 8310 Power Supply with 120 VAC/VDC Nominal Voltage for Industrial Safety Systems
Get Best Price
Video
Triconex CM3201 Communication Module with 24 V DC Input, RS-232/RS-485 Serial Ports
Get Best Price
CONTACT US
Contact Now
Product Description
| What is the Tricon? |
The Tricon is a state-of-the-art controller that provides fault tolerance through Triple-Modular Redundant (TMR) architecture. TMR integrates three isolated, parallel control systems along with extensive diagnostics into a single control system. The system uses two-out-of-three voting to ensure high-integrity, error-free, and uninterrupted process operation with no single point of failure.
The Tricon controller operates with three identical channels. Each channel independently executes the control program in parallel with the other two channels. Specialized hardware and software voting mechanisms validate and verify all digital inputs and outputs from the field, while analog inputs are processed using a mid-value selection method.
Because each channel is isolated, a failure in any single channel cannot affect the others. If a hardware fault occurs in one channel, the remaining channels override it. The faulty module can be removed and replaced while the controller remains online, ensuring continuous operation without process interruption.
| Specifications-3805E |
| Model Number | 3805E |
|---|---|
| Type | TMR |
| Output current range | 4-20 mA output (+6% overrange) |
| Number of output points | 8 |
| Isolated points | No, commoned return, DC coupled |
| Resolution | 12 bits |
| Output Accuracy | <0.25% (in range of 4-20 mA) of FSR (0-21.2 mA), from 32° to 140° F (0° to 60° C) |
| External loop power (reverse voltage protected) | +42.5 VDC, maximum +24 VDC, nominal |
| Output loop power requirements | |
| Load (Ohms) | Loop power required |
| 250 | > 20 VDC (1 amp minimum) |
| 500 | > 25 VDC (1 amp minimum) |
| 750 | > 30 VDC (1 amp minimum) |
| 1000 | > 35 VDC (1 amp minimum) |
| Over-range protection | +42.5 VDC, continuous |
| Switch time on leg failure | < 10 ms, typical |
| Diagnostic Indicators | PASS, FAULT, ACTIVE, LOAD, PWR1, PWR2 |
| Color code | Pea Green |
| Analog Output (AO) Module |
Overview
The AO module receives output signals from the main processor via three channels. Data from each channel is voted internally, and a healthy channel is selected to drive up to eight analog outputs. The module features self-calibration, ongoing diagnostics, and fault monitoring to ensure reliable operation.
Key Features
- Redundant Channel Operation: Three-channel input with internal voting; a healthy channel drives outputs. Non-selected channels cannot drive the field. Supports operation with up to two channel failures.
- Self-Monitoring & Diagnostics: Internal voltage reference for calibration and health checks. Current loopback per channel verifies signal accuracy independently of load. Continuous diagnostics deactivate faulty channels and trigger the Fault indicator and chassis alarm.
- Indicators: Fault: Channel fault detected. LOAD: Open loop detected on one or more outputs. PWR1 / PWR2: Redundant loop power status.
- Power Requirements: 1 A @ 24-42.5 V DC per module. External loop power supplies required. High-Current Capability: Optimized for turbomachinery applications (3806E module).
- Installation & Maintenance: Hot-swappable for online replacement. Requires External Termination Panel (ETP) for backplane interface. Mechanically keyed to prevent misinstallation.
Summary
The AO module delivers reliable, accurate analog outputs with redundant channels, self-calibration, and continuous diagnostics, suitable for critical applications requiring high availability and precision.
