HIMA F8627X Ethernet Communication Module for H41q/H51q Safety Systems
HIMA F8627X
Ethernet Communication Module
H41q / H51q Safety Systems
Place of Origin:
Germany
Brand Name:
HIMA
HIMA F8627X
,Ethernet Communication Module
,H41q / H51q Safety Systems

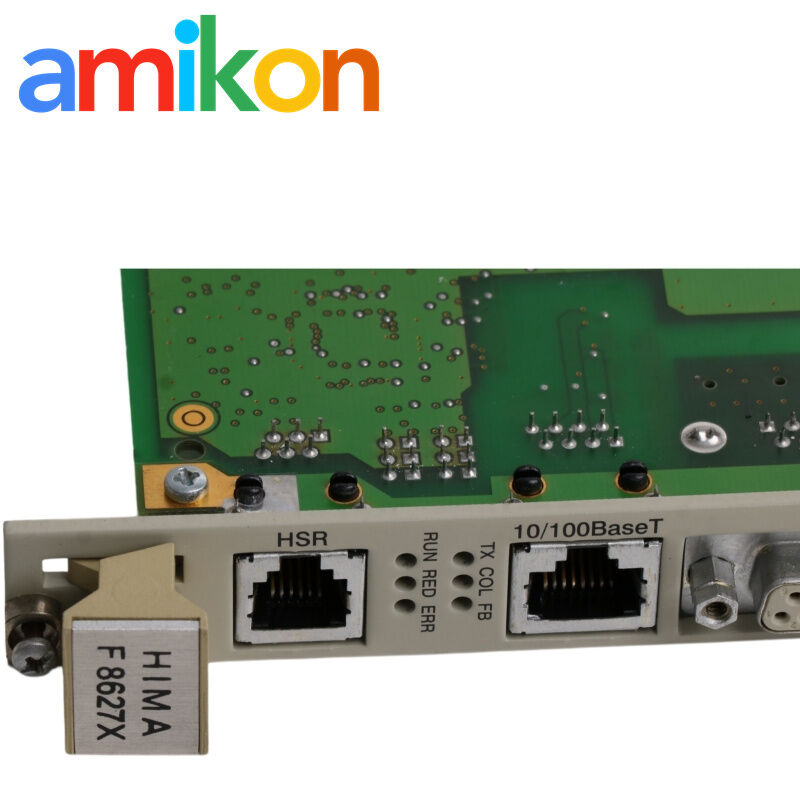

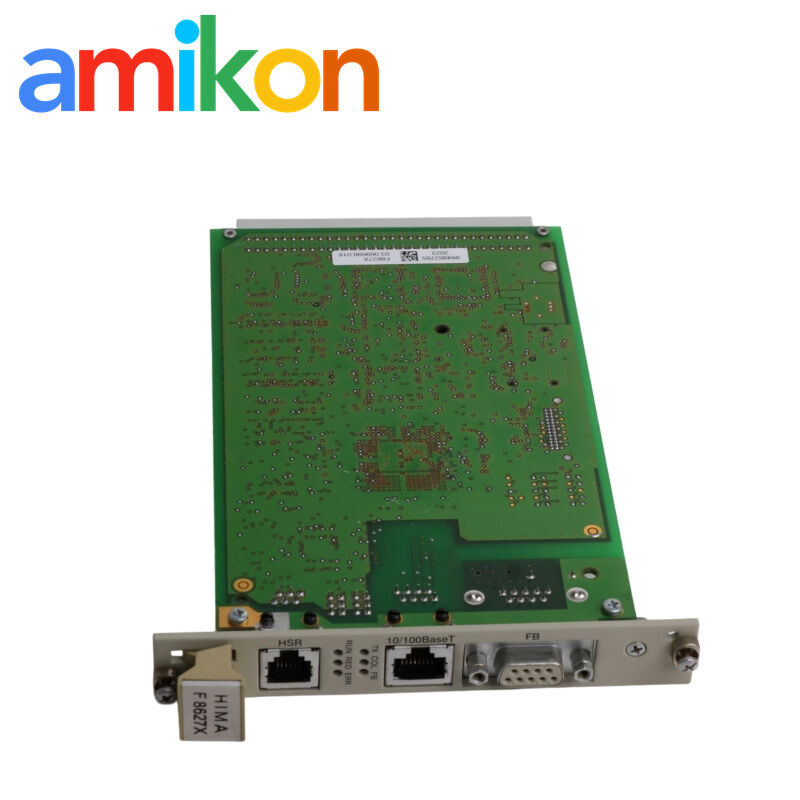

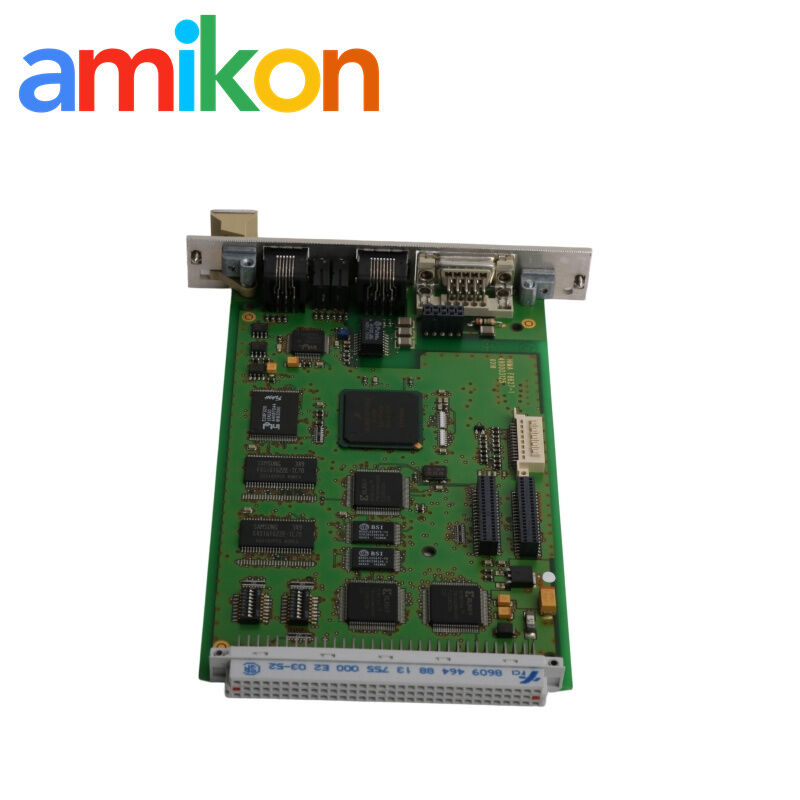

HIMA F8627X Ethernet Communication Module
Ethernet communication module for HIMA H41q/H51q programmable electronic safety systems.
Ethernet Communication for HIMA Systems
F8627X supports safeethernet communication, OPC connectivity through the HIMA OPC Server, MODBUS-TCP slave operation and ELOP II programming via Ethernet. The documented functions and available features depend on the installed system and software configuration.
Key Functions
|
01 Ethernet Interface
100 Base-T Ethernet with RJ45 connection. |
02 Safe Communication
safeethernet communication between H41q/H51q systems, including mono or redundant configurations. |
|
03 Protocol Functions
OPC DA, OPC A&E via HIMA OPC Server and MODBUS-TCP slave. |
04 Engineering Access
ELOP II programming via Ethernet, with the feature announced from ELOP II V4.1. |
Technical Specifications
Identification, interface and documented functions
VIEW TECHNICAL DATA ＋
| Manufacturer | HIMA Paul Hildebrandt GmbH + Co KG |
| Model | F8627X / F 8627X |
| Order number | 98 4862765 |
| Module type | Ethernet communication module |
| System families | H41q / H51q |
| Ethernet interface | 100 Base-T, RJ45 |
| Communication functions | safeethernet; OPC DA; OPC A&E via HIMA OPC Server; MODBUS-TCP slave |
| Engineering function | ELOP II programming via Ethernet |
| ELOP II version note | Ethernet programming feature announced from ELOP II V4.1 |
| Mounting format | 19-inch module for H41q/H51q systems |
| Module dimensions | 3 height units (3 × 44.45 mm); 4 width units (4 × 5.08 mm) |
| Certification reference | FM Certificate of Conformity FM18US0270X |
Application & Failure Scenarios
|
● Communication Interruption
Check the module, network connection, configuration and associated equipment when Ethernet communication stops. ● Engineering Access Issues
Loss of Ethernet-based ELOP II access may require checking the communication path and software configuration. ● Operational Risk
Communication failure may interrupt supervisory data exchange or engineering access. The actual effect depends on the system architecture and affected functions; a safety-system shutdown should not be assumed. |
 HIMA F8627X
|
Before ordering, confirm the F8627X marking, order number where available, installed H41q/H51q system and software revision. Do not assume another model is a direct replacement without compatibility confirmation.
Delivery & Warranty
| Testing | Inspection and available functional checks are confirmed with the quotation. |
| Packaging | Protective packaging suitable for industrial electronic components. |
| DOA / Returns | Report arrival faults promptly with photos and identification details; return authorization is required. |
| Warranty | Duration and coverage follow the quotation or order confirmation. |
Industrial Parts Sourcing, Made Straightforward.
AMIKON supports industrial automation spare-parts sourcing, model identification and quotation coordination. Provide your part number and application details to help our team assess your requirement.
Request a Quotation
Email submission depends on the visitor's configured mail application.
F8627X Frequently Asked Questions
1. What is the HIMA F8627X used for?
It is an Ethernet communication module for H41q/H51q systems, supporting documented network communication and engineering-access functions.
2. Which communication functions does F8627X support?
Documented functions include safeethernet, OPC DA, OPC A&E via the HIMA OPC Server, MODBUS-TCP slave and ELOP II programming via Ethernet.
3. Can F8627X be used in both H41q and H51q systems?
It is identified for H41q/H51q system families. Confirm the particular rack, CPU generation, system configuration and software revision before installation.
4. What should be checked if Ethernet communication fails?
Check module identification, the RJ45 connection, network path and system configuration. A communication symptom alone does not confirm module failure.
5. How can I request the F8627X PDF, manual or datasheet?
Email sales@amikon.cn with the model number, system details and document requirement to confirm the availability of the relevant technical information.
