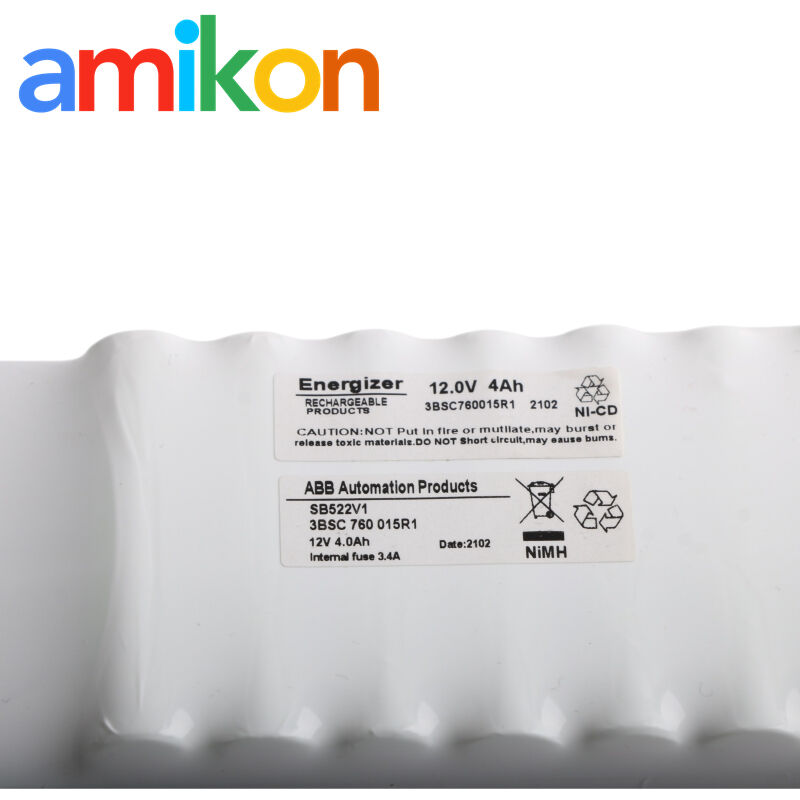

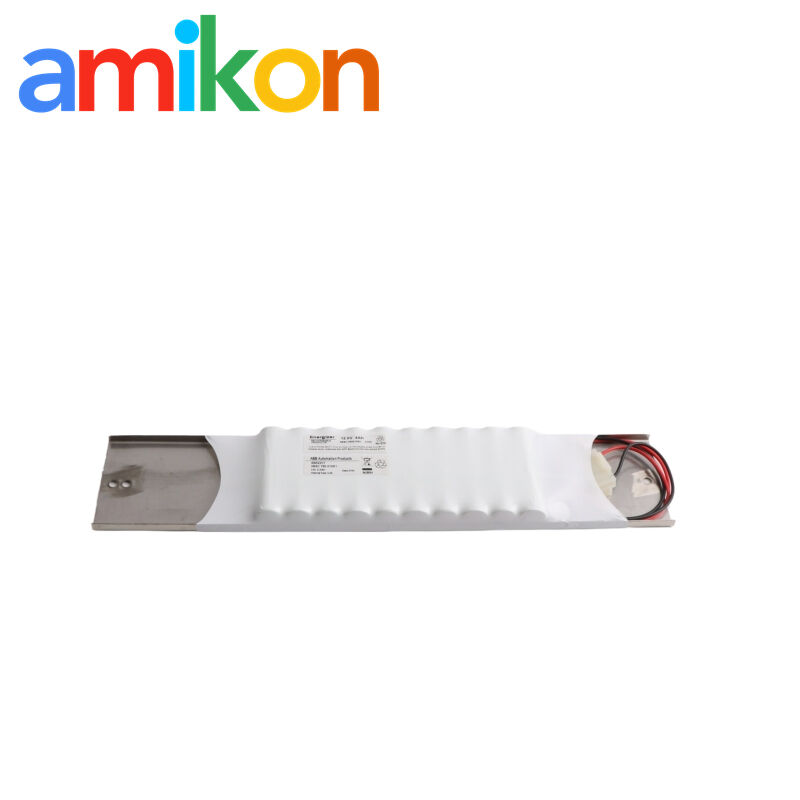

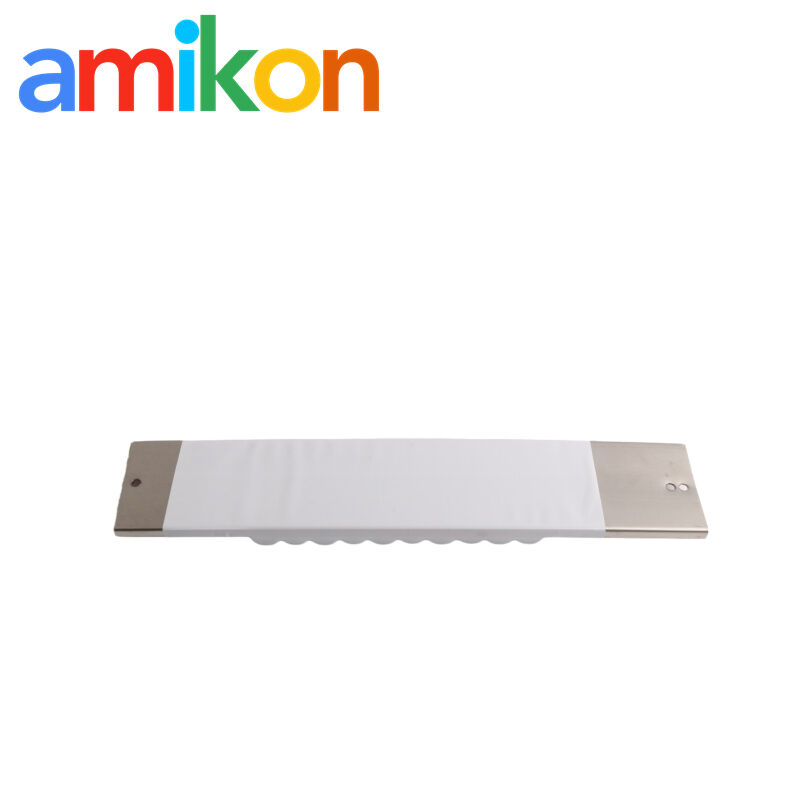

ABB SB522V1 3BSC760015R1 Battery Unit for AC 400 Systems, 12V 4Ah NiMH
ABB SB522V1 battery unit
12V 4Ah NiMH battery
ABB PLC battery replacement
Place of Origin:
SWEDEN
Brand Name:
ABB
ABB SB522V1 battery unit
,12V 4Ah NiMH battery
,ABB PLC battery replacement
SB522V1 Battery Unit
4 Ah
NiMH
Electrical & Product Data
The product description identifies SB510 and SB511 as battery chargers that fit this unit.
ABB technical information specifies this charger for recharging spare batteries held in stock every six months.
Understand the backup role
The documented application is backup current supply to RAM in applicable ABB AC400 systems.
A battery-related alarm or concern about RAM backup may warrant checking the battery, charging arrangement and installed system instructions. An alarm alone does not prove that the battery is the cause.
Loss of backup capability may put retained RAM contents at risk, depending on the system configuration. Verify the installed unit and system requirements before replacement.
Delivery, inspection & warranty
Inspection: Part-number and external-condition checks can be arranged. Confirm the electrical testing scope before shipment.
Packaging: Protective packaging and applicable battery transport requirements are reviewed for the shipment.
Returns / DOA: Report suspected arrival damage or failure promptly with photographs and available test evidence. Return authorization is required.
Warranty: Duration, coverage and claim conditions are confirmed in the quotation. These are supplier terms, not an ABB factory warranty.
Industrial Parts Sourcing,
Kept Practical.
Send the part number and destination to coordinate availability, inspection scope and shipping arrangements.
Frequently Asked Questions
1. Which electrical ratings should I verify before ordering?
Verify the 12 V nominal voltage, 4 Ah nominal capacity, NiMH chemistry and 3.4 A internal fuse against the installed unit and system documentation.
2. Which control-system function does the battery support?
Its documented role is backup current supply to RAM in applicable ABB AC400 systems. Actual data-retention behavior depends on the installed configuration.
3. Which charger references appear in the product information?
The product description identifies SB510/SB511 as fitting chargers. Separately, the technical information references SB518, part number 3BSC610071R1, for recharging spare batteries in stock. Confirm the correct arrangement for your application.
4. How often should spare units in storage be recharged?
ABB technical information specifies recharging spare batteries held in stock every six months using the referenced SB518 charger.
5. What details help identify the correct replacement?
Provide the part number, quantity, destination, required date and machine/system model. Availability, inspection scope and supplier warranty terms can then be confirmed in the quotation.
