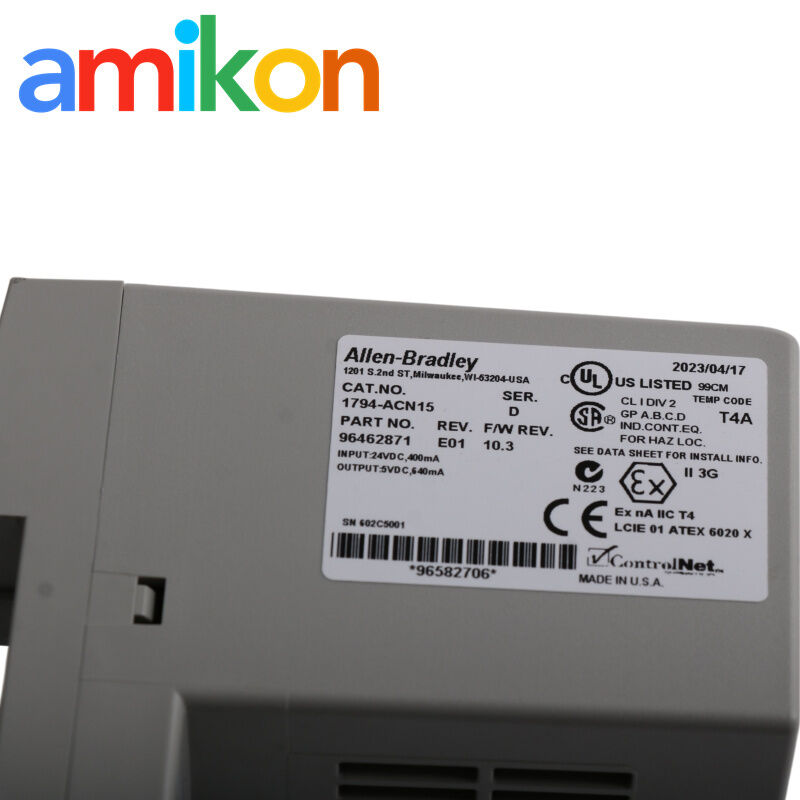

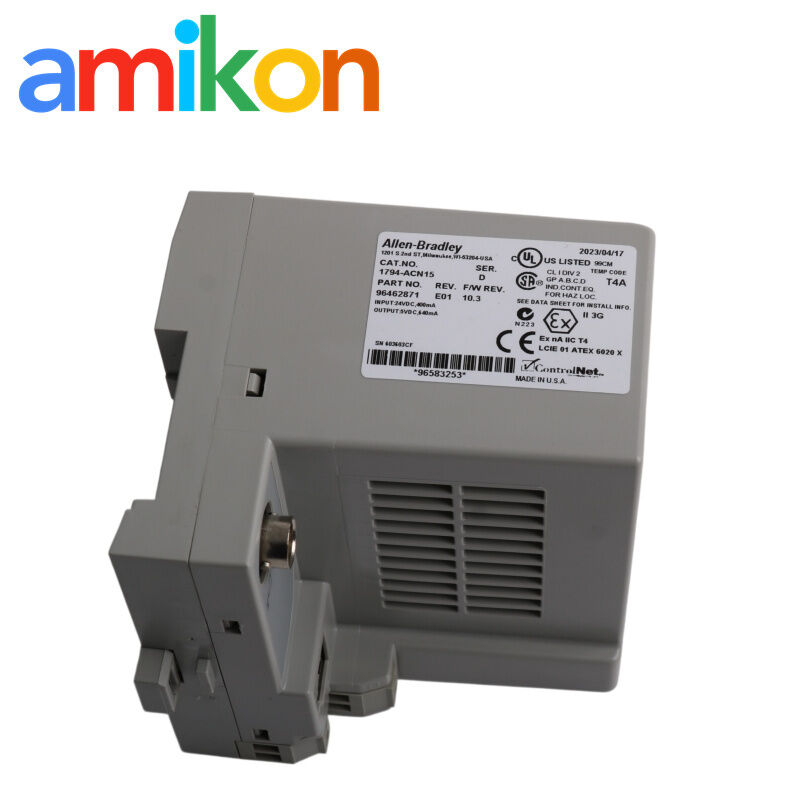

Allen-Bradley 1794-ACN15 FLEX I/O ControlNet Adapter Module
Allen-Bradley 1794-ACN15
1794-ACN15 ControlNet Adapter
FLEX I/O Adapter Module
Place of Origin:
USA
Brand Name:
Allen-Bradley
Allen-Bradley 1794-ACN15
,1794-ACN15 ControlNet Adapter
,FLEX I/O Adapter Module
Allen-Bradley 1794-ACN15 FLEX I/O ControlNet Adapter
Distributed I/O network interface for industrial automation systems.
Technical Specifications
| Catalog Number | 1794-ACN15 |
|---|---|
| Product Type | FLEX I/O ControlNet adapter, non-redundant media |
| Applicable I/O Platform | FLEX I/O, FLEX Ex and FLEX XT I/O systems |
| Communication Protocol | ControlNet V1.5 |
| Communication Rate | 5 Mbps |
| I/O Module Capacity | Up to 8 FLEX I/O modules |
| I/O Capacity | Up to 128 I/O points, subject to the installed module configuration |

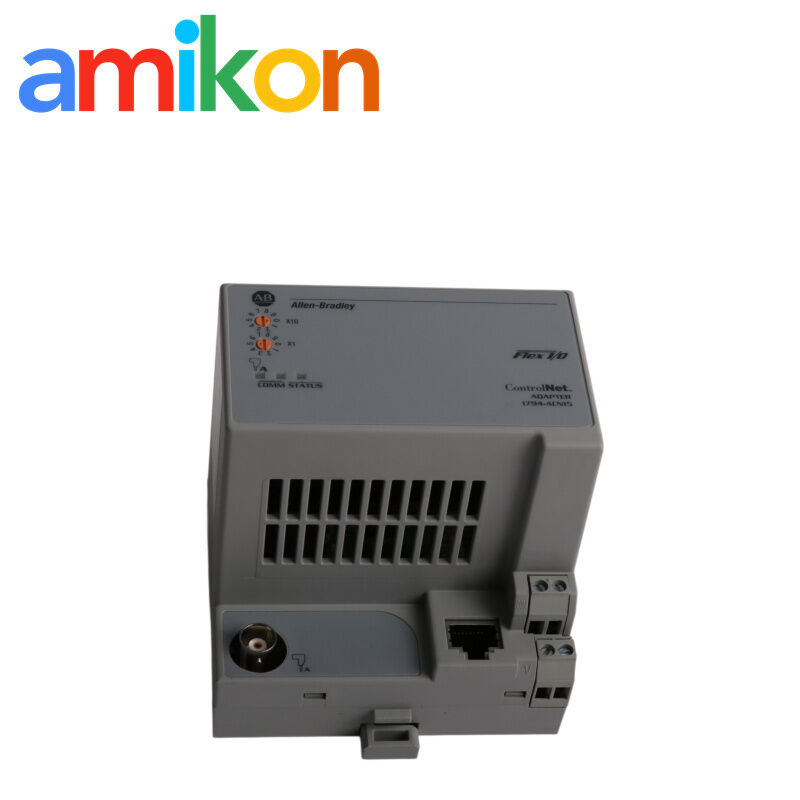

| ControlNet Connections | 1 BNC connector and 1 NAP connector |
| NAP Connector | RJ-48, 8-pin, shielded |
| Specified ControlNet Cable | Belden RG-6/U |
| Nominal Input Voltage | 24V DC |
| Input Voltage Range | 19.2–31.2V DC, including 5% AC ripple |
| Current Draw at 24V DC | 330 mA |
Additional Technical Specifications & Details
| Maximum Current Draw | 450 mA |
|---|---|
| Inrush Current | 23 A for 2 ms |
| Maximum FLEXBus Output Current | 640 mA |
| Backplane Power | Built-in power supply converts 24V DC to 5V DC for FLEX I/O modules |
| Power Dissipation | 4.6 W maximum at 19.2V DC |
| Isolation Voltage | Tested at 850V DC for 1 second between user power and FLEXBus |
| Status Indicators | I/O Status, Comm A and Comm B; red/green indicators |
| Mounting Orientation | Horizontal or vertical |
| Dimensions (H × W × D) | 87.4 × 94 × 92 mm (3.44 × 3.70 × 3.60 in.) |
| Approximate Weight | 220 g (7.76 oz) |
| Enclosure Type | Open-style; intended for installation inside a suitable enclosure |
| Operating Temperature | -25 to +55°C (-13 to +131°F) |
| Non-operating Temperature | -40 to +85°C (-40 to +185°F) |
| Relative Humidity | 5–95%, non-condensing |
| Operating Vibration | 5 g at 10–500 Hz |
| Operating Shock | 30 g |
| Non-operating Shock | 50 g |
| Installation Publication | 1794-IN128 |
| ControlNet User Manual | CNET-UM001 |
Network and I/O architecture: The adapter interfaces FLEX I/O modules with a ControlNet processor or scanner. Individual modules or module groups can participate in ControlNet real-time data connections.
Module arrangement: Up to eight terminal base units with installed FLEX I/O modules can form one adapter-based FLEX I/O assembly. Different I/O types and termination styles can be combined within the supported platform.
Diagnostics: The I/O Status, Comm A and Comm B indicators provide visual status information for the I/O assembly and network communication.
Module handling: The product feature description supports insertion and removal of FLEX I/O modules under backplane power. This does not mean that network cabling or field wiring can be disconnected under power in every application.
Installation environment: The unit is open-style equipment intended for indoor installation in an enclosure suitable for the actual environmental and electrical conditions.
Grounding and handling: The adapter is grounded through the DIN rail. The manufacturer specifies a suitable zinc-plated, chromate-passivated steel DIN rail and electrostatic-discharge precautions during handling.
Electrical and environmental ratings: The values above are manufacturer-published ratings for the 1794-ACN15. They should not be substituted with specifications for the redundant-media 1794-ACNR15 or other variants.
Applications & Failure Scenarios
AMIKON Industrial Supply
Order condition and availability are confirmed with the quotation. Items are checked against order details and packed for shipment. Report transit damage or suspected DOA promptly with photos and order information. Returns require prior approval; warranty coverage and remedies follow the agreed quotation and written sales terms.
Request a Quote
Email sales@amikon.cn with the following details for a quotation.
| Part Number | 1794-ACN15 |
| Quantity | Required quantity |
| Destination | Country / city or delivery location |
| Required Date | Target delivery date |
| Machine/System Model | Installed machine or control-system model |
Frequently Asked Questions
1. What is the Allen-Bradley 1794-ACN15 used for?
It connects a FLEX I/O assembly to a ControlNet network so the installed I/O modules can exchange data with a supported controller or scanner.
2. How many I/O modules can the 1794-ACN15 support?
The adapter supports up to eight FLEX I/O modules, with a stated architecture capacity of up to 128 I/O points depending on the installed configuration.
3. Which network connectors are provided?
The non-redundant adapter provides one BNC ControlNet connector and one shielded 8-pin RJ-48 NAP connector.
4. What should I check when a FLEX I/O station loses communication?
Check the adapter status indicators, 24V DC supply, ControlNet connections and the affected I/O station. The precise cause and process impact depend on the installed system.
5. What details are needed to request a 1794-ACN15 quotation?
Provide the part number, quantity, destination, required date and machine/system model. AMIKON can confirm availability, item condition, shipping options and the applicable warranty terms.
