TCM4355X TRICONEX Communication Module | Schneider Electric Tricon CX
TCM4355X Communication Module
Dual Isolated RS-232/RS-485 Interfaces
Ethernet Communication 100BASE-TX / 1000BASE-T
Place of Origin:
USA
Brand Name:
Triconex
TCM4355X Communication Module
,Dual Isolated RS-232/RS-485 Interfaces
,Ethernet Communication 100BASE-TX / 1000BASE-T

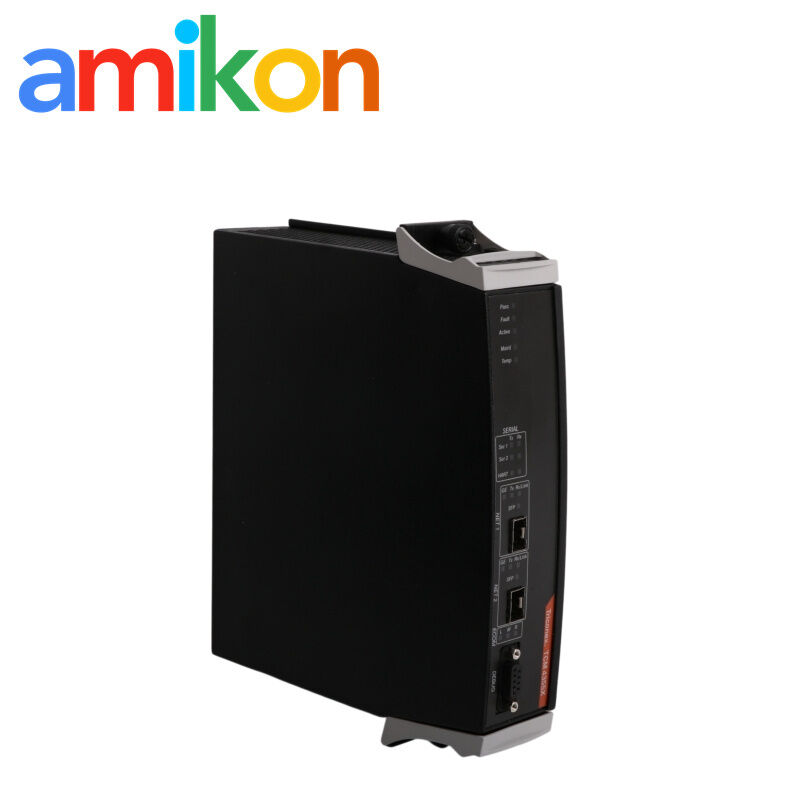

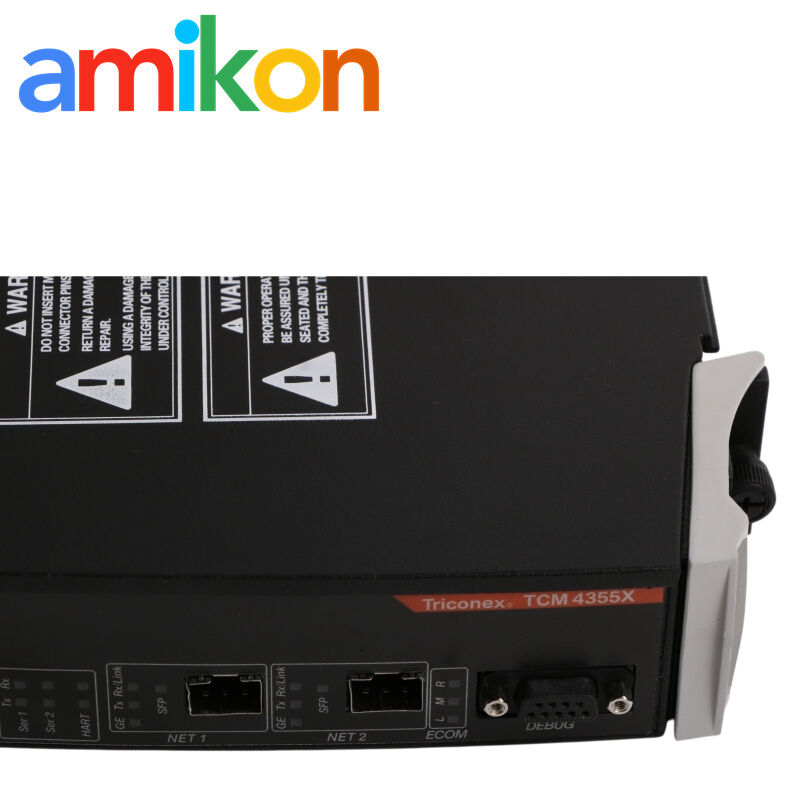

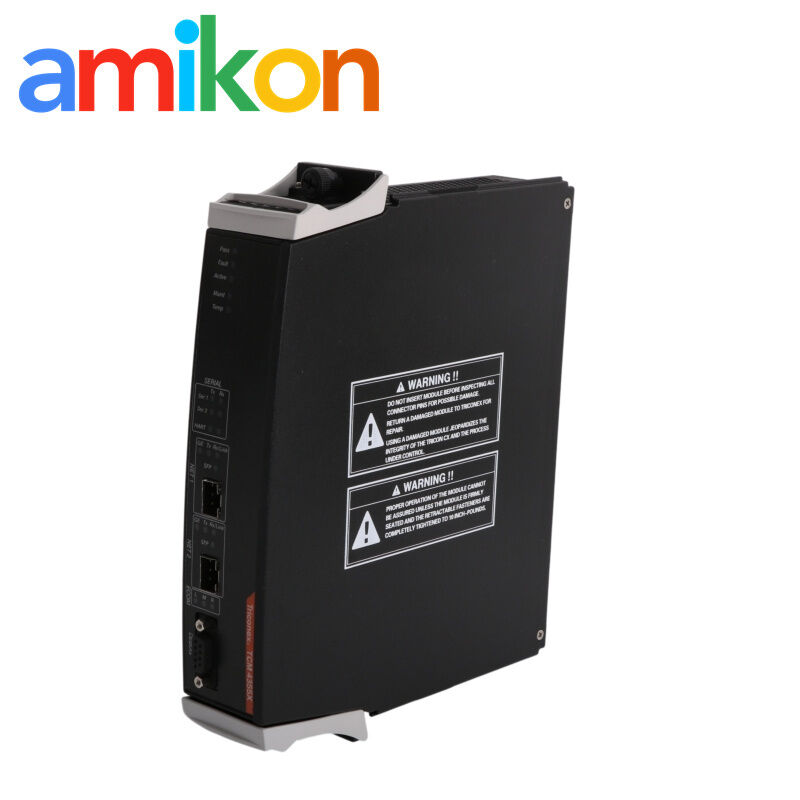

TRICONEX TCM4355X Communication Module
Product Overview
TCM4355X is intended for communication functions within the Tricon CX architecture. It is relevant to maintenance and spare-parts sourcing when a communication module requires inspection or replacement.
Technical Specifications
| Brand | TRICONEX / Schneider Electric |
|---|---|
| Model | TCM4355X (4355X TCM) |
| Product Type | Tricon CX Communication Module |
| Serial Interfaces | 2 galvanically isolated RS-232/RS-485 interfaces with DB-9 connectors |
| Diagnostic Interface | 1 galvanically isolated RS-232 interface with a 9-pin connector |
| Serial Communication Speed | Up to 115.2 Kbps per port; aggregate data rate of 230.4 Kbps |
| Port Isolation | 500 VDC |
| Ethernet Interfaces | 2 copper interfaces supporting 100BASE-TX / 1000BASE-T, or 2 SFP-based fiber interfaces supporting 100BASE-FX / 1000BASE-X |
| Logic Power | Less than 19 W |
Communication Protocols & Additional Technical Details
| Supported Protocols | TriStation, TriStation over SSL, TSAA, TSAA with IP Multicast, Peer-to-Peer, Modbus Client/Server, Modbus TCP/IP, Triconex Time Synchronization, SNTP, External HART DTM, HART-IP and Jet Direct network printing |
|---|---|
| Modbus Functions | 01 Read Coil Status; 02 Read Input Status; 03 Read Holding Registers; 04 Read Input Registers; 05 Modify Coil Status; 06 Modify Register Content; 07 Read Exception Status; 08 Loopback Diagnostic Test; 15 Force Multiple Coils; 16 Preset Multiple Registers |
| Status Indicators | Module status, serial port activity, Ethernet activity, SFP status, enhanced communication bus activity and HART indicators |
| HART Compatibility | HART v7 compatible |
| Network Media | Copper and fiber Ethernet are alternative interface configurations and cannot be used simultaneously. |
| System Platform | Tricon CX; documented for the Model 8120X Main Chassis and Model 1120X MP-TCM Baseplate |
Application & Failure Scenarios
ApplicationUsed within Tricon CX control-system communication arrangements for supported serial and network data exchange. |
Maintenance TriggersCommon sourcing situations include loss of a required communication link, persistent interface alarms, abnormal module status or planned maintenance requiring a spare. |
Delivery, Testing & Warranty
All supplied parts include a 12-month warranty under AMIKON's applicable sales terms. Item condition, inspection or testing scope, packaging and delivery arrangements are confirmed with the quotation. For DOA or return requests, contact AMIKON promptly with the order details and fault evidence; returns require authorization.
AMIKON Industrial Supply
Industrial automation parts sourcing and order support for maintenance teams, system integrators and purchasing departments.
 |
Availability & Quotation
Miya Zheng
AMIKON Industrial Supply
Contact us for availability, pricing and delivery arrangements.
|
Frequently Asked Questions
1. Which serial interfaces are available on the TCM4355X?
The module provides two isolated RS-232/RS-485 interfaces and one isolated RS-232 diagnostic interface.
2. Which Ethernet media configuration is supported?
It supports either two copper Ethernet interfaces or two SFP-based fiber interfaces. The two media configurations cannot be used simultaneously.
3. Which communication protocols are supported?
Supported protocols include TriStation, TSAA, Peer-to-Peer, Modbus, SNTP, Triconex time synchronization, HART-IP and other listed network services.
4. What information is needed to identify a replacement?
Provide the full part number, installed Tricon CX platform, chassis or baseplate information, and a clear product-label photo when available.
5. What warranty applies to purchases from AMIKON?
AMIKON provides a 12-month warranty under the applicable sales terms. Contact sales for availability, item condition, delivery details and return authorization.
