Honeywell CC-TAOX01 51308351-175 Non-Redundant Analog Output IOTA

Honeywell Controller analog output module

Honeywell CC-TAOX01 IOTA module

Non-redundant analog output controller

Brand Name:

Honeywell

Model Number:

CC-TAOX01

Request A Quote

Product Details

Highlight:

Honeywell Controller analog output module

Honeywell CC-TAOX01 IOTA module

Non-redundant analog output controller

Honeywell FC-UGAI01 SIL2 Universal Safety Analog Input Barrier

Get Best Price

Honeywell CC-SCMB05 51308657-106 51308658-276 Enhanced C300v5 Memory Backup Module

Get Best Price

Honeywell CC-TSF901 CC-SFW901 8-Port Safety Firewall IOTA Assembly

Get Best Price

Honeywell CC-HCN911 51307206-175 Horizontal 9-Port Control Firewall IOTA

Get Best Price

Contact Now

Product Description

ANALOG OUTPUT / SERIES C IOTA

CC-TAOX01 51308351-175

Name: Honeywell CC-TAOX01 51308351-175 Non-Redundant Analog Output IOTA
Brand: AMIKON LIMITED
SKU: CC-TAOX01
Price: negotiable USD
Availability: InStock

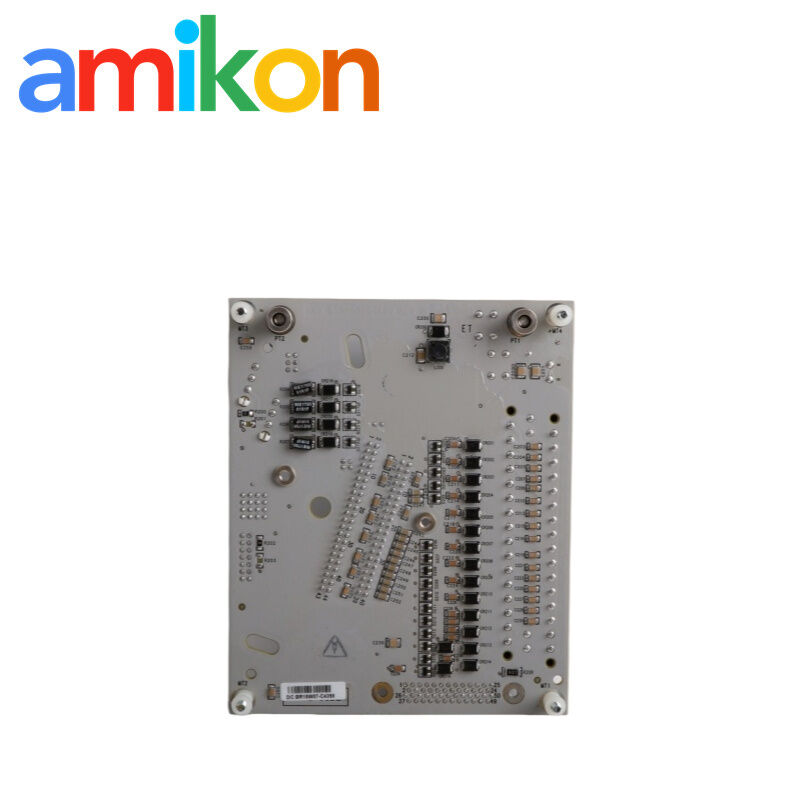

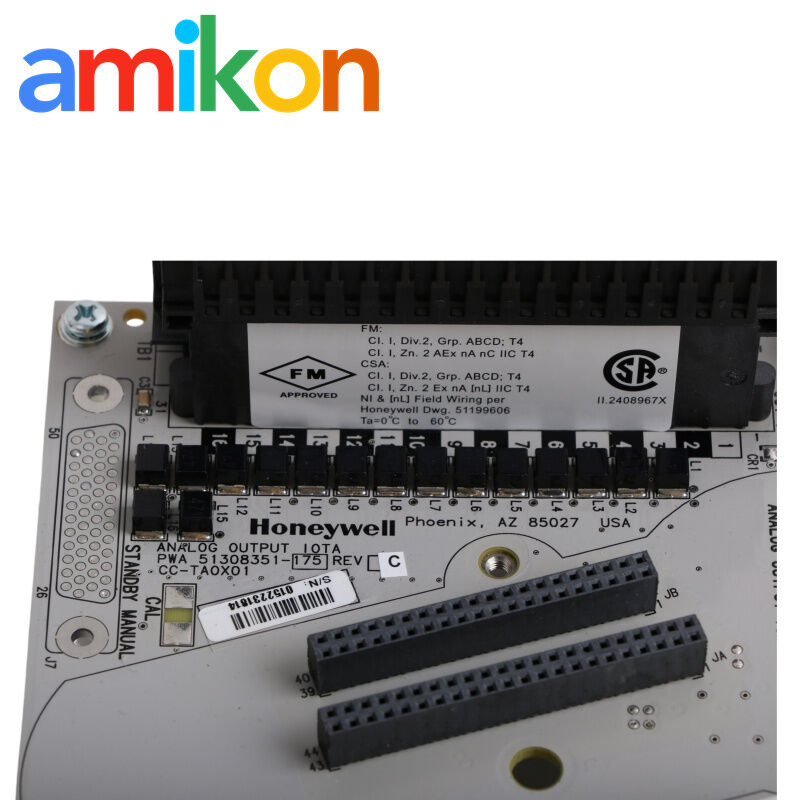

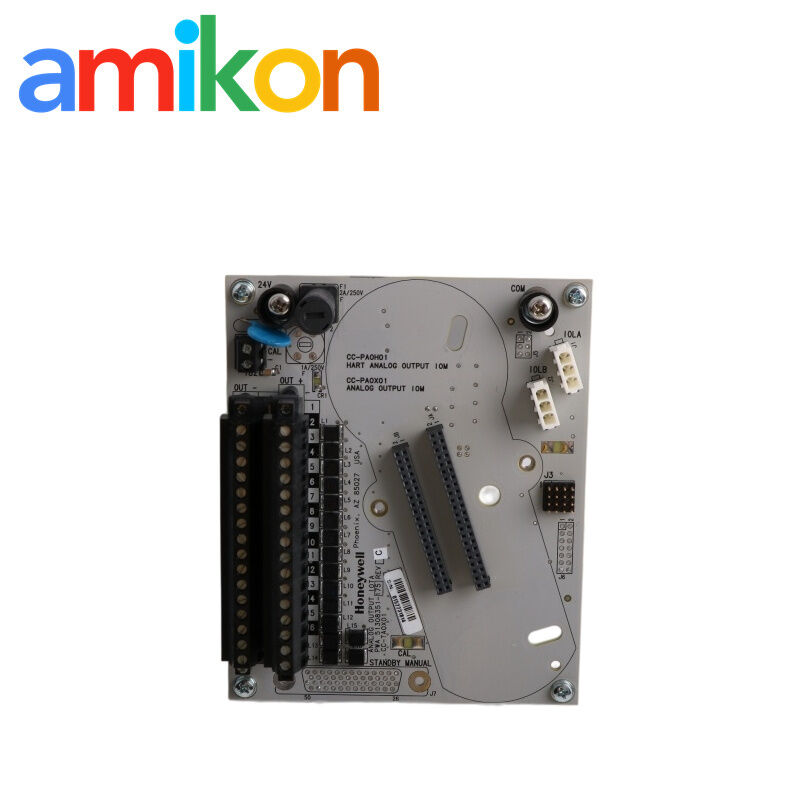

CC-TAOX01 is a non-redundant Series C I/O termination assembly used with the CC-PAOX01 high-level analog output module to connect 16 constant-current field outputs.

Type

Non-redundant analog output IOTA

System

Experion PKS Series C I/O

Focus

16-channel 4–20 mA termination

Brand

Honeywell

Official data

Technical Specifications

Select a group to view verified specifications for this exact model.

View 5 identity and channel specifications

Model	CC-TAOX01
Product type	Non-redundant 6-inch IOTA
Associated I/O module	CC-PAOX01
Channels	16
Output type	4–20 mA constant current

View 8 output performance specifications

Calibrated accuracy at 25°C	±0.35% of full scale, including linearity
Linearity	±0.05% of full scale, nominal
Resolution	±0.05% of full scale
Temperature drift	0.005% of full scale per °C
Output readback accuracy	±4% of full scale
Ripple	Less than 100 mV peak-to-peak across 250 Ω
Settling time	Within 1% of final value in 80 ms
Settable output range	0 mA or 2.9–21.1 mA

View 5 load and diagnostic specifications

Maximum resistive load	800 Ω with 24 V supply specified at 22–28 V DC
Maximum compliant voltage	16 V
Maximum open-circuit voltage	22 V
Open-wire behavior	Channel soft failure indication
Per-channel failure option	Hold last value or shed to a configured safe value

Official relationship

Compatibility & Replacement

Honeywell maps CC-TAOX01 to the CC-PAOX01 I/O module for a non-redundant installation. CC-TAOX11 is the redundant IOTA listed for the same module family; it is an architecture choice, not an assumed drop-in substitute.

Field context

Applications & Fault Scenarios

Practical symptoms, checks and downtime exposure without extending the manufacturer specification.

Final control element does not respond

Observe: The commanded output changes but the valve, drive or indicator does not follow.
Check: Use the module readback, open-wire indication and field-loop continuity to separate channel behavior from the field circuit.
Risk: Loss of manipulated output can push the process toward a trip or production interruption.

Output discrepancy alarm

Observe: The commanded value and reported output no longer agree.
Check: Review the output readback diagnostic, load, wiring and available field supply before returning the loop to service.
Risk: A hidden output error may lead to unstable or incorrect control action.

Open field loop

Observe: A channel reports a soft failure or remains at an unexpected value.
Check: Verify termination, loop continuity and the configured hold-last or safe-shed action for that channel.
Risk: The configured fail action may affect a critical actuator during a plant upset.

Commercial service

About Amikon & Service

Order review, inspection, dispatch and after-sales support are handled separately from Honeywell technical data.

Order Review
Part number, quantity and system context checked.

Inspection & Testing
Condition and available checks recorded.

Packing & Dispatch
Protective packing prepared for destination.

DOA & Returns
Prompt evidence review; prior authorization required.

Warranty
Applicable terms stated in the quotation.

After-sales Support
Order-based follow-up from the service team.

RFQ checklist

Send five order details

01 Part Number

02 Quantity

03 Destination

04 Required Date

05 Machine / System Model

Independent sourcing references

Multi-brand Spare Parts Also Requested

Thirty models randomly selected from the supplied list for independent sourcing enquiries.

Notice: These models are independent procurement references only and are not substitutes for CC-TAOX01. Compatibility, configuration and inventory must be confirmed separately for every request.

HW 157579

AAR145-S03

X.13740101-01

ABB AW401/5001

23000-469

7000W/HS

EX78921-0BB

HE693ADC415C

20F-BOD-B1D-B1D

DVB-S2

DSR-1800AP

ff014e 169-014-103E

1599 3020 ATys C20

TPS-6X

NC4333N-500

CA310

MLC 8000

5863A10

D20ME 820-0516/02

S4000CH 32461-5A

TST-602-BS

3641-4200

6DD7090-0AA20

PCO5+ P+500BAA00EL0

TW2001

Ki7013B

33502A

EFHB8342G001VMS

PDA1

9100-32901-20

Six buyer questions for CC-TAOX01

FAQ

Procurement, compatibility and fault questions for this exact model.

What I/O module is officially paired with Honeywell CC-TAOX01?

Honeywell lists CC-TAOX01 as the non-redundant IOTA for the CC-PAOX01 high-level analog output module.

How many output channels does Honeywell CC-TAOX01 terminate?

It provides field termination for 16 high-level analog output channels.

What signal range is specified for Honeywell CC-TAOX01?

The associated output channels use 4–20 mA constant-current signals, with the output range settable to 0 mA or 2.9–21.1 mA.

What diagnostics are relevant to Honeywell CC-TAOX01?

The official Series C specification includes output readback, output-discrepancy alarming and open-wire soft-failure detection.

Is Honeywell CC-TAOX11 a direct substitute for Honeywell CC-TAOX01?

No direct substitution is assumed. Honeywell lists CC-TAOX11 for the redundant IOTA architecture, so system design and configuration must be confirmed.

Which details should accompany an RFQ for Honeywell CC-TAOX01?

Provide the part number, quantity, destination, required date and the machine or system model.
