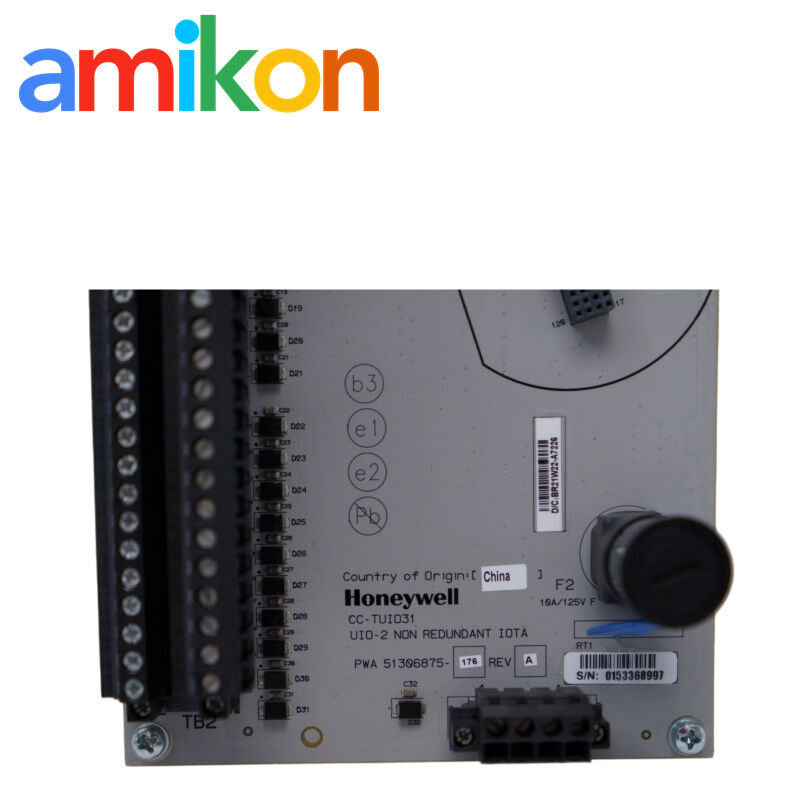

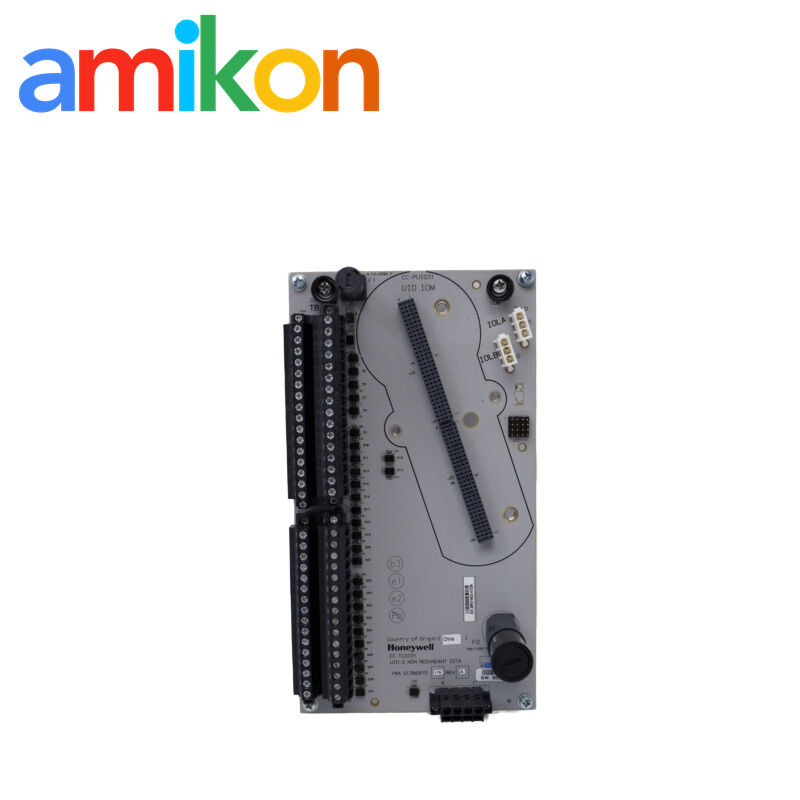

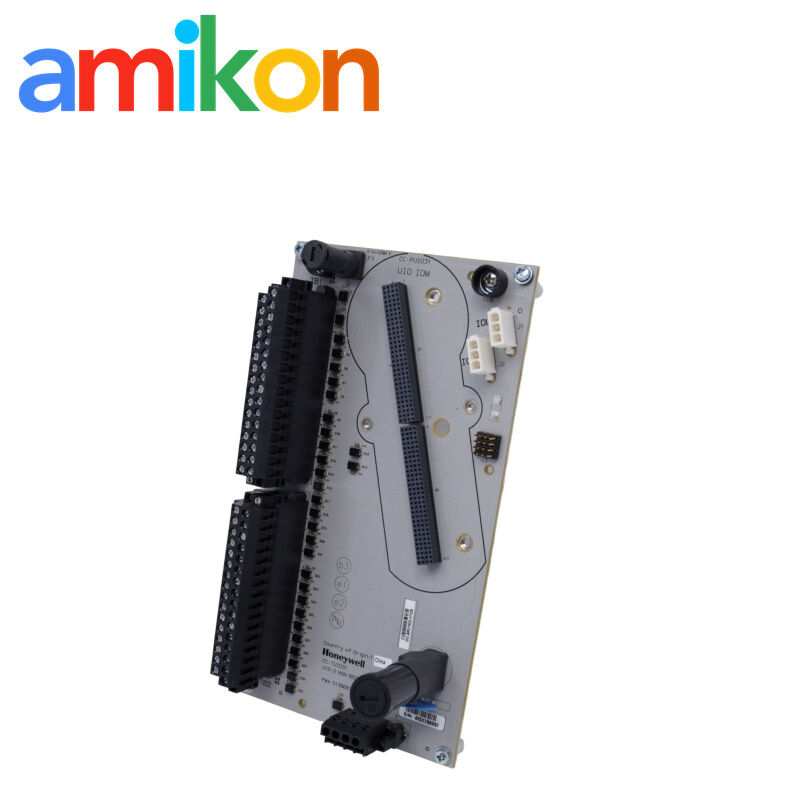

Honeywell CC-TUIO31 51306875-176 Non-Redundant UIO-2 IOTA
A non-redundant Honeywell UIO-2 input/output termination assembly for connecting 32 configurable Universal I/O channels to the CC-PUIO31 module.
Channel, Wiring & HAZLOC Scope
The configuration and compatibility statements below are limited to Honeywell Universal I/O, Universal Process Cabinet and current lifecycle documentation.
View 6 specifications — officially confirmed identity⌄
View 5 specifications — channel and wiring scope⌄
View 3 specifications — hazardous-location control drawing scope⌄
TB1, TB2 and Shielding Are the First Checks
Confirm the paired module
CC-TUIO31 is documented with the CC-PUIO31 Universal I/O Module 2.
Trace all 32 points
The IOTA terminates 32 configurable channels across TB1 and TB2.
Ground shields once
Honeywell drawings show the field shield connected to earth at one end only.
CC-PUIO31 Pairing and Migration Path
Field Wiring Checks
Field channels do not respond
Trace channel assignment, TB1/TB2 wiring, field power and CC-PUIO31 configuration.
Unstable analog values
Verify one-end shield grounding, device wiring type and the approved marshaling accessory.
Migration will not start
Confirm Experion R432+, CC-PUIO31 pairing and the selected non-redundant architecture.
How Amikon Handles This Order
Four clear steps from part-number review to post-delivery support.
Order Review
Part number, quantity, destination, required date and system context checked first.
Inspection & Testing
Identity, condition and applicable functional checks recorded before dispatch.
Packing & Dispatch
Protected industrial packing with shipment tracking.
DOA, Returns & Support
DOA, returns, warranty and after-sales follow the quoted order terms.
Multi-brand Spare Parts Also Requested
These models are independent procurement references only. They are not substitutes for CC-TUIO31 51306875-176. Compatibility, configuration and stock must be confirmed separately for every request.
RFQ Information
For a faster order review, please provide:
Planning with CC-TUIO31 51306875-176
Does Honeywell CC-TUIO31 51306875-176 provide 32 fixed signal types?⌄
No. It provides 32 Universal I/O termination points; AI, AO, DI or DO behavior is configured through the supported CC-PUIO31 module.
Which module must be matched to Honeywell CC-TUIO31 51306875-176?⌄
Honeywell documents CC-TUIO31 with the CC-PUIO31 Universal I/O Module 2. Confirm that pairing before treating the IOTA as a replacement.
How does Honeywell CC-TUIO31 51306875-176 differ from CC-TUIO41?⌄
CC-TUIO31 is the non-redundant UIO-2 IOTA. CC-TUIO41 is a different arrangement and is not an automatic physical substitute without project verification.
Where are the 32 channels landed on Honeywell CC-TUIO31 51306875-176?⌄
Honeywell drawings show the 32 Universal I/O points terminated through TB1 and TB2 on the IOTA.
What is the first wiring check for noisy analog values on Honeywell CC-TUIO31 51306875-176?⌄
Verify the field wiring type and connect the shield to earth at one end only, as shown in Honeywell control drawings.
Can Honeywell CC-TUIO31 51306875-176 support a lifecycle replacement project?⌄
Honeywell identifies CC-PUIO31 with CC-TUIO31 or CC-TUIO41, on Experion R432 and above, as the replacement path for phased-out CC-PUIO01 with CC-TUIO01/CC-TUIO11.
