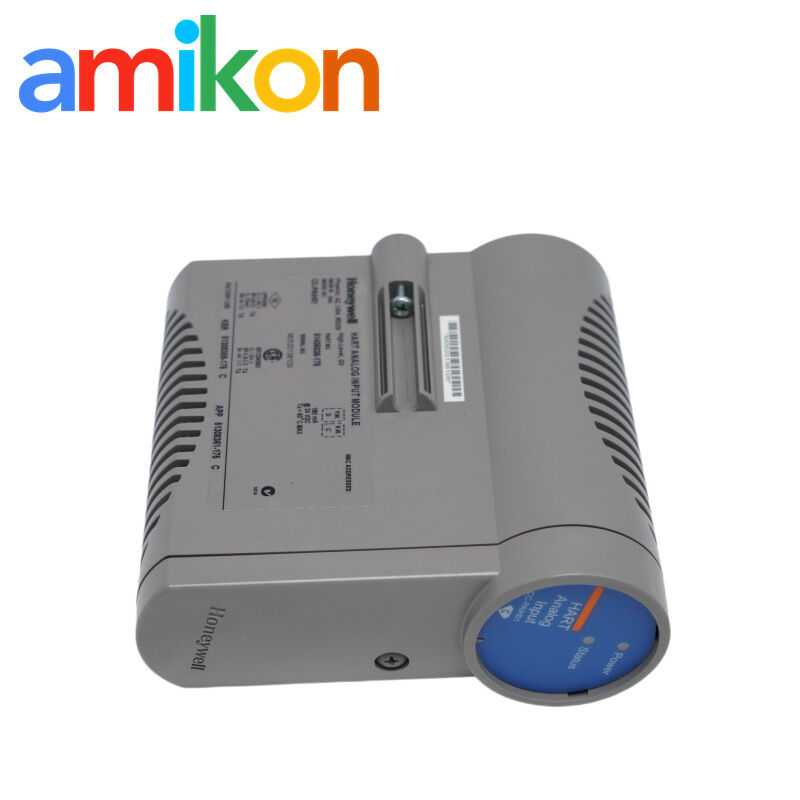

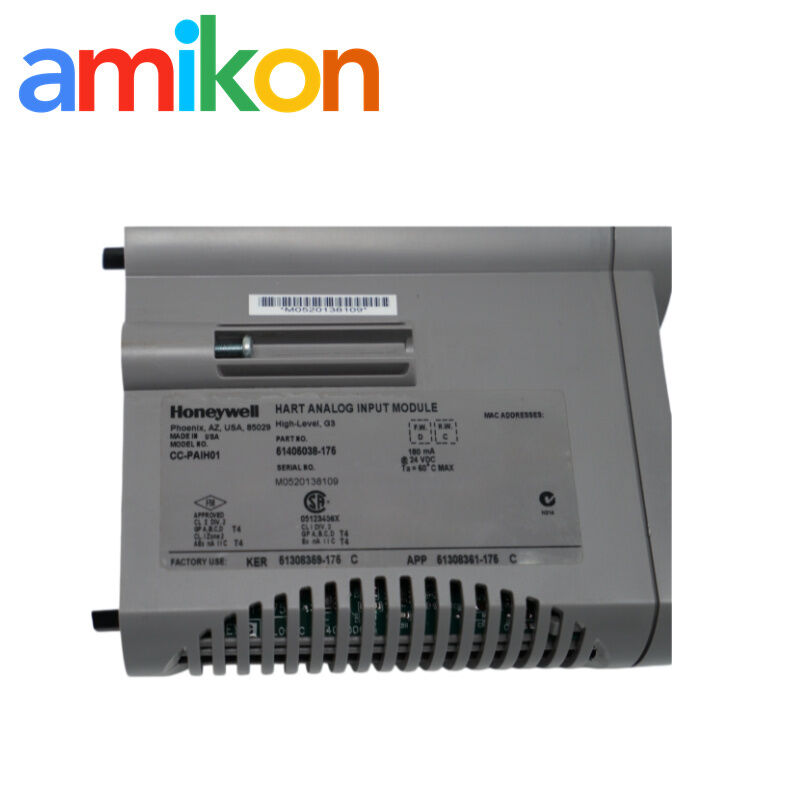

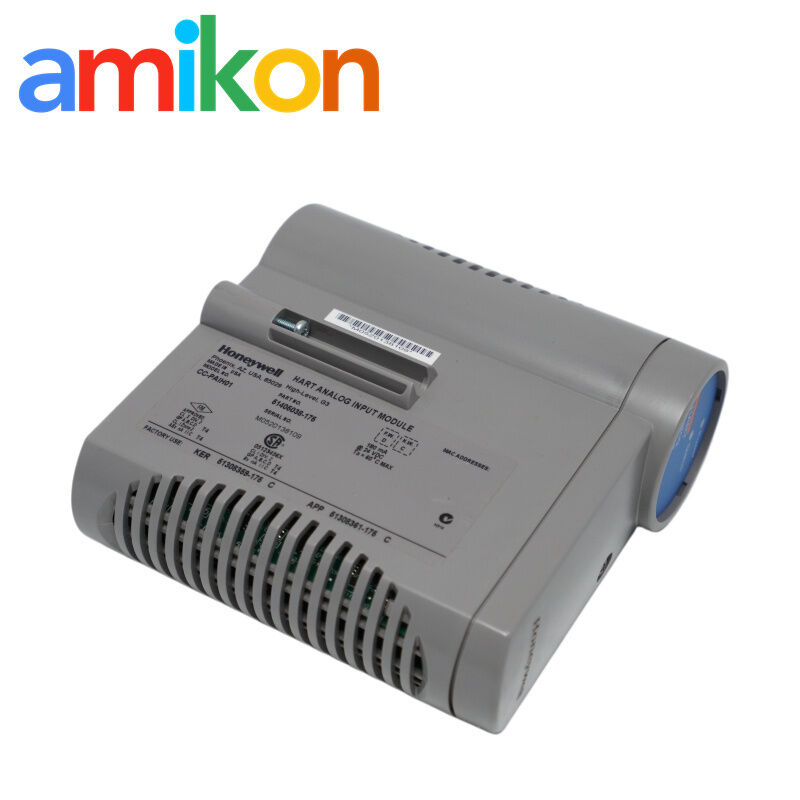

Honeywell CC-PAIH01 51405038-175 16-Channel HART Analog Input Module

Honeywell HART analog input module

16-channel HART input module

Honeywell controller analog module

Brand Name:

Honeywell

Model Number:

CC-PAIH01

Request A Quote

Product Details

Highlight:

Honeywell HART analog input module

16-channel HART input module

Honeywell controller analog module

Honeywell CC-MCAR01 51403892-100 IOTA Carrier Channel Assembly

Get Best Price

Honeywell 8C-TCNTA1 51307125-175 Coated C300 Controller IOTA

Get Best Price

Honeywell 8C-PCNT03 51454363-375 Coated C300 Controller for Experion LX

Get Best Price

Honeywell CC-PAIH01 51405038-175 16-Channel HART Analog Input Module

Get Best Price

Contact Now

Product Description

HART / HIGH LEVEL

Honeywell • official-document product brief

CC-PAIH01

Name: Honeywell CC-PAIH01 51405038-175 16-Channel HART Analog Input Module
Brand: AMIKON LIMITED
SKU: CC-PAIH01
Price: negotiable USD
Availability: InStock

CC-PAIH01 is a 16-channel Series C high-level analog input module with HART communication for current and selected voltage measurement channels.

Type

HART analog input

System

Experion PKS Series C I/O

Focus

16 × high-level AI

Brand

Honeywell

Official data

Technical Specifications

Select a group to view its verified specifications.

View 7 channel specifications ›

Input channels

Communication

HART; multiple modems and multi-variable support

Input types

Current and voltage

Voltage-input channels

Channels 13–16

Input ranges

0–5 V, 1–5 V, 0.4–2 V and 4–20 mA using 250 Ω

A/D conversion

16-bit

Scan time

50 ms

View 9 performance specifications ›

Accuracy at 23.5 ±2 °C

±0.075% of full scale

Accuracy from 0 to 60 °C

±0.15% of full scale

Input impedance

> 10 MΩ

Maximum normal differential input

±30 V

Common-mode voltage

−6 to +5 V peak

Common-mode rejection

70 dB

Normal-mode rejection

19 dB at 60 Hz

Input filter

RC, −3 dB at 6.5 Hz

Cross-talk

−60 dB

View 4 IOTA and functions specifications ›

Non-redundant IOTAs

CC-TAIX01 and CC-GAIX21

Redundant IOTAs

CC-TAIX11 and CC-GAIX11

Documented functions

Self-diagnostics, optional redundancy, open-wire detection and non-incendive field power

Loop service

Fast loop scan with HART device data access

Officially documented

Compatibility & Replacement

Unconfirmed substitutions and migration assumptions are excluded.

Official replacement note

Honeywell introduced CC-PAIH02 as the replacement for CC-PAIH01. Confirm the supported IOTA, Experion release, HART configuration and redundant migration procedure before planning the change; do not assume a mixed old/new redundant pair is supported.

Field context

Applications & Fault Scenarios

Scan the symptom, first check and operational risk.

01Smart transmitter loop

Observe

HART access is lost while current remains valid.

Check

Check the IOTA, field power and loop resistance.

Risk

Maintenance and device diagnosis are delayed.

↔

02Open transmitter loop

Observe

The channel becomes invalid or faulted.

Check

Verify field power, terminals, polarity and continuity.

Risk

The control strategy may fall back or trip.

⌁

03Redundant migration

Observe

The pair will not synchronize or enter redundancy.

Check

Confirm module types, IOTA and the Experion migration procedure.

Risk

The unit may remain without redundancy or in outage.

Commercial service

About Amikon & Service

Order review, inspection, dispatch and after-sales support in one concise service flow.

Amikon commercial serviceSeparate from manufacturer technical data

Order Review

Part number, quantity and system context confirmed.

Inspection & Testing

Condition and available checks recorded.

Packing & Dispatch

Protective packing prepared for the destination.

DOA

Prompt report with evidence.

Returns

Prior authorization required.

Warranty

Terms stated in the quotation.

After-sales

Order-based follow-up support.

RFQ checklist

Send five order details

Enough information to review the request without assuming compatibility.

Part Number

Quantity

Destination

Required Date

Machine / System Model

Independent sourcing references

Multi-brand Spare Parts Also Requested

Thirty models selected from the supplied reference list for independent sourcing enquiries.

These models are independent procurement references only and are not substitutes for CC-PAIH01. Compatibility, configuration and inventory must be confirmed separately for each request.

C47 1-1/4

8030-CC-20

465219

30389211

0020-31316

4588-26,1 5/8-8

6KD73

44A731656-G01

2510FG5

CP95SDB50-50

IEC255

1771-ID

5313 X E9P03V

3950 X 341855-1-1

GLF6101SM4S

FBM242 P0916MU-0A P0916MT

FBM242 P0916TA

SC8262G226E

2604D30G08

52500599

TB-102-3

6K77VFL

S-1314821

WMZT1D08T

8501X000 8501XTE1

612L3056

APW-3 RG33

KD5-SYM120.3SF1S01

PC-301

31FKF-1210

Six buyer questions for CC-PAIH01

FAQ

Procurement, replacement and fault questions specific to this exact part number.

Can Honeywell CC-PAIH01 be replaced by CC-PAIH02 without planning the migration? ›

Honeywell identifies CC-PAIH02 as the replacement, but the installed IOTA, Experion release and redundant-module migration procedure must be confirmed before changing a live pair.

Why can HART communication be lost while Honeywell CC-PAIH01 still reads current? ›

HART communication and the 4–20 mA measurement share the loop. Check field power, the 250 Ω input path, wiring and the documented IOTA before replacing CC-PAIH01.

Can all 16 Honeywell CC-PAIH01 channels be used for voltage inputs? ›

No. Honeywell documents voltage-input service on channels 13–16; the normal current measurement is 4–20 mA through a 250 Ω path.

Which IOTAs are documented with Honeywell CC-PAIH01? ›

Honeywell lists CC-TAIX01 or CC-TAIX11 and CC-GAIX21 or CC-GAIX11 arrangements. Match the full IOTA number to the installation.

What should be checked when one Honeywell CC-PAIH01 loop reports open input? ›

Verify field power, polarity, terminal continuity, the 250 Ω path and IOTA wiring before treating the IOM as failed.

Which information is needed to quote Honeywell CC-PAIH01 correctly? ›

Provide CC-PAIH01, the complete IOTA number, HART requirement, channel signal types, redundancy status, Experion release, quantity and destination.
