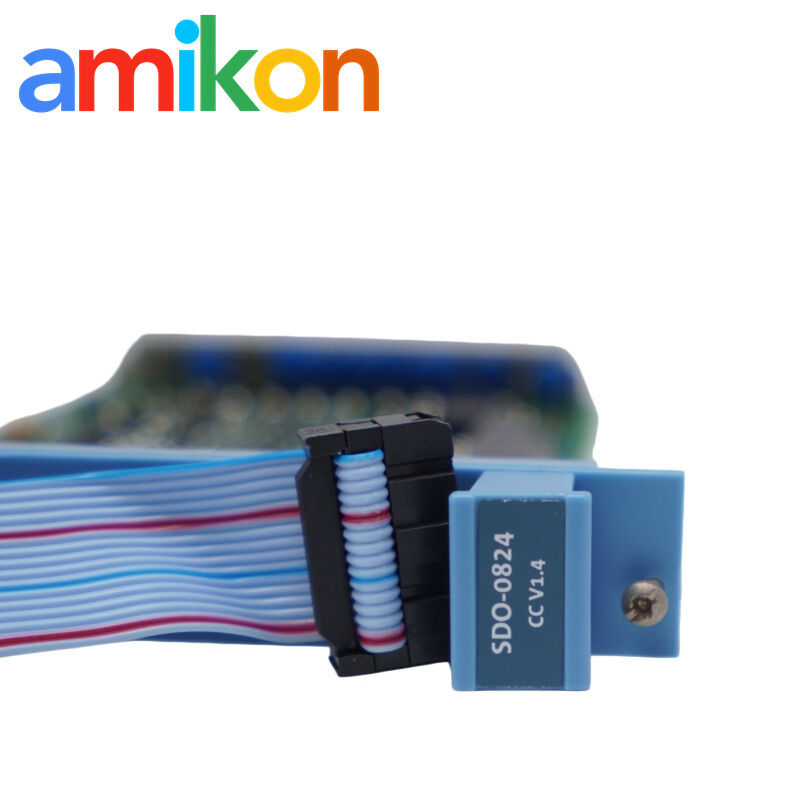

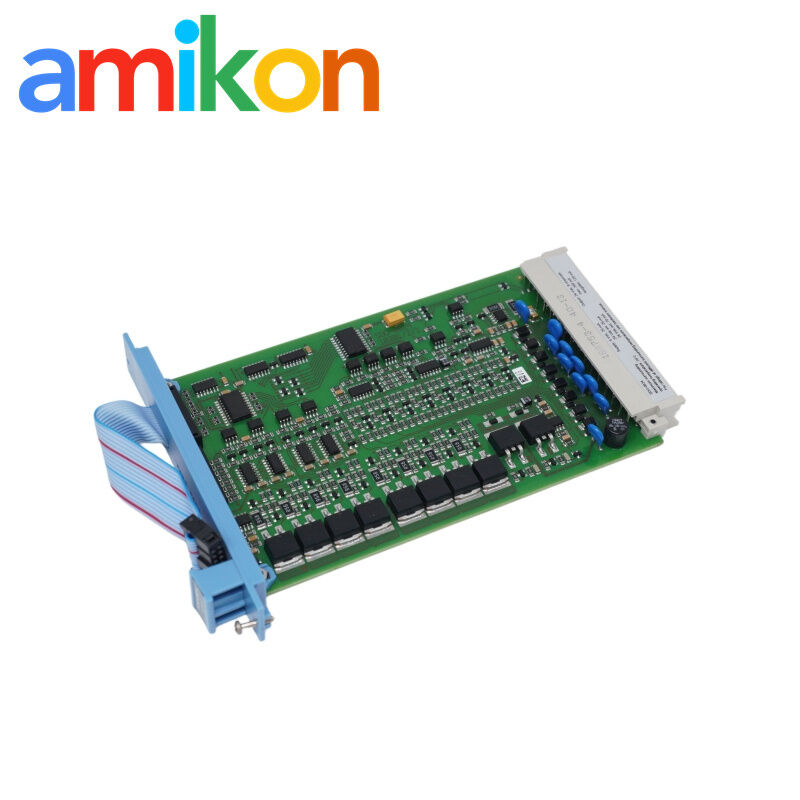

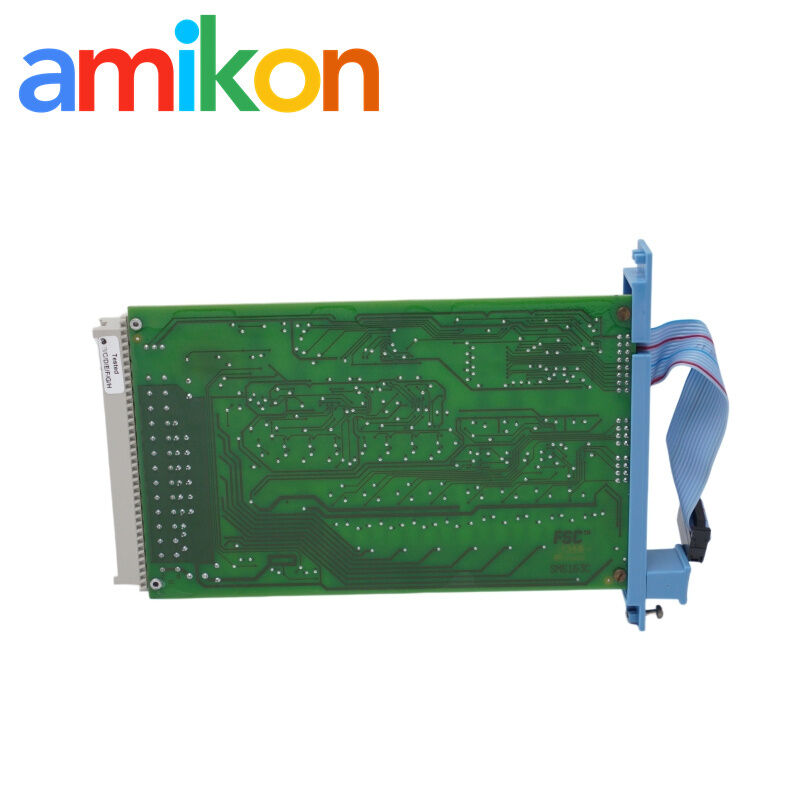

Honeywell FC-SDO-0824 V1.4 Safe 8-Channel 24 V DC Digital Output Module

Honeywell 8-channel digital output module

24V DC output module with warranty

Safe digital output module V1.4

Brand Name:

Honeywell

Model Number:

FC-SDO-0824

Request A Quote

Product Details

Highlight:

Honeywell 8-channel digital output module

24V DC output module with warranty

Safe digital output module V1.4

Honeywell CC-MCAR01 51403892-100 IOTA Carrier Channel Assembly

Get Best Price

Honeywell 8C-TCNTA1 51307125-175 Coated C300 Controller IOTA

Get Best Price

Honeywell 8C-PCNT03 51454363-375 Coated C300 Controller for Experion LX

Get Best Price

Honeywell CC-PAIH01 51405038-175 16-Channel HART Analog Input Module

Get Best Price

Contact Now

Product Description

SAFE OUTPUT / 8

Honeywell • official-document product brief

FC-SDO-0824

Name: Honeywell FC-SDO-0824 V1.4 Safe 8-Channel 24 V DC Digital Output Module
Brand: AMIKON LIMITED
SKU: FC-SDO-0824
Price: negotiable USD
Availability: InStock

FC-SDO-0824 is a safe eight-channel 24 V DC sourcing output module for Honeywell Safety Manager, intended for resistive and inductive final elements up to 13 W per channel.

Type

Safe digital output

System

Safety Manager

Focus

8 × 24 V DC / 550 mA

Brand

Honeywell

Official data

Technical Specifications

Select a group to view its verified specifications.

View 10 output specifications ›

Output channels

Output type

24 V DC solid-state sourcing, short-circuit proof

Maximum continuous output

550 mA per channel

Maximum load

13 W

Supported load types

Resistive and inductive

Lamp load

120 mA / 2.9 W

Maximum load capacitance

1 µF

Output voltage drop

< 2 V at 500 mA

Off-state current

< 0.1 mA

Output suppression

Integrated suppression diode per output

View 10 safety and power specifications ›

Output groups

Two groups of four outputs

Secondary de-energize path

Independent for each four-channel group

Diagnostic checks

Ability to de-energize, secondary group path, cross-talk and suppression diode

Module watchdog path

SMOD can de-energize outputs independently of application logic

5 V DC current

25 mA

Internal 24 V DC current

25 mA

External 24 V DC current

70 mA with no load

Watchdog input current

8 mA

Format

4 TE, 3 HE (4 HP, 3U)

Approvals listed by Honeywell

CE, TÜV, UL, CSA and FM

Field context

Applications & Fault Scenarios

Scan the symptom, first check and operational risk.

01ESD solenoid or relay

Observe

The output faults or the final element does not move.

Check

Check field power, load current and wiring continuity.

Risk

Restart may be blocked by an unavailable shutdown path.

↔

02Inductive DC coil

Observe

The same channel faults repeatedly.

Check

Test coil resistance and polarity; review suppression diagnostics.

Risk

One actuator can remain out of service.

⌁

03Four-channel group event

Observe

Several outputs drop at the same time.

Check

Review the group supply path, watchdog and event history.

Risk

Multiple final elements may become unavailable together.

Commercial service

About Amikon & Service

Order review, inspection, dispatch and after-sales support in one concise service flow.

Amikon commercial serviceSeparate from manufacturer technical data

Order Review

Part number, quantity and system context confirmed.

Inspection & Testing

Condition and available checks recorded.

Packing & Dispatch

Protective packing prepared for the destination.

DOA

Prompt report with evidence.

Returns

Prior authorization required.

Warranty

Terms stated in the quotation.

After-sales

Order-based follow-up support.

RFQ checklist

Send five order details

Enough information to review the request without assuming compatibility.

Part Number

Quantity

Destination

Required Date

Machine / System Model

Independent sourcing references

Multi-brand Spare Parts Also Requested

Thirty models selected from the supplied reference list for independent sourcing enquiries.

These models are independent procurement references only and are not substitutes for FC-SDO-0824. Compatibility, configuration and inventory must be confirmed separately for each request.

2002-1611/1000-541

2204-1204

2006-911/1000-541

2006-931/1000-541

2002-1961

2000-1301

HUS723020ALS640

56000-A38

1771-OB

1771-IA2

2D79735G04

2GM51-73XG

22209EAE4C3

14-956-1D

Q-3702A-J4

WIC-012

CSTVP-0752-CF

BX56

5VX950

NLN60

102-623-F2

10250T

HB8342A3

SC8325B035V

V2040ESL20

T83205M0

NP8314C13E

4.4T-10-RSC

GE 353302G3

WMZH3C20T

Six buyer questions for FC-SDO-0824

FAQ

Procurement, replacement and fault questions specific to this exact part number.

Can Honeywell FC-SDO-0824 drive an inductive solenoid directly? ›

Honeywell documents resistive and inductive 24 V DC loads up to 550 mA and 13 W per channel, with an integrated suppression diode for each output.

Why can four Honeywell FC-SDO-0824 outputs de-energize together? ›

The eight channels are arranged as two groups of four. Each group has its own secondary de-energize path, so diagnostics must distinguish a channel fault from a group event.

What should be checked after a short circuit on Honeywell FC-SDO-0824? ›

The sourcing solid-state outputs are described as short-circuit proof. Remove the field fault, check load current and wiring, and review channel diagnostics before returning the output to service.

Does Honeywell FC-SDO-0824 require an external flyback diode for every coil? ›

Honeywell states that a suppression diode is integrated for each output. The connected load must still stay within the documented voltage, current and power limits.

What load limit must not be exceeded on Honeywell FC-SDO-0824? ›

The official limit is 550 mA and 13 W per channel for the documented 24 V DC output service.

Which field details prevent a wrong Honeywell FC-SDO-0824 order? ›

Confirm the full part number, Safety Manager revision, field-supply arrangement, coil or relay load, current and power per channel, quantity and required date.
