Honeywell 51401946-100 K4LCN Board for LCN System
Honeywell 51401946-100 Redundant Application Module
K4LCN Board UXS Node Spare Part
LCN System Universal StationX (UXS)
Place of Origin:
USA
Brand Name:
Honeywell
Model Number:
51401946-100
Document:
Contact Us
Request A Quote
Product Details
Packaging:
Original New Packaging
Shipping:
TNT, DHL, FedEx, EMS, UPS
Place Of Shipment:
Xiamen,China
Weight:
1.02kg
Dimension:
36.6x36.4x2cm
Highlight:
Honeywell 51401946-100 Redundant Application Module
,K4LCN Board UXS Node Spare Part
,LCN System Universal StationX (UXS)
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Honeywell FC-IO-0002 V1.1 Safety Manager A.R.T. I/O Extender Module for 5 VDC and Watchdog Distribution
Get Best Price
Honeywell FC-PDB-ARTF05 A.R.T. Fused 5 VDC Power Distribution Board with 18 Fused Outputs and Watchdog Signal Distribution
Get Best Price
Contact Us
Contact Now
Product Description

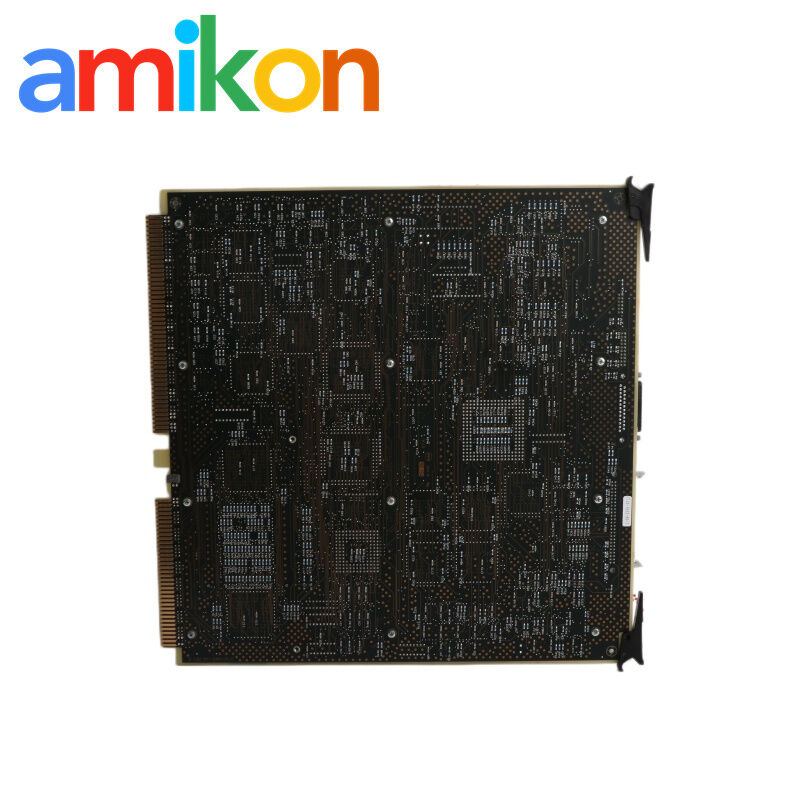

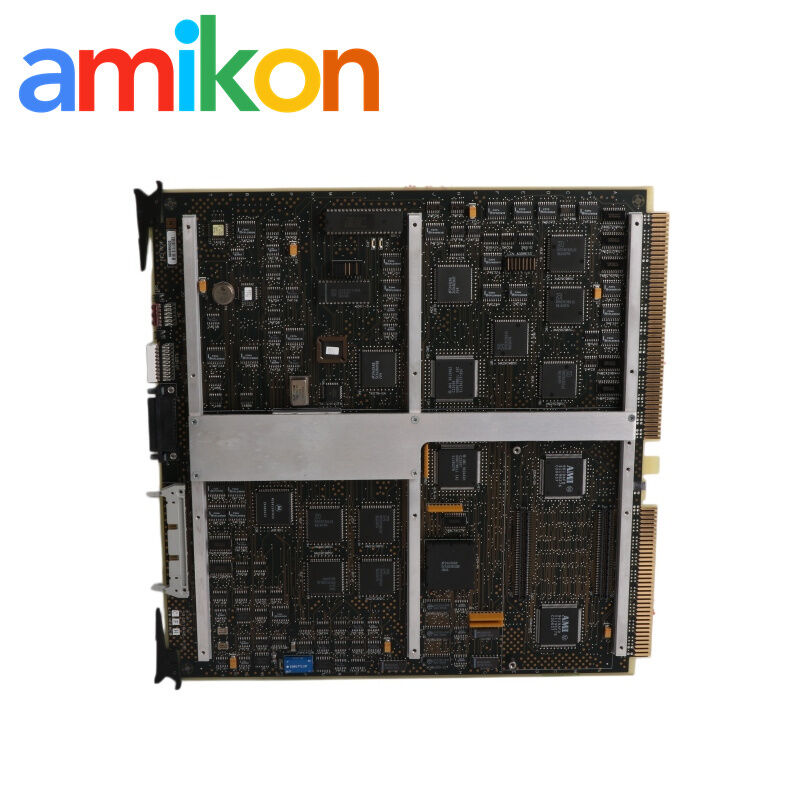

Honeywell 51401946-100 K4LCN Board for LCN System
51401946-100 is a K4LCN Board documented for Honeywell LCN node hardware and Universal StationX (UXS) equipment. Honeywell lists the assembly as "K4LCN Board without Daughter (Mezzanine) Memory Board" under UXS Node Spare Parts.
Product Specifications
Manufacturer: Honeywell
Part Number: 51401946-100
Board: K4LCN
Configuration: Without Daughter (Mezzanine) Memory Board
System: LCN / Universal StationX (UXS)
Node Hardware: Five-Slot Module
Part Number: 51401946-100
Board: K4LCN
Configuration: Without Daughter (Mezzanine) Memory Board
System: LCN / Universal StationX (UXS)
Node Hardware: Five-Slot Module
4-Megaword Memory Board for K4LCN Board (51401946-100): 51201645-400
Honeywell's LCN System Installation documentation shows K4LCN (51401946-100) in Redundant Application Module configurations with EAMR (51401996-100).
LCN (Local Control Network) is Honeywell's control-system network used in its process automation systems. It connects control and operator-system nodes such as Application Modules, History Modules and Universal Stations.
The 51401946-100 K4LCN Board is part of this LCN hardware environment and is documented for Universal StationX (UXS) node configurations.
|
For K4LCN assembly 51401946-100, Honeywell specifies:
Pinning block: TS2 Location: Coordinate 21E Jumper absent: Binary "1" Parity: Odd number The manual also states that addresses 0-127 can be set, while the software allows only LCN node addresses 1-64. |
|
When sourcing a replacement, match the existing board against 51401946-100 K4LCN configuration.
Before ordering, verify:

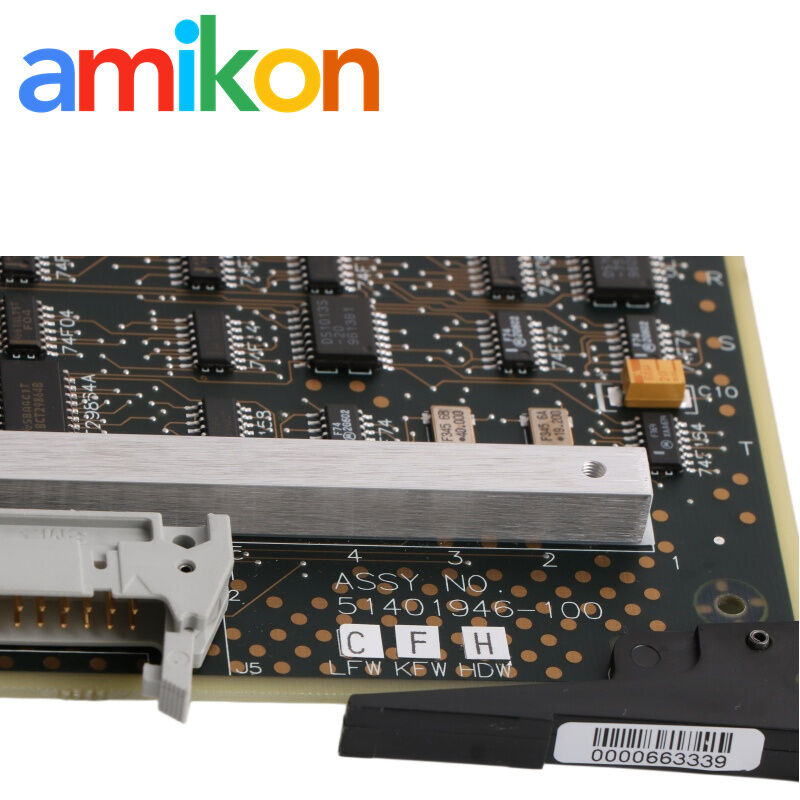

- Complete assembly number: 51401946-100
- Memory configuration: Without Daughter (Mezzanine) Memory Board
- LCN node address: Check the existing setting
Frequently Asked Questions
1. What is Honeywell 51401946-100?
It is a K4LCN Board for Honeywell LCN / Universal StationX systems, documented without a Daughter (Mezzanine) Memory Board.
2. How is the LCN address configured on 51401946-100?
The LCN address is selected through TS2 at board coordinate 21E. An absent jumper represents binary "1", and parity must be odd.
3. What should I check before ordering a replacement?
Please confirm the Part Number, memory configuration and existing LCN node address against your installed board.
4. What information should I provide for an RFQ?
Please provide the Part Number, Quantity, Destination, Required Date and Machine/System Model. AMIKON will use these details to prepare the quotation and delivery information.
5. How is the product tested and packaged before shipment?
AMIKON performs product testing and inspection before shipment and uses protective packaging suitable for industrial electronic components. If a product arrives DOA (Dead on Arrival), contact AMIKON with the order details and supporting evidence for return or replacement processing.
6. What is the warranty period?
AMIKON provides a 1-year warranty for the product. Warranty service covers product defects and failures within the warranty period according to AMIKON's warranty terms.
AMIKON - Industrial Automation Spare Parts
AMIKON specializes in DCS, PLC, and industrial automation spare parts, with access to 30,000+ parts and global sourcing support for hard-to-find, obsolete, and discontinued components.
Each product is inspected and tested before shipment. We also provide warranty and after-sales support for maintenance, repair, and replacement requirements.
Need a quote? Contact us for availability and pricing.
