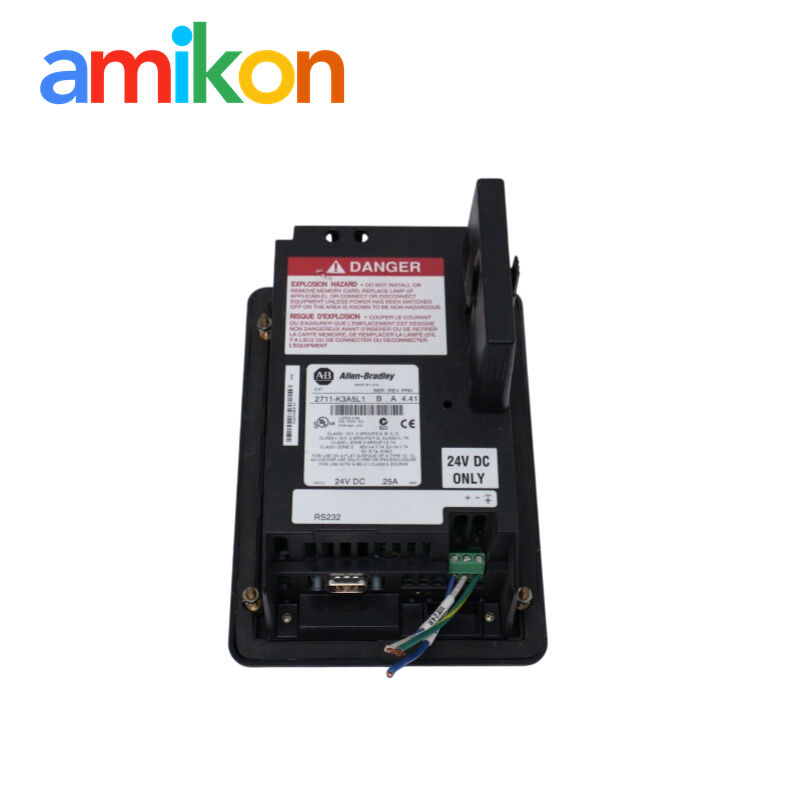

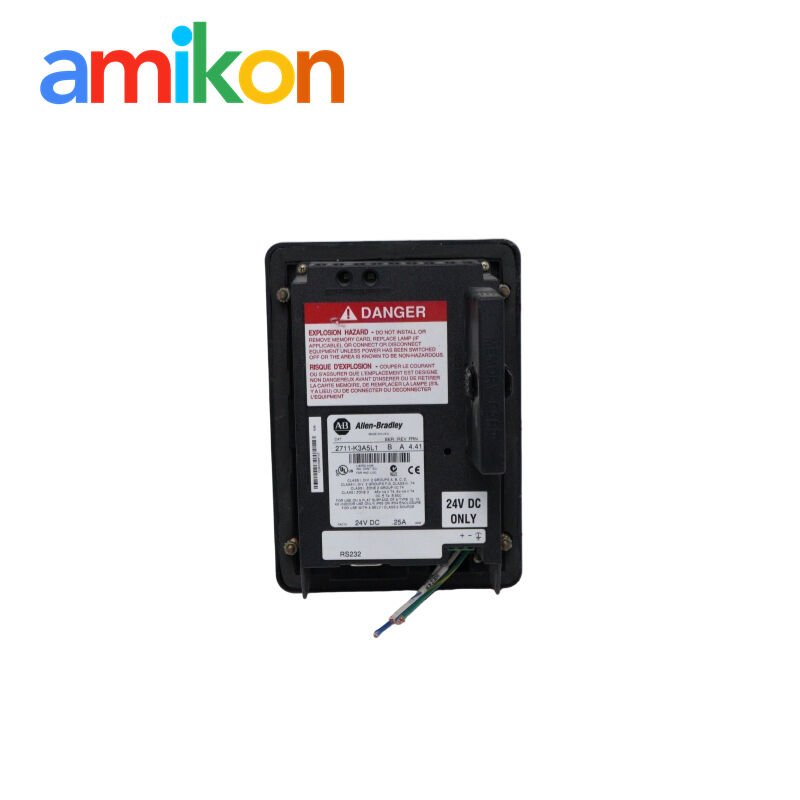

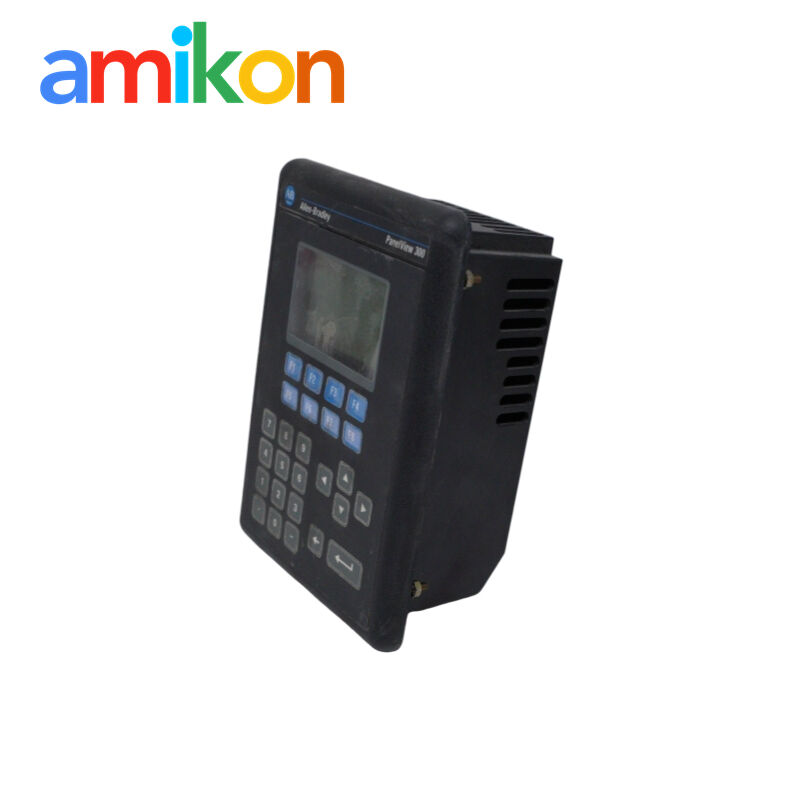

Allen Bradley 2711-K3A5L1 PanelView 300 Monochrome Keypad HMI with RS-232 DH-485
Allen Bradley PanelView 300 HMI
PanelView 300 monochrome keypad
RS-232 DH-485 HMI
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
2711-K3A5L1
Allen Bradley PanelView 300 HMI
,PanelView 300 monochrome keypad
,RS-232 DH-485 HMI
Allen Bradley 2711-K3A5L1 PanelView 300 Monochrome Keypad HMI with RS-232 DH-485
PanelView 300 monochrome keypad terminal for PanelView Standard 300. Built for documented maintenance, compatibility review and quotation planning.
Official-Manual Data Snapshot
| Display | 3-inch monochrome |
|---|---|
| Input | Keypad |
| Communication | RS-232 supporting DH-485 |
| Power | 24V DC |
| Memory | 240 KB nonvolatile / 170 KB RAM |
| Documentation reference | 2711-UM014 / 2711-TD007 |
Values are catalog-specific planning data. Verify the latest official publication and the product nameplate before field work.
Industrial Purpose & Use Cases
2711-K3A5L1 is applied in compact operator stations for legacy SLC and MicroLogix machines using DH-485 application communications. Typical projects include planned shutdown replacement, troubleshooting, capacity restoration and migration surveys where the installed catalog number must remain traceable.
Use documented status, alarms or control behavior to confirm normal operation.
Keep the original drawing, program and nameplate photographs with the spare record.
Configuration, Programming & Commissioning
Back up the PanelBuilder32 application, document node settings and cable pinout, confirm 24V DC wiring, and validate keypad navigation after transfer.
- Isolate energy and follow the site safety procedure.
- Record wiring, addressing, firmware and mechanical position before removal.
- Install only after catalog and system compatibility are confirmed.
- Restore a validated project or parameter set; test diagnostics and each affected function.
Lifecycle & Migration Guidance
undefined
Replacement rule: retain 2711-K3A5L1 for like-for-like maintenance when project documentation requires it. For modernization, compare supported platform, electrical interface, software conversion, panel cutout or chassis requirements and validation effort.
Planning terms: 2711-K3A5L1 replacement · PanelView Standard 300 spare · legacy automation migration · industrial maintenance stock
