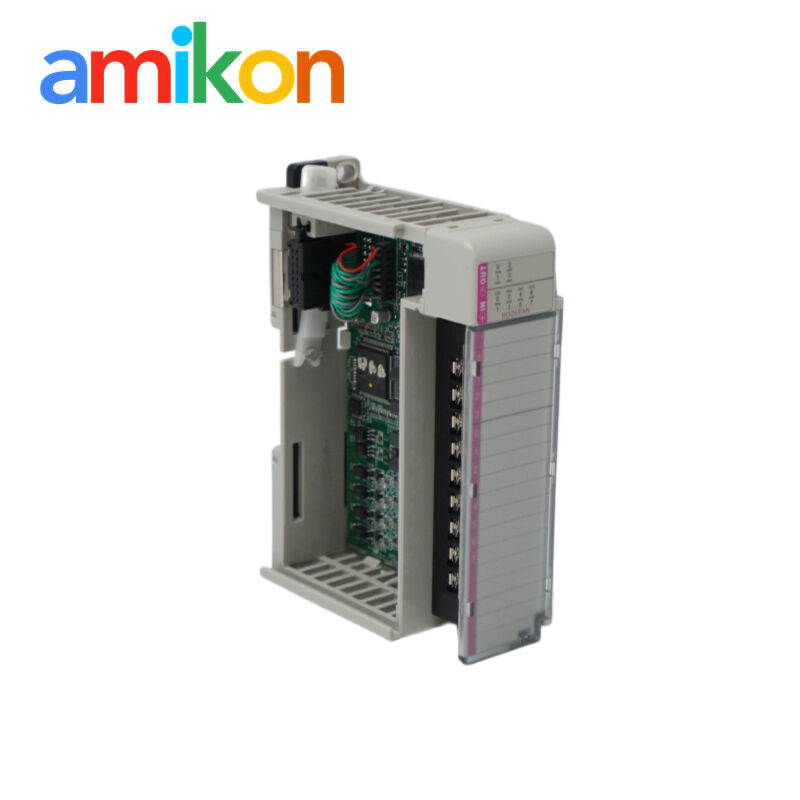

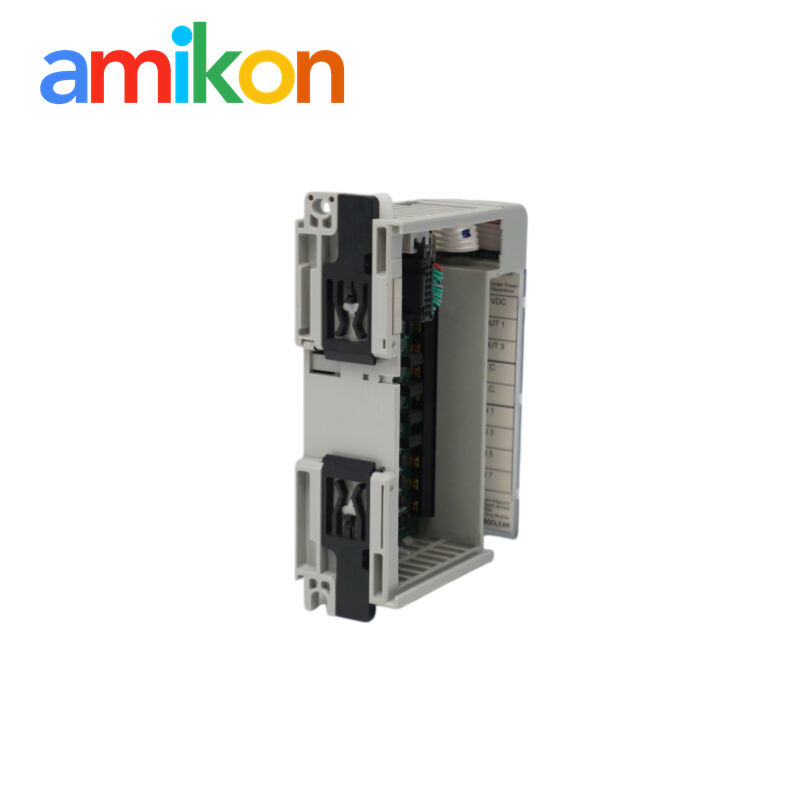

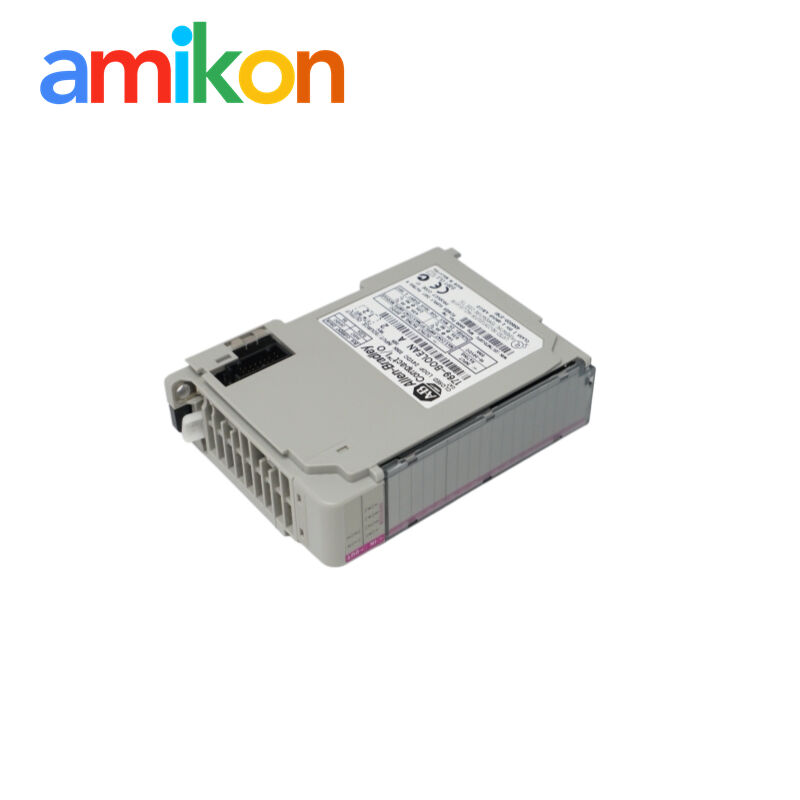

Allen Bradley 1769-BOOLEAN Compact I/O High-Speed Boolean Control Module
Allen Bradley Compact I/O module
High-Speed Boolean Control Module
1769-BOOLEAN I/O module with warranty
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1769-BOOLEAN
Allen Bradley Compact I/O module
,High-Speed Boolean Control Module
,1769-BOOLEAN I/O module with warranty
Allen Bradley 1769-BOOLEAN Compact I/O High-Speed Boolean Control Module
Boolean control combination I/O module for 1769 Compact I/O. Built for documented maintenance, compatibility review and quotation planning.
Catalog Identity & System Fit
1769-BOOLEAN is a Boolean control combination I/O module for 1769 Compact I/O. This page focuses on exact-model verification, commissioning records and installed-base support.
Configuration, Programming & Commissioning
Set input filters, Boolean operands, operators, output delay/duration and program/fault states in the configuration data file.
- Isolate energy and follow the site safety procedure.
- Record wiring, addressing, firmware and mechanical position before removal.
- Install only after catalog and system compatibility are confirmed.
- Restore a validated project or parameter set; test diagnostics and each affected function.
Official-Manual Data Snapshot
| Physical inputs | 8 real 24V DC sinking inputs |
|---|---|
| Virtual inputs | 8 program-controlled virtual inputs |
| Outputs | 4 source outputs |
| Boolean operators | AND, OR, XOR or none |
| Closed-loop response | 100–150 µs maximum by load condition |
| Documentation reference | 1769-RM016 / 1769-TD006 |
Values are catalog-specific planning data. Verify the latest official publication and the product nameplate before field work.
Frequently Asked Questions Before Ordering
Industrial Purpose & Use Cases
1769-BOOLEAN is applied in high-speed material handling, registration, packaging and local logic where deterministic input-to-output action is required. Typical projects include planned shutdown replacement, troubleshooting, capacity restoration and migration surveys where the installed catalog number must remain traceable.
Use documented status, alarms or control behavior to confirm normal operation.
Keep the original drawing, program and nameplate photographs with the spare record.
Lifecycle & Migration Guidance
undefined
Replacement rule: retain 1769-BOOLEAN for like-for-like maintenance when project documentation requires it. For modernization, compare supported platform, electrical interface, software conversion, panel cutout or chassis requirements and validation effort.
Planning terms: 1769-BOOLEAN replacement · 1769 Compact I/O spare · legacy automation migration · industrial maintenance stock
Request Stock, Condition & Best Offer
amikon provides economical industrial spare-part sourcing, catalog-number verification and consolidated shipment support. Serious offers are reviewed promptly; typical offer response time is within 48 hours.
Contact: Miya Zheng
