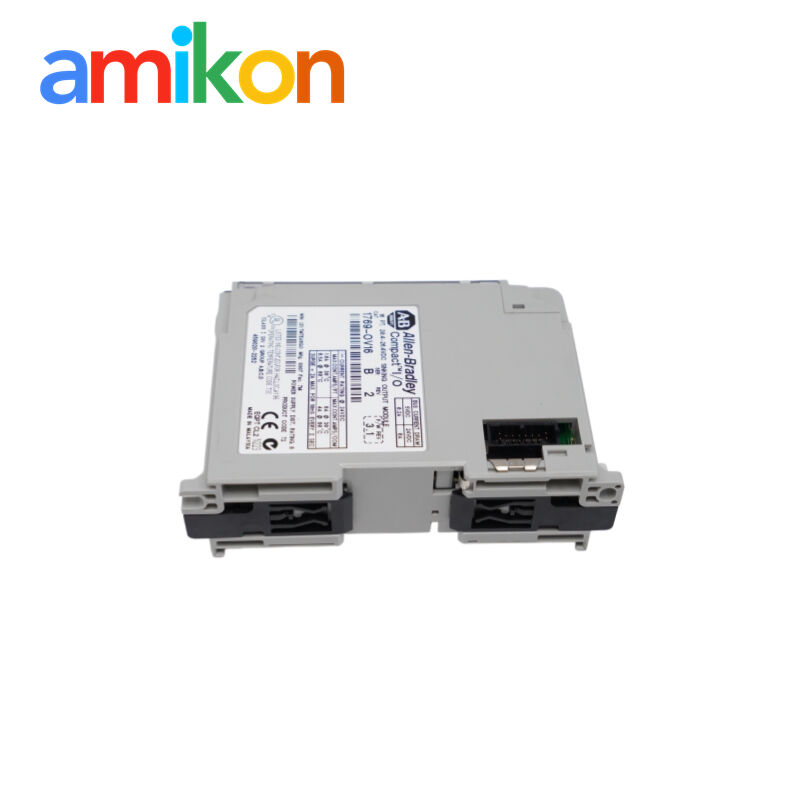

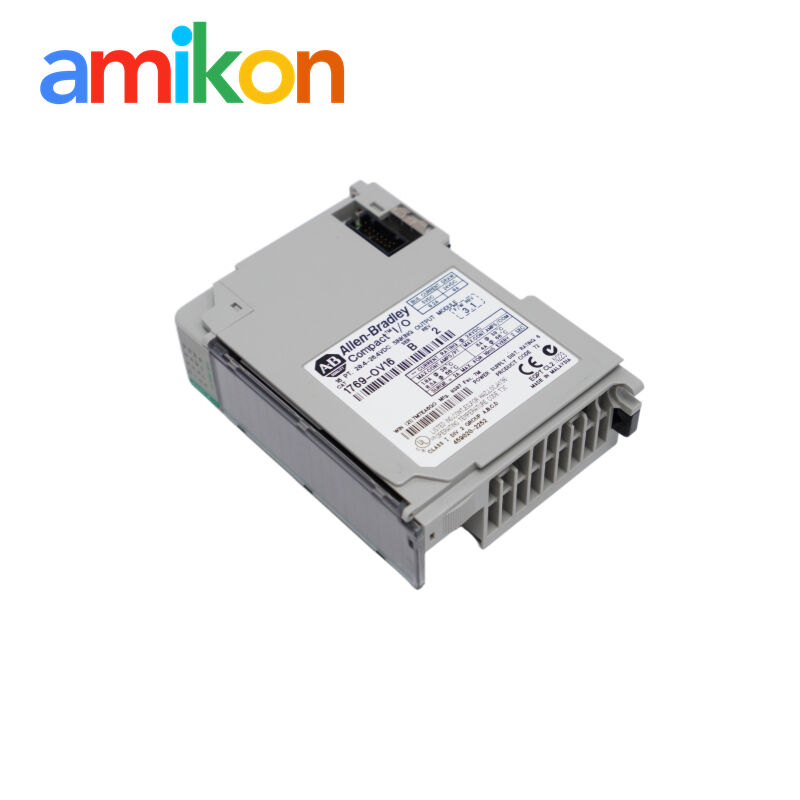

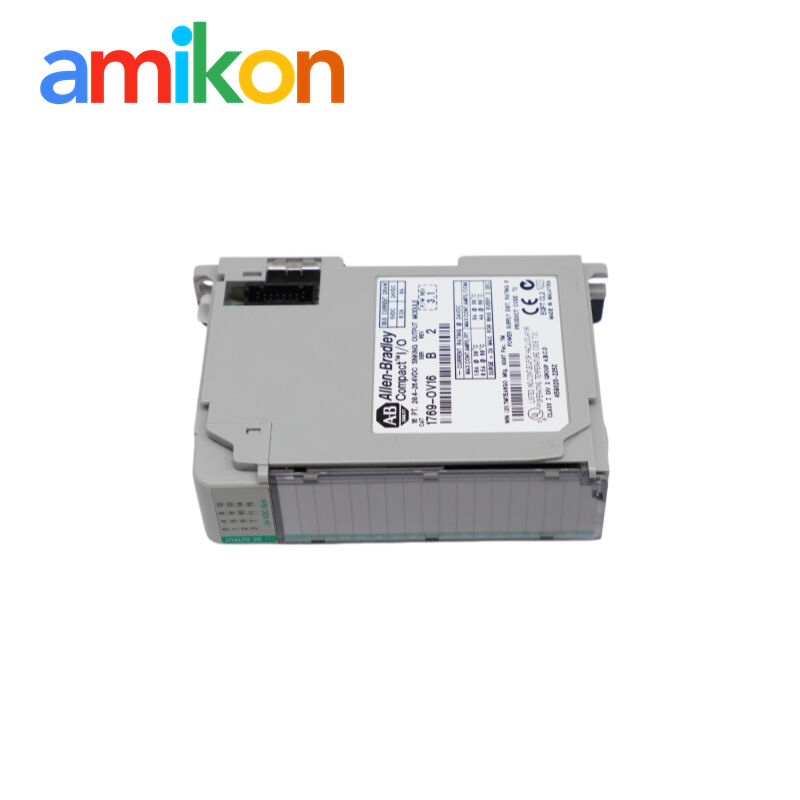

Allen Bradley 1769-OV16 CompactLogix 16-Point 24V DC Sinking Output Module
Allen Bradley 1769-OV16 output module
CompactLogix 24V DC sinking module
16-point DC output module with warranty
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1769-OV16
Allen Bradley 1769-OV16 output module
,CompactLogix 24V DC sinking module
,16-point DC output module with warranty
Allen Bradley 1769-OV16 CompactLogix 16-Point 24V DC Sinking Output Module
16-point DC sinking output module for 1769 Compact I/O / CompactLogix. Built for documented maintenance, compatibility review and quotation planning.
Official-Manual Data Snapshot
| Outputs | 16 sinking outputs |
|---|---|
| Voltage category | 24V DC |
| Module format | Single-slot Compact I/O |
| Mounting | DIN rail or panel through 1769 assembly |
| Field check | Verify common grouping and load polarity |
| Documentation reference | 1769-TD006 |
Values are catalog-specific planning data. Verify the latest official publication and the product nameplate before field work.
Industrial Purpose & Use Cases
1769-OV16 is applied in machine solenoids, interposing relays, indicators and other documented 24V DC loads. Typical projects include planned shutdown replacement, troubleshooting, capacity restoration and migration surveys where the installed catalog number must remain traceable.
Use documented status, alarms or control behavior to confirm normal operation.
Keep the original drawing, program and nameplate photographs with the spare record.
Configuration, Programming & Commissioning
Map the module in the CompactLogix I/O tree, verify slot position and output tags, then test each channel with the machine isolated.
- Isolate energy and follow the site safety procedure.
- Record wiring, addressing, firmware and mechanical position before removal.
- Install only after catalog and system compatibility are confirmed.
- Restore a validated project or parameter set; test diagnostics and each affected function.
Lifecycle & Migration Guidance
Legacy 1769 Compact I/O installations; evaluate 5069 Compact 5000 I/O only as an engineered migration.
Replacement rule: retain 1769-OV16 for like-for-like maintenance when project documentation requires it. For modernization, compare supported platform, electrical interface, software conversion, panel cutout or chassis requirements and validation effort.
Planning terms: 1769-OV16 replacement · 1769 Compact I/O / CompactLogix spare · legacy automation migration · industrial maintenance stock
Model-Specific Frequently Asked Questions (FAQ)
How do I verify the exact catalog number?
Answer: Match the complete nameplate 1769-OV16, series/revision and 1769 Compact I/O / CompactLogix documentation; do not order from appearance alone.
Is it a direct replacement for a visually similar unit?
Answer: Not automatically. Confirm electrical ratings, slot or mounting format, firmware/software and field wiring before substitution.
Where is 1769-OV16 normally used?
Answer: Machine solenoids, interposing relays, indicators and other documented 24V DC loads.
What must be checked before installation?
Answer: Map the module in the CompactLogix I/O tree, verify slot position and output tags, then test each channel with the machine isolated.
Is the item currently available?
Answer: The listing is marked In Stock; request a written quantity and condition confirmation before payment.
What warranty is supplied?
Answer: Warranty scope and duration are stated in the formal quotation and depend on the supplied condition and channel.
When can it ship?
Answer: Standard dispatch is 2–3 work days after order and payment confirmation.
Related Models for Spare-Parts Planning
Selected by platform and maintenance relevance; confirm engineering compatibility before substitution.
| Recommended model | Recommended model |
|---|---|
| 1769-IA16 | 1769-IQ16 |
| 1769-OB16 | 1769-OB16P |
| 1769-OV16 | 1769-BOOLEAN |
| 1769-HSC | 1769-IF4 |
| 1769-OF4 | 1769-ECR |
| 1769-PA2 | 1769-PB4 |
| 1764-LSP | 1764-LRP |
| 1764-24BWA | 1756-L55M24 |
| 1756-L61 | 1756-L71 |
| 1756-EN2T | 1756-IB16 |
| 1756-OB16E | 1407-CGCM |
| 1606-XLE240EE | 1606-XLE120E |
| 1606-XLS240E | 2711PC-T10C4D1 |
| 2711-K3A5L1 | 2711P-T6M20D |
| 2711P-T10C4D8 | 2711P-RP8D |
Request Stock, Condition & Best Offer
amikon provides economical industrial spare-part sourcing, catalog-number verification and consolidated shipment support. Serious offers are reviewed promptly; typical offer response time is within 48 hours.
