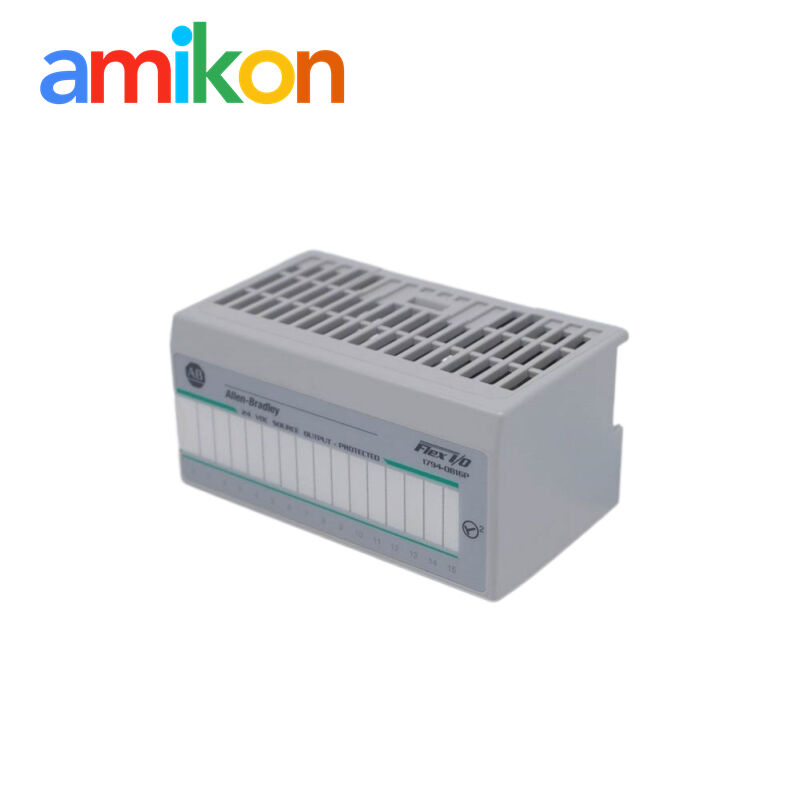

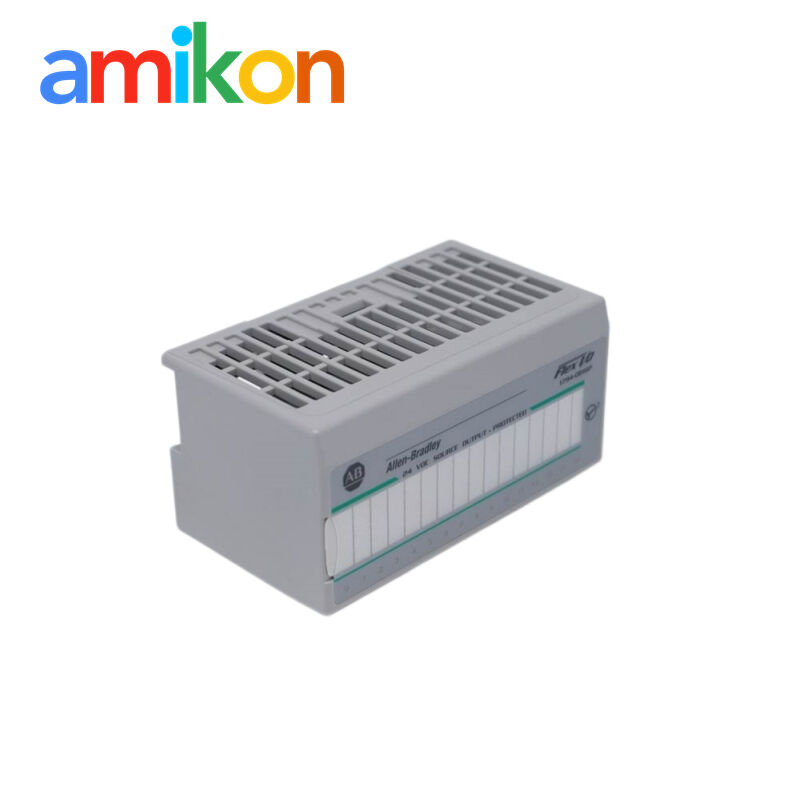

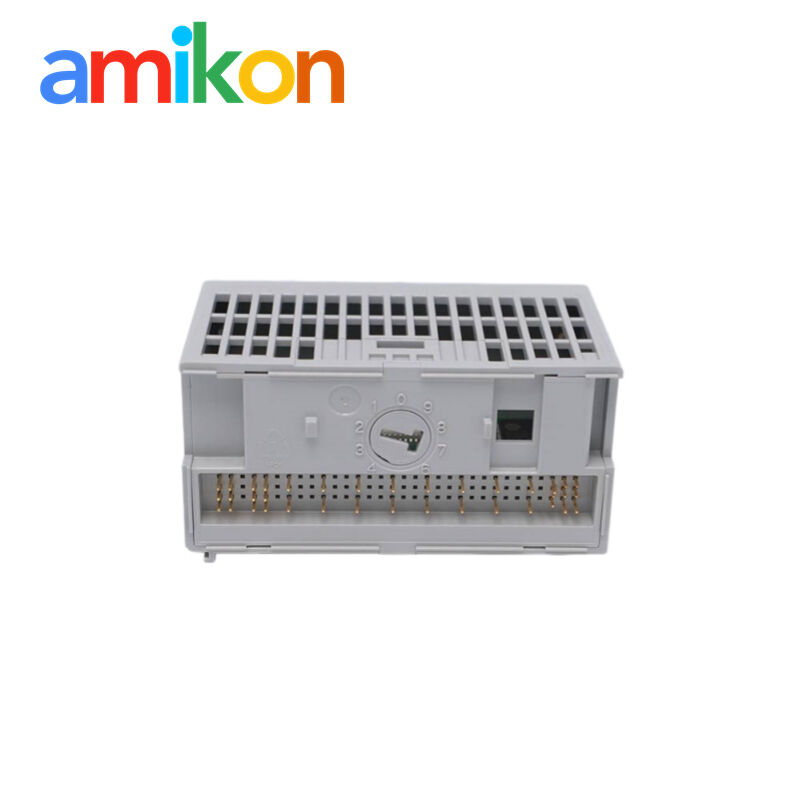

Allen Bradley 1794-OB16P FLEX I/O 16-Point Protected 24V DC Source Output Module
Allen Bradley 1794-OB16P FLEX I/O module
24V DC source output module
16-point protected output module
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1794-OB16P
Allen Bradley 1794-OB16P FLEX I/O module
,24V DC source output module
,16-point protected output module
Allen Bradley 1794-OB16P FLEX I/O 16-Point Protected 24V DC Source Output Module
Catalog-specific industrial automation spare for planned maintenance, fault recovery and installed-base support. Confirm the full label, series and approved documentation before replacement.
Technical Data Snapshot
| Outputs | 16 protected DC outputs |
| Output type | 24V DC sourcing |
| Platform | 1794 FLEX I/O |
| Configuration | Output data and fault mode per adapter/controller project |
| Installation | Compatible terminal base per publication |
Practical Support from amikon
We supply cost-effective automation spares, help identify hard-to-find catalog numbers and consolidate multiple items into one shipment. Every offer remains open to other buyers until a sales order is confirmed.
Configuration, Programming & Use
1794-OB16P is used within the FLEX I/O platform for flex i/o protected dc output module. Customers should archive the current program or parameters, photograph field wiring, verify power and communication requirements, and record the exact slot or mechanical position before removal.
After installation, restore only a validated project or parameter set. Check diagnostics, channel status, communications and the relevant machine safety procedure before returning the asset to production.
Typical applications
Packaging, material handling, water treatment, food processing, metals, power generation, oil and gas, and maintenance of legacy production lines.
Lifecycle & Migration Notes
Legacy status does not make visually similar modules interchangeable. Keep the exact catalog number for immediate maintenance. For modernization, evaluate the currently supported CompactLogix, Compact 5000 I/O, FLEX I/O or PowerFlex platform appropriate to the application, then validate electrical ratings, software, wiring conversion and safety requirements.
Frequently Asked Questions
How do I identify the exact model?
Match the complete catalog number 1794-OB16P, series/revision and the full nameplate.
Is it compatible with my system?
Confirm FLEX I/O, chassis or terminal-base requirements, firmware and project documentation before ordering.
Where is it typically applied?
Used for maintenance and modernization planning in documented industrial automation installations.
What should be checked before installation?
Record wiring, slot position and settings; isolate power, use ESD controls and follow 1794-IN094.
Is stock available?
Listed In Stock; request a written quantity confirmation before payment.
What warranty is supplied?
Warranty terms are confirmed in the quotation and depend on condition and supply channel.
How quickly can it ship?
Standard dispatch is 2-3 work days after order confirmation.
