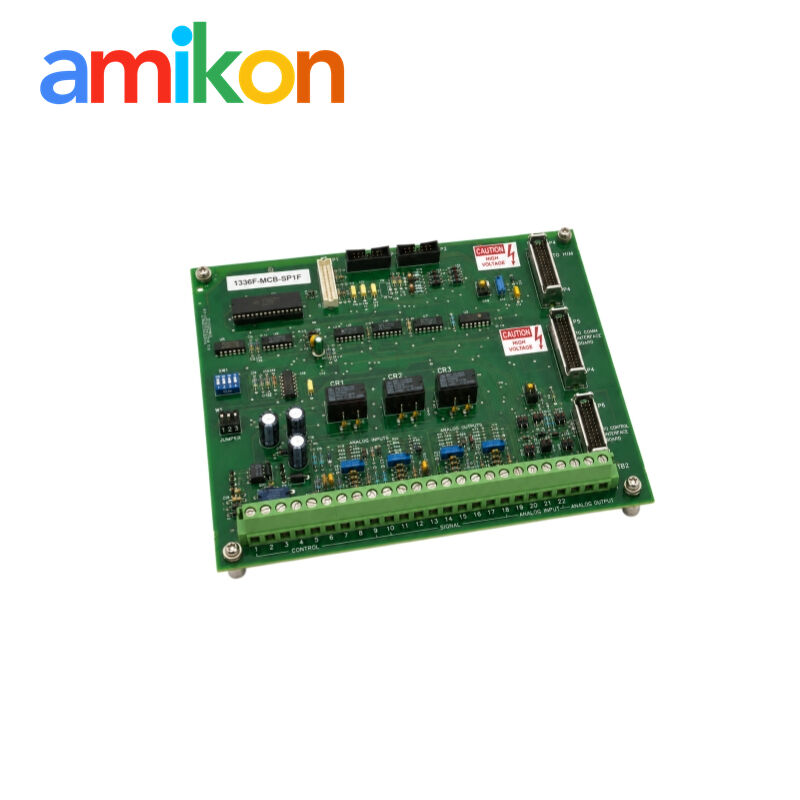

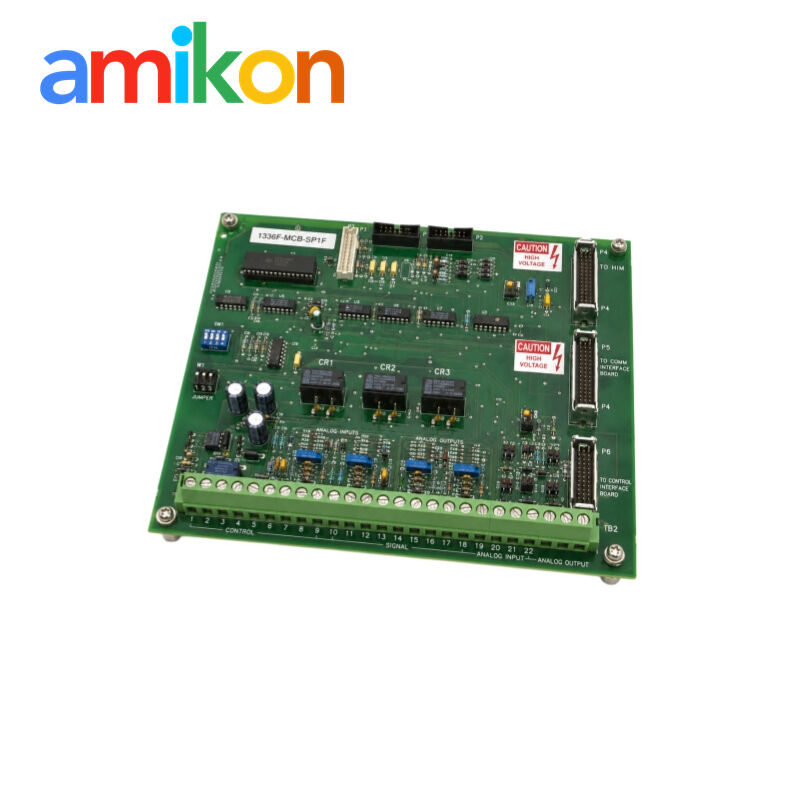

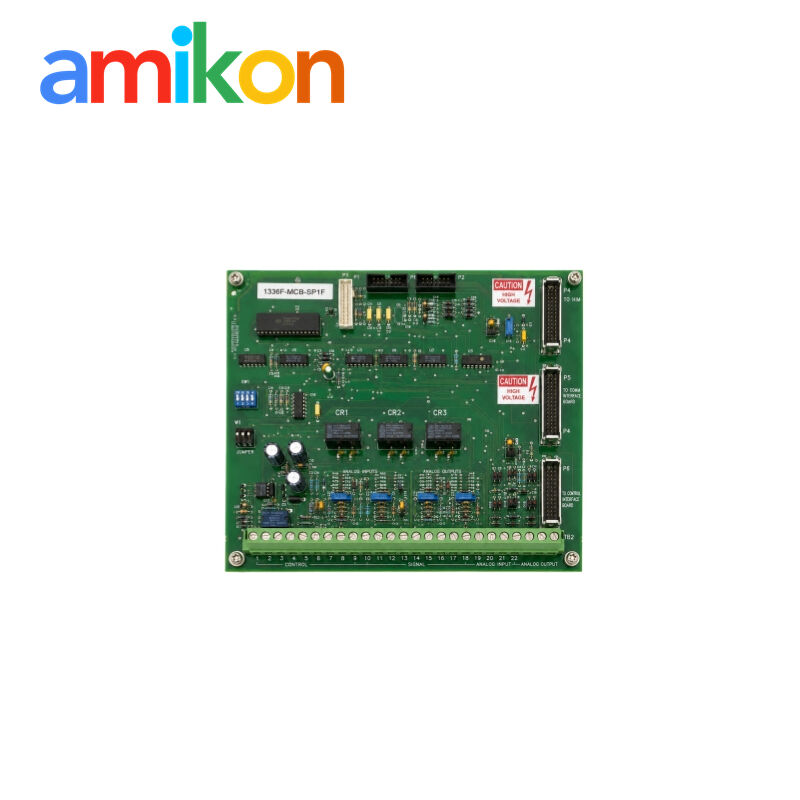

Allen Bradley 1336F-MCB-SP1F Replacement Main Control PCB for 1336 PLUS II AC Drives
Allen Bradley 1336F-MCB-SP1F control PCB
1336 PLUS II AC drive replacement board
Allen Bradley main control PCB with warranty
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1336F-MCB-SP1F
Allen Bradley 1336F-MCB-SP1F control PCB
,1336 PLUS II AC drive replacement board
,Allen Bradley main control PCB with warranty
Allen Bradley 1336F-MCB-SP1F Replacement Main Control PCB for 1336 PLUS II AC Drives
Catalog-specific industrial automation spare for planned maintenance, fault recovery and installed-base support. Confirm the full label, series and approved documentation before replacement.
Technical Data Snapshot
| Part type | Replacement main control PCB kit |
| Drive family | 1336 PLUS II |
| Catalog identity | 1336F-MCB-SP1F |
| Service rule | Do not substitute suffix by appearance |
| Post-installation | Reset defaults only when service procedure requires |
Configuration, Programming & Use
1336F-MCB-SP1F is used within the 1336 PLUS II platform for 1336 plus ii main control board kit. Customers should archive the current program or parameters, photograph field wiring, verify power and communication requirements, and record the exact slot or mechanical position before removal.
After installation, restore only a validated project or parameter set. Check diagnostics, channel status, communications and the relevant machine safety procedure before returning the asset to production.
Typical applications
Packaging, material handling, water treatment, food processing, metals, power generation, oil and gas, and maintenance of legacy production lines.
Practical Support from amikon
We supply cost-effective automation spares, help identify hard-to-find catalog numbers and consolidate multiple items into one shipment. Every offer remains open to other buyers until a sales order is confirmed.
Lifecycle & Migration Notes
Legacy status does not make visually similar modules interchangeable. Keep the exact catalog number for immediate maintenance. For modernization, evaluate the currently supported CompactLogix, Compact 5000 I/O, FLEX I/O or PowerFlex platform appropriate to the application, then validate electrical ratings, software, wiring conversion and safety requirements.
Frequently Asked Questions
A: Match the complete catalog number 1336F-MCB-SP1F, series/revision and the full nameplate.
A: Confirm 1336 PLUS II, chassis or terminal-base requirements, firmware and project documentation before ordering.
A: Used for maintenance and modernization planning in documented industrial automation installations.
A: Record wiring, slot position and settings; isolate power, use ESD controls and follow 1336F-TG001.
A: Listed In Stock; request a written quantity confirmation before payment.
A: Warranty terms are confirmed in the quotation and depend on condition and supply channel.
A: Standard dispatch is 2-3 work days after order confirmation.
