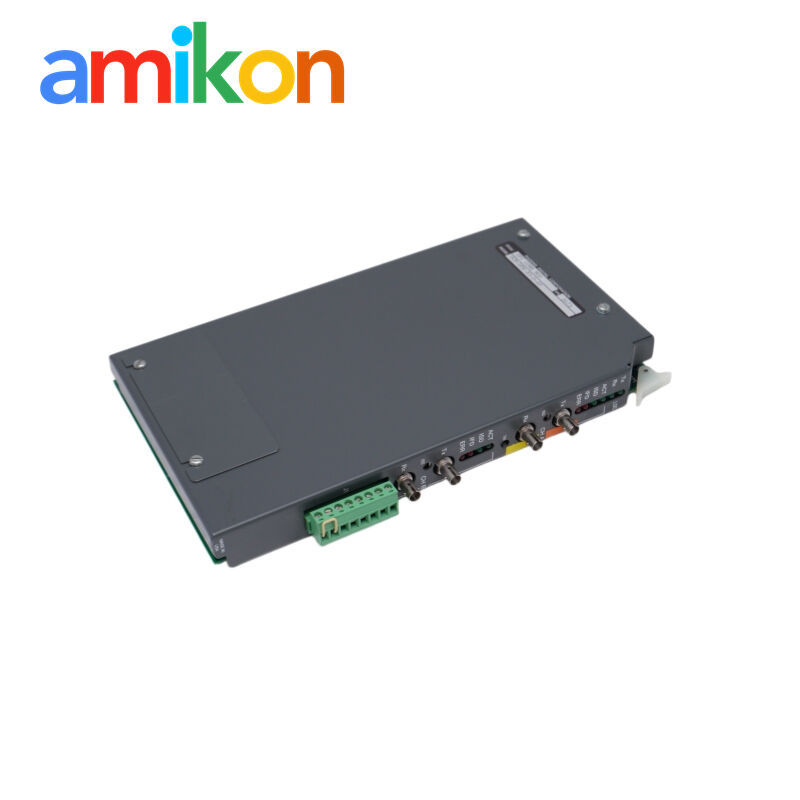

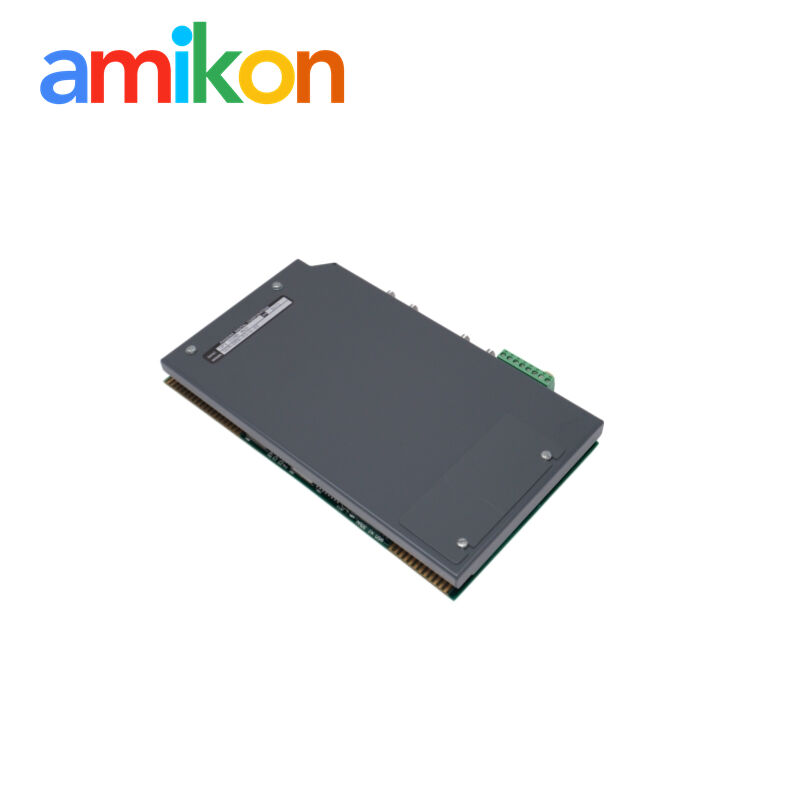

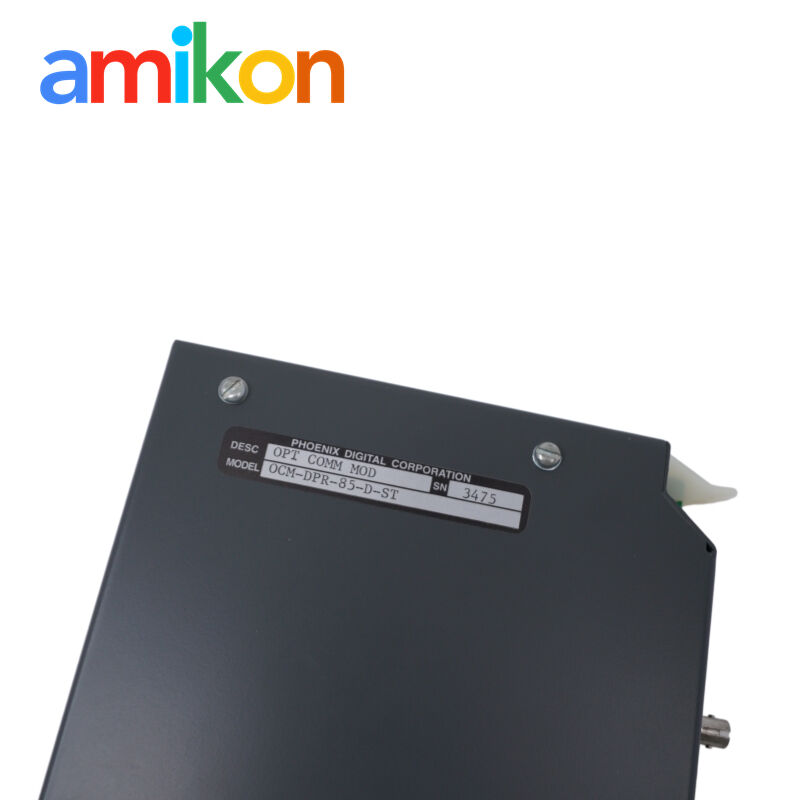

Phoenix Digital OCM-DPR-85-D-ST 850 nm ST Fiber Optic Communication Module for Legacy Control Networks
850 nm ST fiber optic module
Phoenix Digital communication module
Legacy control network fiber optic
Place of Origin:
USA
Brand Name:
Phoenix Digital
Model Number:
OCM-DPR-85-D-ST
850 nm ST fiber optic module
,Phoenix Digital communication module
,Legacy control network fiber optic
FIBER COMMUNICATION • LEGACY NETWORK SUPPORT
Phoenix Digital OCM-DPR-85-D-ST Fiber Optic Communication Module
An 850 nm-designated, ST-connector industrial fiber communication module for maintenance of compatible legacy control-network links. Confirm the complete catalog string, host equipment and optical-link design before ordering.
Official-Data-Oriented Product Snapshot
| Parameter | Ordering / verification value |
|---|---|
| Brand / Catalog number | Phoenix Digital / OCM-DPR-85-D-ST |
| Product family | OCM industrial fiber optic communication module |
| Optical designation | 850 nm (catalog designation; verify manual and link budget) |
| Connector style | ST fiber optic |
| Compatibility keys | Complete suffix, host chassis/interface, fiber type, mating connector and optical budget |
| Origin / Condition | USA / Brand new and original |
| Trade information | MOQ 1 Piece · USD 66 / Piece · T/T · In Stock · 2–3 work days |
Use the exact Phoenix Digital manual, module label and installed project documentation as final technical authority. Optical power, distance and electrical interface values are not guessed where the matching datasheet is unavailable.
How the Module Supports Industrial Networks
Fiber communication is used where electrical isolation, electromagnetic-noise immunity or longer cabinet-to-cabinet links are required. OCM-DPR-85-D-ST can support an installed legacy optical link when the existing network design specifies this exact module and optical interface.
- Maintain communication between distributed control cabinets.
- Restore a legacy optical channel in electrically noisy plant areas.
- Support process, utility and material-handling networks during planned maintenance.
- Hold a verified spare for installed-base continuity while migration is evaluated.
Configuration, Programming & Commissioning
| 1. Survey | Record both link-end module numbers, host interfaces, fiber type, connector condition and route. |
| 2. Match | Verify OCM-DPR-85-D-ST, 850 nm designation, ST connector style and approved host compatibility. |
| 3. Isolate | Follow site isolation procedures and protect fiber ends from dust, bending and damage. |
| 4. Install | Clean and connect ST terminations, preserve transmit/receive routing, grounding and host settings. |
| 5. Validate | Check link indicators, diagnostics, error counters and end-to-end communications before production. |
Lifecycle & Alternative Planning
This OCM item supports a legacy installed base. A replacement cannot be chosen only by wavelength or connector shape. Review protocol/interface behavior, transmitter and receiver compatibility, optical budget, fiber type, distance, connector loss, host chassis support and network diagnostics. If the original module is unavailable, plan a paired-link or network migration with a qualified controls engineer rather than assuming a single-end substitute.
OCM-DPR-85-D-ST FAQ
- How should the model be identified?
- Match the complete OCM-DPR-85-D-ST string, including optical and connector suffixes.
- Is any 850 nm ST device compatible?
- No. Host interface, protocol, transmit/receive pairing and optical budget must all match.
- What are common applications?
- Legacy industrial optical links between cabinets in process, utility and factory automation systems.
- What matters during installation?
- Fiber cleanliness, bend radius, Tx/Rx orientation, grounding, host settings and end-to-end diagnostics.
- Stock and warranty?
- Listed in stock; contact Miya to confirm quantity and item-specific warranty before purchase.
- How is it shipped?
- Normal dispatch is 2–3 work days with protective packaging appropriate for an industrial electronic module.
