MEDAR 917-0042 Weld Control Card Processor Module for Resistance Welding Systems
MEDAR 917-0042 Weld Control Card Processor Module for Resistance Welding Systems

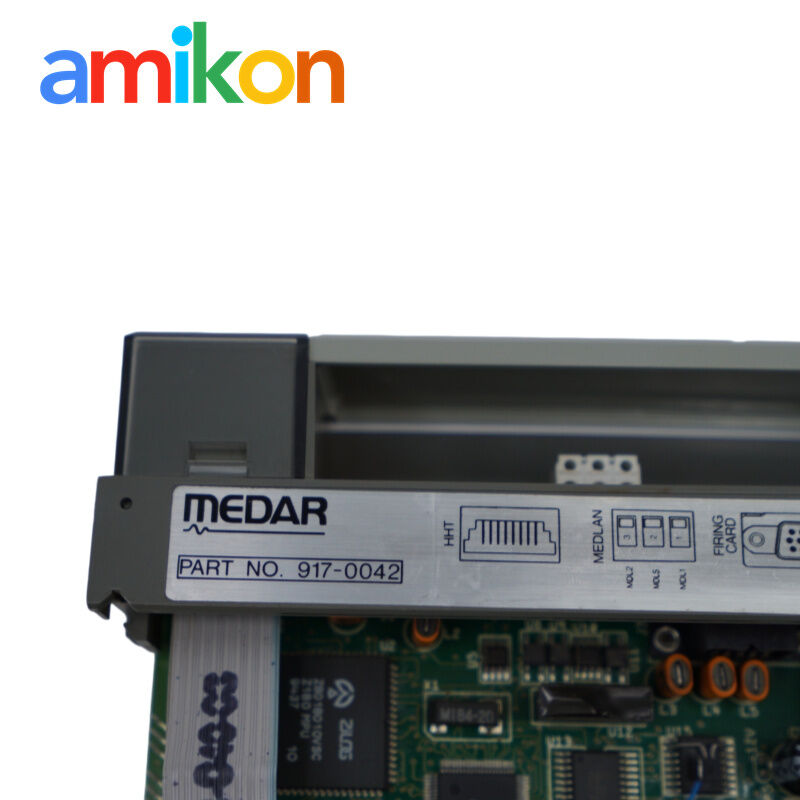

MEDAR 917-0042 weld control card
resistance welding processor module
Bently Nevada welding system module
Place of Origin:
USA
Brand Name:
MEDAR
Model Number:
917-0042
Contact Us
Request A Quote
Product Details
Product Type:
Weld Control Card Processor Module
Part Number:
917-0042
System Family:
MEDAR Resistance Welding Control
Primary Application:
Spot Welding Control
Installation Check:
Match Host Control And Board Revision
Lifecycle Status:
Discontinued Legacy
Shipping:
TNT, DHL, FedEx, EMS, UPS
Highlight:
MEDAR 917-0042 weld control card
,resistance welding processor module
,Bently Nevada welding system module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
In Stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
LEGACY RESISTANCE-WELDING CONTROL • VERIFIED PART ID
MEDAR 917-0042 Weld Control Card Processor Module
A discontinued processor/control card used in legacy MEDAR resistance-welding control installations. For a reliable match, identify the module by the complete 917-0042 label and compare the host control, connectors, board revision and stored weld schedules.
Processor moduleResistance weldingLegacy / discontinuedIn-stock enquiry
01 Part Identity — What Is Confirmed
| Identification point | Product-specific / manufacturer-series information |
|---|---|
| Brand | MEDAR (Welding Technology Corp.) |
| Part number | 917-0042 |
| Product type | Weld control card / processor module |
| Lifecycle | Discontinued legacy component |
| System role | Processes welding-control logic within a compatible MEDAR control architecture; final role depends on host system and board revision. |
| Series context | MEDAR resistance-welding controls cover integrated processor-board architectures for machine and robotic welding systems. |
| Typical supported processes | Spot, projection, seam, butt, flash and upset resistance welding; the manufacturer catalog also identifies current-control applications such as brazing, annealing, forging and tempering. |
| Ordering check | Use the exact part number on the serial/board label; WTC documentation notes that part numbers identify item-specific bills of material. |
| Condition / packing | Brand new and original; anti-static protection and rigid export packaging. |
917-0042-specific identity and lifecycle are separated from MedWeld series-level application information. Electrical ratings must be taken from the installed control and module label, not inferred from another processor card.
02 System Architecture — Manual-Derived Diagram
Machine / Robot Controller
schedule selection & user logic
schedule selection & user logic
→
MEDAR 917-0042
weld-control processing
weld-control processing
→
Power Stage & Weld Tool
SCR/inverter, transformer, electrodes
SCR/inverter, transformer, electrodes
Official MEDAR literature describes integrated processor boards installed in machine or robot controller hardware, reducing duplicate I/O modules, multi-conductor cables, terminal points and rack assemblies. Remote-enclosure layouts separate high voltage power equipment from the controller and interconnect them through firing cables and selected I/O.
03 Product Use, Setup & Commissioning
What it doesCoordinates control logic and weld scheduling within the compatible legacy MEDAR system. It is a processor module, not a standalone welding power controller.
Configuration & programmingBefore removal, back up weld schedules where the host system allows it; record software/program references, DIP or jumper positions, connector IDs and network address.
How it is usedInstall only in the verified compatible controller/rack, restore documented settings, reconnect one labeled cable at a time and validate I/O, current feedback and safety interlocks.
1 — Capture the installed configuration.
Photograph both sides, label every plug, save schedules and record the old module revision.
Photograph both sides, label every plug, save schedules and record the old module revision.
2 — Confirm the replacement.
Match 917-0042, connector layout, host control family, software and options. A similar 917-series number is not automatic compatibility.
Match 917-0042, connector layout, host control family, software and options. A similar 917-series number is not automatic compatibility.
3 — Install under qualified supervision.
Lock out power, discharge stored energy, use ESD controls and inspect the rack/edge connector before insertion.
Lock out power, discharge stored energy, use ESD controls and inspect the rack/edge connector before insertion.
4 — Controlled restart.
Verify safety chain and I/O first, then test low-risk schedules before returning the cell to production.
Verify safety chain and I/O first, then test low-risk schedules before returning the cell to production.
04 Application Fit — Where This Module Is Found
Automotive body linesSpot-welding stations, robotic weld cells and legacy production fixtures.
Fabrication systemsProjection, seam, butt and flash welding equipment where repeatable current control is required.
Process-heating dutiesSelected brazing, annealing, forging or tempering equipment built around compatible MEDAR control hardware.
Use the module as a like-for-like maintenance spare only after confirming the host control. If documentation is missing, send clear photos of the board label, rack, connectors and control nameplate for cross-reference review.
05 Lifecycle & Replacement Planning
| Candidate / route | How to evaluate it |
|---|---|
| MEDAR 917-0042 | Preferred like-for-like route when label, revision, connectors and host controller all match. |
| MEDAR 917-0043 | Known as a remote interface module; not a stated drop-in replacement. Use only after system engineering review. |
| MEDAR 917-0050 | Later processor-module reference associated with an SLC 500 installation; requires full rack, software and I/O compatibility review. |
| MEDAR 830-0147 | MedWeld 3005 processor-board reference in the official catalog; migration candidate, not a direct replacement claim. |
| MedWeld 2200 | Compact current WTC control family; consider for an engineered retrofit where a full control update is practical. |
| MedWeld 4000 | Flexible-format AC control family; evaluate supply, power stage, schedules, I/O and safety architecture. |
| WT6000 | Modern WTC platform with flexible programming and diagnostics; a redesign path rather than board substitution. |
| Repair / tested exchange | Often the lowest-risk lifecycle route when the original machine validation must be preserved. |
06 Field FAQ — Before You Order
Q: How do I identify the correct model?A: Match the full 917-0042 label, then compare revision, connectors and host-control photos. Do not order from a partial “917” number.
Q: Is 917-0043 compatible?A: It is described as a remote interface module, so it should not be treated as a direct processor-card substitute.
Q: Which applications use 917-0042?A: Legacy resistance-welding systems, including spot and robotic welding cells, where the installed MEDAR architecture uses this processor.
Q: Does it require programming?A: The replacement must inherit or be configured with the correct schedules and host-system settings. Back up data before removal whenever possible.
Q: Can maintenance install it?A: Only qualified personnel should work inside welding controls; isolate all energy, apply ESD precautions and recommission the safety chain.
Q: Is it in stock?A: This listing is offered as In Stock. Ask Miya for current unit photos and exact revision confirmation before payment.
Q: What warranty is included?A: Typical supply warranty is 6–12 months depending on condition; the written quotation states the final coverage.
Q: How is it shipped?A: Anti-static bag, cushioned rigid carton and export packing, normally dispatched in 2–3 work days after order confirmation.
07 30 Additional Models Available for Sourcing
| Model / part number | Model / part number |
|---|---|
| VAVIH-SD | SVN-SP2-100SA1 |
| 6ES7332-5HF00-0AB0 | AC3226 |
| 03-20-01955 | A03B-0819-C104 AID16D |
| PFW720-04-27N | T01-J120 |
| BQA-48C17D2018L-P | B15013 D21 2-1/2 |
| K2DA3543/4200HP-15 | DSBC-100-165-PPVA-N3-225E |
| Impact67 | GJSN21.JF4S.B.P28Q1 |
| GS2-47P5 | E32M200MD-M |
| BT30-NBS6-105 | L11-J60-1753 |
| DG4V-3S-6C-M-FW-B5-60 | UMD-0050E-E3 |
| FCM-D5.00-1.50-11 | 0807-7210-04 |
| 984401 | 55415-7-C12A |
| 125768-01 | DE1000 |
| XPS-15 | HT11-021-G012 |
| A06B-6077-H111 | 621B01TNFH-S |
These models come from our working sourcing list and are shown for additional enquiries only; they are not replacements for MEDAR 917-0042.
08 AMIKON Service — Keep Production Moving
Industrial spare parts without unnecessary waiting. AMIKON works with more than 100 established manufacturers and supports customers across 167 countries and regions. Our focus is difficult-to-find and discontinued automation parts, practical identification support, consolidated global shipping and responsive after-sales service.
Global dispatchIn-stock orders are prepared with a target of shipment within 24 hours when order timing and logistics permit.
Legacy-part expertiseWe help maintenance teams identify unavailable components and extend the useful life of installed machinery.
Human supportClear photos, nameplates and system details are reviewed before quotation to reduce avoidable ordering risk.
Our promise: professional, timely service with the goal of removing unnecessary cost, pressure and production delay.
FAST PART-NUMBER CHECK
Request a Quote for MEDAR 917-0042
Send the board label, connector photos and host-control nameplate for a faster compatibility check.
Miya Zheng · Industrial Automation Parts
✉ Email sales@amikon.cn◉ WhatsApp +86 180 2077 6792MOQ 1 · USD 66 · T/T · In Stock · 2–3 work days · Brand new and original
