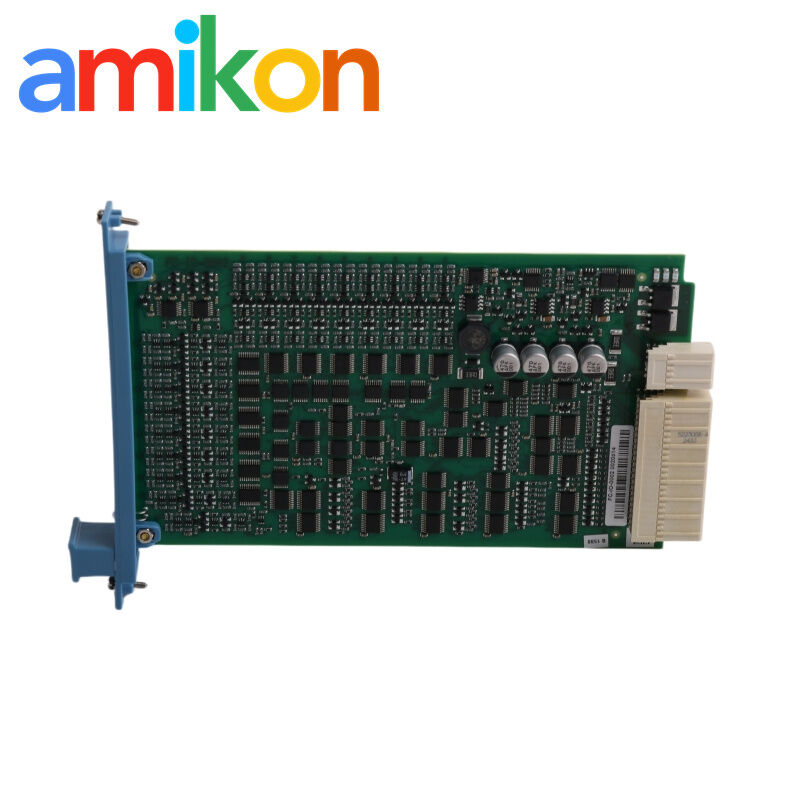

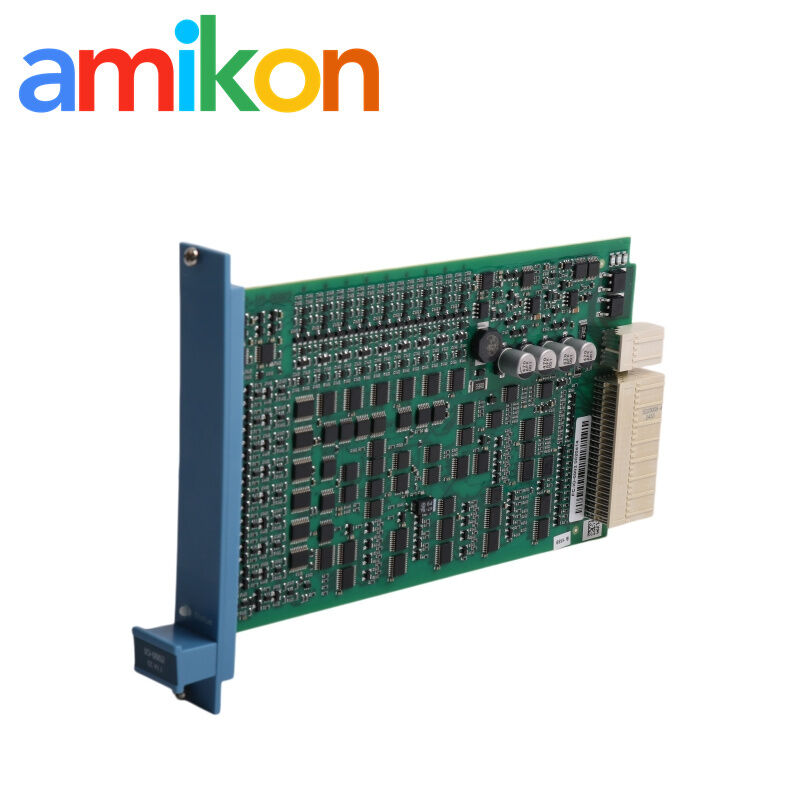

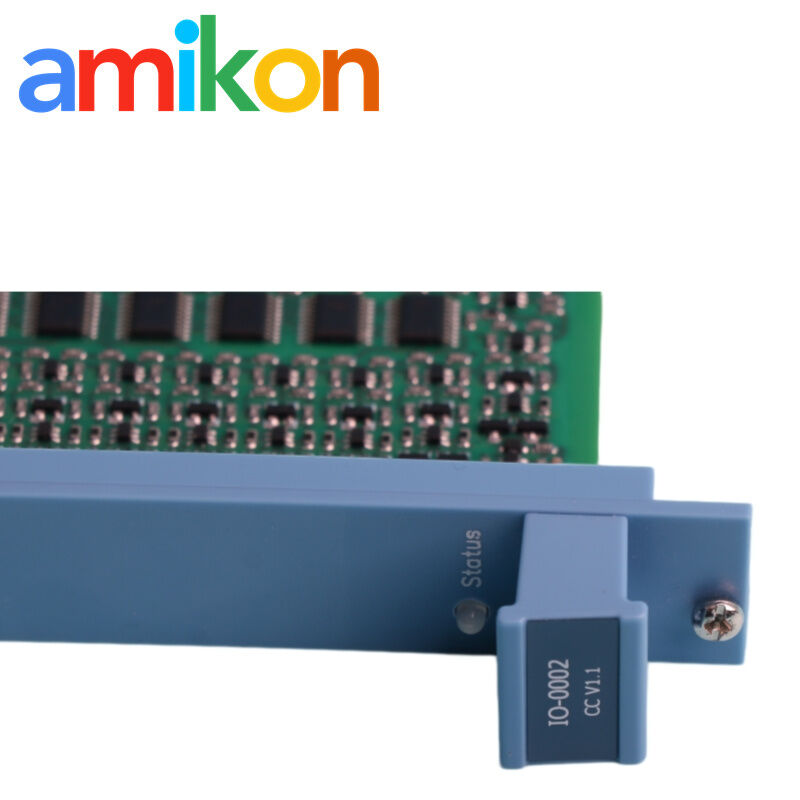

Honeywell FC-IO-0002 V1.1 Safety Manager A.R.T. I/O Extender Module for 5 VDC and Watchdog Distribution
Honeywell Safety Manager I/O Extender
5 VDC Watchdog Distribution Module
Honeywell Controller A.R.T. Module
Brand Name:
Honeywell
Certification:
TÜV
Model Number:
FC-IO-0002 V1.1
Honeywell Safety Manager I/O Extender
,5 VDC Watchdog Distribution Module
,Honeywell Controller A.R.T. Module
Honeywell FC-PDB-ARTF05 A.R.T. Fused 5 VDC Power Distribution Board with 18 Fused Outputs and Watchdog Signal Distribution
FC-PUIO01 51454294-176 Honeywell Universal Safety I/O Module for Safety Manager SC Systems
The infrastructure behind the I/O rack
FC-IO-0002 belongs to the Honeywell Safety Manager Advanced Redundancy Technique (A.R.T.) hardware family. Installed inside the I/O chassis, it distributes the internal 5 VDC supply and watchdog signals required by the connected safety I/O boards.
It does not measure process signals, add field channels or perform protocol conversion. This distinction matters when assessing spares: a signal module, fieldbus interface or general-purpose I/O expansion module cannot be assumed to replace it.
Defined electrical paths, clear chassis purpose
Two 5 VDC inputs, diode ORed
100 mA plus connected I/O and watchdog load
2 inputs; 18 outputs
Two groups, each above 1.25 A
Electrical and mechanical data
| Manufacturer / catalog number | Honeywell / FC-IO-0002 |
|---|---|
| Product family | Safety Manager A.R.T. |
| Module format | 4 TE, 3 HE (4 HP, 3U) |
| Watchdog inputs | 2; 10 mA maximum for WD1in + WD2in |
| Watchdog outputs | 18; 25 mA maximum per output |
| Power inputs | 2 × 5 VDC, diode ORed |
| Input requirement | 100 mA + 5 V load and watchdog load of connected I/O boards |
| Power outputs | 2 groups; more than 1.25 A per group |
| Output voltage drop | 0.2 V to 0.8 V relative to highest Vin |
| Coating / certification reference | FC conformal-coated version; listed in TÜV Safety Manager revision release documentation |
One extender position, two chassis architectures
FC-IOCHAS-0002S
Up to 18 non-redundant I/O modules. Two FC-IO-0002 extenders occupy slots 20 and 21.
FC-IOCHAS-0002R
Up to nine redundant I/O pairs. Two FC-IO-0002 extenders occupy slots 20 and 21.
Associated architecture: FS-IOB-0002S / FS-IOB-0002R backplanes; FS-IOBUS-HB2S / FS-IOBUS-HB2R horizontal I/O bus backplanes; FC-IOBUS-HB2A transfer board; FC-PDB-ARTF05 fused 5 VDC and watchdog distribution board.
Safety Manager installations include safety instrumented functions such as emergency shutdown and fire-and-gas protection in LNG, refining, petrochemical and other process facilities. FC-IO-0002 supports the chassis infrastructure; installed I/O boards provide the field channels.
No public part-level successor identified
Honeywell’s current Safety Manager page and R162 manual still document the platform, while the TÜV revision list marks FC-IO-0002 as valid. No public Honeywell notice reviewed states a part-level EOL date or drop-in successor.
Before replacement: verify the revision, FC-IOCHAS-0002S/R chassis, slots 20/21, backplane, bus board, 5 VDC/watchdog load and Safety Manager release. Do not assume interchangeability.
Official technical basis
Purchase and engineering questions
What does FC-IO-0002 do?
It distributes the internal 5 VDC supply and watchdog paths used by I/O boards in a Safety Manager A.R.T. chassis.
Does it provide analog or digital field channels?
No. It is an extender and distribution module, not an AI, AO, DI or DO signal module.
Which chassis use it?
Honeywell lists it in FC-IOCHAS-0002S and FC-IOCHAS-0002R, with two modules in slots 20 and 21.
Is it discontinued, and is there a direct replacement?
No public Honeywell part-level discontinuation date or designated drop-in successor was identified. Confirm orderability and replacement engineering with Honeywell for the exact revision.
What should be supplied with an RFQ?
Provide the full catalog number, visible revision, chassis model, Safety Manager release, quantity and a clear nameplate photograph.
