Allen Bradley 80190-640-03-R Signal Conditioning Board for PowerFlex 7000 Medium-Voltage AC Drive Voltage-Sensing Signal Processing
PowerFlex 7000 signal conditioning board
Voltage-sensing and drive control integration
Fast response for price and availability
Place of Origin:
Official documentation not confirmed
Brand Name:
Allen Bradley
Model Number:
80190-640-03-R
PowerFlex 7000 signal conditioning board
,Voltage-sensing and drive control integration
,Fast response for price and availability

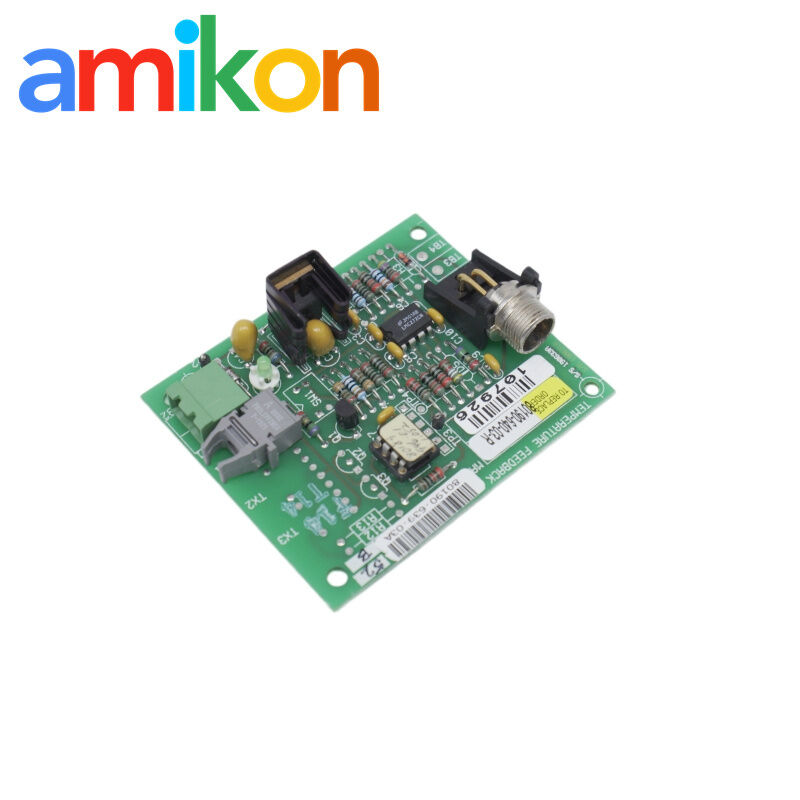

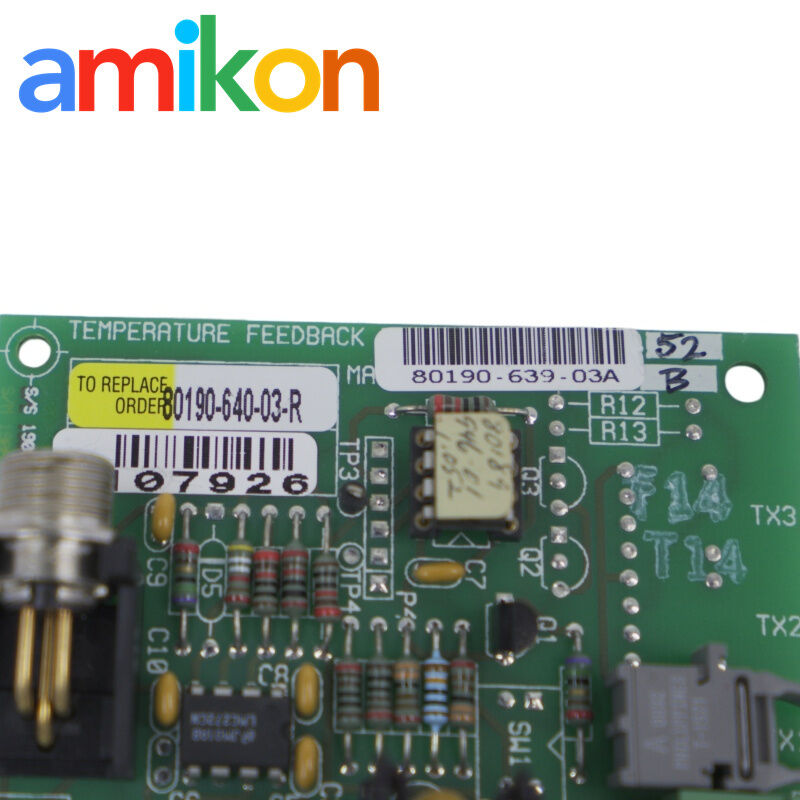

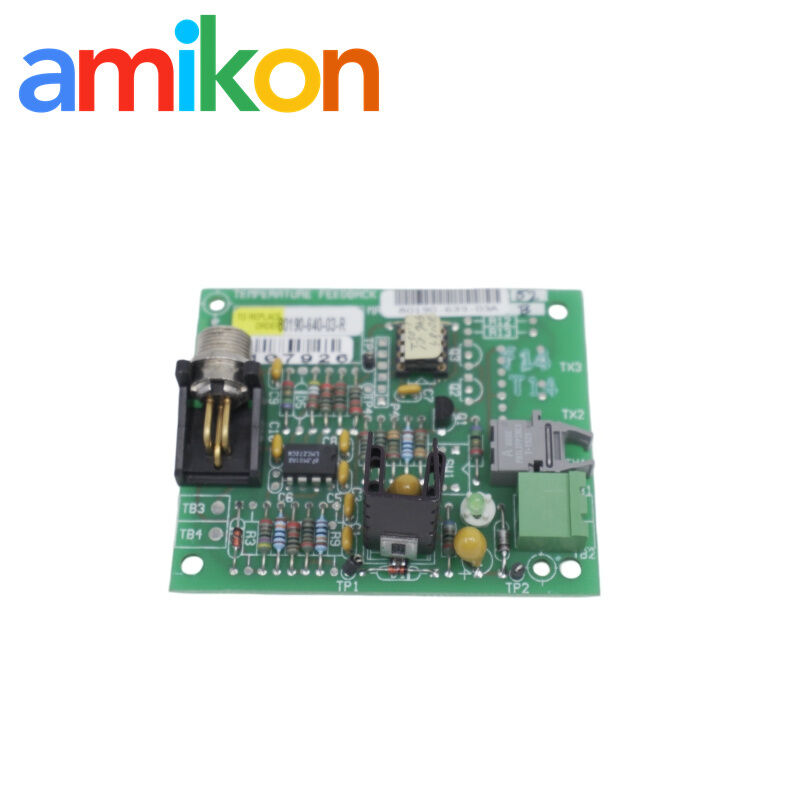

A drive-control circuit board positioned in the PowerFlex 7000 voltage-sensing and control path, supporting conditioned signal delivery to the drive control logic.
The 80190-640-03-R is used within the PowerFlex 7000 medium-voltage AC drive control platform. It connects the voltage-sensing path with the drive control logic.
Voltage-sensing assemblies convert measured values into signals suitable for the control system.
Conditioned signals reach the SCBThe SCB passes conditioned sensing signals to the drive control logic.
Configuration follows the installed driveMatch the exact model and hardware revision when ordering.
Each documented voltage-sensing board provides six independent channels.
Two assemblies can deliver up to twelve voltage signals to the SCB.
Conditioned sensing information is made available to the PowerFlex 7000 control logic.
Use the exact model and hardware revision for replacement planning.
| Manufacturer | Allen Bradley |
|---|---|
| Exact model | 80190-640-03-R |
| Product type | Signal Conditioning Board / drive control circuit board |
| Product family | PowerFlex 7000 medium-voltage AC drives |
| Primary function | Processes conditioned voltage-sensing signals for the drive control logic |
| Installation context | PowerFlex 7000 drive control section |
| Documented sensing channels | Six per voltage-sensing board; up to twelve through a documented master/slave arrangement |
| Service use | Drive maintenance, repair and installed-board replacement |
- PowerFlex 7000 medium-voltage AC drive maintenance
- Industrial motor-drive control and voltage-feedback processing
- Replacement of an installed 80190-640-03-R board
- Installed-base support in process plants, utilities and heavy industry
Use the exact board model and revision as the primary ordering reference.
Related PowerFlex 7000 system components; these are not replacements for 80190-640-03-R.
It receives and routes conditioned voltage-sensing information for use by the PowerFlex 7000 drive control logic.
The board is associated with the PowerFlex 7000 medium-voltage AC drive control platform.
The exact model is the starting point. Checking the installed hardware revision helps ensure that the requested board matches the maintenance requirement.
Send model 80190-640-03-R, the required quantity and delivery destination. Our sales team will respond with price, availability and lead time.
Separate products available for inquiry; not replacements for 80190-640-03-R.
Discuss price, availability and delivery
Send the exact model and required quantity. We will respond with current commercial information for your project.
