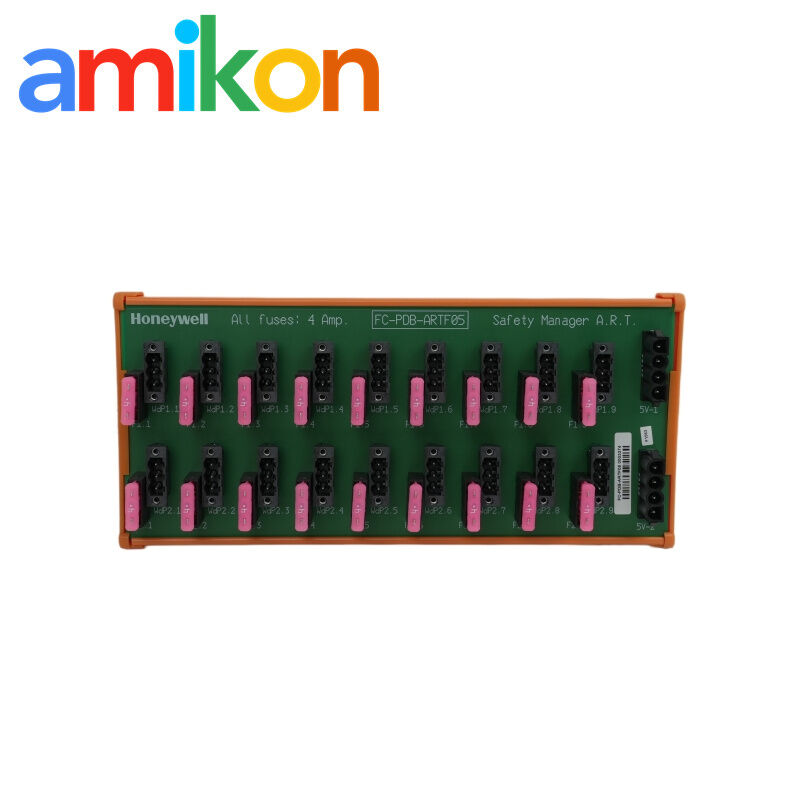

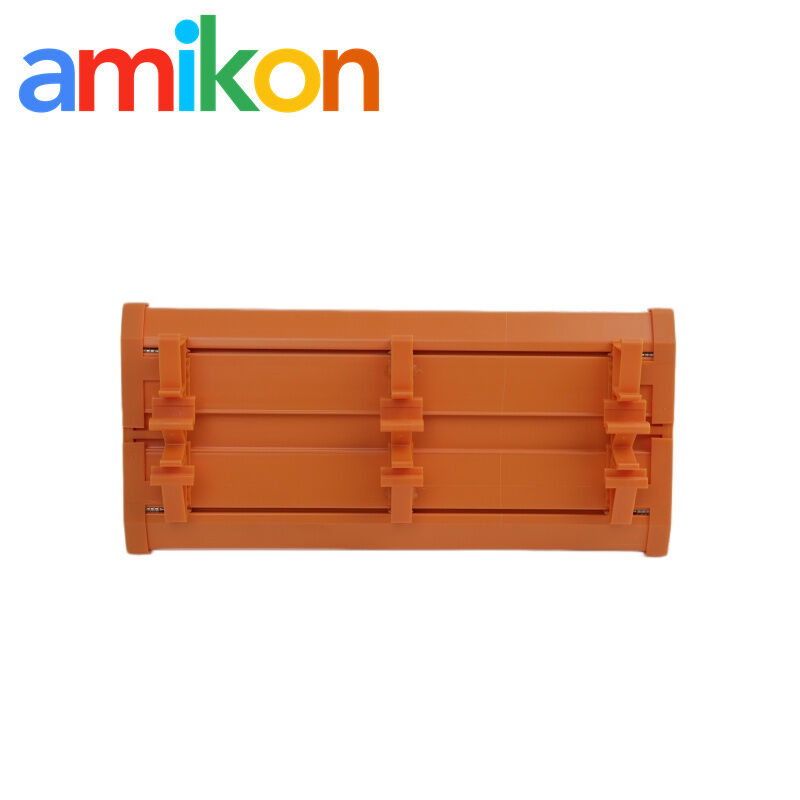

Honeywell FC-PDB-ARTF05 A.R.T. Fused 5 VDC Power Distribution Board with 18 Fused Outputs and Watchdog Signal Distribution
2 × 16 A 5 VDC controller paths
18 fused watchdog/power outputs
Safety Manager A.R.T. cabinet integration
Brand Name:
Honeywell
Certification:
CE; UL; TÜV; CSA
Model Number:
FC-PDB-ARTF05
2 × 16 A 5 VDC controller paths
,18 fused watchdog/power outputs
,Safety Manager A.R.T. cabinet integration
FC-PUIO01 51454294-176 Honeywell Universal Safety I/O Module for Safety Manager SC Systems
FC-PDIO01 51454927-176 Honeywell Safety Digital I/O Module for Safety Manager SC Systems
SAFETY MANAGER A.R.T. POWER DISTRIBUTION
Two protected 5 VDC and watchdog paths for A.R.T. I/O racks
PDB-ARTF05 distributes the controller-cabinet watchdog signals and fused power within the Honeywell Safety Manager A.R.T. I/O architecture.

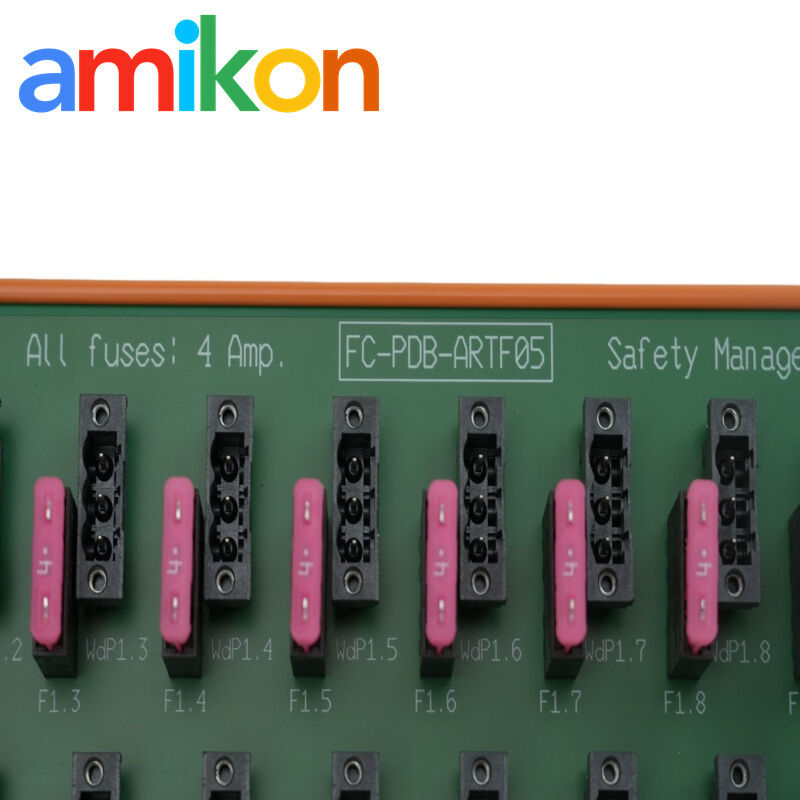

System role: Power and watchdog distribution — not an I/O processing module. Each Fx.y fuse transfers its incoming 5 V path from CPx to the corresponding WdPx.y connector.
| VIEW OFFICIAL TECHNICAL DATA | REQUEST A QUOTE |
Technical Data
| Parameter | Official value |
|---|---|
| 5V-1 / 5V-2 | Maximum 16 A per path |
| Fuse | 4 A, blade 5 × 19 mm, 32 VDC |
| Specified fuse | Littelfuse 0287004.PXS |
| Maximum output current per fuse | 2.8 A |
| 5V-x connector | 4-position action-pin header |
| WdPx.y connector | 3-pole pin header |
| Module dimensions | 234 × 109 × 68 mm (L × W × H) |
| Used rail length | 235 mm |
| Approvals listed by Honeywell | CE; UL; TÜV; CSA |
Connection & Installation
Controller chassis
2 × PDC-CPX05
PDB-ARTF05 / A.R.T. racks
Extension I/O cabinet: Honeywell specifies two PDC-IOX05-1 cables for a PDB-ARTF05 installed in the extension cabinet.
Each A.R.T. I/O rack: One PDC-ART05 cable pair connects WdP1.x / WdP2.x on the board to WdP1 / WdP2 on the rack.
| Connector | Pin allocation |
|---|---|
| 5V-1 / 5V-2 | 1 Ground · 2 WD of CP1/CP2 · 3 Ground · 4 5 V of CP1/CP2 |
| WdP1.x / WdP2.x | 3 WD of CP1/CP2 · 2 Ground · 1 5 V of CP1/CP2 |
Availability & Replacement Check
| Amikon supply status | Active RFQ — contact us for current stock, condition and lead time |
| Honeywell documentation | PDB-ARTF05 remains documented in the official Safety Manager Hardware Reference, EP-SM.MAN.6284, Release 162 |
| Discontinuation / last order | No official Honeywell discontinuation, last-order or last-shipment notice was identified in the reviewed documents |
| Official replacement | No Honeywell-designated successor was identified |
Before ordering: send the board marking, cabinet position, required quantity and existing PDC cable numbers so the offered unit can be checked against the installed A.R.T. configuration.
Related Hardware
| Part | Documented relationship |
|---|---|
| PDC-CPX05 | Local controller-chassis cable pair |
| PDC-IOX05-1 | Extension I/O-cabinet cable pair |
| PDC-ART05 | Cable pair from PDB-ARTF05 to each A.R.T. I/O rack |
| PDB-CPX05 | Shown in Honeywell's controller-plus-extension-cabinet UL layout |
These are connected parts, not official replacement models.
Documents
Safety Manager Release 162 - Hardware Reference
Honeywell document EP-SM.MAN.6284
Section 19.1.2, pages 1136-1139: A.R.T. 5 V and watchdog distribution layouts.
Section 19.5, pages 1156-1159: PDB-ARTF05 function, wiring, pin allocation and technical data.
Product block datasheet version: 1.1.
Quick Answers
Is this an I/O processing module?
No. It distributes fused 5 VDC and watchdog signals to A.R.T. I/O racks.
Is a direct replacement confirmed?
No official drop-in successor has been confirmed.
Which cables should be checked?
PDC-CPX05, PDC-IOX05-1 and PDC-ART05, according to cabinet position.
What should an RFQ include?
Cabinet location, system release, cable numbers, quantity and product photos.
Before You Request a Quote
- Confirm the FC-PDB-ARTF05 marking and Safety Manager A.R.T. architecture.
- Identify controller-cabinet or extension I/O-cabinet installation.
- List the existing PDC cable part numbers and quantities.
- Check both 5 V/watchdog paths and mating connectors.
- Confirm 235 mm rail space and fuse requirements.
- Request Honeywell lifecycle confirmation for the specific system release.
