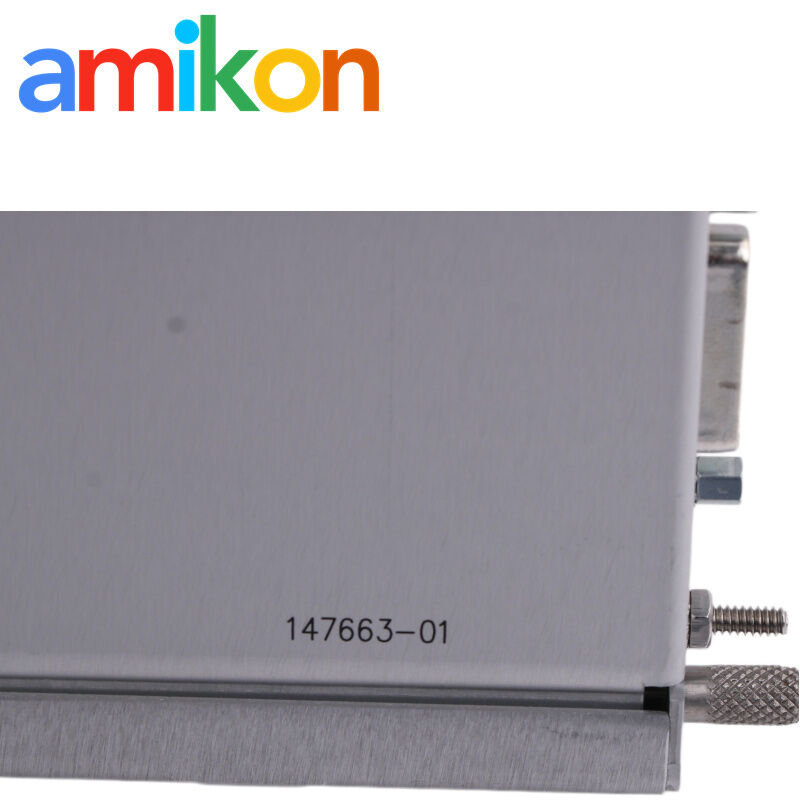

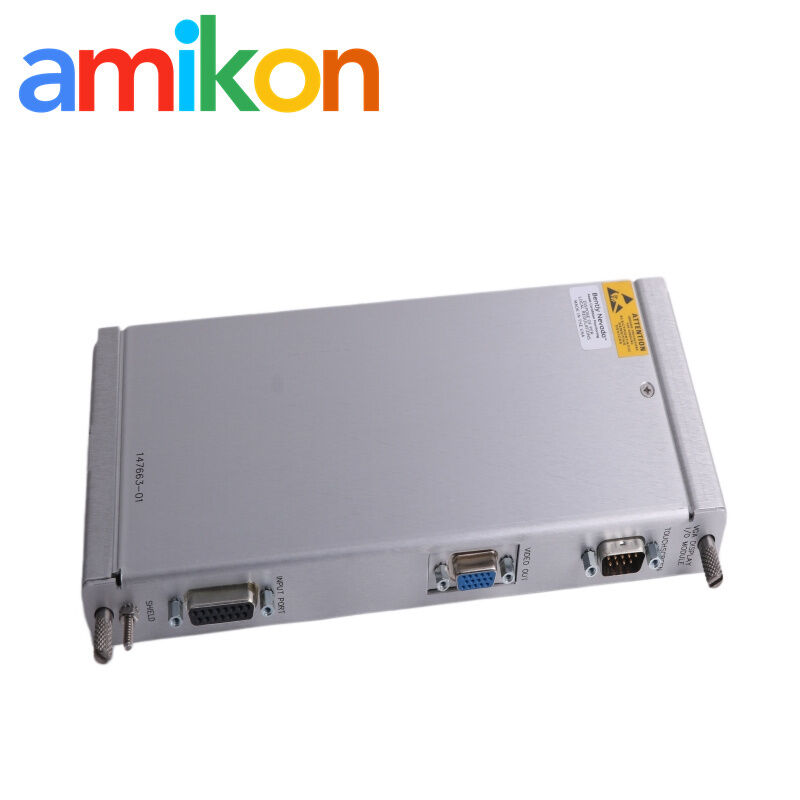

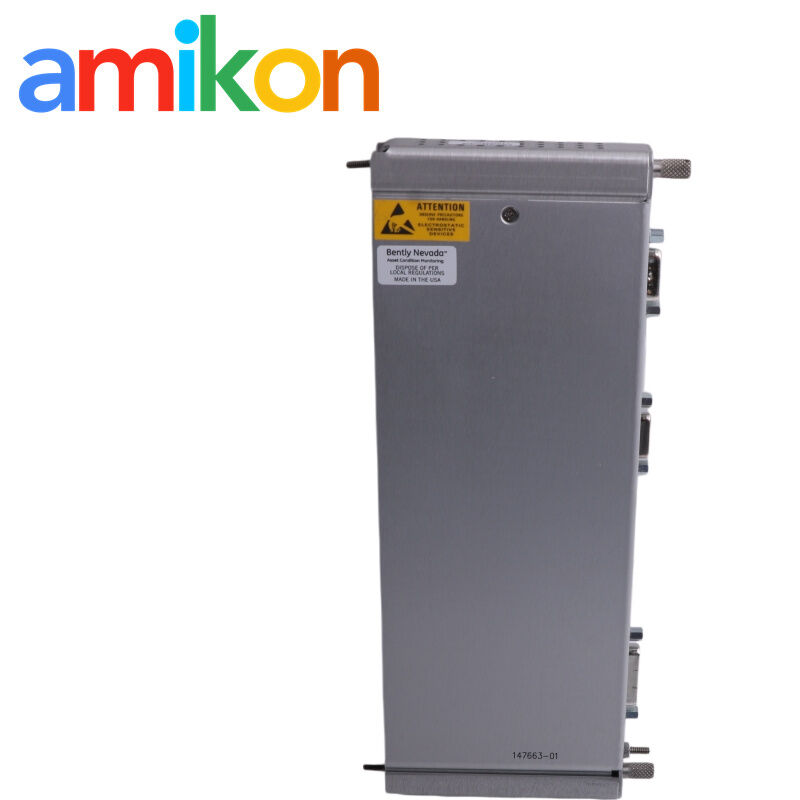

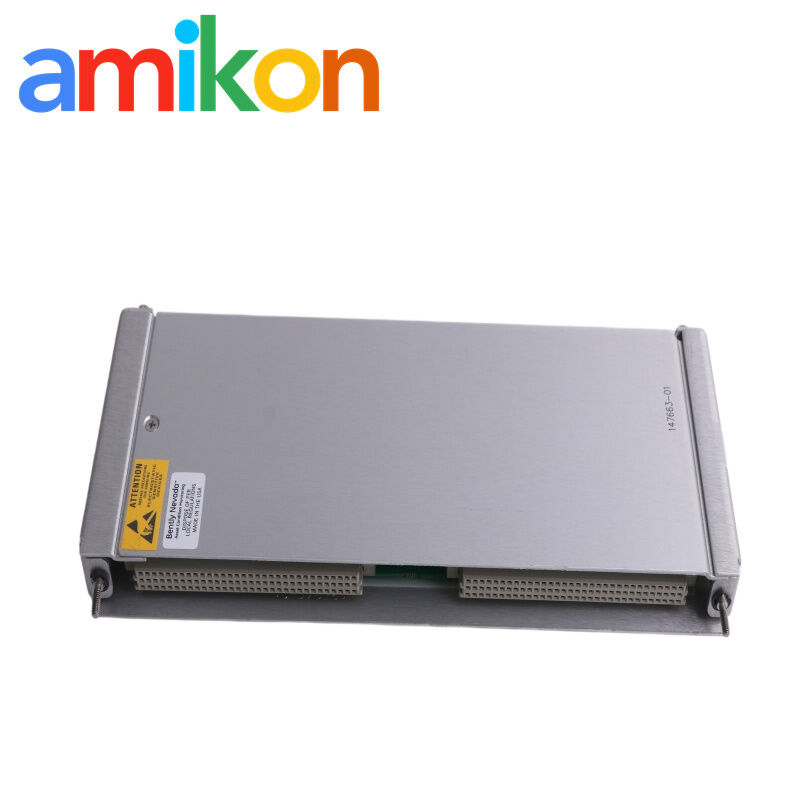

147663-01 VGA I/O Module for Bently Nevada 3500/94 Machinery Protection System
Engineered for machinery protection, the Bently Nevada 147663-01 VGA I/O Module provides secure internal termination for the 3500/94 system. It routes real-time vibration data directly to localized monitors, enabling operators to identify critical asset risks instantly.
Interface: Internal Termination VGA Module
Value: Direct 3500 rack compatibility with zero hardware lag.
Value: Direct 3500 rack compatibility with zero hardware lag.
Signal Output: Analog RGB and Sync
Value: Feeds touchscreens directly for split-second safety decisions.
Value: Feeds touchscreens directly for split-second safety decisions.
Operating Temp: -30°C to 65°C
Value: Ensures stable performance in unconditioned, high-heat cabinets.
Value: Ensures stable performance in unconditioned, high-heat cabinets.
Engineer's Note: "Select 147663-01 for internal termination setups requiring hardwired rack displays. It routes VGA and RS232 touch data efficiently without external converters."
Project Case: Widely deployed in turbine and compressor monitoring racks, running continuously under harsh ambient conditions with zero signal degradation.
Global Distribution Network
Amikon supplies industrial automation spare parts, including PLC, DCS, and TSI systems, to more than 160 countries worldwide.
- North America: Steady demand, especially from the US and Canada. Significant orders from oil & gas plants and automotive production sites.
- Europe: Similar in scale, with Germany and UK standing out. Regular orders from chemical plants and heavy equipment lines.
- Middle East and Africa: Primarily refinery projects and mining sites. Frequent shipments to UAE, Saudi Arabia, South Africa, including remote field installations.
- Asia-Pacific: Broad demand across China, Singapore, Australia, India. Diverse applications from semiconductor fabs to power stations and metallurgy plants.
- South America: Smaller volume but stable. Brazil, Chile, Argentina mostly connected with mining, copper operations, and hydropower projects.
Request a Quote
Service Guarantees
- 100% Original Parts - Vetted industrial automation & DCS/PLC spares
- Massive Inventory - 30,000+ items ready for immediate shipment
- 12-Month Warranty - Fully covered by a 1-year quality guarantee
- Fast Global Shipping - Secure express delivery to 160+ countries
- 24/7 Rapid Response - Dedicated 1-on-1 customer service
Technical Specifications & FAQ
Q1: Where is the Bently Nevada 147663-01 normally installed?
A1: The 147663-01 is used with the 3500/94 VGA Display Unit in a Bently Nevada 3500 system. It goes into the rear slot of the rack and connects the display side with the internal touchscreen wiring.
Q2: What connections does the 147663-01 handle?
A2: The module is mainly used for VGA display communication and touchscreen control. It supports Analog RGB and Sync video signals, together with an RS232 Touch Screen Controller connection.
Q3: Why do plants use the 147663-01 for machinery monitoring?
A3: For some sites, having a local screen near the machine is more convenient for operators. The 147663-01 I/O module is commonly found in applications like steam turbine monitoring and centrifugal compressor protection.
Q4: How should the 147663-01 be checked before replacement?
A4: Before ordering, check the existing 3500/94 setup and confirm the part marking. The Bently Nevada 147663-01 is an internal termination module, so matching the current rack arrangement is the usual way to avoid ordering mistakes.
