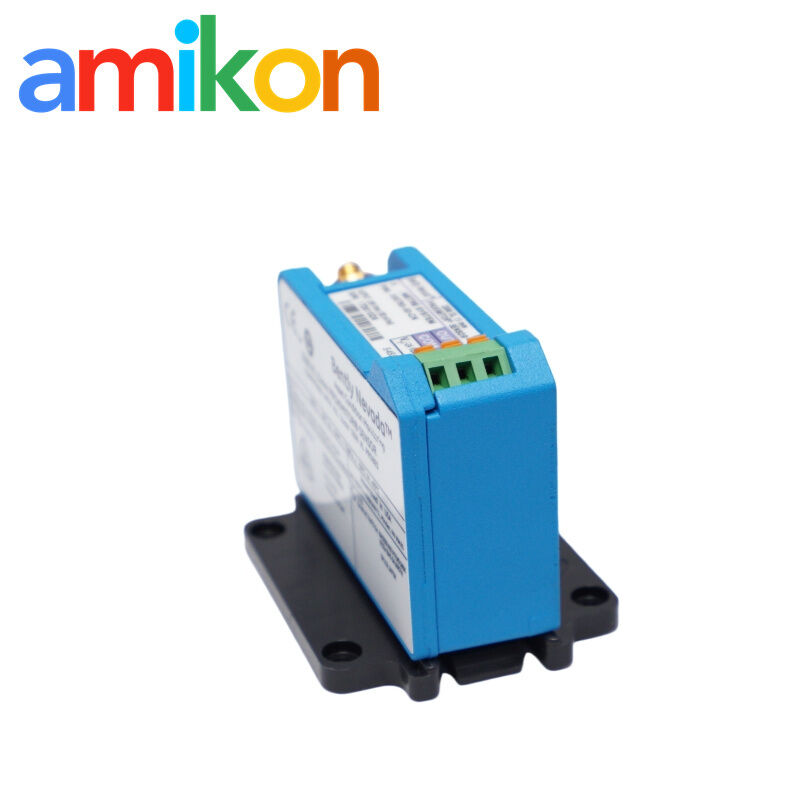

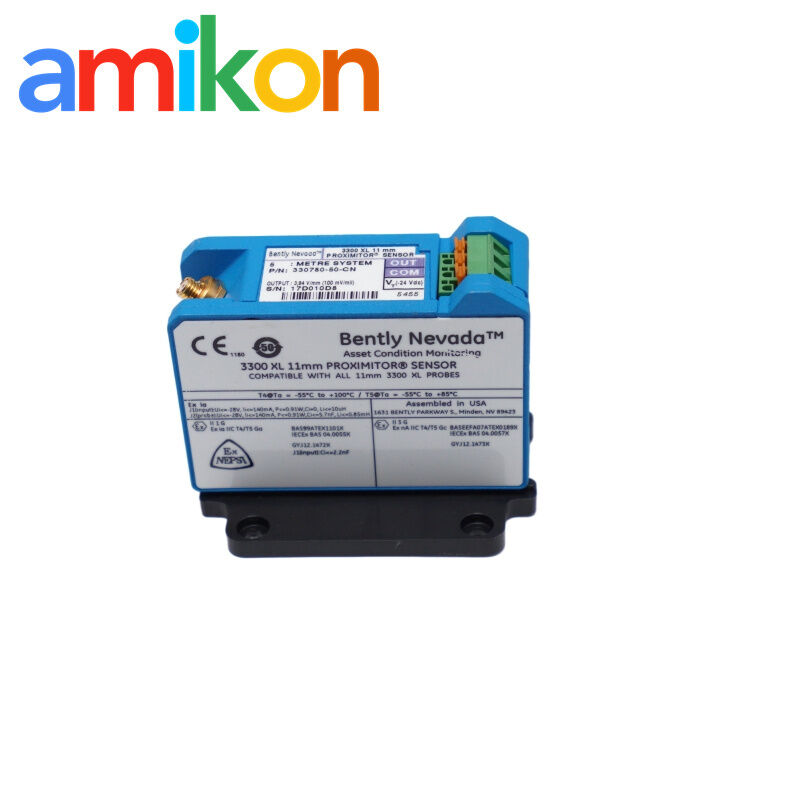

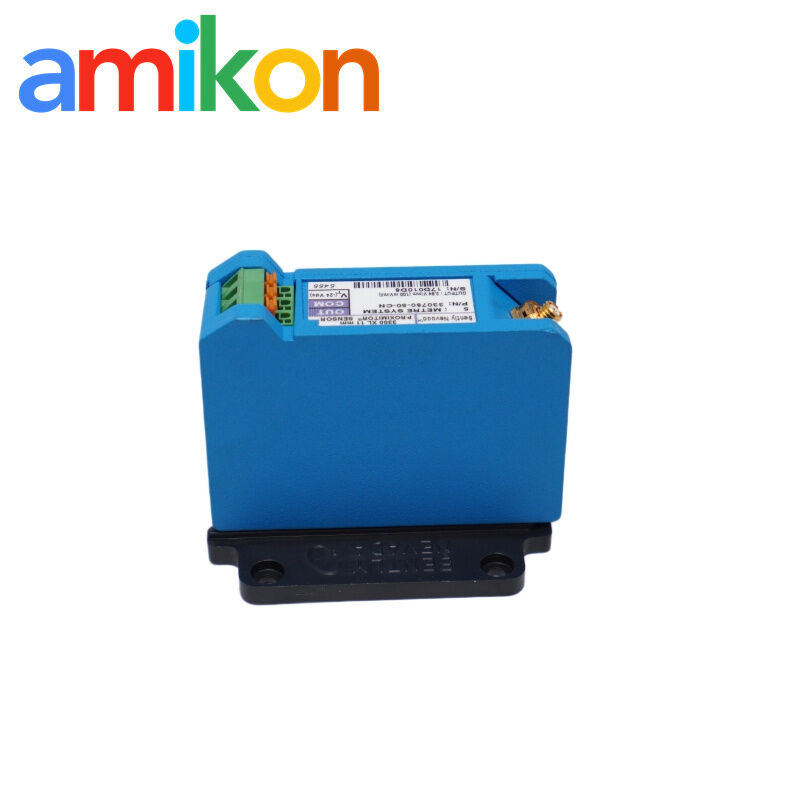

330780-50-CN 3300 XL 11mm Proximitor Sensor for Turbine Vibration Monitoring

The fundamental difference lies in regional regulatory compliance and agency approvals, while their core physical and electrical performance remains identical. The standard global model `330780-50-00` carries standard international approvals, whereas the 330780-50-CN is specifically certified with the -CN suffix for the Chinese market. This means the 330780-50-CN comes with mandatory NEPSI explosion-proof certification and CCC markings. If your project or end-user facility is located in China--especially within hazardous petrochemical or power plant zones--you must source the 330780-50-CN to ensure the machinery protection system passes local regulatory and fire safety inspections without compliance hurdles.

The 330780-50-CN is an integral part of the 3300 XL 11mm proximity transducer system and is electrically tuned for specific physical dimensions.

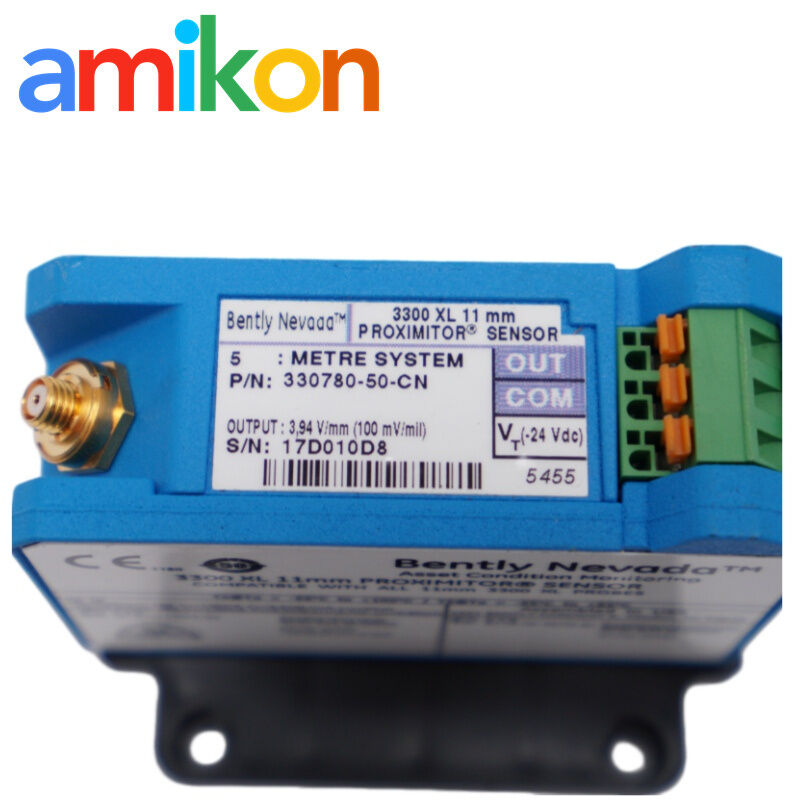

• The 5-meter constraint: The 330780-50-CN features a `-50` option code, denoting it is calibrated precisely for a 5.0-meter total electrical length (Panel Mount). The combined length of your 11mm proximity probe and extension cable must equal exactly 5.0 meters. Altering this length shifts the system's impedance, causing severe calibration errors.
• The 11mm vs. 8mm mismatch: You cannot mix the 330780-50-CN with 8mm probe components. Because the 330780-50-CN is engineered with a 3.94 V/mm (100 mV/mil) scale factor to accommodate the wider linear range of an 11mm probe tip, pairing it with an 8mm probe will lead to completely incorrect voltage outputs, rendering your axial thrust position or radial vibration measurements useless.

The 330780-50-CN acts as the crucial analog-to-digital bridge for critical asset protection. In a standard setup, the non-contact eddy current probe senses the microscopic shaft displacement of a turbine or centrifugal compressor. This raw RF signal is sent via extension cable to the 330780-50-CN proximitor sensor, which conditions it into a clean, linear DC voltage. This voltage output is then routed directly to the monitor modules inside the Bently Nevada 3500 rack --typically the 3500/42M Proximitor Monitor or 3500/40M Proximity Monitor. The 3500 system processes this data for real-time API 670 compliant machinery protection, triggering automatic alarms or emergency trips if fluid-film bearing vibrations exceed safe limits.

When a 330780-50-CN exhibits extreme saturation voltages, it usually indicates a loop continuity, power supply, or gapping issue rather than a faulty sensor.

• Voltage near -22 Vdc (Negative Saturation): This typically points to an open circuit or an over-range condition. Check all coaxial connectors (such as the ClickLoc connectors) between the 330780-50-CN, extension cable, and probe. Moisture, dirt, or loose connections mimic an infinite physical gap, forcing the sensor output to drop to its lower negative limit.
• Voltage near 0 Vdc to -2 Vdc: This indicates either a short circuit or a zero-gap condition where the probe tip is directly touching the target metal. Inspect the extension cable for pinches or insulation wear that might ground the signal. Additionally, verify that the terminal block powering the 330780-50-CN is receiving its correct -17.5 Vdc to -26 Vdc supply from the 3500 monitor card, as a complete loss of power will also result in 0 Vdc output.
