330104-12-20-10-01-00 Bently Nevada 3300 XL 8 mm Proximity Probe
Bently Nevada 330104-12-20-10-01-00 Bently Nevada 3300 XL system
3300 XL 8mm proximity probe steam turbine vibration monitoring
330104 metric armored sensor non-contact vibration measurement
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330104-12-20-10-01-00
Contact Us
Request A Quote
Product Details
Model:
330104-12-20-10-01-00
Place Of Shipment:
Xiamen,China
Weight:
0.12kg
Shipping:
TNT, DHL, FedEx, EMS, UPS
Country Of Origin:
USA
Packaging:
Original New Packaging
Expected Shipping Dimensions:
104x2x1.6cm
Highlight:
Bently Nevada 330104-12-20-10-01-00 Bently Nevada 3300 XL system
,3300 XL 8mm proximity probe steam turbine vibration monitoring
,330104 metric armored sensor non-contact vibration measurement
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

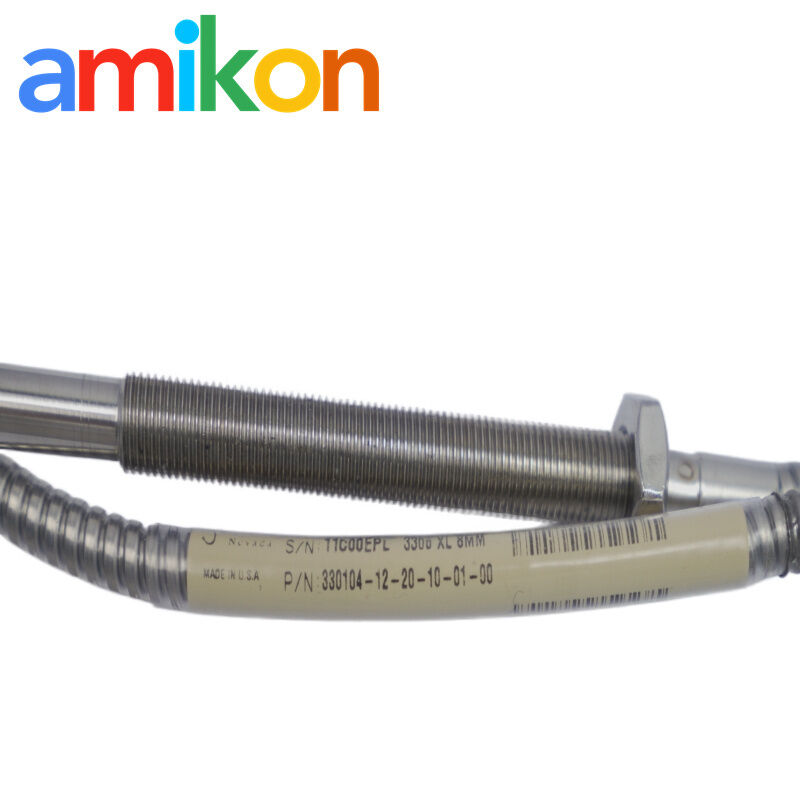

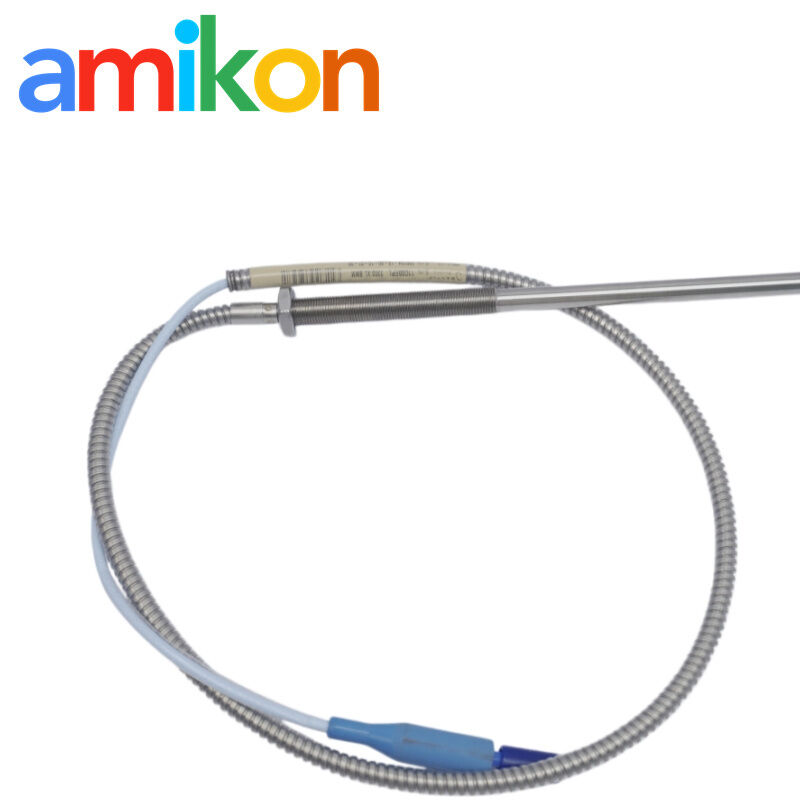

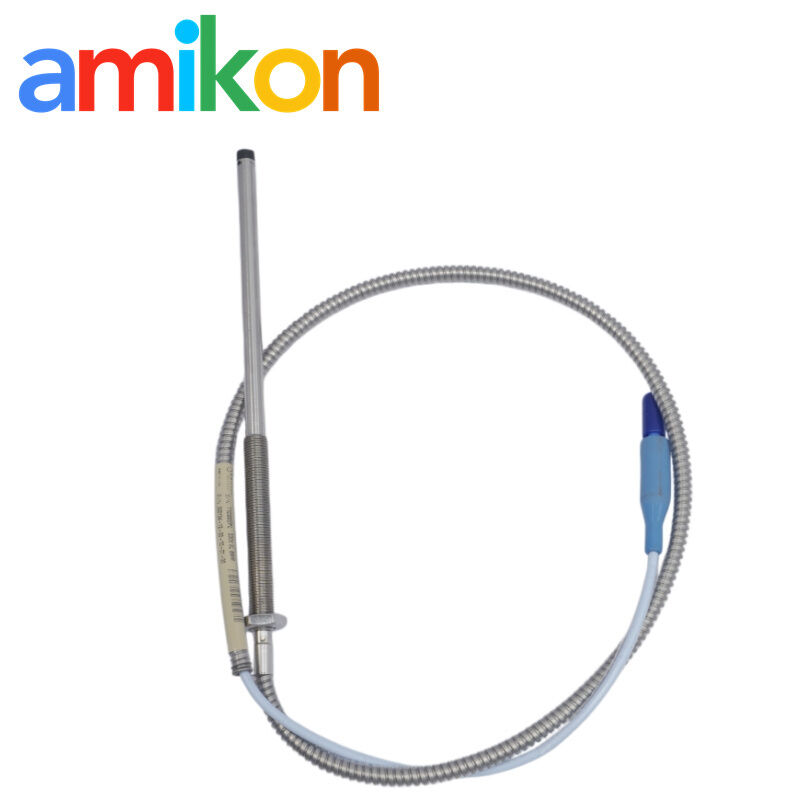

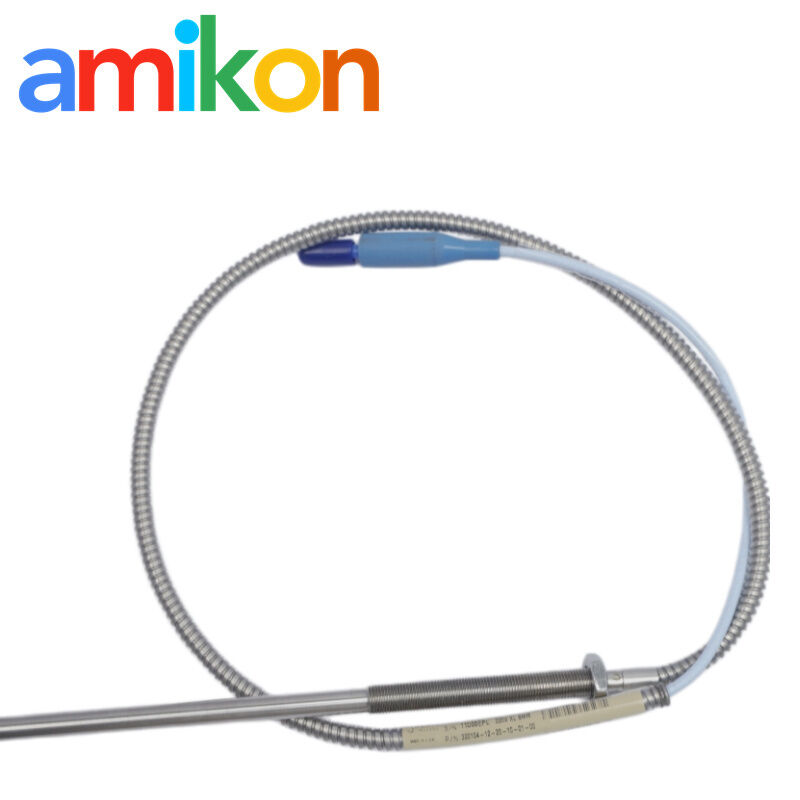

330104-12-20-10-01-00 Bently Nevada 3300 XL 8 mm Proximity Probe
Product Overview
- Product: 3300 XL 8mm Proximity Probe
- Function: Provides non-contact, high-precision measurement of radial vibration, axial position, and speed (Keyphasor) on rotating machinery like turbines and compressors
Part Number Breakdown
- 330104: 3300 XL 8mm Probe with M10 × 1 metric threads and stainless steel armored cable
- 12: 120 mm Unthreaded Length
- 20: 200 mm Overall Case Length
- 10: 1.0-meter Total Cable Length
- 01: ClickLoc coaxial connector with an installed connector protector
- 00: Standard version (No special agency approval required)
Key Specifications
- Measurement Principle: Eddy current (non-contact). The probe sits close to the shaft and picks up movement through electromagnetic field changes, mainly used for non-contact vibration measurement in rotating machinery.
- Linear Range: 2.0 mm (80 mils), typical working window in a full 3300 XL system for tracking shaft motion and vibration behavior.
- Scale Factor: 7.87 V/mm (200 mV/mil) when paired with a complete 3300 XL transducer system. Real performance depends on proper matching with the 3300 XL extension cable and Proximitor sensor.
- Operating Temperature: -51°C to +177°C (-60°F to +350°F) for both probe and cable, suitable for harsh turbine and compressor environments where high heat and oil exposure are common.
- System Integration: Must be paired with a matching 3300 XL Extension Cable and Proximitor Sensor
Global Distribution Network
Amikon supplies industrial automation spare parts, including PLC, DCS, and TSI systems, to more than 160 countries worldwide.
- North America: Steady demand from US and Canada, serving oil & gas plants and automotive production sites
- Europe: Strong presence in Germany and UK, supporting chemical plants and heavy equipment lines
- Middle East and Africa: Serving refinery projects and mining sites in UAE, Saudi Arabia, South Africa, and remote field installations
- Asia-Pacific: Broad coverage in China, Singapore, Australia, India for semiconductor fabs, power stations, and metallurgy plants
- South America: Stable operations in Brazil, Chile, Argentina for mining, copper operations, and hydropower projects
Request a Quote Now
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
Service Features
100% Original Parts - Vetted industrial automation & DCS/PLC spares
Massive Inventory - 30,000+ items ready for immediate shipment
12-Month Warranty - Fully covered by a 1-year quality guarantee
Fast Global Shipping - Secure express delivery to 160+ countries
24/7 Rapid Response - Dedicated 1-on-1 customer service
Frequently Asked Questions
Q1: What is the exact technical configuration of the Bently Nevada 330104-12-20-10-01-00 proximity probe?
A1: This Bently Nevada 330104-12-20-10-01-00 belongs to the 3300 XL 8mm eddy current proximity probe range, in an armored metric setup. You’ll usually see an M10 × 1 thread, stainless steel armored cable, and sizing around 120 mm unthreaded length with a 200 mm case length. Cable is 1.0 meter, ending with a ClickLoc coaxial connector and basic protection cap. It’s the kind of configuration often used in standard industrial environments where vibration, oil mist, and mechanical wear are always present.
Q2: How does the 330104-12-20-10-01-00 probe work in a machinery protection system?
A2: In actual operation, nothing touches the shaft. The probe stays close and picks up movement through an eddy current transducer principle, basically sensing changes in the electromagnetic field as the shaft moves. That change gets converted into a voltage signal. From there it reflects radial shaft vibration, sometimes axial thrust position displacement, and overall running condition data used for non-contact vibration measurement in protection systems.
Q3: What scale factor and range does the Bently Nevada 330104-12-20-10-01-00 support?
A3: With a complete 3300 XL system, the working range is about 2.0 mm (80 mils) and sensitivity is typically 200 mV/mil (7.87 V/mm). In practice, it’s not something adjusted often, but the whole setup—probe, 3300 XL extension cable, and 3300 XL Proximitor sensor—needs to be matched properly. Otherwise signal stability in machinery protection system telemetry calibration and API 670 compliant monitoring can drift a bit, especially in long-term operation.
Q4: Where is the 330104-12-20-10-01-00 used?
A4: You’ll see it in places like steam turbine vibration monitoring, centrifugal compressor shaft alignment tracking, and general turbo-machinery condition monitoring systems. Power plants, oil & gas units, big rotating assets—basically environments where downtime is expensive. The armored cable version helps when oil mist, heat, and mechanical stress are always present, especially around fluid-film bearing machinery diagnostics.
Q5: What is needed for installation of a 330104-12-20-10-01-00 probe?
A5: It’s not a standalone sensor. You’ll need a 3300 XL extension cable plus a 3300 XL Proximitor sensor to complete the loop. In many cases, people also add proper mounting hardware to keep the probe gap stable against the shaft. Once connected into a Bently Nevada 3500 system, usually via a 3500/40M proximity monitor module, it becomes part of the full machinery protection system chain.
