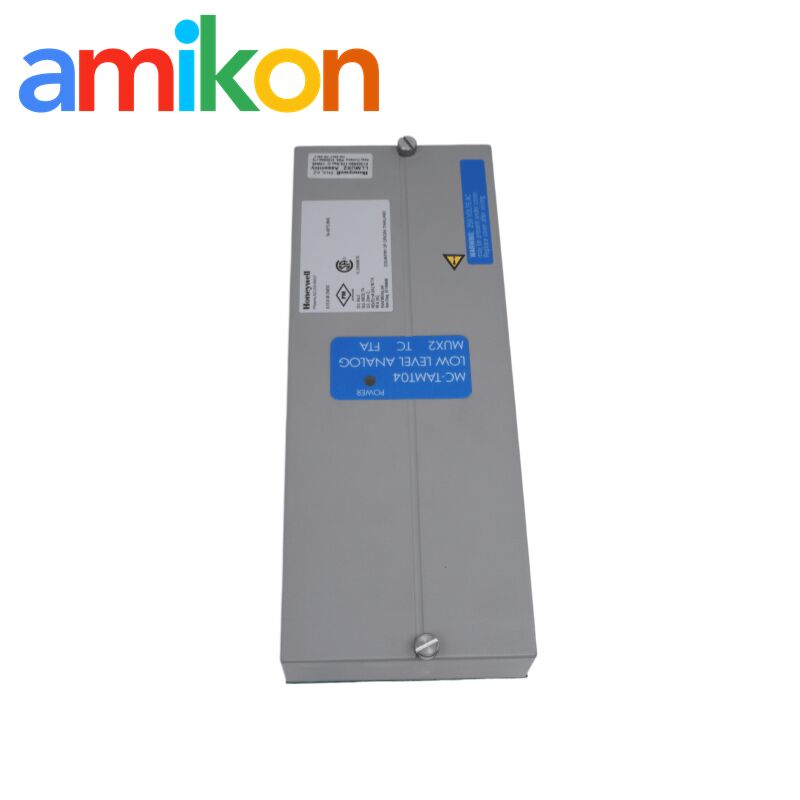

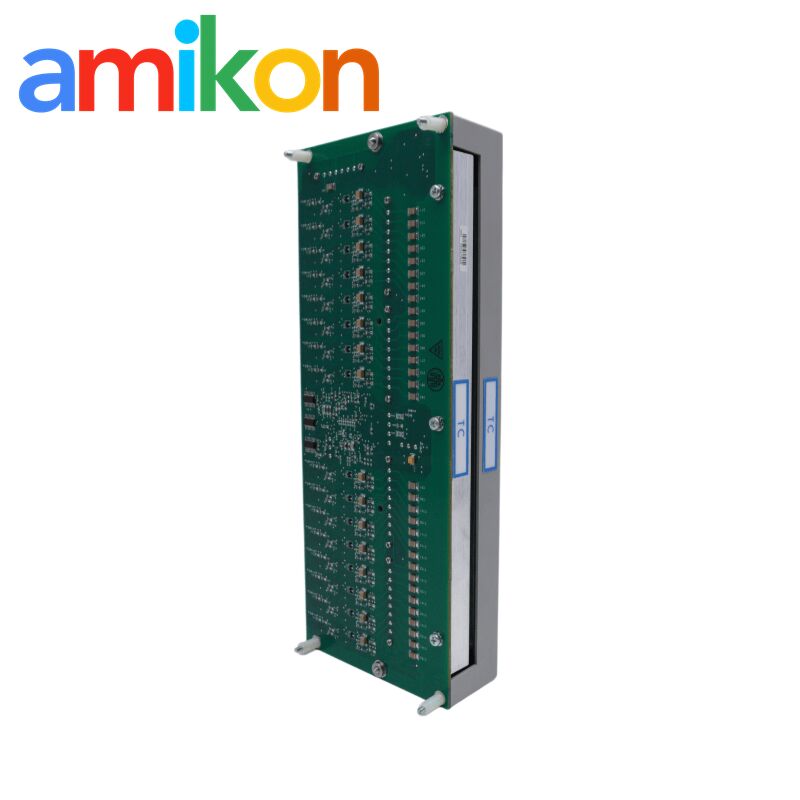

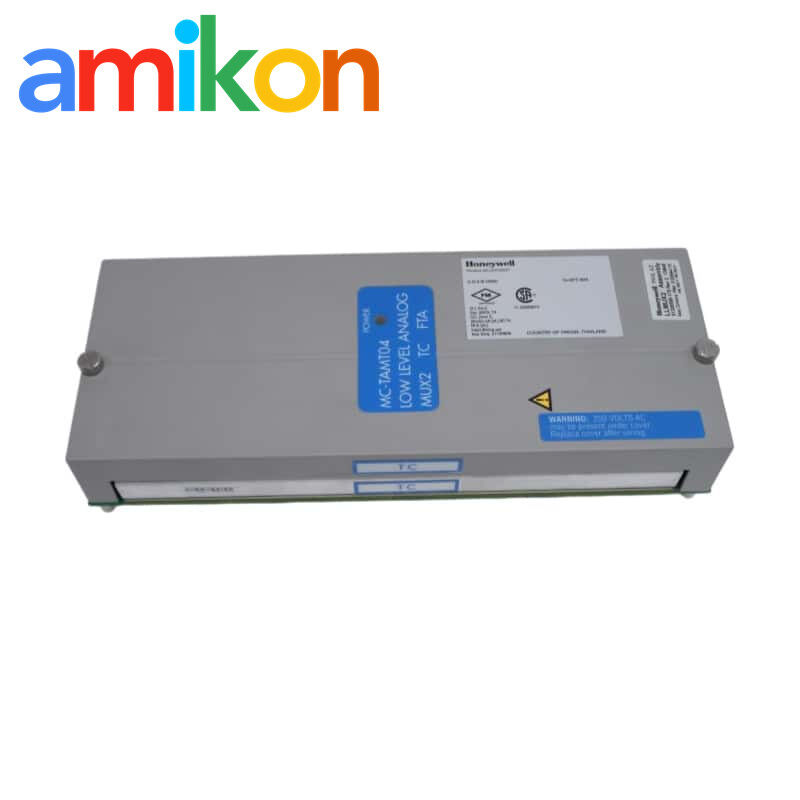

Honeywell MC-TAMT04 51305890-175 Thermocouple Input Terminal Board with Cold Junction Compensation
Honeywell MC-TAMT04 51305890-175 Thermocouple Input Terminal Board with Cold Junction Compensation
Cold Junction Compensation Thermocouple Input Terminal Board
Type J
K
Place of Origin:
USA
Brand Name:
Honeywell
Model Number:
MC-TAMT04 51305890-175
Contact Us
Request A Quote
Product Details
Estimated Shipping Size:
30.5x11.9x7cm
Weight:
0.85 Kg
Channel Bandwidth:
0 To 4.7 Hz (-3 DB)
Gain Error (-20 To +100 Millivolt Range):
0.050% Full Scale Max
RTD Inputs:
+/-20 Ppm Per Deg C Max
TC Linearization Accuracy:
±0.05 Ω / Deg C
Packaging:
Original New Packaging
Condition:
100% Original
Highlight:
Cold Junction Compensation Thermocouple Input Terminal Board
,Type J
,K
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Honeywell CC-PAOH51 51410070-275 16 Output Channels HART-Capable Non-Incendive Analog Output Module
Get Best Price
video
Honeywell FC-TSDO-04UNI Safe Digital Output Module with 4 A Maximum Continuous Current
Get Best Price
video
Honeywell 8C-TDOD61 51306973-175 Digital Output Module with 1000 VAC RMS Galvanic Isolation
Get Best Price
video
Honeywell DC-TUIO31 51307772-176 16-bit A/D Converter Resolution Analog Input Module
Get Best Price
Contact Us
Contact Now
Product Description
Honeywell MC-TAMT04 51305890-175 Thermocouple Input Terminal Board
Systemic Ecosystem Alignment
Host Architecture: Direct-bus interfacing for Honeywell TDC 3000 and Experion PKS (LCN/UCN) nodes. Optimized for LLAI (Low Level Analog Input) processor integration.
Termination Topology: Functions as a dedicated Field Termination Assembly (FTA), bridging field-side thermocouple arrays to I/O processing units via standard 50-pin shielded cabling.
Legacy Continuity: Drop-in replacement capability for 51305890 series hardware, ensuring zero-reconfiguration migration for aging control loops.
Sensor-to-Logic Interfacing
Transducer Versatility: Native support for Type J, K, T, E, R, S, and B thermocouples. Direct millivolt input handling (-20 to +100 mV range) for non-standard thermal sensors.
CJC Synchronization: On-board Cold Junction Compensation circuitry eliminates the need for external reference junctions, maintaining signal integrity at the terminal termination point.
Linearization Precision: Hard-coded logic for ± 0.05 Ω / deg C accuracy, compensating for non-linear thermal EMF characteristics across the full operating spectrum.
Compatible Industrial Control Components
- DCS Controllers: Hard-to-find processors for decentralized networks
- PLC I/O: Discrete and analog modules for immediate logic restoration
- VFD / Inverters: Precision speed control for heavy-duty motors
- Operator Interface: HMI panels to restore visibility on your plant floor
The AMIKON Sourcing Protocol
Direct Inventory: We hold the stock. No middleman, no unnecessary delays.
Tech-Verified: Our engineers cross-reference part numbers for 100% compatibility.
Global Logistics: 24/7 dispatch capabilities for critical MRO emergencies.
Don't let a "discontinued" status force an expensive system migration. We specialize in Legacy Industrial Electronics, providing the exact obsolete PLC modules and DCS boards needed to extend the life of your existing infrastructure.
Our Commitment to Quality
- Certified Performance: Every part is tested and comes with a one-year warranty. We don't ship until we're sure it's factory-ready.
- Inventory Depth: Massive stock of End-of-Life (EOL) series including legacy CPU units and legacy analog I/O cards.
- Rapid Response: When a machine stops, the clock is ticking. We provide quotes within minutes and handle all export paperwork instantly.
- Professional Handling: Specialized ESD-safe packaging ensures that sensitive electronic controllers arrive in perfect working condition.
Niche Expertise
Triconex (3008/3625/3721) | ABB (S800/S900) | Bently Nevada (3500 Series)
Compatible Honeywell Part Numbers
| HONEYWELL Part Numbers |
|---|
| 8C-PDIL51 51454359-175 | 8C-TAIX51 51306979-175 | MU-TDOR22 51309150-125 |
| 8C-TDIL01 51306856-175 | 8C-TAIX61 51306977-175 | CC-PAIX01 51405038-275 |
| 8C-TDIL11 51306858-175 | 8C-TAOX51 51306983-175 | MU-PDIX02 51304485-100 |
| DC-TCF901 51307593-176 | 8C-TAOX61 51306981-175 | CC-TAIN01 51306513-175 |
| DC-TFB412 51307618-176 | 8C-TPOX01 51307022-175 | 51306975-175 |
| MC-TDOR62 51309150-275 | MU-TAOX02 51304476-125 | 51401052-100 |
| TK-ORC161 | CC-PAON01 51410070-175 | 8C-PAIHA1 51454470-275 |
| 8C-TAID61 51307069-175 | 10001/R/1 | 8C-PAOHA1 51454469-275 |
| 8C-TAIDB1 51307133-175 | MU-TDID12 51304441-125 | MU-TDOA13 51304648-100 |
| 8C-TAIM01 51306999-175 | CC-PAOX01 51405039-275 | 2MLF-RD8A |
