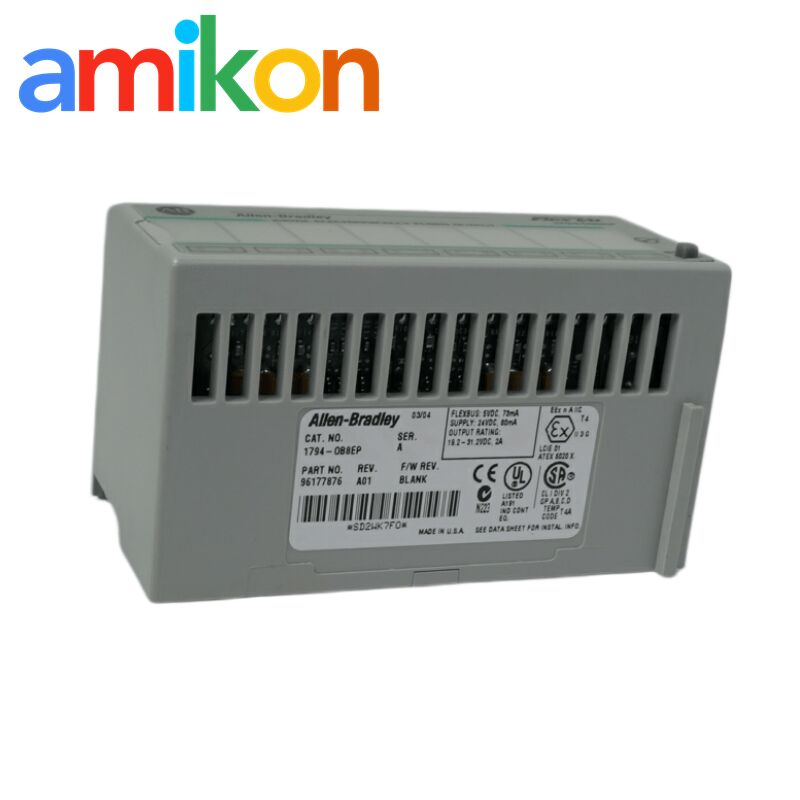

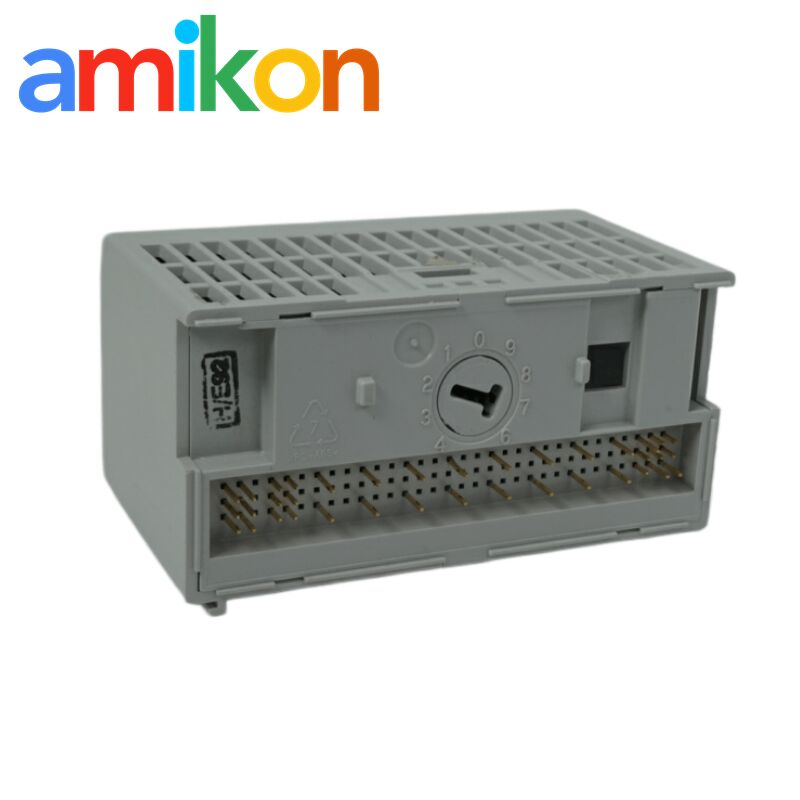

Allen Bradley 1794-OB8EP Digital Output Module with 8 Current Sourcing Outputs
Allen Bradley 1794-OB8EP Digital Output Module with 8 Current Sourcing Outputs
8 Current Sourcing Outputs Digital Output Module
24V DC Nominal Voltage Output Module
Electronically Fused 1794-OB8EP
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1794-OB8EP
Contact Us
Request A Quote
Product Details
Number Of Outputs:
8, Current, Sourcing
On-state Voltage, Output Min:
19.2V DC
On-state Voltage, Output Nom:
24V DC
Off-state Leakage Current, Max:
0.5 MA
FlexBus Current:
73 MA @ 5V DC
Power Dissipation, Max:
5.5 W @ 31.2V DC
Thermal Dissipation, Max:
18.8 BTU/hr @ 31.2V DC
Fusing:
Outputs Are Electronically Fused
Highlight:
8 Current Sourcing Outputs Digital Output Module
,24V DC Nominal Voltage Output Module
,Electronically Fused 1794-OB8EP
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Allen Bradley 1785-L80C Programmable Controller with ControlNet Communication 32K Words Data Memory
Get Best Price
video
Allen Bradley 1756-L71S Logix 5571S Automation Controller 2/1M with 30 Volts Continuous Isolation
Get Best Price
video
Allen Bradley 1775-LX Expansion Module with 115/230V AC Power 1500V AC Isolation
Get Best Price
Contact Us
Contact Now
Product Description
Allen Bradley 1794-OB8EP Digital Output Module Programming
If your program automatically checks for fault bits, bits 8 through 15 of read word 1 must be masked. This sample program demonstrates configuration for a module at rack address 1, group 0. Add similar rungs to your existing program structure.
1794-OB8EP Fault Reset Procedures
Fault conditions can be cleared using three methods:
- Press the fault reset button located on the front panel of the module
- Toggle the output reset bit (write word 1, bit 08)
- Cycle backplane power to the module

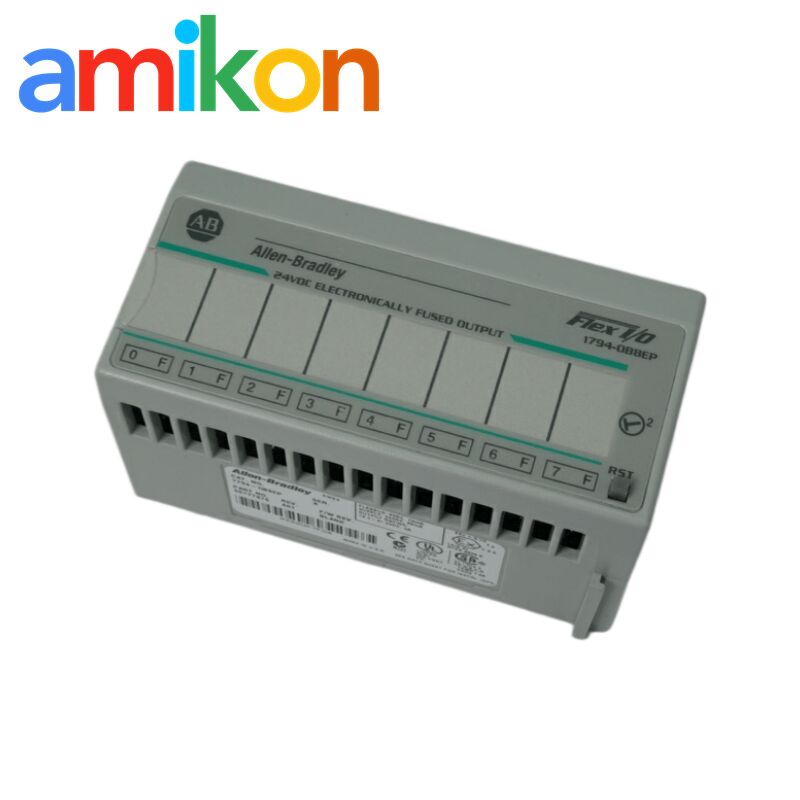

Using the 1794-OB8EP Reset Button
When pressing the reset button, the fault indicator for the affected output turns off for approximately 1.2 seconds. Following this delay, the faulted output attempts to turn on. If the external condition causing the fault has been corrected, the output will remain active, the fault indicator will stay off, and the status indicator will illuminate.
