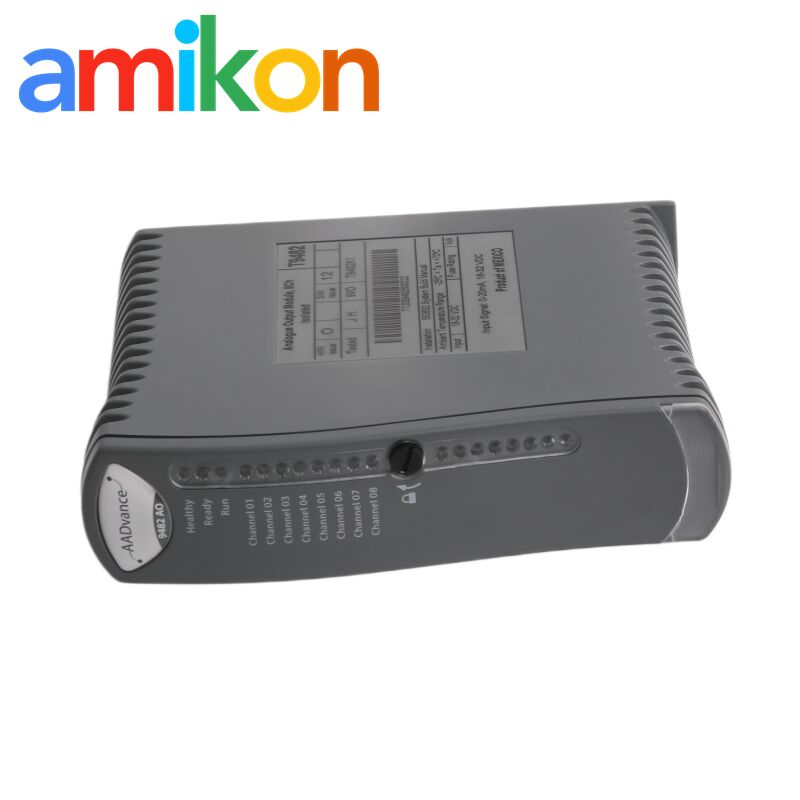

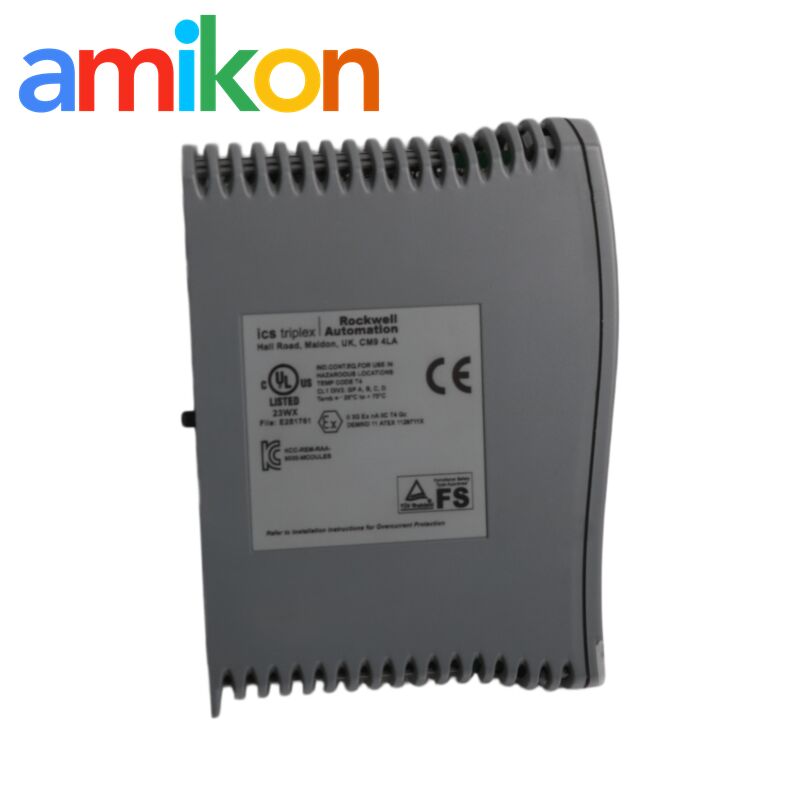

ICS Triplex T9482 Analog Output Module with 18-32 Vdc Range, 200 μA Safety Accuracy
ICS Triplex T9482 Analog Output Module with 18-32 Vdc Range, 200 μA Safety Accuracy
18-32 Vdc range Analog Output Module
200 μA safety accuracy ICS Triplex Module
0.98 μA LSB precision Output Module
Place of Origin:
USA
Brand Name:
ICS triplex
Model Number:
T9482
Contact Us
Request A Quote
Product Details
Voltag:
18 Vdc To 32 Vdc Range
Module Supply Power Dissipation:
3.6 W
Maximum Voltage Without Damage:
± 60 Vdc
Safety Accuracy:
200 μA
Self-test Interval:
< 1 Hour, System Dependent
Value Of Least Significant Bit:
0.98 μA
Manufacturer:
ICS Triplex
Weight:
0.55 Kg
Highlight:
18-32 Vdc range Analog Output Module
,200 μA safety accuracy ICS Triplex Module
,0.98 μA LSB precision Output Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
ICS Triplex T8403C Input Module with 40 Input Channels 5 kΩ Impedance and ±50 Vdc Withstanding
Get Best Price
Video
ICS Triplex T8461C 60V DC Digital Output Module with Triple Modular Redundant Design
Get Best Price
CONTACT US
Contact Now
Product Description
Technical Specifications & Capabilities
[01] Supply Regulation Does the T9482 sustain logic stability across an 18-32 Vdc input swing? Yes; the internal power stage is rated to handle this entire DC voltage envelope without derating. | [02] Redundancy Logic Is the module validated for 1oo2D safety-degraded architectures? Yes; the firmware and hardware pathways fully support both 1oo1D and 1oo2D high-integrity configurations. |
[03] Over-Scale Capability Does the drive capacity extend beyond the nominal 20 mA ceiling? Yes; the output stage can be driven from 0.1 mA up to a maximum of 24 mA for advanced diagnostic signaling. | [04] Step Precision Is the discretization step (LSB) restricted to sub-microampere levels? Yes; the precision DAC delivers a 0.98 μA least significant bit for high-granularity control. |
[05] Electrical Hardening Will the circuitry survive a ±60 Vdc transient at the terminals? Yes; the protection threshold is rated to prevent hardware failure up to a ±60 Vdc maximum. | [06] Self-Diagnostic Timing Does the internal self-test cycle execute in under 60 minutes? Yes; while system-dependent, the mandatory self-test interval is consistently less than one hour. |
[07] Thermal Profile Is the operational power dissipation capped at 3.6 W? Yes; the module maintains a lean 3.6 W thermal footprint for standard cabinet loading. | [08] Safety Accuracy Is the worst-case safety deviation limited to 200 μA? Yes; the T9482 maintains a rigorous 200 μA safety accuracy threshold for mission-critical loops. |
Reliable Industrial Sourcing Solutions
In an era of unpredictable supply chains, Amikon provides the stability your CAPEX budget needs. We act as a strategic reserve for Tier-1 companies, offering a sustainable source for both cutting-edge and obsolete industrial machinery parts. We help you maintain low technology ownership costs without sacrificing system accuracy.
Our Operational Excellence
- 20 Years of Market Mastery - Two decades of navigating industrial asset partnerships and logistics
- Digital Transformation Support - Helping you integrate smart manufacturing through high-quality sensors and actuators
- Zero-Risk Sourcing - Comprehensive warranties on all hard-to-find and discontinued industrial electronics
- Price Transparency - Honest, competitive pricing designed to maximize your ROI throughout the product lifecycle
Core Product Categories
Controllers: DCS, PLC, and TSI monitoring systems
Interfaces: Industrial HMI, LCD panels, and controllers
Motion Control: High-torque Servo Motors and Frequency Converters
Power Units: Specialized Industrial Power Supplies
Streamlined Procurement Process
Searching for a specific PLC system component or HMI interface with a 20+ week factory lead time? Skip the queue. We provide high-performance industrial electronics with a focus on speed and authenticity. No refurbished units—only genuine factory automation hardware.
The Amikon Advantage
- Extensive Catalog: Global sourcing for PLC, DCS, and Drive systems
- Rapid Transit: Strategic partnerships with UPS, TNT, and EMS
- Price Point: Competitive EXW rates to reduce procurement overhead
- Documentation: Full technical datasheets available on request
Transaction Overview
- Status: New In Box (Factory Original)
- Coverage: 1-Year Warranty (365 Days)
- Processing: Ships within 48 hours
- Logistics: Approx. 5 days to destination
Direct Inquiry
Miya Zheng (Sales Manager)
M/WhatsApp: +86 180 2077 6792
Email: sales@amikon.cn
